9dne

Pseudosymmetric protein nanocage GI9-F7 (local refinement)

Method: ELECTRON MICROSCOPY D_max: 194.8 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dne
沉积日期 deposition_date	2024-09-17
结构标题 title	Pseudosymmetric protein nanocage GI9-F7 (local refinement)
关键词 keywords	;Fusion protein, Structural Genomics, Seattle Structural Genomics Center for Infectious Disease, SSGCID, pseudosymmetric protein nanocages, VIRAL PROTEIN ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.32 Å
回转半径 Rg (电子) rg_electron	62.84 Å
零角强度 I(0) i0	326344000.00
分子量 molecular_weight	160790.0 kDa
排除体积 excluded_volume	204600 Å³
包络体积 envelope_volume	334590 Å³
水化壳体积 shell_volume	47561 Å³
包络直径 envelope_diameter	210.6 Å
壳层 Rg shell_rg	56.87 Å
包络 Rg envelope_rg	60.61 Å
形状 Rg shape_rg	62.86 Å
总 Rg total_rg	62.61 Å
总原子数 total_atoms	11436
残基数 n_residues	1827
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

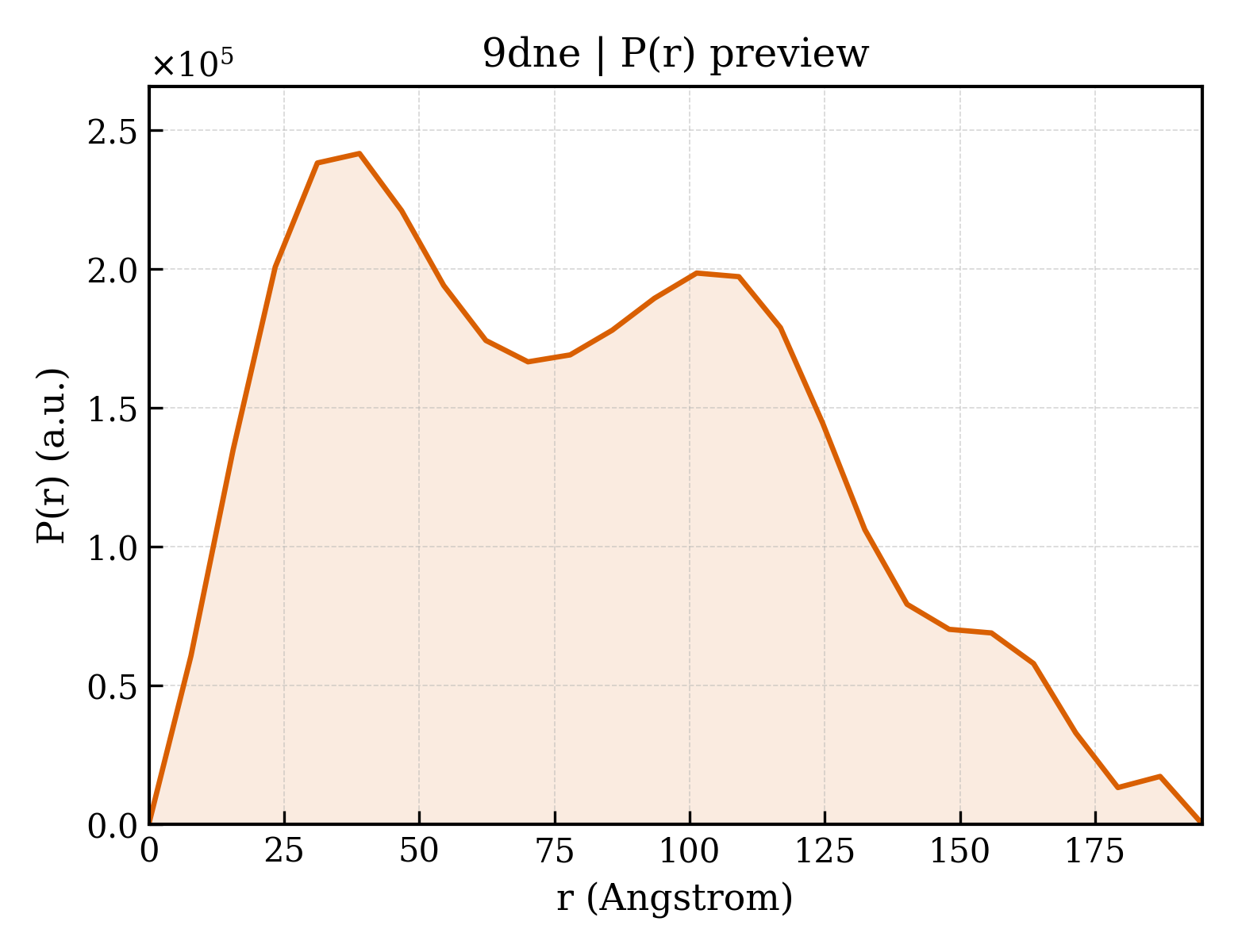

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	194.8 Å
Rg (实空间) rg_real	63.07 Å
Rg 误差 (实空间) rg_real_error	2.39 Å
I(0) (实空间) i0_real	3.2630e+08
I(0) 误差 (实空间) i0_real_error	7.3890e+06
Rg (倒空间) rg_reciprocal	61.61 Å
I(0) (倒空间) i0_reciprocal	325500000.0000
解质量估计 total_estimate	0.7199
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	39.0 Å
偏度 Skewness skewness	0.326
峰度 Kurtosis kurtosis	-0.797
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	12210000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.568; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.652; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Pseudosymmetric protein nanocage GI9-F7 A chain
分子量 formula_weight	24331.0 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,A,H
原子数 atom_count	11436

GSHHHHHHGSEKAAKAEEAARKMEELFKEHKIVAVLRANSVEEAKKKALAVFLGGVHLIEITFTVPDADTVIKELSFLKEMGAIIGAGTVTSVEQCREAVESGAEFIVSPHLDEEISQFCKEEGVFYMPGVMTPTELYKAMKLGHTILKLFPGEVVGPQFVEAMKGPFPNVKFVPTGGVNLDNVCEWFEAGVLAVGVGSALVEGTPVEVAEKAKAFVEKIEGCTE

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Pseudosymmetric protein nanocage GI9-F7 C chain
分子量 formula_weight	23530.3 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E,G

MKMEELFKEHKIVAVLRANSREEAIEIALAVFAGGVHLIEITFTVPDADEVIKRLEMLKRAGAIIGAGTVTSVEQCREAVESGAEFIVSPHLDEEISQFCKEEGVFYMPGVMTPTELVKAMKLGHTILKLFPGEVVGPQFVEAMKGPFPNVKFVPTGGVNLDNVCEWFEAGVLAVGVGSALVEGKPSEVAEKARRFVKKIRGCTEGSLEHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Pseudosymmetric protein nanocage GI9-F7 B chain
分子量 formula_weight	22115.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F,I

MKMEELFKEHKIVAVLRANSVEEAISKALAVFAGGVHLIEITFTVPDADQVIKELEFLKEAGAIIGAGTVTSVEQCREAVESGAEFIVSFHLDEEISQFCKEEGVFYMPGVMTPTELVKAMKLGHTILKLVPGEVVGPQFVEAMKGPFPNVKFVPTGGVNLDNVCEWFEAGVLAVGVGSALVEGEPAEVAELAIRFVEKIRGCTE

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	795360

fit	/app/data/saxs_computation/dn/9dne/9dne.fit
pddf	/app/data/pr_computation/dn/9dne/9dne.pr.out
profile	/app/data/saxs_computation/dn/9dne/9dne.dat
