9dtr

Structure of the yeast post-catalytic P complex spliceosome at 2.3 Angstrom resolution

Method: ELECTRON MICROSCOPY D_max: 229.7 Å Quality: EXCELLENT

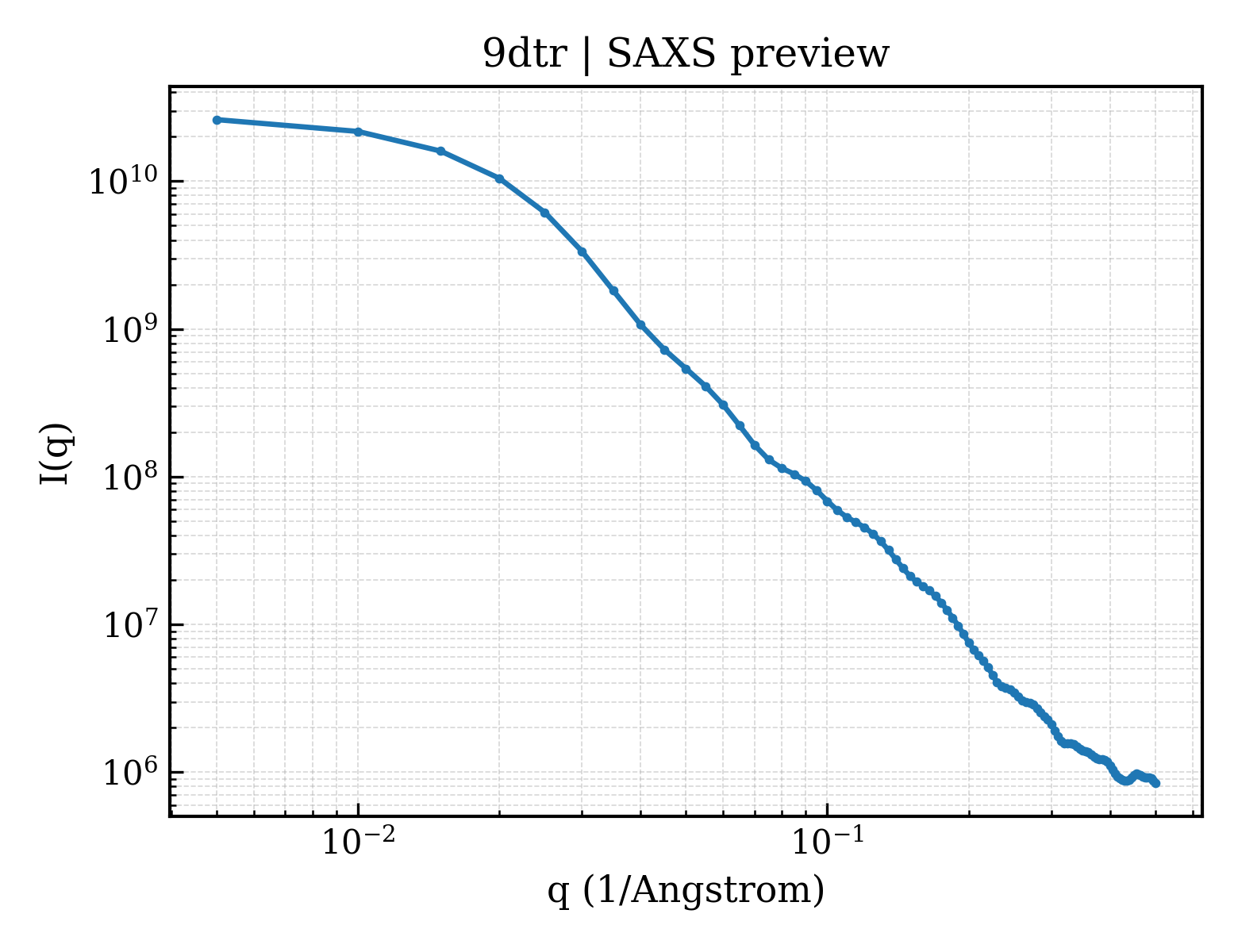

SAXS 散射曲线 SAXS Profile

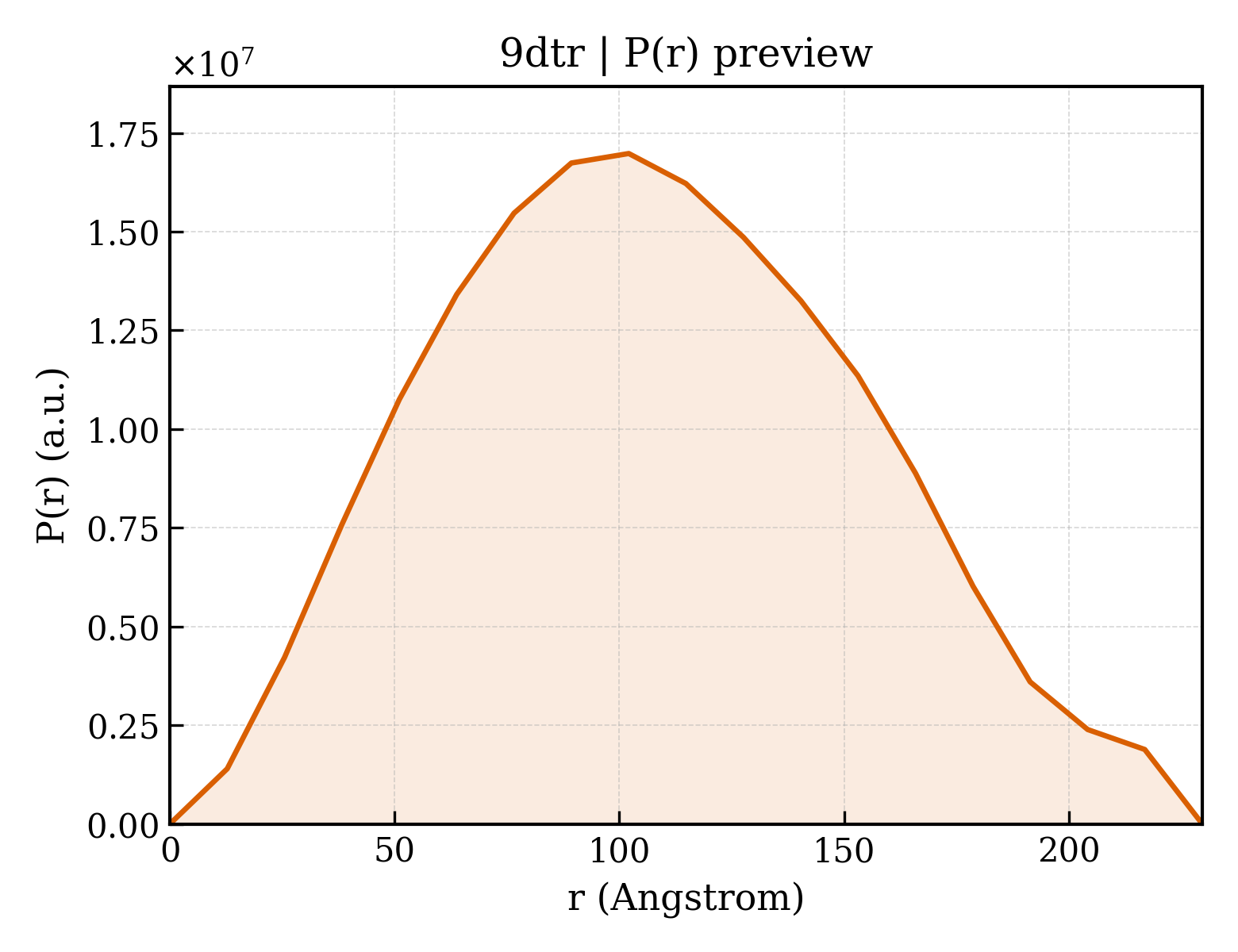

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dtr
沉积日期 deposition_date	2024-10-01
结构标题 title	Structure of the yeast post-catalytic P complex spliceosome at 2.3 Angstrom resolution
关键词 keywords	spliceosome, snRNA, yeast, ribonucleoprotein complex, SPLICING; SPLICING
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	85.76 Å
回转半径 Rg (电子) rg_electron	85.73 Å
零角强度 I(0) i0	27749300000.00
分子量 molecular_weight	1304600.0 kDa
排除体积 excluded_volume	1584800 Å³
包络体积 envelope_volume	2791500 Å³
水化壳体积 shell_volume	265890 Å³
包络直径 envelope_diameter	310.5 Å
壳层 Rg shell_rg	85.17 Å
包络 Rg envelope_rg	85.74 Å
形状 Rg shape_rg	85.82 Å
总 Rg total_rg	85.47 Å
总原子数 total_atoms	91229
残基数 n_residues	10912
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	229.7 Å
Rg (实空间) rg_real	82.35 Å
Rg 误差 (实空间) rg_real_error	0.63 Å
I(0) (实空间) i0_real	2.6460e+10
I(0) 误差 (实空间) i0_real_error	4.5260e+08
Rg (倒空间) rg_reciprocal	85.53 Å
I(0) (倒空间) i0_reciprocal	27730000000.0000
解质量估计 total_estimate	0.9120
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	102.1 Å
偏度 Skewness skewness	0.187
峰度 Kurtosis kurtosis	-0.580
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.1010
最高正则化参数 α highest_alpha	1556000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.963; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (43)

Entity 1 polymer

描述 description	U2 snRNA
分子量 formula_weight	376267.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	2
原子数 atom_count	91230

ACGAAUCUCUUUGCCUUUUGGCUUAGAUCAAGUGUAGUAUCUGUUCUUUUCAGUGUAACAACUGAAAUGACCUCAAUGAGGCUCAUUACCUUUUAAUUUGUUACAAUACACAUUUUUUGGCACCCAAAAUAAUAAAAUGGACGGGAAGAGACUUUUUAAGCAAGUUGUUUUCCGCUAAUGUCAGGUCUCACUACUUUUUGCUGCUAUUUUUCUUCGCUCAUGGUUUCUUCAUAAGGCGUUUUUAUGAUGGUUUUUCGAAAUUGGUUUUUGAGACGACGGUUGCUCAAGGUUAUUGUUUUUGUUUUCUUCUGGUUGUUUUCUAUUUUCUUUUUUUUAGCUUUCUGUUUCUCCCUUAGUUUGGCUUUUUGCUUCAUACUCUUCCCUGUCUUUCCGAGCCGUUUAUGUCCAACGCGGGAUUUGGUUUUUCUUUAUCGAUGGGAAGAAAUGGUGCUAUAGUAGGUUGGGAGAUAAUAUUUAUGGUAUGGGGUGCUAGUGCGGAUGGGGCGCUCUUAUUGUUGAUUUCUUCGCUCGUCUUCUUUUUCUGGUGGCGCUGCAAGAGGAAGUUUUUCGACUUUGUUAUGAUUUUUGGUUUGCAAGGAAAGGUGUCUUACGAUUCUUUUUUUGAUGUAAUAGGAUAAGCUUGCUUAUCCCCCAAGUAUCGGCCAAAGUUGUUGAUUUUCCUUUUGAAGUGUCCUCGGUUUGAGGGGGUGUAGGGUGGGGUUGGUCUACAAUAAGAGUGUUCCAUUGUUAACGUGCUGGCGUCUUUUACUAUAUUUUUUUUCCCAGUUUAUUUUGUGCUUAUUUUCUCAUUGAGGAGAAGGAGCUCUUCUCGCAGGAUAUAAAUGGAGGUUUGCUAAAGGGGAGGAGAUGUGUUUGUGAGAAUACUGCUGAGAGAGUUCUGGAAGAGAAAAAAAGGAGGCAAUGGAAGGCGUUUGCUGGGAAAAGAGAAGAGCCAUGACUGCAUCUGUUGUUUCAAGGCCAGUUUUAUUAACCGCCUAUGUCAUAGAGGCGUUUUUUUUGGAGGGAUUUGAAGAAUGCCGGCGGCAUCAAGAAACGGACUUGAUGGUUGACGCCUGUUUUUAAAGUUAGAGACGUCGCGACCCUCGCACUUGUGGAGUCGUUCUUGACUUUUACUUUGGUCGCUUGAUGUUUCUCUCGUCUUCCCGUUCGCUCUU

Entity 2 polymer

描述 description	U5 snRNA
分子量 formula_weight	68643.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	5

AAGCAGCUUUACAGAUCAAUGGCGGAGGGAGGUCAACAUCAAGAACUGUGGGCCUUUUAUUGCCUAUAGAACUUAUAACGAACAUGGUUCUUGCCUUUUACCAGAACCAUCCGGGUGUUGUCUCCAUAGAAACAGGUAAAGCUGUCCGUUACUGUGGGCUUGCCAUAUUUUUUGGAACUUUUCUGCCCUUUUUCUCAAUGAGUAAGGAGGGCGU

Entity 3 polymer

描述 description	U6 snRNA
分子量 formula_weight	35883.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	6

GUUCGCGAAGUAACCCUUCGUGGACAUUUGGUCAAUUUGAAACAAUACAGAGAUGAUCAGCAGUUCCCCUGCAUAAGGAUGAACCGUUUUACAAAGAGAUUUAUUUCGUUUU

Entity 4 polymer

描述 description	Pre-mRNA-splicing factor 8
分子量 formula_weight	279867.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MSGLPPPPPGFEEDSDLALPPPPPPPPGYEIEELDNPMVPSSVNEDTFLPPPPPPPSNFEINAEEIVDFTLPPPPPPPGLDELETKAEKKVELHGKRKLDIGKDTFVTRKSRKRAKKMTKKAKRSNLYTPKAEMPPEHLRKIINTHSDMASKMYNTDKKAFLGALKYLPHAILKLLENMPHPWEQAKEVKVLYHTSGAITFVNETPRVIEPVYTAQWSATWIAMRREKRDRTHFKRMRFPPFDDDEPPLSYEQHIENIEPLDPINLPLDSQDDEYVKDWLYDSRPLEEDSKKVNGTSYKKWSFDLPEMSNLYRLSTPLRDEVTDKNYYYLFDKKSFFNGKALNNAIPGGPKFEPLYPREEEEDYNEFNSIDRVIFRVPIRSEYKVAFPHLYNSRPRSVRIPWYNNPVSCIIQNDEEYDTPALFFDPSLNPIPHFIDNNSSLNVSNTKENGDFTLPEDFAPLLAEEEELILPNTKDAMSLYHSPFPFNRTKGKMVRAQDVALAKKWFLQHPDEEYPVKVKVSYQKLLKNYVLNELHPTLPTNHNKTKLLKSLKNTKYFQQTTIDWVEAGLQLCRQGHNMLNLLIHRKGLTYLHLDYNFNLKPTKTLTTKERKKSRLGNSFHLMRELLKMMKLIVDTHVQFRLGNVDAFQLADGIHYILNHIGQLTGIYRYKYKVMHQIRACKDLKHIIYYKFNKNLGKGPGCGFWQPAWRVWLNFLRGTIPLLERYIGNLITRQFEGRSNEIVKTTTKQRLDAYYDLELRNSVMDDILEMMPESIRQKKARTILQHLSEAWRCWKANIPWDVPGMPAPIKKIIERYIKSKADAWVSAAHYNRERIKRGAHVEKTMVKKNLGRLTRLWIKNEQERQRQIQKNGPEITPEEATTIFSVMVEWLESRSFSPIPFPPLTYKNDTKILVLALEDLKDVYASKVRLNASEREELALIEEAYDNPHDTLNRIKKYLLTQRVFKPVDITMMENYQNISPVYSVDPLEKITDAYLDQYLWYEADQRKLFPNWIKPSDSEIPPLLVYKWTQGINNLSEIWDVSRGQSAVLLETTLGEMAEKIDFTLLNRLLRLIVDPNIADYITAKNNVVINFKDMSHVNKYGLIRGLKFASFIFQYYGLVIDLLLLGQERATDLAGPANNPNEFMQFKSKEVEKAHPIRLYTRYLDRIYMLFHFEEDEGEELTDEYLAENPDPNFENSIGYNNRKCWPKDSRMRLIRQDVNLGRAVFWEIQSRVPTSLTSIKWENAFVSVYSKNNPNLLFSMCGFEVRILPRQRMEEVVSNDEGVWDLVDERTKQRTAKAYLKVSEEEIKKFDSRIRGILMASGSTTFTKVAAKWNTSLISLFTYFREAIVATEPLLDILVKGETRIQNRVKLGLNSKMPTRFPPAVFYTPKELGGLGMISASHILIPASDLSWSKQTDTGITHFRAGMTHEDEKLIPTIFRYITTWENEFLDSQRVWAEYATKRQEAIQQNRRLAFEELEGSWDRGIPRISTLFQRDRHTLAYDRGHRIRREFKQYSLERNSPFWWTNSHHDGKLWNLNAYRTDVIQALGGIETILEHTLFKGTGFNSWEGLFWEKASGFEDSMQFKKLTHAQRTGLSQIPNRRFTLWWSPTINRANVYVGFLVQLDLTGIFLHGKIPTLKISLIQIFRAHLWQKIHESIVFDICQILDGELDVLQIESVTKETVHPRKSYKMNSSAADITMESVHEWEVSKPSLLHETNDSFKGLITNKMWFDVQLRYGDYDSHDISRYVRAKFLDYTTDNVSMYPSPTGVMIGIDLAYNMYDAYGNWFNGLKPLIQNSMRTIMKANPALYVLRERIRKGLQIYQSSVQEPFLNSSNYAELFNNDIKLFVDDTNVYRVTVHKTFEGNVATKAINGCIFTLNPKTGHLFLKIIHTSVWAGQKRLSQLAKWKTAEEVSALVRSLPKEEQPKQIIVTRKAMLDPLEVHMLDFPNIAIRPTELRLPFSAAMSIDKLSDVVMKATEPQMVLFNIYDDWLDRISSYTAFSRLTLLLRALKTNEESAKMILLSDPTITIKSYHLWPSFTDEQWITIESQMRDLILTEYGRKYNVNISALTQTEIKDIILGQNIKAPSVKRQKMAELEAARSEKQNDEEAAGASTVMKTKTINAQGEEIVVVASADYESQTFSSKNEWRKSAIANTLLYLRLKNIYVSADDFVEEQNVYVLPKNLLKKFIEISDVKIQVAAFIYGMSAKDHPKVKEIKTVVLVPQLGHVGSVQISNIPDIGDLPDTEGLELLGWIHTQTEELKFMAASEVATHSKLFADKKRDCIDISIFSTPGSVSLSAYNLTDEGYQWGEENKDIMNVLSEGFEPTFSTHAQLLLSDRITGNFIIPSGNVWNYTFMGTAFNQEGDYNFKYGIPLEFYNEMHRPVHFLQFSELAGDEELEAEQIDVFS

Entity 5 polymer

描述 description	Pre-mRNA-splicing factor SNU114
分子量 formula_weight	114174.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MEGDDLFDEFGNLIGVDPFDSDEEESVLDEQEQYQTNTFEGSGNNNEIESRQLTSLGSKKELGISLEHPYGKEVEVLMETKNTQSPQTPLVEPVTERTKLQEHTIFTQLKKNIPKTRYNRDYMLSMANIPERIINVGVIGPLHSGKTSLMDLLVIDSHKRIPDMSKNVELGWKPLRYLDNLKQEIDRGLSIKLNGSTLLCTDLESKSRMINFLDAPGHVNFMDETAVALAASDLVLIVIDVVEGVTFVVEQLIKQSIKNNVAMCFVINKLDRLILDLKLPPMDAYLKLNHIIANINSFTKGNVFSPIDNNIIFASTKLGFTFTIKEFVSYYYAHSIPSSKIDDFTTRLWGSVYYHKGNFRTKPFENVEKYPTFVEFILIPLYKIFSYALSMEKDKLKNLLRSNFRVNLSQEALQYDPQPFLKHVLQLIFRQQTGLVDAITRCYQPFELFDNKTAHLSIPGKSTPEGTLWAHVLKTVDYGGAEWSLVRIYSGLLKRGDTVRILDTSQSESRQKRQLHDISKTETSNEDEDEDDETPSCEVEEIGLLGGRYVYPVHEAHKGQIVLIKGISSAYIKSATLYSVKSKEDMKQLKFFKPLDYITEAVFKIVLQPLLPRELPKLLDALNKISKYYPGVIIKVEESGEHVILGNGELYMDCLLYDLRASYAKIEIKISDPLTVFSESCSNESFASIPVSNSISRLGEENLPGLSISVAAEPMDSKMIQDLSRNTLGKGQNCLDIDGIMDNPRKLSKILRTEYGWDSLASRNVWSFYNGNVLINDTLPDEISPELLSKYKEQIIQGFYWAVKEGPLAEEPIYGVQYKLLSISVPSDVNIDVMKSQIIPLMKKACYVGLLTAIPILLEPIYEVDITVHAPLLPIVEELMKKRRGSRIYKTIKVAGTPLLEVRGQVPVIESAGFETDLRLSTNGLGMCQLYFWHKIWRKVPGDVLDKDAFIPKLKPAPINSLSRDFVMKTRRRKGISTGGFMSNDGPTLEKYISAELYAQLRENGLVP

Entity 6 polymer

描述 description	Protein FYV6
分子量 formula_weight	20066.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MSSTSDNNANSAREKKPLKFVSEGVGNVEAQRIREQVEQKKYEAEYKRKTRKSLRDQLRSNAISKQKQYNGLVRDRESFTRLSKEDLEFYQKSKNELLKKEKELNNYLDVKAINFEKKKKALLMENDSTTNTEKYLETGTSLGSKTQIKGVKTSSPKPKIKVSIKKLGRKLEN

Entity 7 polymer

描述 description	UBC4 mRNA spliced exons
分子量 formula_weight	13440.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	E

GAACUAAGUGAUCUAGAAAGAGAUCCACCUACUUCAUGUUGC

Entity 8 polymer

描述 description	Pre-mRNA-splicing factor ISY1
分子量 formula_weight	28073.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MSRNVDKANSVLVRFQEQQAESAGGYKDYSRYQRPRNVSKVKSIKEANEWKRQVSKEIKQKSTRIYDPSLNEMQIAELNDELNNLFKEWKRWQWHIDHTLMEKKTKRKRLEDSHVLMNSGKLINGKRYFGRALELPEVKEWLKQSQRQNDGGSINTKCIPKDRNDFYYHGKVTAALTEFEANWTSILKAHYNVPVNEDEEEMSRQTQEIHVPTLADMEHWLVQRRKKKLMDELNL

Entity 9 polymer

描述 description	Pre-mRNA-splicing factor CWC22
分子量 formula_weight	67386.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MSTATIQDEDIKFQRENWEMIRSHVSPIISNLTMDNLQESHRDLFQVNILIGRNIICKNVVDFTLNKQNGRLIPALSALIALLNSDIPDIGETLAKELMLMFVQQFNRKDYVSCGNILQCLSILFLYDVIHEIVILQILLLLLEKNSLRLVIAVMKICGWKLALVSKKTHDMIWEKLRYILQTQELSSTLRESLETLFEIRQKDYKSGSQGLFILDPTSYTVHTHSYIVSDEDEANKELGNFEKCENFNELTMAFDTLRQKLLINNTSDTNEGSNSQLQIYDMTSTNDVEFKKKIYLVLKSSLSGDEAAHKLLKLKIANNLKKSVVDIIIKSSLQESTFSKFYSILSERMITFHRSWQTAYNETFEQNYTQDIEDYETDQLRILGKFWGHLISYEFLPMDCLKIIKLTEEESCPQGRIFIKFLFQELVNELGLDELQLRLNSSKLDGMFPLEGDAEHIRYSINFFTAIGLGLLTEDMRSRLTIIQEVEDAEEEEKKLREEEELEKLRKKARESQPTQGPKIHESRLFLQKDTRENSRSRSPFTVETRKRARSRTPPRGSRNHRNRSRTPPARRQRHR

Entity 10 polymer

描述 description	UBC4 lariat-intron
分子量 formula_weight	30200.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	I

GUAUGUCUAAAGUUAUGGCCACGUUUCAAAUGCGUGCUUUUUUUUUAAAACUUAUGCUCUUAUUUACUAACAAAAUCAACAUGCUAUUGAACUAG

Entity 11 polymer

描述 description	Pre-mRNA-splicing factor PRP46
分子量 formula_weight	50771.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MDGNDHKVENLGDVDKFYSRIRWNNQFSYMATLPPHLQSEMEGQKSLLMRYDTYRKESSSFSGEGKKVTLQHVPTDFSEASQAVISKKDHDTHASAFVNKIFQPEVAEELIVNRYEKLLSQRPEWHAPWKLSRVINGHLGWVRCVAIDPVDNEWFITGSNDTTMKVWDLATGKLKTTLAGHVMTVRDVAVSDRHPYLFSVSEDKTVKCWDLEKNQIIRDYYGHLSGVRTVSIHPTLDLIATAGRDSVIKLWDMRTRIPVITLVGHKGPINQVQCTPVDPQVVSSSTDATVRLWDVVAGKTMKVLTHHKRSVRATALHPKEFSVASACTDDIRSWGLAEGSLLTNFESEKTGIINTLSINQDDVLFAGGDNGVLSFYDYKSGHKYQSLATREMVGSLEGERSVLCSTFDKTGLRLITGEADKSIKIWKQDETATKESEPGLAWNPNLSAKRF

Entity 12 polymer

描述 description	Pre-mRNA-processing protein 45
分子量 formula_weight	42548.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MFSNRLPPPKHSQGRVSTALSSDRVEPAILTDQIAKNVKLDDFIPKRQSNFELSVPLPTKAEIQECTARTKSYIQRLVNAKLANSNNRASSRYVTETHQAPANLLLNNSHHIEVVSKQMDPLLPRFVGKKARKVVAPTENDEVVPVLHMDGSNDRGEADPNEWKIPAAVSNWKNPNGYTVALERRVGKALDNENNTINDGFMKLSEALENADKKARQEIRSKMELKRLAMEQEMLAKESKLKELSQRARYHNGTPQTGAIVKPKKQTSTVARLKELAYSQGRDVSEKIILGAAKRSEQPDLQYDSRFFTRGANASAKRHEDQVYDNPLFVQQDIESIYKTNYEKLDEAVNVKSEGASGSHGPIQFTKAESDDKSDNYGA

Entity 13 polymer

描述 description	Pre-mRNA-splicing factor BUD31
分子量 formula_weight	18484.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MPRIKTRRSKPAPDGFEKIKPTLTDFEIQLRDAQKDKSSKLAAKSNEQLWEIMQLHHQRSRYIYTLYYKRKAISKDLYDWLIKEKYADKLLIAKWRKTGYEKLCCLRCIQKNETNNGSTCICRVPRAQLEEEARKKGTQVSFHQCVHCGCRGCASTD

Entity 14 polymer

描述 description	Pre-mRNA-splicing factor CWC2
分子量 formula_weight	38486.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MTSWRDKSAKVQVKESELPSSIPAQTGLTFNIWYNKWSQGFAGNTRFVSPFALQPQLHSGKTRGDNDGQLFFCLFFAKGMCCLGPKCEYLHHIPDEEDIGKLALRTEVLDCFGREKFADYREDMGGIGSFRKKNKTLYVGGIDGALNSKHLKPAQIESRIRFVFSRLGDIDRIRYVESKNCGFVKFKYQANAEFAKEAMSNQTLLLPSDKEWDDRREGTGLLVKWANEDPDPAAQKRLQEELKLESLNMMVHLINNNTNSAGTEVNNKNNERLDRTFPEASVDNVKKRLLPLDNGMESDDFIEKLKKVKKNISRENISSKPSVGKLGGPLLDYLSSDED

Entity 15 polymer

描述 description	Pre-mRNA-splicing factor SLT11
分子量 formula_weight	40988.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MNDEINEPPPNICEQCLGDEANIRMTKIPQGSECKICTLPFTLYHFKTSKRSNNIIKTLICVRCATQRNICQCCMLDSRWHIPIQLRDHLISLVNEENVMTEEAKNDMMKRFLSLKNVKLGGAQITSDPSEADNIVDKLKNILLRATSDGPSTPLIKNTTALYKNEKGANEVKNLEKYASVDISHILKKLPLNESFLKNPSTKSFFLYNIDASIPEWKITDTVSQLLGIKKWKDGNSLSLIVNHKAKCGGLRFQSSELGERFVSKISETLVTPKGLKRGVLLIDRFRIFIIPWSSGFSAASFGTNTAENIKLSLSLNKLIQLELGLSFPTKSTDNAKNDKKKTSKKVHKDRSKKSKPRANKLTI

Entity 16 polymer

描述 description	Pre-mRNA-splicing factor CEF1
分子量 formula_weight	67837.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MPPVPIYVKGGVWTNVEDQILKAAVQKYGTHQWSKVASLLQKKTARQSELRWNEYLNPKLNFTEFSKEEDAQLLDLARELPNQWRTIADMMARPAQVCVERYNRLLESEDSGGAALSTGVTDLKAGDINPNAETQMARPDNGDLEDEEKEMLAEARARLLNTQGKKATRKIRERMLEESKRIAELQKRRELKQAGINVAIKKPKKKYGTDIDYNEDIVYEQAPMPGIYDTSTEDRQIKKKFEQFERKVNRKGLDGNKDKPSKKNKDKKRKHDENEHVEKAALGESTTLTDEYKKPKLILSAPGTKQGKVTYKKKLESKRQKLIEAQATGTVLTPKELLPHDSGQEDNERSNIKSGKQLKSRIRKFLVQMFASLPSPKNDFEIVLSEDEKEEDAEIAEYEKEFENERAMNEEDNFIEPPSQNDAPRVSLVAVPLAYSTLPIPEFKNNPQSAIDNKYNLLVANAINKEPHMVPEDTVDFLKEVESRMQHITQGRTSMKIQFKTAMPPTEVLLESIQSKVESIEQLQRKLQHVQPLEQQNNEMCSTLCHHSLPALIEGQRKYYADYYAYRQEIRSLEGRRKRLQAMLNSSSSI

Entity 17 polymer

描述 description	Pre-mRNA-splicing factor CWC15
分子量 formula_weight	19975.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MTTSHRPQLEARSGAKAAAYTPTGIEHARLLPGHTTLKYRKFKEEENLRANCAQEDRSNDKSLEEAVMNEEKQDVVGSGNLQETRSEKDQKDSLQELLVTQKNKVEDKAELEGNEQLKGGNSSRRSWRKGTAFGRHKVTKETNIKEHATKKSASGYINDMTKSEYHQEFLHKHVR

Entity 18 polymer

描述 description	Pre-mRNA-splicing factor CWC21
分子量 formula_weight	15793.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MSYNGIGLKSAKGSSTSGHVQRSLASNNRRRPQGSQQQRQQRQNAIKKASHDKASRPLAVQKQIETHMEKREIEVQVSELRDRLEEEETLSEEQIDKKCEALRAKLTNEWQEQQRMSSLYTPRKARLTEEQHRHE

Entity 19 polymer

描述 description	Pre-mRNA-splicing factor CLF1
分子量 formula_weight	82555.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MDTLEPTAVDTHVSAEQILRDVYKKGQKARGSTNIDILDLEELREYQRRKRTEYEGYLKRNRLDMGQWIRYAQFEIEQHDMRRARSIFERALLVDSSFIPLWIRYIDAELKVKCINHARNLMNRAISTLPRVDKLWYKYLIVEESLNNVEIVRSLYTKWCSLEPGVNAWNSFVDFEIRQKNWNGVREIYSKYVMAHPQMQTWLKWVRFENRHGNTEFTRSVYSLAIDTVANLQNLQIWSDMEVAKLVNSFAHWEAAQQEYERSSALYQIAIEKWPSNQLLKAGLLDFEKQFGDINSIEETISYKRKMEYETILSNNAYDYDTWWLYLDLISESFPKQIMQTFEKAIVDSRPKELSKNVQWKRYIYLWMRYICYVELELENSLLEEELFQRLIDDIIPHKHFTFSKIWLMYAKFLIRHDDVPKARKILGKAIGLCPKAKTFKGYIELEVKLKEFDRVRKIYEKFIEFQPSDLQIWSQYGELEENLGDWDRVRGIYTIALDENSDFLTKEAKIVLLQKYITFETESQEFEKARKLYRRYLELNQYSPQSWIEFAMYQTSTPTEQQLLDLAKLQSENVDEDIEFEITDENKLEARKVFEEAIVFFKEKDDKQGRLSILEALKDYEETYGTELDQETVKKRFPKVIKKVRLQNGVEEEFVDYIFPDDIDDDKPKPSKFLELAKKWKQEQAL

Entity 20 polymer

描述 description	Pre-mRNA-splicing factor SYF1
分子量 formula_weight	100344.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MSAYIAMKGVITNVDENIRNDEDVAFEYEIQKTPQNILTWKRYIEYWKEEGRTDKQIRWLYERFCSQFVTDTSIWEDYIRWESTKEVVETSRIFWLFQRCLKSCVRDCDRICLSYLELAIEQYDLAMIRHALASSLMKMEREMHRKVWDPVIKFVEEKVLPLTQLDSTQEDEEESTDEAELINVLLVKGFTKGGFISEEISENGSRGDIWSSHILERYLKVAPQQKRNESLATLALTRDNITIKSVYEKYLPQDENSGKYLPSSELPFELNFNYLASLEKLGLDNQYEEFMRQMNGIYPDKWLFLILSLAKYYISRGRLDSCGDLLKKSLQQTLRYSDFDRIYNFYLLFEQECSQFILGKLKENDSKFFNQKDWTEKLQAHMATFESLINLYDIYLNDVALRQDSNLVETWMKRVSLQKSAAEKCNVYSEAILKIDPRKVGTPGSFGRLWCSYGDLYWRSNAISTARELWTQSLKVPYPYIEDLEEIYLNWADRELDKEGVERAFSILEDALHVPTNPEILLEKYKNGHRKIPAQTVLFNSLRIWSKYIDYLEAYCPKDANSSDKIFNKTKMAYNTVIDLRLITPAMAENFALFLQNHYEVMESFQVYEKTIPLFPPEIQYELWIEYLEVATSHQLSSLSPEHIRFLFEKALKNLCSNGIDCKTIFIAYSVFEERISGLISKSIEILRRGAVIGTVSVSTHLESRLQLWRMCISKAESTLGPSVTRELYQECIQILPNSKAVEFVIKFSDFESSIGETIRAREILAYGAKLLPPSRNTELWDSFEIFELKHGDKETYKDMLKMKKVLESNMLIDSASVSHEEGNINFVAAATSHAPNSHTLTQSTSSYSINPDEIELDI

Entity 21 polymer

描述 description	Pre-mRNA-splicing factor ATP-dependent RNA helicase PRP22
分子量 formula_weight	130171.4 kDa
EC 编号 ec_number	3.6.4.13
突变 mutation	S635A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MSDISKLIGAIVGSDDPVIIEFVLNIINKSGNLQEFIRNIQKLDAGISYEDSIKMYNAFLGKQEEEKVRNKVKSSPLSQKINQVLKDDVNLDDPVVTEFVLSILNKSKSITEFQEQLNLMQSGLDNETIFKIYQIASPPVMKEEVSVLPSTKIPAKIEAKIEEEVQKIESLDPSPVLHKVYEGKVRNITTFGCFVQIFGTRMKNCDGLVHISEMSDQRTLDPHDVVRQGQHIFVEVIKIQNNGKISLSMKNIDQHSGEIRKRNTESVEDRGRSNDAHTSRNMKNKIKRRALTSPERWEIRQLIASGAASIDDYPELKDEIPINTSYLTAKRDDGSIVNGNTEKVDSKLEEQQRDETDEIDVELNTDDGPKFLKDQQVKGAKKYEMPKITKVPRGFMNRSAINGSNAIRDHREEKLRKKREIEQQIRKQQSFDDPTKNKKDSRNEIQMLKNQLIVTEWEKNRMNESISYGKRTSLPISAQRQTLPVYAMRSELIQAVRDNQFLVIVGETGSGKTTQITQYLDEEGFSNYGMIGCTQPRRVAAVSVAKRVAEEVGCKVGHDVGYTIRFEDVTGPDTRIKYMTDGMLQREALLDPEMSKYSVIMLDEAHERTVATDVLFALLKKAAIKRPELKVIVTAATLNSAKFSEYFLNCPIINIPGKTFPVEVLYSQTPQMDYIEAALDCVIDIHINEGPGDILVFLTGQEEIDSCCEILYDRVKTLGDSIGELLILPVYSALPSEIQSKIFEPTPKGSRKVVFATNIAETSITIDGIYYVVDPGFAKINIYNARAGIEQLIVSPISQAQANQRKGRAGRTGPGKCYRLYTESAFYNEMLENTVPEIQRQNLSHTILMLKAMGINDLLKFDFMDPPPKNLMLNALTELYHLQSLDDEGKLTNLGKEMSLFPMDPTLSRSLLSSVDNQCSDEIVTIISMLSVQNVFYRPKDRQLEADSKKAKFHHPYGDHLTLLNVYTRWQQANYSEQYCKTNFLHFRHLKRARDVKSQISMIFKKIGLKLISCHSDPDLIRKTFVSGFFMNAAKRDSQVGYKTINGGTEVGIHPSSSLYGKEYEYVMYHSIVLTSREYMSQVTSIEPQWLLEVAPHFYKAGDAESQSRKKAKIIPLHNKFAKDQNSWRLSSIRQSRERALGIKR

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 22 polymer

描述 description	;U2 small nuclear ribonucleoprotein A' ;
分子量 formula_weight	27232.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MKFTPSIVIDAPQYYVDHFNGKYNVDKCVILRDLQLETDSESMPSSLKHLTKPTHILDLTNNDLIMIPDLSRRDDIHTLLLGRNNIVEVDGRLLPMNVQNLTLSNNSIRRFEDLQRLRRAPRTLKNLTLIGNQVCHLANYREHVLRLVPHLETLDFQNVTAEERKSAMSFPRQADGDTLGPVNTAIRDNGSRDKTMEIMNLVVSKMTVERRNELKKQLAEATSLEEIARLEKLLSGGV

Entity 23 polymer

描述 description	;U2 small nuclear ribonucleoprotein B'' ;
分子量 formula_weight	12850.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MVEPARKKQRIDRDTHHTVAEPVTEAKNTLYVSQLNEKINMQRLRVNLFLLFATFGEVLKVSMNFKKQRGQAFITMRTIDQASLAQISLNGERFFGKPLKVEFSKSETKTL

Entity 24 polymer

描述 description	Pre-mRNA-splicing factor NTC20
分子量 formula_weight	15992.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MPSLRDLSLERDQELNQLRARINQLGKTGKEEANDFVGLNISNEPVYDTVIQTGQSSNATNSFVQETIQKTKQKESGQPYIIPQKNEHQRYIDKVCETSDLKAKLAPIMEVLEKKTNEKIKGIIRKRVLQEPDRDNDDSG

Entity 25 polymer

描述 description	Pre-mRNA-splicing factor 18
分子量 formula_weight	28414.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MDLDLASILKGEISKKKKELANSKGVQPPCTEKFQPHESANIDETPRQVEQESTDEENLSDNQSDDIRTTISKLENRPERIQEAIAQDKTISVIIDPSQIGSTEGKPLLSMKCNLYIHEILSRWKASLEAYHPELFLDTKKALFPLLLQLRRNQLAPDLLISLATVLYHLQQPKEINLAVQSYMKLSIGNVAWPIGVTSVGIHARSAHSKIQGGRNAANIMIDERTRLWITSIKRLITFEEWYTSNHDSLA

Entity 26 polymer

描述 description	Small nuclear ribonucleoprotein-associated protein B
分子量 formula_weight	22427.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b,k

MSKIQVAHSSRLANLIDYKLRVLTQDGRVYIGQLMAFDKHMNLVLNECIEERVPKTQLDKLRPRKDSKDGTTLNIKVEKRVLGLTILRGEQILSTVVEDKPLLSKKERLVRDKKEKKQAQKQTKLRKEKEKKPGKIAKPNTANAKHTSSNSREIAQPSSSRYNGGNDNIGANRSRFNNEAPPQTRKFQPPPGFKRK

Entity 27 polymer

描述 description	Pre-mRNA-splicing factor SLU7
分子量 formula_weight	44722.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MNNNSRNNENRSTINRNKRQLQQAKEKNENIHIPRYIRNQPWYYKDTPKEQEGKKPGNDDTSTAEGGEKSDYLVHHRQKAKGGALDIDNNSEPKIGMGIKDEFKLIRPQKMSVRDSHSLSFCRNCGEAGHKEKDCMEKPRKMQKLVPDLNSQKNNGTVLVRATDDDWDSRKDRWYGYSGKEYNELISKWERDKRNKIKGKDKSQTDETLWDTDEEIELMKLELYKDSVGSLKKDDADNSQLYRTSTRLREDKAAYLNDINSTESNYDPKSRLYKTETLGAVDEKSKMFRRHLTGEGLKLNELNQFARSHAKEMGIRDEIEDKEKVQHVLVANPTKYEYLKKKREQEETKQPKIVSIGDLEARKVDGTKQSEEQRNHLKDLYG

Entity 28 polymer

描述 description	Small nuclear ribonucleoprotein Sm D3
分子量 formula_weight	11240.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d,n

MTMNGIPVKLLNEAQGHIVSLELTTGATYRGKLVESEDSMNVQLRDVIATEPQGAVTHMDQIFVRGSQIKFIVVPDLLKNAPLFKKNSSRPMPPIRGPKRR

Entity 29 polymer

描述 description	Small nuclear ribonucleoprotein E
分子量 formula_weight	10385.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e,p

MSNKVKTKAMVPPINCIFNFLQQQTPVTIWLFEQIGIRIKGKIVGFDEFMNVVIDEAVEIPVNSADGKEDVEKGTPLGKILLKGDNITLITSAD

Entity 30 polymer

描述 description	Small nuclear ribonucleoprotein F
分子量 formula_weight	9669.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f,q

MSESSDISAMQPVNPKPFLKGLVNHRVGVKLKFNSTEYRGTLVSTDNYFNLQLNEAEEFVAGVSHGTLGEIFIRCNNVLYIRELPN

Entity 31 polymer

描述 description	Small nuclear ribonucleoprotein G
分子量 formula_weight	8490.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g,r

MVSTPELKKYMDKKILLNINGSRKVAGILRGYDIFLNVVLDDAMEINGEDPANNHQLGLQTVIRGNSIISLEALDAI

Entity 32 polymer

描述 description	Small nuclear ribonucleoprotein Sm D1
分子量 formula_weight	16296.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h,l

MKLVNFLKKLRNEQVTIELKNGTTVWGTLQSVSPQMNAILTDVKLTLPQPRLNKLNSNGIAMASLYLTGGQQPTASDNIASLQYINIRGNTIRQIILPDSLNLDSLLVDQKQLNSLRRSGQIANDPSKKRRRDFGAPANKRPRRGL

Entity 33 polymer

描述 description	Small nuclear ribonucleoprotein Sm D2
分子量 formula_weight	12876.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j,m

MSSQIIDRPKHELSRAELEELEEFEFKHGPMSLINDAMVTRTPVIISLRNNHKIIARVKAFDRHCNMVLENVKELWTEKKGKNVINRERFISKLFLRGDSVIVVLKTPVE

Entity 34 polymer

描述 description	Pre-mRNA-processing factor 17
分子量 formula_weight	52128.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MGLVDGYDTSSDSDLNFDEGKSVHEKKNGNLHEDTSYEPSSNNIHKRKSHFTKSELKRRRKTRKGDGPWGSWSSSDDETSQASETQKEDQDIFVHALAEDNLDSEQIEVEEVSHFYGKSEKDYQGRGYLYPPNDVDVDLREERISFRCYLPKKVIRNYPGHPEGTTALKFLPKTGHLILSGGNDHTIKIWDFYHDYECLRDFQGHNKPIKALRFTEDCQSFLSSSFDRSVKIWDTETGKVKTRLHLNSTPADVESRPTNPHEFIVGLSNSKILHYDDRVSENQGLVQTYDHHLSSILALKYFPDGSKFISSSEDKTVRIWENQINVPIKQISDTAQHSMPFLNVHPSQNYFCAQSMDNRIYSFSLKPKYKRHPKKIFKGHSSAGYGISLAFSGDGRYICSGDSKSRLFTWDWNTSRLLNNIKIPGNKPITQVDWHPQETSKVICSGAAGKIYVCD

Entity 35 polymer

描述 description	Pre-mRNA-splicing factor SNT309
分子量 formula_weight	20741.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MDGLSFVDKGKIPDGYKNEIDQLVKKEFANIKREPVHPEIRGILAKRKGADNSVSTLTNALYTEYLKQRNNKKRRTPDFNDDDDTLFLEEYRRKYPRIDTSRYIPNESSEVSLLGIVDSYLKHQEIVLDTLLPQTVSNQWRINNDYIRQTCTIVEEMNIQQRKQINDLEIYRKRL

Entity 36 polymer

描述 description	Pre-mRNA-processing factor 19
分子量 formula_weight	56629.8 kDa
EC 编号 ec_number	2.3.2.27
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t,u,v,w

MLCAISGKVPRRPVLSPKSRTIFEKSLLEQYVKDTGNDPITNEPLSIEEIVEIVPSAQQASLTESTNSATLKANYSIPNLLTSLQNEWDAIMLENFKLRSTLDSLTKKLSTVMYERDAAKLVAAQLLMEKNEDSKDLPKSSQQAVAITREEFLQGLLQSSRDFVARGKLKAPKWPILKNLELLQAQNYSRNIKTFPYKELNKSMYYDKWVCMCRCEDGALHFTQLKDSKTITTITTPNPRTGGEHPAIISRGPCNRLLLLYPGNQITILDSKTNKVLREIEVDSANEIIYMYGHNEVNTEYFIWADNRGTIGFQSYEDDSQYIVHSAKSDVEYSSGVLHKDSLLLALYSPDGILDVYNLSSPDQASSRFPVDEEAKIKEVKFADNGYWMVVECDQTVVCFDLRKDVGTLAYPTYTIPEFKTGTVTYDIDDSGKNMIAYSNESNSLTIYKFDKKTKNWTKDEESALCLQSDTADFTDMDVVCGDGGIAAILKTNDSFNIVALTP

Entity 37 polymer

描述 description	Pre-mRNA-splicing factor SYF2
分子量 formula_weight	24850.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	y

MDFYKLDEKLKELKRKRVDVSIKSRKLADREIQEVSANRKPRVYSMEDVNDADESVGDTESPEKEKAFHYTVQEYDAWERRHPQGKTGQSQRGGISYDQLAKLSYEKTLRNLATQTQNSSKQDSSADEEDNKNVPKKGRIGKVQKDTKTGKITIADDDKLVNKLAVSLQSESKKRYEARKRQMQNAKTLYGVESFINDKNKQFNEKLSRESKGSE

Entity 38 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 39 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 40 non-polymer

描述 description	INOSITOL HEXAKISPHOSPHATE
分子量 formula_weight	660.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 41 non-polymer

描述 description	GUANOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 42 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 43 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

▶

7. 引用文献 (2)

▶

分辨率 resolution	2.31 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	209005

fit	/app/data/saxs_computation/dt/9dtr/9dtr.fit
pddf	/app/data/pr_computation/dt/9dtr/9dtr.pr.out
profile	/app/data/saxs_computation/dt/9dtr/9dtr.dat

Structure of the yeast post-catalytic P complex spliceosome at 2.3 Angstrom resolution

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (43)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

来源 Source

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer

聚合体 Polymer
