SAXSdb — 9dx0

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dx0
沉积日期 deposition_date	2024-10-10
结构标题 title	Human GATOR2 complex - apo state
关键词 keywords	Signaling protein, nutrient sensor, mTORC1 pathway; SIGNALING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	71.99 Å
回转半径 Rg (电子) rg_electron	71.86 Å
零角强度 I(0) i0	2236690000.00
分子量 molecular_weight	384280.0 kDa
排除体积 excluded_volume	473620 Å³
包络体积 envelope_volume	900140 Å³
水化壳体积 shell_volume	105200 Å³
包络直径 envelope_diameter	231.8 Å
壳层 Rg shell_rg	72.49 Å
包络 Rg envelope_rg	68.25 Å
形状 Rg shape_rg	71.88 Å
总 Rg total_rg	71.82 Å
总原子数 total_atoms	27053
残基数 n_residues	3727
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	205.7 Å
Rg (实空间) rg_real	71.74 Å
Rg 误差 (实空间) rg_real_error	1.09 Å
I(0) (实空间) i0_real	2.2350e+09
I(0) 误差 (实空间) i0_real_error	4.7430e+07
Rg (倒空间) rg_reciprocal	72.38 Å
I(0) (倒空间) i0_reciprocal	2239000000.0000
解质量估计 total_estimate	0.8354
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	102.8 Å
偏度 Skewness skewness	-0.014
峰度 Kurtosis kurtosis	-0.646
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0247
最高正则化参数 α highest_alpha	58790000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.011

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	GATOR2 complex protein MIOS
分子量 formula_weight	125920.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	27053

TKPDILWAPHHVDRFVVCDSELSLYHVESTVNSELKAGSLRLSEDSAATLLSINSDTPYMKCVAWYLNYDPECLLAVGEANGRVVLTSLGQDHNSKFKDLIGKEFVPKHARQCNTLAWNPLDSDWLAAGLDKHRADFSVLIWDICVTKPLYELGQNDACLSLCWLPRDQKLLLAGMHRNLAIFDLRNTSQKMFVNTKAVQGVTVDPYFHDRVASFYEGQVAIWDLRKFEKPVLTLTEQPKPLTKVAWCPTRTGLLATLTRDSNIIRLYDMQHTPTPIGDETEPTIIERSVQPCDNYIASFAWHPTSQNRMIVVTPNRTMSDFTVFERISLAWSPITSLMWACGRHLYECTEMFVARSIAADHKDLIHDVSFDFHGRRMATCSSDQSVKVWDKSESGDWHCTASWKTHSGSVWRVTWAHPEFGQVLASCSFDRTAAVWEEIVGESNDKLRGQSHWVKRTTLVDSRTSVTDVKFAPKHMGLMLATCSADGIVRIYEAPDVMNLSQWSLQHEISCKLSCSCISWNPSSSRAHSPMIAVGSDDSSPNAMAKVQIFEYNENTRKYAKAETLMTVTDPVHDIAFAPNLGRSFHILAIATKDVRIFTLKPVRKELTSSGGPTKFEIHIVAQFDNHNSQVWRVSWNITGTVLASSGDDGCVRLWKANYMDNWKCTGILKGNGSPEKDIATKMRLRALSRYGLDTEQVWRNHILAGNEDPQLKSLWYTLHFMKQYTEDMDQKSPGNKGSLVYAGIKSIVKSSLGMVESSRHNWSGLDKQSDIQNLNEERILALQLCGWIKKGTDVDVGPFLNSLVQEGEWERAAAVALFNLDIRRAIQILNEGASSEKGDLNLNVVAMALSGYTDEKNSLWREMCSTLRLQLNNPYLCVMFAFLTSETGSYDGVLYENKVAVRDRVAFACKFLSDTQLNRYIEKLTNEMKEAGNLEGILLTGLTKDGVDLMESYVDRTGDVQTASYCMLQGSPLDVLKDERVQYWIENYRNLLDAWRFWHKRAEFDIHRSKLDPSSKPLAQVFVSCNFCGKSISYKVTSCPGCRKPLPRCALCLINMGTPVKDKKLAQFNNWFTWCHNCRHGGHAGHMLSWFRDHAECPVSACTCKCMQLDT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	GATOR2 complex protein WDR24
分子量 formula_weight	102253.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

SVLTGRTMHCHLDAPANAISVCRDAAQVVVAGRSIFKIYAIEEEQFVEKLNLRVGRKPSLNLSCADVVWHQMDENLLATAATNGVVVTWNLGRPSRNKQDQLFTEHKRTVNKVCFHPTEAHVLLSGSQDGFMKCFDLRRKDSVSTFSGQSESVRDVQFSIRDYFTFASTFENGNVQLWDIRRPDRCERMFTAHNGPVFCCDWHPEDRGWLATGGRDKMVKVWDMTTHRAKEMHCVQTIASVARVKWRPECRHHLATCSMMVDHNIYVWDVRRPFVPAAMFEEHRDVTTGIAWRHPHDPSFLLSGSKDSSLCQHLFRDASQPVERANPEGLCYGLFGDLAFAAKESLVFAGLASSALSVFETEPMFVARSIAADHKDLIHDVSFDFHGRRMATCSSDQSVKVWDKSESGDWHCTASWKTHSGSVWRVTWAHPEFGQVLASCSFDRTAAVWEEIVGQSHWVKRTTLVDSRTSVTDVKFAPKHMGLMLATCSADGIVRIYEAPDVMNLSQWSLQHEISCKLSCSCISWNPSSSRAHSPMIAVGSDDSSPNAMAKVQIFEYNENTRKYAKAETLMTVTDPVHDIAFAPNLGRSFHILAIATKDVRIFTLKPVRKELTSSGGPTKFEIHIVAQFDNHNSQVWRVSWNITGTVLASSGDDGCVRLWKANYMDNWKCTGILKGGMRWFVDTAERYALAGRPLAELCDHNAKVARELGRNQVAQTWTMLRIIYCSPFSLLSVSHALYDSRLPPDFFGVLVRDMLHFYAEQGDVQMAVSVLIVLGERVRKDIDEQTQEHWYTSYIDLLQRFRLWNVSNEVVKLSTSRAVSCLNQASTTLHVNCSHCKRPMSSRGWVCDRCHRCASMCAVCHHVVKGLFVWCQGCSHGGHLQHIMKWLEGSSHCPAGCGHLCEYS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Protein SEC13 homolog
分子量 formula_weight	70445.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

ARVTTAYGSYQDANIPFPRTSGARFCGAGYLVYFTRPMTMHRAVSPTEPTPRSLSALSAYHTSKREGSDSGNRQIKAAGKVIIQDGSGSGMVSVINTVDTSHEDMIHDAQMDYYGTRLATCSSDRSVKIFDVRNGGQILIADLRGHEGPVWQVAWAHPMYGNILASCSYDRKVIIWREENGTWEKSHEHAGHDSSVNSVCWAPHDYGLILACGSSDGAISLLTYTGEGQWEVKKINNAHTIGCNAVSWAPAVVPDHPSGQKPNYIKRFASGGCDNLIKLWKEEEDGQWKEEQKLEAHSDWVRDVAWAPSIGLPTSTIASCSQDGRVFIWTCDDASSNTWSPKLLHKFNDVVWHVSWSITANILAVSGGDNKVTLWKESVDGQWVCISDIACLLPVHKSLGELYILNVNDIQETCQKNAASALLVGRKDLVQVWSLATVATDLCLGPKSDPDLETPWARHPFGRQLLESLLAHYCRLRDVQTLAMLCSVFEAQSDPRERERDQHDKNKRLLDPANTQQFDDFKKCYGEILYRWGLREKRAEVLKFVSCPPDPHKGIEFGVYCSHCRSEVRGTQCAICKGFTFQCAICHVAVRGSSNFCLTCGHGGHTSHMMEWFRTQEVCPTGCGCHCLLESTF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.470 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.47 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1148926

fit	/app/data/saxs_computation/dx/9dx0/9dx0.fit
pddf	/app/data/pr_computation/dx/9dx0/9dx0.pr.out
profile	/app/data/saxs_computation/dx/9dx0/9dx0.dat

Human GATOR2 complex - apo state

SAXS 散射曲线 SAXS Profile

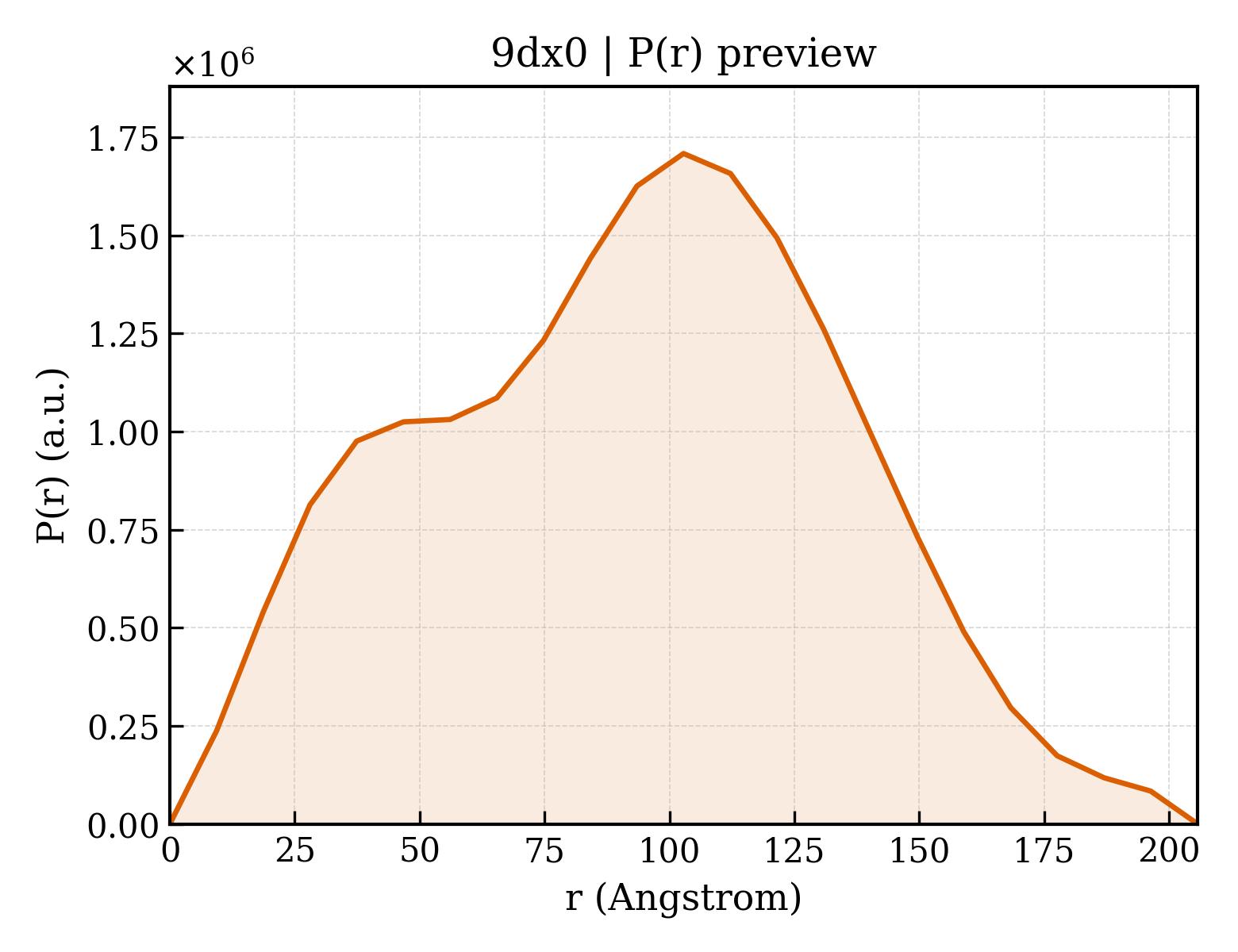

P(r) 距离分布 P(r) Distribution
