SAXSdb — 9dx1

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dx1
沉积日期 deposition_date	2024-10-10
结构标题 title	Human GATOR2 complex - Sestrin2 bound state
关键词 keywords	Signaling protein, nutrient sensor, mTORC1 pathway, stress-responsive protein; SIGNALING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.85 Å
回转半径 Rg (电子) rg_electron	72.82 Å
零角强度 I(0) i0	2813680000.00
分子量 molecular_weight	433270.0 kDa
排除体积 excluded_volume	535140 Å³
包络体积 envelope_volume	987850 Å³
水化壳体积 shell_volume	114530 Å³
包络直径 envelope_diameter	240.8 Å
壳层 Rg shell_rg	70.82 Å
包络 Rg envelope_rg	69.43 Å
形状 Rg shape_rg	72.83 Å
总 Rg total_rg	72.75 Å
总原子数 total_atoms	30499
残基数 n_residues	4103
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	240.7 Å
Rg (实空间) rg_real	72.71 Å
Rg 误差 (实空间) rg_real_error	2.38 Å
I(0) (实空间) i0_real	2.8140e+09
I(0) 误差 (实空间) i0_real_error	6.3690e+07
Rg (倒空间) rg_reciprocal	73.15 Å
I(0) (倒空间) i0_reciprocal	2816000000.0000
解质量估计 total_estimate	0.8401
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	103.1 Å
偏度 Skewness skewness	0.051
峰度 Kurtosis kurtosis	-0.569
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0003
最高正则化参数 α highest_alpha	77660000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.805; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.509

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	GATOR2 complex protein MIOS
分子量 formula_weight	126193.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	30499

TKPDILWAPHHVDRFVVCDSELSLYHVESTVNSELKAGSLRLSEDSAATLLSINSDTPYMKCVAWYLNYDPECLLAVGEANGRVVLTSLGQDHNSKFKDLIGKEFVPKHARQCNTLAWNPLDSDWLAAGLDKHRADFSVLIWDICVTKPLYELGQNDACLSLCWLPRDQKLLLAGMHRNLAIFDLRNTSQKMFVNTKAVQGVTVDPYFHDRVASFYEGQVAIWDLRKFEKPVLTLTEQPKPLTKVAWCPTRTGLLATLTRDSNIIRLYDMQHTPTPIGDETEPTIIERSVQPCDNYIASFAWHPTSQNRMIVVTPNRTMSDFTVFERISLAWSPITSLMWACGRHLYECTEMFVARSIAADHKDLIHDVSFDFHGRRMATCSSDQSVKVWDKSESGDWHCTASWKTHSGSVWRVTWAHPEFGQVLASCSFDRTAAVWEEIVGESNDKLRGQSHWVKRTTLVDSRTSVTDVKFAPKHMGLMLATCSADGIVRIYEAPDVMNLSQWSLQHEISCKLSCSCISWNPSSSRAHSPMIAVGSDDSSPNAMAKVQIFEYNENTRKYAKAETLMTVTDPVHDIAFAPNLGRSFHILAIATKDVRIFTLKPVRKELTSSGGPTKFEIHIVAQFDNHNSQVWRVSWNITGTVLASSGDDGCVRLWKANYMDNWKCTGILKGNGSPVEKDIATKMRLRALSRYGLDTEQVWRNHILAGNEDPQLKSLWYTLHFMKQYTEDMDQKSPGNKGSLVYAGIKSIVKSSLGMVESSRHNWSGLDKQSDIQNLNEERILALQLCGWIKKGTDVDVGPFLNSLVQEGEWERAAAVALFNLDIRRAIQILNEGASSEKGDLNLNVVAMALSGYTDEKNSLWREMCSTLRLQLNNPYLCVMFAFLTSETGSYDGVLYENKVAVRDRVAFACKFLSDTQLNRYIEKLTNEMKEAGNLEGILLTGLTKDGVDLMESYVDRTGDVQTASYCMLQGSPLDVLKDERVQYWIENYRNLLDAWRFWHKRAEFDIHRSKLDPSSKPLAQVFVSCNFCGKSISYSKVTSCPGCRKPLPRCALCLINMGTPVSKDKKLAQFNNWFTWCHNCRHGGHAGHMLSWFRDHAECPVSACTCKCMQLDT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Nucleoporin SEH1
分子量 formula_weight	66601.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

ERANPEGLCYGLFGDLAFAAKESLVAEPFAGLASSALSVFETEPMFVARSIAADHKDLIHDVSFDFHGRRMATCSSDQSVKVWDKSESGDWHCTASWKTHSGSVWRVTWAHPEFGQVLASCSFDRTAAVWEEIVKLRGQSHWVKRTTLVDSRTSVTDVKFAPKHMGLMLATCSADGIVRIYEAPDVMNLSQWSLQHEISCKLSCSCISWNPSSSRAHSPMIAVGSDDSSPNAMAKVQIFEYNENTRKYAKAETLMTVTDPVHDIAFAPNLGRSFHILAIATKDVRIFTLKPVRKELTSSGGPTKFEIHIVAQFDNHNSQVWRVSWNITGTVLASSGDDGCVRLWKANYMDNWKCTGILKGNGGMRWFVDTAERYALAGRPLAELCDHNAKVARELGRNQVAQTWTMLRIIYCSPDSSSFSLLSVSHALYDSRLPPDFFGVLVRDMLHFYAEQGDVQMAVSVLIVLGERVRKDIDEQTQEHWYTSYIDLLQRFRLWNVSNEVVKLSTSRAVSCLNQASTTLHVNCSHCKRPMSSRGWVCDRCHRCASMCAVCHHVVKGLFVWCQGCSHGGHLQHIMKWLEGSSHCPAGCGHLCEYS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Protein SEC13 homolog
分子量 formula_weight	62980.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

ARVTTAYGSYQDANIPFPRTSGARFCGAGYLVYFTRPMTMHRAVSPTEPTPRSLSALSAYHTRWKSKREGSDSGNRQIKAAGKVIIQDGSGSGMVSVINTVDTSHEDMIHDAQMDYYGTRLATCSSDRSVKIFDVRNGGQILIADLRGHEGPVWQVAWAHPMYGNILASCSYDRKVIIWREENGTWEKSHEHAGHDSSVNSVCWAPHDYGLILACGSSDGAISLLTYTGEGQWEVKKINNAHTIGCNAVSWAPAVVPGSLIDHPSGQKPNYIKRFASGGCDNLIKLWKEEEDGQWKEEQKLEAHSDWVRDVAWAPSIGLPTSTIASCSQDGRVFIWTCDDASSNTWSPKLLHKFNDVVWHVSWSITANILAVSGGDNKVTLWKESVDGQWVCISDACLLPVHKSLGELYILNVNDIQETCQKNAASALLVGRKDLVQVWSLATVATDLCLGPKSDPDLETPWARHPFGRQLLESLLAHYCRLRDVQTLAMLCSVFEAQSRPQGLPNLTYSDPRERERDQHDKNKRLLDPANTQQFDDFKKCYGEILYRWGLREKRAEVLKFVSC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	Sestrin2
分子量 formula_weight	39005.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

RARRGPRGPSAFIPVEEVLRDNLAVVMGLHPDYFTSFWRLHYLLLHTDGPLASSWRHYIAIMAAARHQCSYLVGSHMAEFLQTGGDPEWLLGLHRAPEKLRKLSEINKLLAHRPWLITKEHIQALLKTGEHTWSLAELIQALVLLTHCHSLSSFVFGCGILPEHPDMLCFVEDPTFGYEDFTRRGAQAPPTFRAQDYTWEDHGYSLIQRLYPEGGQLLDEKFQAAYSLTYNTIAMHSGVDTSVLRRAIWNYIHCVFGIRYDDYDYGEVNQLLERNLKVYIKTVACYPEKTTRRMYNLFWRHFRHSEKVHVNLLLLEARMQAALLYALRAITRYMT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	GATOR2 complex protein WDR24
分子量 formula_weight	82784.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

TKPDILWAPHHVDRFVVCDSELSLYHVESTVNSELKAGSLRLSEDSAATLLSINSDTPYMKCVAWYLNYDPECLLAVGEANGRVVLTSLGQDHNSKFKDLIGKEFVPKHARQCNTLAWNPLDSDWLAAGLDKHRADFSVLIWDIPLYELGQNDACLSLCWLPRDQKLLLAGMHRNLAIFDLRNTSQKMFVNTKAVQGVTVDPYFHDRVASFYEGQVAIWDLRKFEKPVLTLTEQPKPLTKVAWCPTRTGLLATLTRDSNIIRLYDMQHTPTPIGDETEPTIIERSVQPCDNYIASFAWHPTSQNRMIVVTPNRTMSDFTVFSVLTGRTMHCHLDAPANAISVCRDAAQVVVAGRSIFKIYAIEEEQFVEKLNLRVGRKPSLNLSCADVVWHQMDENLLATAATNGVVVTWNLGRPSRNKQDQLFTEHKRTVNKVCFHPTEAHVLLSGSQDGFMKCFDLRRKDSVSTFSGQSESVRDVQFSIRDYFTFASTFENGNVQLWDIRRPDRCERMFTAHNGPVFCCDWHPEDRGWLATGGRDKMVKVWDMTTHRAKEMHCVQTIASVARVKWRPECRHHLATCSMMVDHNIYVWDVRRPFVPAAMFEEHRDVTTGIAWRHPHDPSFLLSGSKDSSLCQHLFRDASQPVPPDPHKGIEFGVYCSHCRSEVRGTQCAICKGFTFQCAICHVAVRGSSNFCLTCGHGGHTSHMMEWFRTQEVCPTGCGCHCLLESTF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.36 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	605308

fit	/app/data/saxs_computation/dx/9dx1/9dx1.fit
pddf	/app/data/pr_computation/dx/9dx1/9dx1.pr.out
profile	/app/data/saxs_computation/dx/9dx1/9dx1.dat

Human GATOR2 complex - Sestrin2 bound state

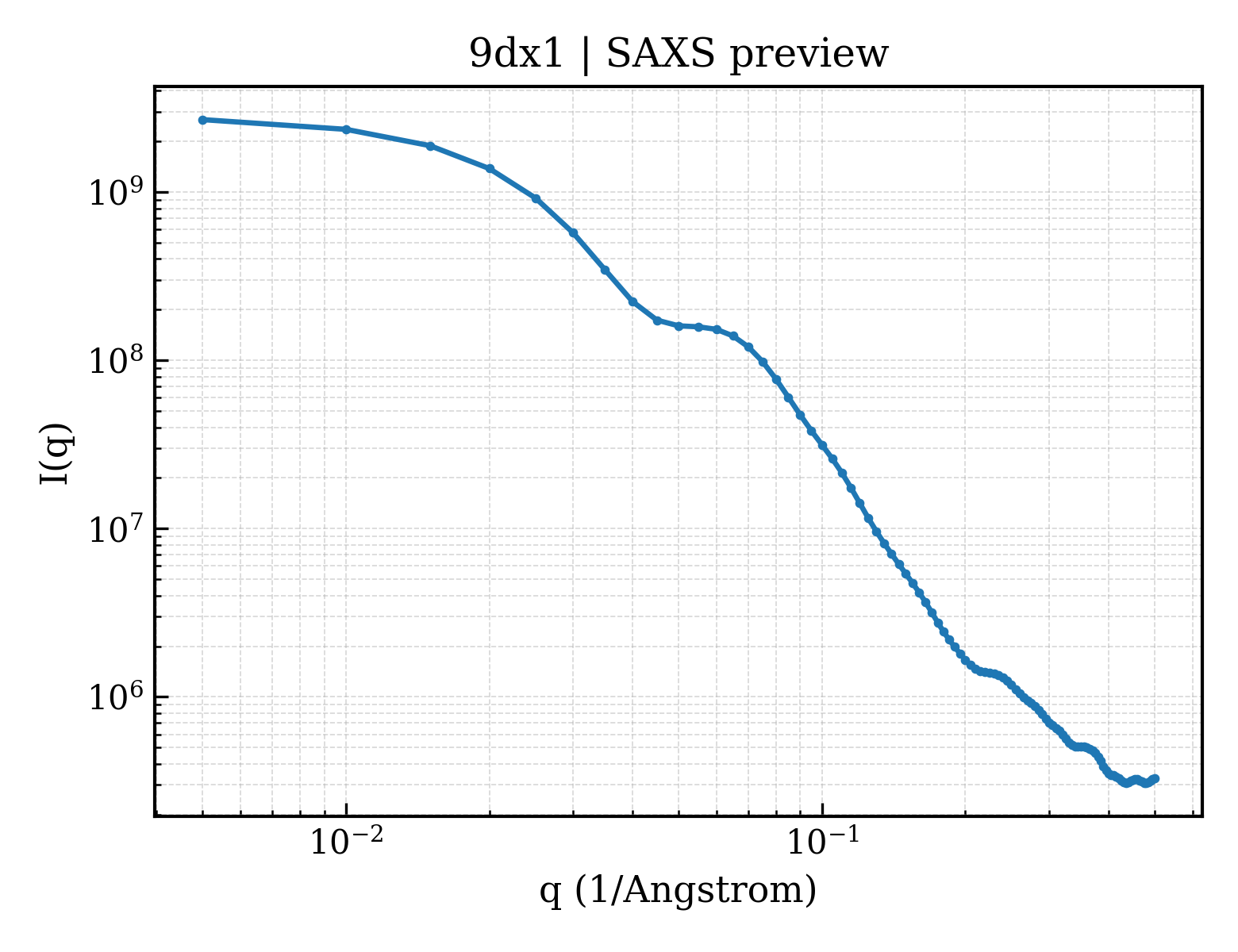

SAXS 散射曲线 SAXS Profile

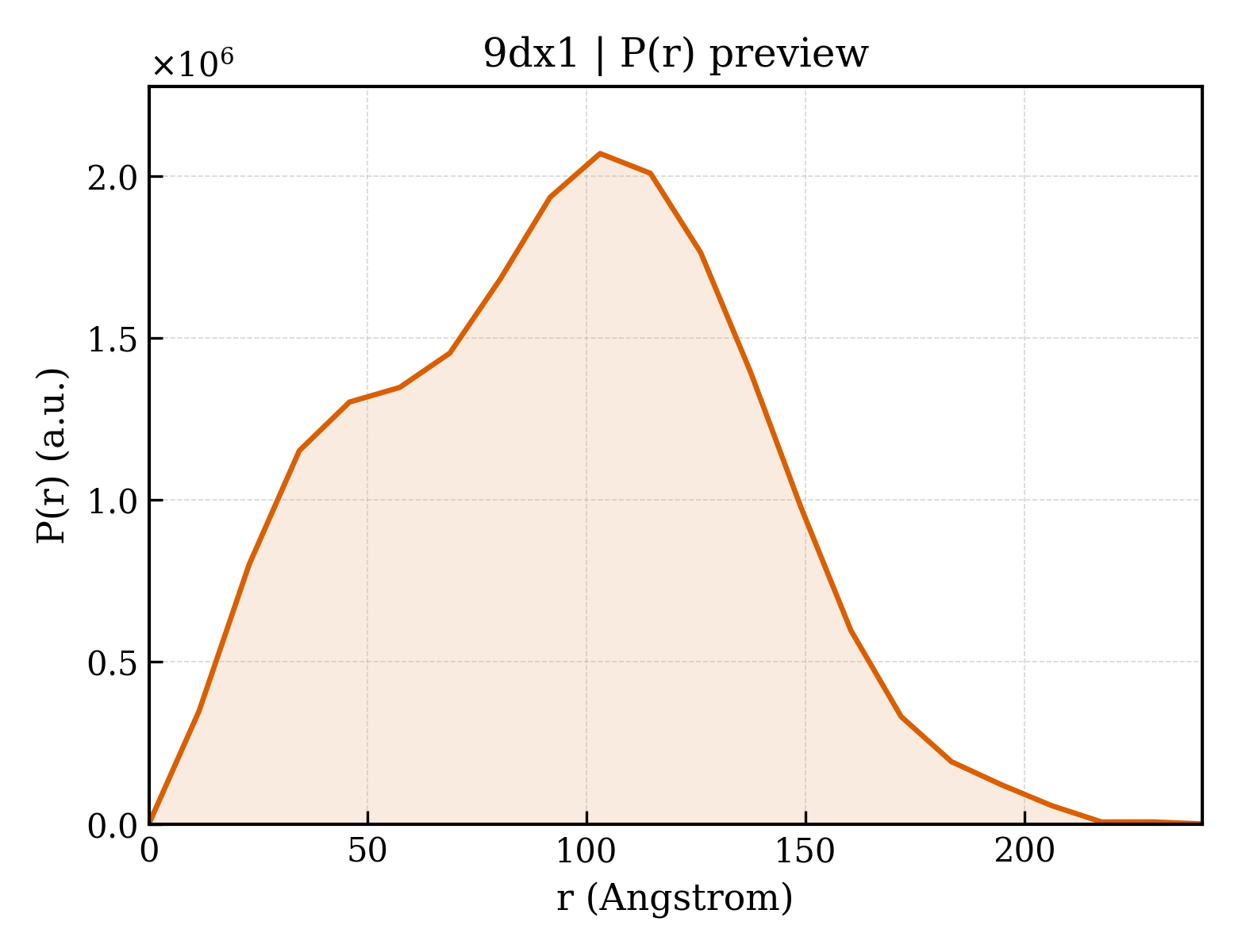

P(r) 距离分布 P(r) Distribution
