9dz3

Photoactivation in Bacteriophytochromes, reference (dark) structure for the 3 ps time point

Method: X-RAY DIFFRACTION D_max: 107.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

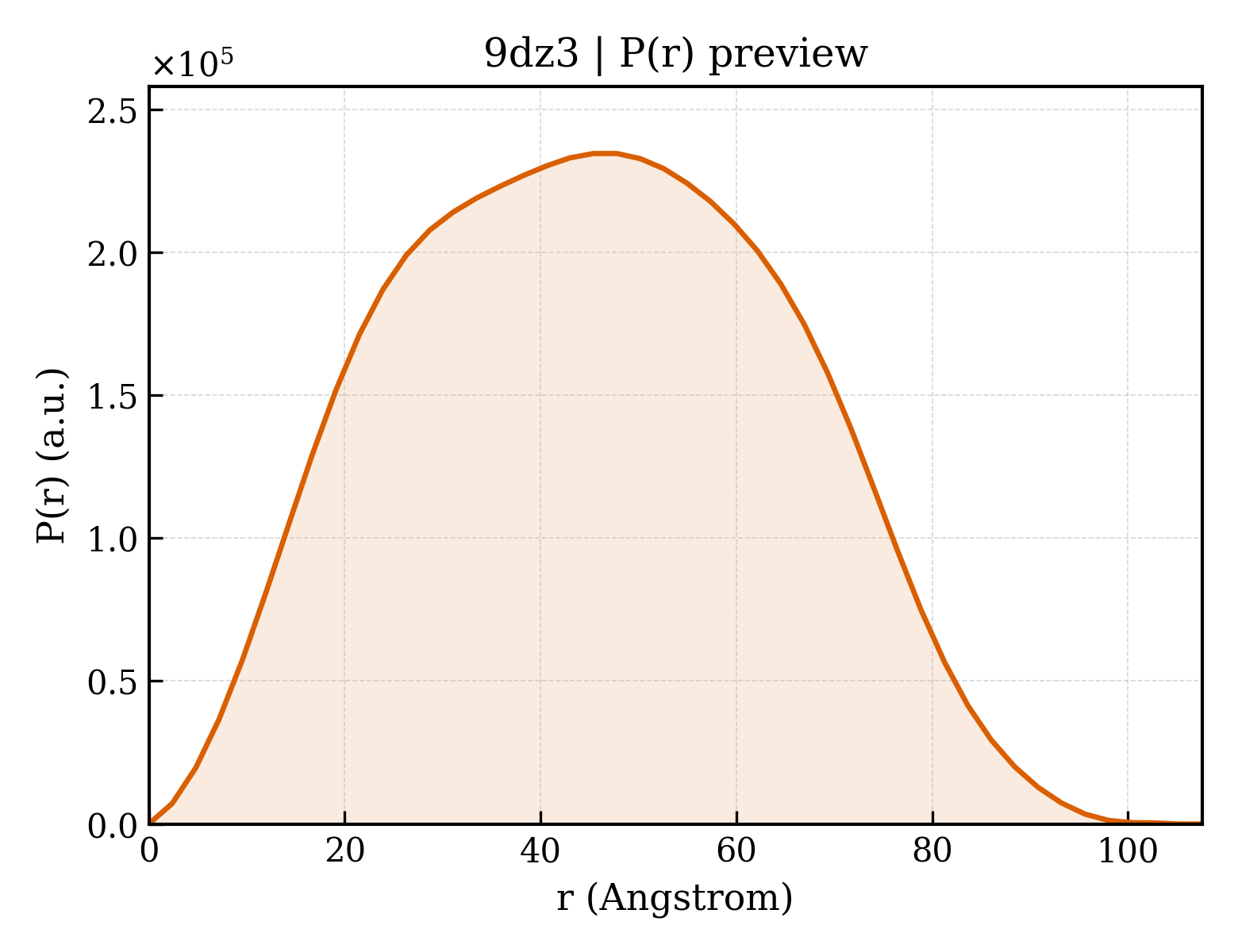

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dz3
沉积日期 deposition_date	2024-10-15
最后修订 last_revision	2025-10-08
结构标题 title	Photoactivation in Bacteriophytochromes, reference (dark) structure for the 3 ps time point
关键词 keywords	Red-light receptor enzyme Bacteriophytochrome Myxobacteria Photosensory Core Domain, SIGNALING PROTEIN; SIGNALING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.02 Å
回转半径 Rg (电子) rg_electron	34.51 Å
零角强度 I(0) i0	168352000.00
分子量 molecular_weight	105090.0 kDa
排除体积 excluded_volume	132210 Å³
包络体积 envelope_volume	174870 Å³
水化壳体积 shell_volume	42451 Å³
包络直径 envelope_diameter	106.7 Å
壳层 Rg shell_rg	40.92 Å
包络 Rg envelope_rg	33.95 Å
形状 Rg shape_rg	34.52 Å
总 Rg total_rg	34.97 Å
总原子数 total_atoms	7417
残基数 n_residues	964
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	107.6 Å
Rg (实空间) rg_real	34.88 Å
Rg 误差 (实空间) rg_real_error	0.82 Å
I(0) (实空间) i0_real	1.6840e+08
I(0) 误差 (实空间) i0_real_error	2.8640e+06
Rg (倒空间) rg_reciprocal	34.97 Å
I(0) (倒空间) i0_reciprocal	168400000.0000
解质量估计 total_estimate	0.9104
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	0
主峰位置 r_peak_primary	— Å
偏度 Skewness skewness	0.076
峰度 Kurtosis kurtosis	-0.752
角度范围 angular_range	— – 0.2250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	31440000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.940

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Photoreceptor-histidine kinase BphP
分子量 formula_weight	51981.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7488

DLSQCDREPIHLLGGIQSHGVLLAFRGPDRLLEVVSANAQALLGRPPETLLGQPVGRVLPAEVLAQWEPLVARGSVRVVLPAGAYRALLHESDGLTVLELEPAELQPGMEETALEVVRRLVSPLAGVKGTQALLQTAADTVRALTGFDRVMVYRFDADWHGEVLAESKRGGMDGFLGMHFPATDIPVQARALYTRNPLRLIADARARPVPLLPPVVPALGRPLDLSNSALRSVSPVHLEYLRNMGVGASFSLSLLKEGVLWGLIACHHLEPLHISHERRRACEVLTQLLALQLSAEERAAEASEDAHRAALLGQLATAMGEGGTLEEVLEKESERVLALTGAAGVALLLGEEPLLVGCTPAQDEVEALVAWLATQPFQTSFHTDRLGTVYPPLAARADVAAGILAVRLAPAAARFAIWFRPEVARTISWAGNPRKPAEPEPGHQRLHPRGSFQAWEETVRDTSLPWKRADLGAAEGFRGALV

来源 Source

来源生物 organism	Stigmatella aurantiaca
NCBI 分类编号 ncbi_taxonomy_id	41
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;3-[2-[[5-[[(3E,4S)-3-ethylidene-4-methyl-5-oxidanylidene-pyrrol-2-yl]methyl]-3-(3-hydroxy-3-oxopropyl)-4-methyl-1H-pyrrol-2-yl]methyl]-5-[(4-ethyl-3-methyl-5-oxidanylidene-pyrrol-2-yl)methyl]-4-methyl-1H-pyrrol-3-yl]propanoic acid ;
分子量 formula_weight	588.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	BENZAMIDINE
分子量 formula_weight	120.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	61

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	83.580 Å
晶胞边长 b length_b	83.040 Å
晶胞边长 c length_c	86.790 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	107.74 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	27.300 Å
R 因子 r_factor	0.1939
R_work r_work	0.1908
R_free r_free	0.2509

fit	/app/data/saxs_computation/dz/9dz3/9dz3.fit
pddf	/app/data/pr_computation/dz/9dz3/9dz3.pr.out
profile	/app/data/saxs_computation/dz/9dz3/9dz3.dat
