1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dze
沉积日期 deposition_date	2024-10-16
结构标题 title	Computationally Designed Bifaceted Protein Nanomaterial pD5-14
关键词 keywords	nanomaterial, 4 component, bifaceted, penton, DE NOVO PROTEIN; DE NOVO PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	117.10 Å
零角强度 I(0) i0	7705480000.00
分子量 molecular_weight	631190.0 kDa
排除体积 excluded_volume	737880 Å³
包络体积 envelope_volume	2819800 Å³
水化壳体积 shell_volume	208290 Å³
包络直径 envelope_diameter	285.7 Å
壳层 Rg shell_rg	125.10 Å
包络 Rg envelope_rg	98.35 Å
形状 Rg shape_rg	117.10 Å
总 Rg total_rg	117.10 Å
总原子数 total_atoms	44930
残基数 n_residues	9060
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	265.6 Å
Rg (实空间) rg_real	116.50 Å
Rg 误差 (实空间) rg_real_error	0.38 Å
I(0) (实空间) i0_real	7.5720e+09
I(0) 误差 (实空间) i0_real_error	1.4050e+08
Rg (倒空间) rg_reciprocal	126.30 Å
I(0) (倒空间) i0_reciprocal	7937000000.0000
解质量估计 total_estimate	0.7656
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	183.9 Å
偏度 Skewness skewness	-0.421
峰度 Kurtosis kurtosis	-0.666
角度范围 angular_range	— – 0.0650 Å⁻¹
当前正则化参数 α current_alpha	0.4653
最高正则化参数 α highest_alpha	355800000.0000
实空间数据点数 n_real_points	14
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 0.984; Sysdev: 1.000; Positv: 1.000; Valcen: 0.021; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	pD5-14 A component
分子量 formula_weight	35302.1 kDa
来源方法 src_method	man
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J
原子数 atom_count	44930

MGSLELALKALQILVNAAYVLAEIARDRGNEELLEKAARLAEEAARQAERIARQARKEGNLELALKALQILVNAAYVLAEIARDRGNEELLEYAARLAEEAARQAIEIWAQAMEEGNQQLRTKAAHIILRAAEVLLEIARDRGNQELLEKAASLVDAVAALQQAAAAILEGDVEKAVRAAQEAVKAAKEAGDNDMLRAVAIAALRIAKEAEKQGNVEVAVKAARVAVEAAKQAGDNDVLRKVAEQALRIAKEAEKQGNVEVAVKAARVAVEAAKQAGDNDVLRKVADQALEIAKAALEQGDIDVAQKAMDVAVEALTQAGGSGGSHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	pD5-14 B component
分子量 formula_weight	34050.8 kDa
来源方法 src_method	man
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L,M,N,O,P,Q,R,S,T

MGSPRLVLRALENMVRAAHTLAEIARDNGNEEWLERAARLAEEVARRAERLAREARKEGNLELALKALQILVNAAYVLAEIARDRGNEEELEYAARLAEEAARQAIEIAAQAMEEGNLELALKALQIIVNAAYVLAEIARDRGNEELLEKAASLAEAAAALAEAIAAILEGDVEKAVRAAQEAVKAAKEAGDNDMLRAVAIAALRIAKEAEKQGNVEVAVKAARVAVEAAKQAGDNDVLRKVAEQALRIAKEAEKQGNVEVAVKAARVAVEAAKQAGDNDVLRKVAEQALEIAKKAAEQGDVGVMQKAMDVALRAAGQAG

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	pD5-14 C component
分子量 formula_weight	56306.8 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e

MGSKGEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTAKLKVTKGGPLPFSWDILSPQFMYGSRAFIKHPADIPDYYKQSFPEGFKWERVMNFEDGGAVTVTQDTSLEDGTLIYKVKLRGTNFPPDGPVMQKKTMGWEASTERLYPEDGVLKGDIKMALRLKDGGRYLADFKTTYKAKKPVQMPGAYNVDRKLDITSHNEDYTVVEQYERSEGRHSTGGMDELYKGSGSGPELFLQDLRSLVEAARILARLARQRGDEHALERAARWAEQAARQAERLARQARKEGNLELALKALQILVNAAYVLAEIARDRGNEELLEYAARLAEEAARQAIEIAAQAMEEGNFELALEALEIINEAARVLARIAHHRGNQELLEKAASLTHASAALSRAIAAILEGDVEKAVRAAQEAVKAAKEAGDNDMLRAVAIAALRIAKEAEKQGNVEVAVKAARVAVEAAKQAGDNDVLRLVSERALSIAASSVKQGNYEVKEKAIRVAKEANKQAG

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	pD5-14 D component
分子量 formula_weight	56573.7 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f,g,h,i,j

MGSKGEEDNMASLPATHELHIFGSINGVDFDMVGQGTGNPNDGYEELNLKSTKGDLQFSPWILVPHIGYGFHQYLPYPDGMSPFQAAMVDGSGYQVHRTMQFEDGASLTVNYRYTYEGSHIKGEAQVKGTGFPADGPVMTNSLTAADWCRSKKTYPNDKTIISTFKWSYTTGNGKRYRSTARTTYTFAKPMAANYLKNQPMYVFRKTELKHSKTELNFKEWQKAFTDVMGMDELYKGSGSGPELFLQDLRSLVEAARILARLARQRGDEHALERAARWAEQAARQAERLARQARKEGNLELALKALQILVNAAYVLAEIARDRGNEELLEYAARLAEEAARQAIEIAAQAMEEGNFELALEALEIINEAARVLARIAHHRGNQELLEKAASLTHASAALSRAIAAILEGDVEKAVRAAQEAVKAAKEAGDNDMLRAVAIAALRIAKEAEKQGNVEVAVKAARVAVEAAKQAGDNDVLKRVSETLLSIAAEATKQGNSEVMEKAIRVSEEAEKQAG

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	209004

fit	/app/data/saxs_computation/dz/9dze/9dze.fit
pddf	/app/data/pr_computation/dz/9dze/9dze.pr.out
profile	/app/data/saxs_computation/dz/9dze/9dze.dat

Computationally Designed Bifaceted Protein Nanomaterial pD5-14

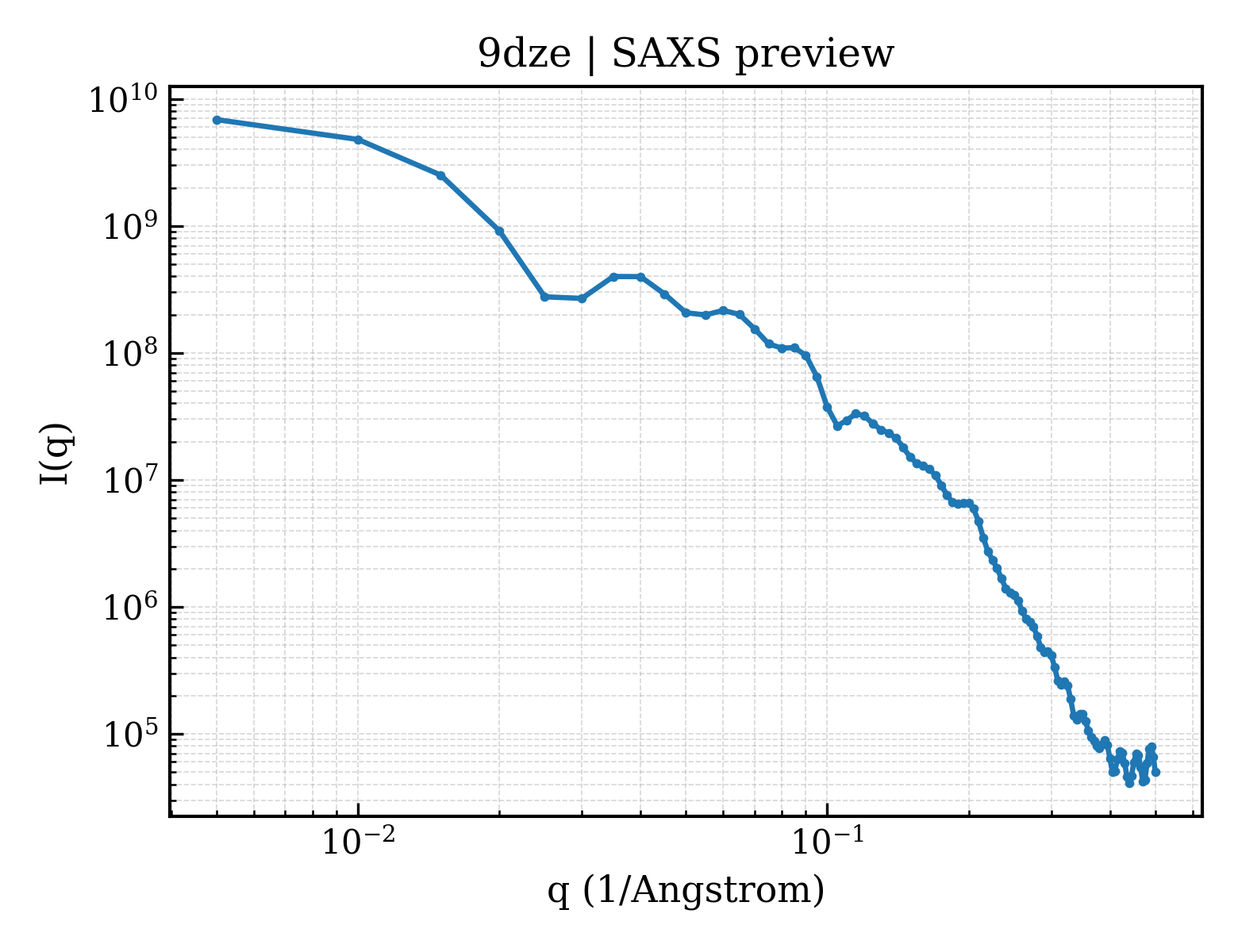

SAXS 散射曲线 SAXS Profile

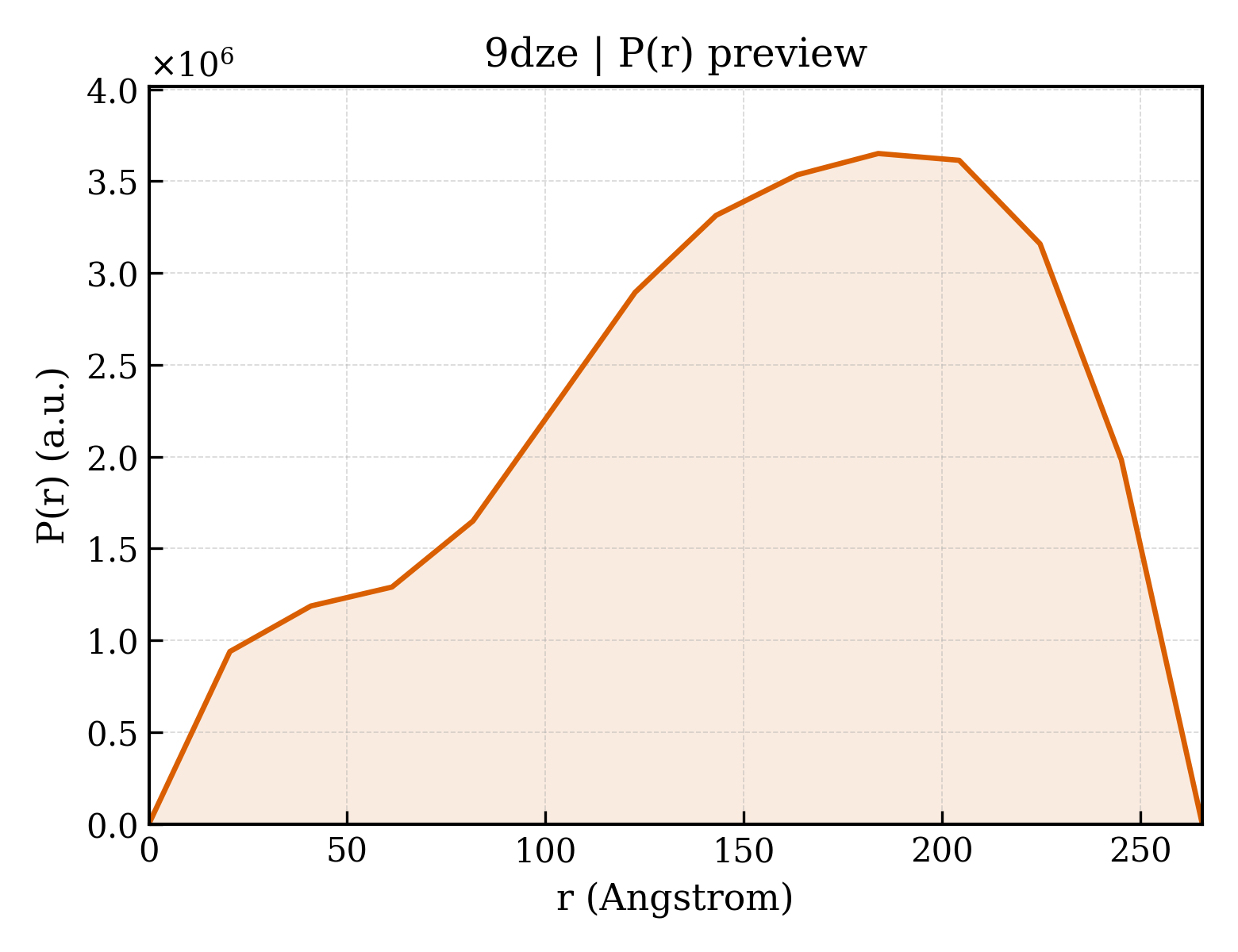

P(r) 距离分布 P(r) Distribution
