9e0n

M. smegmatis unmethylated 70S ribosome structure

Method: ELECTRON MICROSCOPY D_max: 293.9 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

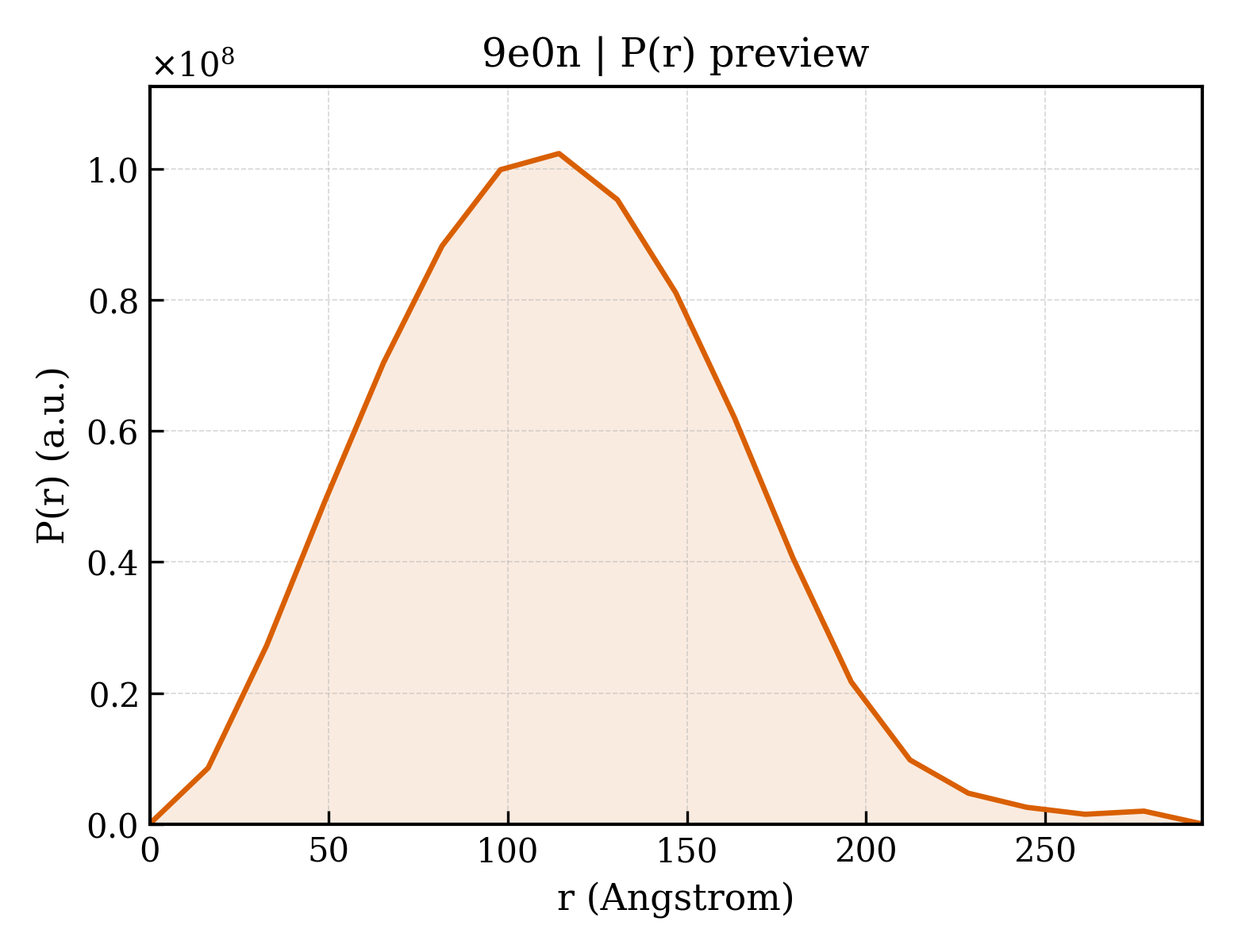

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9e0n
沉积日期 deposition_date	2024-10-18
最后修订 last_revision	2025-07-16
结构标题 title	M. smegmatis unmethylated 70S ribosome structure
关键词 keywords	70S ribosome, unmethylated ribosome, ribonucleoprotein complex, protein synthesis, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	85.27 Å
回转半径 Rg (电子) rg_electron	85.82 Å
零角强度 I(0) i0	159357000000.00
分子量 molecular_weight	2211100.0 kDa
排除体积 excluded_volume	2272900 Å³
包络体积 envelope_volume	4110800 Å³
水化壳体积 shell_volume	364600 Å³
包络直径 envelope_diameter	270.4 Å
壳层 Rg shell_rg	101.40 Å
包络 Rg envelope_rg	83.82 Å
形状 Rg shape_rg	85.88 Å
总 Rg total_rg	85.78 Å
总原子数 total_atoms	148775
残基数 n_residues	10820
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	293.9 Å
Rg (实空间) rg_real	86.94 Å
Rg 误差 (实空间) rg_real_error	1.52 Å
I(0) (实空间) i0_real	1.5750e+11
I(0) 误差 (实空间) i0_real_error	3.4140e+09
Rg (倒空间) rg_reciprocal	86.98 Å
I(0) (倒空间) i0_reciprocal	160200000000.0000
解质量估计 total_estimate	0.9056
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	114.3 Å
偏度 Skewness skewness	0.291
峰度 Kurtosis kurtosis	-0.061
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.2440
最高正则化参数 α highest_alpha	6196000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.792; Stabil: 0.921; Sysdev: 1.000; Positv: 1.000; Valcen: 0.906; Smooth: 0.737

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (56)

Entity 1 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	7022.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1
原子数 atom_count	148775

MAELKITQVRSTIGARWKQRESLRTLGLKKIRQSVVREDNAQTRGLINTVHHLVEVEEVGK

Entity 2 polymer

描述 description	Large ribosomal subunit protein bL31
分子量 formula_weight	8312.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MKTGIHPEYVDTTVQCGCGHSFTTRSTKQSGTIVVEVCSQCHPFYTGKQKILDSGGRVARFEKRYGKRNKAAADK

Entity 3 polymer

描述 description	Large ribosomal subunit protein bL32
分子量 formula_weight	6467.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MAVPKRRMSRANTRSRRAQWKAEAPGLVTVSVAGQQRKVPRRLLKAARLGLVDLDKR

Entity 4 polymer

描述 description	Large ribosomal subunit protein bL33A
分子量 formula_weight	6468.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MASSTDVRPKITLACEVCKHRNYITKKNRRNDPDRLEIKKFCPNCGTHQPHKESR

Entity 5 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5522.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5

MAKGKRTFQPNNRRRARVHGFRLRMRTRAGRAIVANRRSKGRRALTA

Entity 6 polymer

描述 description	Large ribosomal subunit protein bL35
分子量 formula_weight	7298.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MPKAKTHSGASKRFRRTGTGKIVRQKANRRHLLEHKPTKRTRRLDGRTTVSAADNSRINKLLNG

Entity 7 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4341.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MKVNPSVKPICDKCRVIRRHGRVMVICSDPRHKQRQG

Entity 8 polymer

描述 description	50S ribosomal protein bL37
分子量 formula_weight	2841.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MAKRGRKKRDRKHSKANHGKRPNA

Entity 9 polymer

描述 description	23S rRNA
分子量 formula_weight	1012140.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

UAAGUGUUUAAGGGCGCAUGGUGGAUGCCUUGGCACUGGGAGCCGAUGAAGGACGUAGGAGGCUGCGAUAAGCCUCGGGGAGCUGUCAACCGAGCGUUGAUCCGAGGAUGUCCGAAUGGGGAAACCCGGCACGAGUGAUGUCGUGUCACCAGGCGCUGAAUAUAUAGGCGUCUGGGGGGAACGCGGGGAAGUGAAACAUCUCAGUACCCGUAGGAAGAGAAAACAAAAUGUGAUUCCGUGAGUAGUGGCGAGCGAAAGCGGAGGAUGGCUAAACCGUAUGCAUGUGAUACCGGGUAGGGGUUGUGUGUGCGGGGUUGUGGGACCUAUCUUUCCGGCUCUACCUGGCUGGAGGGCAGUGAGAAAAUGUUGUGGUUAGCGGAAAUGGCUUGGGAUGGCCUGCCGUAGACGGUGAGAGCCCGGUACGUGAAAACCCGACGUCUGUCUUGAUGGUGUUCCCGAGUAGCAGCGGGCCCGUGGAAUCUGCUGUGAAUCUGCCGGGACCACCCGGUAAGCCUGAAUACUUCCCAGUGACCGAUAGCGGAUUAGUACCGUGAGGGAAUGGUGAAAAGUACCCCGGGAGGGGAGUGAAAGAGUACCUGAAACCGUGCGCUUACAAUCCGUCAGAGCCCUCGACGUGUCGUGGGGUGAUGGCGUGCCUUUUGAAGAAUGAGCCUGCGAGUCAGGGACAUGUCGCGAGGUUAACCCGGGUGGGGUAGCCGCAGCGAAAGCGAGUCUGAAUAGGGCGUAUCCACACAAGAGUGUGUGGUGUAGUGGUGUGUUCUGGACCCGAAGCGGAGUGAUCUACCCAUGGCCAGGGUGAAGCGCGGGUAAGACCGCGUGGAGGCCCGAACCCACUUAGGUUGAAGACUGAGGGGAUGAGCUGUGGGUAGGGGUGAAAGGCCAAUCAAACUCCGUGAUAGCUGGUUCUCCCCGAAAUGCAUUUAGGUGCAGCGUCGCAUGUUUCUUGCCGGAGGUAGAGCUACUGGAUGGCCGAUGGGCCCCACAGGGUUACUGACGUCAGCCAAACUCCGAAUGCCGGUAAGUCCAAGAGUGCGGCAGUGAGACGGCGGGGGAUAAGCUCCGUGCGUCGAGAGGGAAACAGCCCAGAUCGCCGGCUAAGGCCCCUAAGCGUGUGCUAAGUGGAAAAGGAUGUGCAGUCGCGAAGACAACCAGGAGGUUGGCUUAGAAGCAGCCACCCUUGAAAGAGUGCGUAAUAGCUCACUGGUCAAGUGAUUGUGCGCCGAUAAUGUAGCGGGGCUCAAGCACACCGCCGAAGCCGCGGCAGCCAACGUGUUGGCUGGGUAGGGGAGCGUCCUGCAUCCGGUGAAGCCGCCGAGUGAUCGAGUGGUGGAGGGUGUGGGAGUGAGAAUGCAGGCAUGAGUAGCGAUUAGGCAAGUGAGAACCUUGCCCGCCGAAAGACCAAGGGUUCCUGGGCCAGGCCAGUCCGCCCAGGGUGAGUCGGGACCUAAGGCGAGGCCGACAGGCGUAGUCGAUGGACAACGGGUUGAUAUUCCCGUACCCGUGUAUGUGCGUCCAUGAUGAAUCAGCGGUACUAACCAUCCAAAACCACCGUGACCGCACCUUUCGGGGUGUGGCGUUGGUGGGGCUGCAUGGGACCUUCGUUGGUAGUAGUCAAGCGAUGGGGUGACGCAGGAAGGUAGCCGUACCGGUCAGUGGUAAUACCGGGGUAAGCCUGUAGGGAGUCAGAUAGGUAAAUCCGUCUGGCAUAUAUCCUGAGAGGUGAUGCAUAGCCGAGUGAGGCGAAUUCGGUGAUCCUAUGCUGCCGAGAAAAGCCUCUAGCGAGGACAUACACGGCCCGUACCCCAAACCAACACAGGUGGUCAGGUAGAGAAUACUAAGGCGUACGAGUGAACUAUGGUUAAGGAACUCGGCAAAAUGCCCCCGUAACUUCGGGAGAAGGGGGACCCACAUGGCGUGUAAGCCUUUACGGCCCAAGCGUGAGUGGGUGGCACAAACCAGUGAGAAGCGACUGUUUACUAAAAACACAGGUCCGUGCGAAGUCGCAAGACGAUGUAUACGGACUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGACCCGUUAACUCCCUUUGGGGGUGAAGCGGAGAAUUUAAGCCCCAGUAAACGGCGGUGGUAACUAUAACCAUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAACGACUUCUCAACUGUCUCAACCAUAGACUCGGCGAAAUUGCACUACGAGUAAAGAUGCUCGUUACGCGCGGCAGGACGAAAAGACCCCGGGACCUUCACUACAACUUGGUAUUGGUGCUCGAUACGGUUUGUGUAGGAUAGGUGGGAGACUGUGAAGCUCACACGCCAGUGUGGGUGGAGUCGUUGUUGAAAUACCACUCUGAUCGUAUUGGGCCUCUAACCUCGGACCGUAUAUCCGGUUCAGGGACAGUGCCUGGUGGGUAGUUUAACUGGGGCGGUUGCCUCCUAAAAUGUAACGGAGGCGCCCAAAGGUUCCCUCAACCUGGACGGCAAUCAGGUGUUGAGUGUAAGUGCACAAGGGAGCUUGACUGCGAGACGGACAUGUCGAGCAGGGACGAAAGUCGGGACUAGUGAUCCGGCACCUCUGAGUGGAAGGGGUGUCGCUCAACGGAUAAAAGGUACCCCGGGGAUAACAGGCUGAUCUUCCCCAAGAGUCCAUAUCGACGGGAUGGUUUGGCACCUCGAUGUCGGCUCGUCGCAUCCUGGGGCUGGAGCAGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGCACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCUCUAUCCGCCGCGCGCGUCAGAAGCUUGAGGAAACCUGUCCCUAGUACGAGAGGACCGGGACGGACGAACCUCUGGUAUACCAGUUGUCCCACCAGGGGCACGGCUGGAUAGCCACGUUCGGACAGGAUAACCGCUGAAAGCAUCUAAGCGGGAAACCUCUUCCAAGACCAGGCUUCUCACCCUCUAGGAGGGAUAAGGCCCCCCGCAGACCACGGGAUUGAUAGACCAGACCUGGAAGCCUAGUAAUAGGUGCAGGGAACUGGCACUAACCGGCCGAAAACUUAC

Entity 10 polymer

描述 description	5S rRNA
分子量 formula_weight	38038.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

GUUACGGCGGUCCAUAGCGGCAGGGAAACGCCCGGUCCCAUCCCGAACCCGGAAGCUAAGCCUGCCAGCGCCGAUGAUACUACCCUUCCGGGUGGAAAAGUAGGACACCGCCGAACAC

Entity 11 polymer

描述 description	Large ribosomal subunit protein uL2
分子量 formula_weight	30425.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MGIRKYKPTTPGRRGASVSDFAEITRSTPEKSLVRPLHGKGGRNAHGRITTRHKGGGHKRAYRVIDFRRHDKDGVNAKVAHIEYDPNRTANIALLHYLDGEKRYIIAPQGLKQGDVIESGANADIKPGNNLPLRNIPAGTVIHAVELRPGGGAKLARSAGVSIQLLGKEGTYAALRMPSGEIRRVDVRCRATVGEVGNAEQSNINWGKAGRMRWKGKRPTVRGVVMNPVDHPHGGGEGKTSGGRHPVSPWGKPEGRTRKPNKPSDKLIVRRRRTGKKR

Entity 12 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	23011.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MARKGILGTKLGMTQVFDENNKVVPVTVVKAGPNVVTRIRTTERDGYSAVQLAYGEISPRKVIKPVAGQFAAAGVNPRRHVAELRLDDEAAVAEYEVGQELTAEIFSDGAYVDVTGTSKGKGFAGTMKRHGFRGQGAAHGAQAVHRRPGSIGGCATPGRVFKGTRMSGRMGNDRVTTQNLKVHKVDAENGVLLIKGAIPGRNGGLVVVRSAIKRGEK

Entity 13 polymer

描述 description	Large ribosomal subunit protein uL4
分子量 formula_weight	22920.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MTLKVDVKTPAGKTDGSVELPAELFDVEPNIALMHQVVTAQLAAKRQGTHSTKTRGEVSGGGKKPYRQKGTGRARQGSTRAPQFTGGGTVHGPKPRDYSQRTPKKMIAAALRGALSDRARNDRIHAVTELVEGQTPSTKSAKTFLGTLTENKKVLVVIGRTDEVGAKSVRNLPGVHVISPDQLNTYDVLNADDVVFSVEALNAYISANSKEGASV

Entity 14 polymer

描述 description	Large ribosomal subunit protein uL5
分子量 formula_weight	21152.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MTTTEKALPRLKQRYREEIREALQQEFNYANVMQIPGVVKVVVNMGVGDAARDAKLINGAINDLALITGQKPEVRRARKSIAQFKLREGMPIGARVTLRGDRMWEFLDRLISIALPRIRDFRGLSPKQFDGTGNYTFGLNEQSMFHEIDVDSIDRPRGMDITVVTTATNDAEGRALLRALGFPFKEN

Entity 15 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19483.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MSRIGKQPVPVPSGVDVTINGQNLSVKGPKGTLTLDVAEPISVSRAEDGAIVVTRPDDERRSRSLHGLSRTLIANLVTGVTEGYTQKMEIFGVGYRVQLKGQNLEFALGYSHPVLIEAPEGITFAVESPTKFSVSGIDKQKVGQISAVIRRLRRPDPYKGKGVRYEGEQIRRKVGKTGK

Entity 16 polymer

描述 description	50S ribosomal protein L9
分子量 formula_weight	15949.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MKLILTAEVEHLGAAGDTVEVKDGYGRNYLLPRGLAIVASRGAERQAEEIRRARESKVIRDIEHANELKTALEGLGDVTLSVNAAGDTGKLFGSVTAADVVNAIKKAGGPNLDKRTVQLAKAHIKSVGTHPVTVKLHTGVEAKVSLNVVAQ

Entity 17 polymer

描述 description	Large ribosomal subunit protein uL10
分子量 formula_weight	17964.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MAKADKATAVADIAEQFKASTATVVTEYRGLTVANLAELRRALGDSATYTVAKNTLVKRAASEAGIEGLDELFAGPTAIAFVKGEAVDAAKAIKKFAKDNKALVIKGGYMDGKALSVADVEKIADLESREVLLAKLAGAMKGNLSKAAGLFNAPASQVARLAAALQEKKAGEEA

Entity 18 polymer

描述 description	Large ribosomal subunit protein uL11
分子量 formula_weight	15023.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MAPKKKVAGLIKLQIQAGQANPAPPVGPALGQHGVNIMEFCKAYNAATESQRGNVIPVEITVYEDRSFTFALKTPPAAKLLLKAAGVQKGSGEPHKTKVAKVTWDQVREIAETKKADLNANDIDAAAKIIAGTARSMGITVE

Entity 19 polymer

描述 description	Large ribosomal subunit protein uL13
分子量 formula_weight	16146.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MPTYTPKAGDTTRSWYVIDASDVVLGRLASAAATLLRGKHKPTFTPNVDGGDFVIVINADKIAVSGDKLTKKFAYRHSGYPGGLRKRTIGELLEKHPTRVVENAIIGMLPHNKLGRQIQKKLKVYAGPDHPHAAQQPIPFEIKQVAQ

Entity 20 polymer

描述 description	Large ribosomal subunit protein uL14
分子量 formula_weight	13400.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MIQQESRLKVADNTGAKEILCIRVLGGSSRRYAGIGDVIVATVKDAIPGGNVKRGDVVKAVVVRTVKERRRADGSYIKFDENAAVIIKNDNDPRGTRIFGPVGRELREKKFMKIVSLAPEVL

Entity 21 polymer

描述 description	Large ribosomal subunit protein uL15
分子量 formula_weight	15602.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MSVIKLHDLKPAPGEKKAKTRVGRGEGSKGKTAGRGTKGTKARKNVPVMFEGGQMPIHMRLPKLKGFKNRFRTEYQVVNVGDINKAFPQGGTVGVDELVAKGLVRKNSLVKVLGDGKLTVKVDVTANKFSGSAREAITAAGGSATEL

Entity 22 polymer

描述 description	Large ribosomal subunit protein uL16
分子量 formula_weight	15774.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MLIPRKVKHRKQHHPEQRGIASGGTSVSFGDYGIQALEHAYITNRQIESARIAINRHIKRGGKVWINIFPDRPLTKKPAETRMGSGKGSPEWWVANVKPGRVLFELSYPDEKTARDALTRAIHKLPIKARIVTREEQF

Entity 23 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	19210.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MPKPTKGPRLGGSSSHQSALLANLATSLFEHGRIKTTEPKARALRPYAEKLITHAKKGALHNRREVMKKIRDKDVVHTLFAEIGPFYADRNGGYTRIIKVENRKGDNAPMAVIELVREKTVTDEANRARRAAASQAKADERADEKADEKAEETVEETTEAPAEESTEAAAEETV

Entity 24 polymer

描述 description	Large ribosomal subunit protein uL18
分子量 formula_weight	13711.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MAHKPVGQNISEVRRNARLRRHARLRKKVAGTAEVPRLVVNRSARHIHVQLVNDLNGTTLAAASSIEADVRAIDGDKKAHSVRVGQLIAERAKAAGVETVVFDRGGYTYGGRIAALADAAREAGLKF

Entity 25 polymer

描述 description	Large ribosomal subunit protein bL19
分子量 formula_weight	12892.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MNTLDFVDQASLRDDIPTFSPGDTVNVHVKVIEGSKERIQVFKGVVIRRQGGGISETFTVRKESYGVGVERTFPVHSPNIDHIDVLTRGDVRRAKLYYLRELRGKKAKIKEKR

Entity 26 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	14494.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MARVKRALNAQKKRRTVLKASKGYRGQRSRLYRKAKEQQLHSLTYAYRDRRARKGEFRKLWISRINAAARANDITYNRLIQGLKAAGVEVDRKNLAELAVSDPAAFTALVDVARAALPEDVNAPSGEAA

Entity 27 polymer

描述 description	Large ribosomal subunit protein bL21
分子量 formula_weight	11055.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MATYAIVKTGGKQYKVAAGDVVKVEKLDSEPGASVSLPVALVVDGANVTSKADDLAKVAVTAEVLEHTKGPKIRIHKFKNKTGYHKRQGHRQQLTVLKVTGIK

Entity 28 polymer

描述 description	Large ribosomal subunit protein uL22
分子量 formula_weight	16353.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MSTVTEFPSATAKARYVRVSATKARRVIDLVRGKSVEEALDILRWAPQAASEPVAKVIASAAANAQNNEGLDPSTLVVATVYADEGPTAKRIRPRAQGRAFRIRKRTSHITVIVESRPPKQKGASAASARSRRAQGSKAAATKKSAETKEGSE

Entity 29 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	11047.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MATITDPRDIILAPVISEKSYGLIEDNVYTFVVHPDSNKTQIKIAIEKIFDVKVDSVNTANRQGKRKRTRTGFGKRKSTKRAIVKLAAGSKPIDLFGAPA

Entity 30 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	11228.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MKVHKGDTVLVISGKDKGAKGKVLVAYPDRNKVLVEGVNRIKKHTAVSANERGASSGGIVTQEAPIHVSNVMVVDSDGKPTRVGYRIDDETGKKVRIAKTNGKDI

Entity 31 polymer

描述 description	Large ribosomal subunit protein bL25
分子量 formula_weight	22571.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MAKTANIPNKLTANVRTRTGKGASRQARRDGKVPAVLYGHGTDPQHLELNARDFAAVLRSHGTNAILTLDIEGTEQLALTKALDVHPIRRNIQHADLLVVQRGEKVTVEVTVLVEGDATPGTLVTQDANTIEIEAEALSIPEQLTVSVEGVEAGTQITAGQISLPEGVNLISDPELLVVNVVEAPSAEALEEEGAGETGAAEAPAEEAPAEEPAE

Entity 32 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	9249.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MAHKKGASSSRNGRDSAAQRLGVKRFGGQVVKAGEILVRQRGTHFHPGVNVGRGGDDTLFALAPGAVEFGAKRGRKTVNIVPVARPEA

Entity 33 polymer

描述 description	Large ribosomal subunit protein bL28
分子量 formula_weight	6891.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MAAVCDICGKGPGFGKSVSHSHRRTSRRWNPNIQPVRAVTRPGGNKQRINACTSCIKAGKVSRA

Entity 34 polymer

描述 description	Large ribosomal subunit protein uL29
分子量 formula_weight	8790.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAVGTTPGELRELTDDELKDKLRESKEELFNLRFQMATGQLSNNRRLRTVRQEIARVYTVLRERELGLASGPAGEES

Entity 35 polymer

描述 description	16S rRNA
分子量 formula_weight	495373.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a

UUUUUGUUUGGAGAGUUUGAUCCUGGCUCAGGACGAACGCUGGCGGCGUGCUUAACACAUGCAAGUCGAACGGAAAGGCCCUUUCGGGGGUACUCGAGUGGCGAACGGGUGAGUAACACGUGGGUGAUCUGCCCUGCACUUUGGGAUAAGCCUGGGAAACUGGGUCUAAUACCGAAUACACCCUGCUGGUCGCAUGGCCUGGUAGGGGAAAGCUUUUGCGGUGUGGGAUGGGCCCGCGGCCUAUCAGCUUGUUGGUGGGGUGAUGGCCUACCAAGGCGACGACGGGUAGCCGGCCUGAGAGGGUGACCGGCCACACUGGGACUGAGAUACGGCCCAGACUCCUACGGGAGGCAGCAGUGGGGAAUAUUGCACAAUGGGCGCAAGCCUGAUGCAGCGACGCCGCGUGAGGGAUGACGGCCUUCGGGUUGUAAACCUCUUUCAGCACAGACGAAGCGCAAGUGACGGUAUGUGCAGAAGAAGGACCGGCCAACUACGUGCCAGCAGCCGCGGUAAUACGUAGGGUCCGAGCGUUGUCCGGAAUUACUGGGCGUAAAGAGCUCGUAGGUGGUUUGUCGCGUUGUUCGUGAAAACUCACAGCUUAACUGUGGGCGUGCGGGCGAUACGGGCAGACUAGAGUACUGCAGGGGAGACUGGAAUUCCUGGUGUAGCGGUGGAAUGCGCAGAUAUCAGGAGGAACACCGGUGGCGAAGGCGGGUCUCUGGGCAGUAACUGACGCUGAGGAGCGAAAGCGUGGGGAGCGAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGGUGGGUACUAGGUGUGGGUUUCCUUCCUUGGGAUCCGUGCCGUAGCUAACGCAUUAAGUACCCCGCCUGGGGAGUACGGCCGCAAGGCUAAAACUCAAAGGAAUUGACGGGGGCCCGCACAAGCGGCGGAGCAUGUGGAUUAAUUCGAUGCAACGCGAAGAACCUUACCUGGGUUUGACAUGCACAGGACGCCGGCAGAGAUGUCGGUUCCCUUGUGGCCUGUGUGCAGGUGGUGCAUGGCUGUCGUCAGCUCGUGUCGUGAGAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUGUCUCAUGUUGCCAGCACGUUAUGGUGGGGACUCGUGAGAGACUGCCGGGGUCAACUCGGAGGAAGGUGGGGAUGACGUCAAGUCAUCAUGCCCCUUAUGUCCAGGGCUUCACACAUGCUACAAUGGCCGGUACAAAGGGCUGCGAUGCCGUGAGGUGGAGCGAAUCCUUUCAAAGCCGGUCUCAGUUCGGAUCGGGGUCUGCAACUCGACCCCGUGAAGUCGGAGUCGCUAGUAAUCGCAGAUCAGCAACGCUGCGGUGAAUACGUUCCCGGGCCUUGUACACACCGCCCGUCACGUCAUGAAAGUCGGUAACACCCGAAGCCGGUGGCCUAACCCUUGUGGAGGGAGCCGUCGAAGGUGGGAUCGGCGAUUGGGACGAAGUCGUAACAAGGUAGCCGUACCGGAAGGUGCGGCUGGAUCACCUCCUUUCU

Entity 36 polymer

描述 description	Small ribosomal subunit protein uS2
分子量 formula_weight	30145.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MAVVTMKQLLDSGAHFGHQTRRWNPKMKRFIFTDRNGIYIIDLQQTLTYIDKAYEFVKETVAHGGTVLFVGTKKQAQESIAEEATRVGMPYVNQRWLGGMLTNFSTVHKRLQRLKELEAMEQTGGFEGRTKKEILMLTREKNKLERSLGGIRDMQKVPSAVWVVDTNKEHIAVGEARKLGIPVIAILDTNCDPDVVDYPIPGNDDAIRSAALLTKVIASAVAEGLQARAGQGSGEKPAEGAEPLAEWEQELLAGATAGAADASAEGAAAPESSTDAS

Entity 37 polymer

描述 description	Small ribosomal subunit protein uS3
分子量 formula_weight	30191.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MGQKINPHGFRLGITTEWKSRWYADKQYKDYVKEDVAIRKLLATGLERAGIADVEIERTRDRVRVDIHTARPGIVIGRRGTEADRIRADLEKLTGKQVQLNILEVKNPESQAQLVAQGVAEQLSNRVAFRRAMRKAIQSAMRQPNVKGIRVQCSGRLGGAEMSRSEFYREGRVPLHTLRADIDYGLYEAKTTFGRIGVKVWIYKGDIVGGKRELAAAAPASDRPRRERPSGTRPRRSGSAGTTATSTEAGRAATSDAPAAGTAAAAEAPAESTES

Entity 38 polymer

描述 description	Small ribosomal subunit protein uS4
分子量 formula_weight	23415.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MARYTGPATRKSRRLGVDLVGGDQSFEKRPYPPGQHGRARIKESEYRQQLQEKQKARFSYGVMEKQFRRYYEEANRQPGKTGDNLLRILESRLDNVVYRAGLARTRRMARQLVSHGHFLVNGVKVDIPSYRVSQYDIIDVKEKSLNTLPFQIARETAGERPIPSWLQVVGERQRILVHQLPERAQIDVPLTEQLIVELYSK

Entity 39 polymer

描述 description	Small ribosomal subunit protein uS5
分子量 formula_weight	21946.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MAEQAGAGSAQDNRGGRGRRDDRGGRGRDGGDKSNYIERVVSINRVSKVVKGGRRFSFTALVIVGDGKGMVGVGYGKAKEVPAAIAKGVEEARKNFFRVPLIGSTITHPVQGEAAAGVVMLRPASPGTGVIAGGAARAVLECAGVHDILAKSLGSDNAINVVHATVAALKLLQRPEEVAARRGLPIEDVAPAGMLKARRESEALAAAAAREGSA

Entity 40 polymer

描述 description	Small ribosomal subunit protein bS6
分子量 formula_weight	10991.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MRPYEIMVILDPTLDERTVAPSLETFLNVIRKDGGTVDKVDIWGRRRLAYEIAKHAEGIYAVIDVKAEPATVSELDRQLNLNESVLRTKVLRTDKH

Entity 41 polymer

描述 description	Small ribosomal subunit protein uS7
分子量 formula_weight	17660.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MPRKGPAPKRPLVNDPVYGSQLVTQLVNKVLLEGKKSLAERIVYGALEQAREKTGTDPVVTLKRALDNVKPALEVRSRRVGGATYQVPVEVRPDRSTTLALRWLVNFSRQRREKTMVERLANEILDASNGLGASVKRREDTHKMAEANRAFAHYRW

Entity 42 polymer

描述 description	Small ribosomal subunit protein uS8
分子量 formula_weight	14492.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MTMTDPIADFLTRLRNANSAYHDEVTLPHSKLKANIAEILKREGYISDYRTEDARVGKSLVVQLKYGPSRERSIAGLRRVSKPGLRVYAKSTNLPRVLGGLGVAIISTSSGLLTDRQAARQGVGGEVLAYVW

Entity 43 polymer

描述 description	Small ribosomal subunit protein uS9
分子量 formula_weight	16794.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MTDVTETEVVTESAEPREPVIIDRPIQTVGRRKEAVVRVRLVPGTGQFNLDGRTLENYFPNKVHQQLIKAPLVTVDRVDQFDIYAHLDGGGPSGQAGALRLAIARALILVQPEDRPALKKAGFLTRDPRAIERKKYGLKKARKAPQYSKR

Entity 44 polymer

描述 description	Small ribosomal subunit protein uS10
分子量 formula_weight	11454.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MAGQKIRIRLKAYDHEAIDASARKIVETVTRTGASVVGPVPLPTEKNVYCVIRSPHKYKDSREHFEMRTHKRLIDILDPTPKTVDALMRIDLPASVDVNIQ

Entity 45 polymer

描述 description	Small ribosomal subunit protein uS11
分子量 formula_weight	14671.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MAQAKKGGTAAKKGQKTRRREKKNVPHGAAHIKSTFNNTIVSITDPQGNVIAWASSGHVGFKGSRKSTPFAAQLAAENAARKAQEHGVKKVDVFVKGPGSGRETAIRSLQAAGLEVGTISDVTPQPHNGCRPPKRRRV

Entity 46 polymer

描述 description	Small ribosomal subunit protein uS12
分子量 formula_weight	13896.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MPTIQQLVRKGRRDKIAKVKTAALKGSPQRRGVCTRVYTTTPKKPNSALRKVARVKLTSQVEVTAYIPGEGHNLQEHSMVLVRGGRVKDLPGVRYKIIRGSLDTQGVKNRKQARSRYGAKKEKS

Entity 47 polymer

描述 description	Small ribosomal subunit protein uS13
分子量 formula_weight	14249.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MARLVGVDLPRDKRMEIALTYIYGIGRTRSNEILAATGIDKNMRTKDLTDDQVTVLRDYIEGNLKVEGDLRREVQADIRRKIEIGCYQGLRHRRGLPVRGQRTKTNARTRKGPKRTIAGKKKAR

Entity 48 polymer

描述 description	Small ribosomal subunit protein uS14B
分子量 formula_weight	6976.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MAKKALVHKANKKPKFAVRAYTRCNKCGRPHSVYRKFGLCRICLREMAHAGELPGVQKSSW

Entity 49 polymer

描述 description	Small ribosomal subunit protein uS15
分子量 formula_weight	10368.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MALTAEQKKEILGQYGLHDTDTGSPEAQVALLTKRIQDLTEHLKVHKHDHHSRRGLLLLVGRRRRLLKYVAQVDVARYRSLIERLGLRR

Entity 50 polymer

描述 description	Small ribosomal subunit protein bS16
分子量 formula_weight	16795.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MAVKIKLTRLGKIRNPQYRIIVADARTRRDGRAIEVIGRYHPKEEPSLIQIDSERAQYWLGVGAQPTEPVLALLKITGDWQKFKGLPGAEGTLKVKEPKPSKLDLFNAALAEAESGTTAAATTPKKKKAPKKDEAAEAPAEAAEAPAEAADAASES

Entity 51 polymer

描述 description	Small ribosomal subunit protein uS17
分子量 formula_weight	11127.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MADQKGPKYTPAAEKPRGRRKTAIGYVVSDKMQKTIVVELEDRKSHPLYGKIIRTTKKVKAHDENGEAGIGDRVSLMETRPLSATKRWRLVEILEKAK

Entity 52 polymer

描述 description	Small ribosomal subunit protein bS18B
分子量 formula_weight	9524.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MAKSNKRRPAPEKPVKTRKCVFCSKKGQTIDYKDTALLRTYISERGKIRARRVTGNCVQHQRDIAVAVKNAREVALLPFGSSTR

Entity 53 polymer

描述 description	Small ribosomal subunit protein uS19
分子量 formula_weight	10800.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MPRSLKKGPFVDDHLLKKVDVQNEKNTKQVIKTWSRRSTIIPDFIGHTFAVHDGRKHVPVFVTEAMVGHKLGEFAPTRTFKGHIKDDRKSKRR

Entity 54 polymer

描述 description	Small ribosomal subunit protein bS20
分子量 formula_weight	9556.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MANIKSQIKRIRTNERRRLRNQSVKSSLRTAIRGFREAVDAGDKDKASELLHATSRKLDKAASKGVIHPNQAANKKSALALALNKL

Entity 55 polymer

描述 description	Conserved domain protein
分子量 formula_weight	4164.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

MGSVIKKRRKRMSKKKHRKLLRRTRVQRRKLGK

Entity 56 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	107

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.24 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	227969

fit	/app/data/saxs_computation/e0/9e0n/9e0n.fit
pddf	/app/data/pr_computation/e0/9e0n/9e0n.pr.out
profile	/app/data/saxs_computation/e0/9e0n/9e0n.dat

M. smegmatis unmethylated 70S ribosome structure

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (56)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
