Cryo-EM structure of the Pyrobaculum calidifontis 70S ribosome in complex with Dri

Method: ELECTRON MICROSCOPY Dmax: 301.9 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

SAXS profile for 9e7f

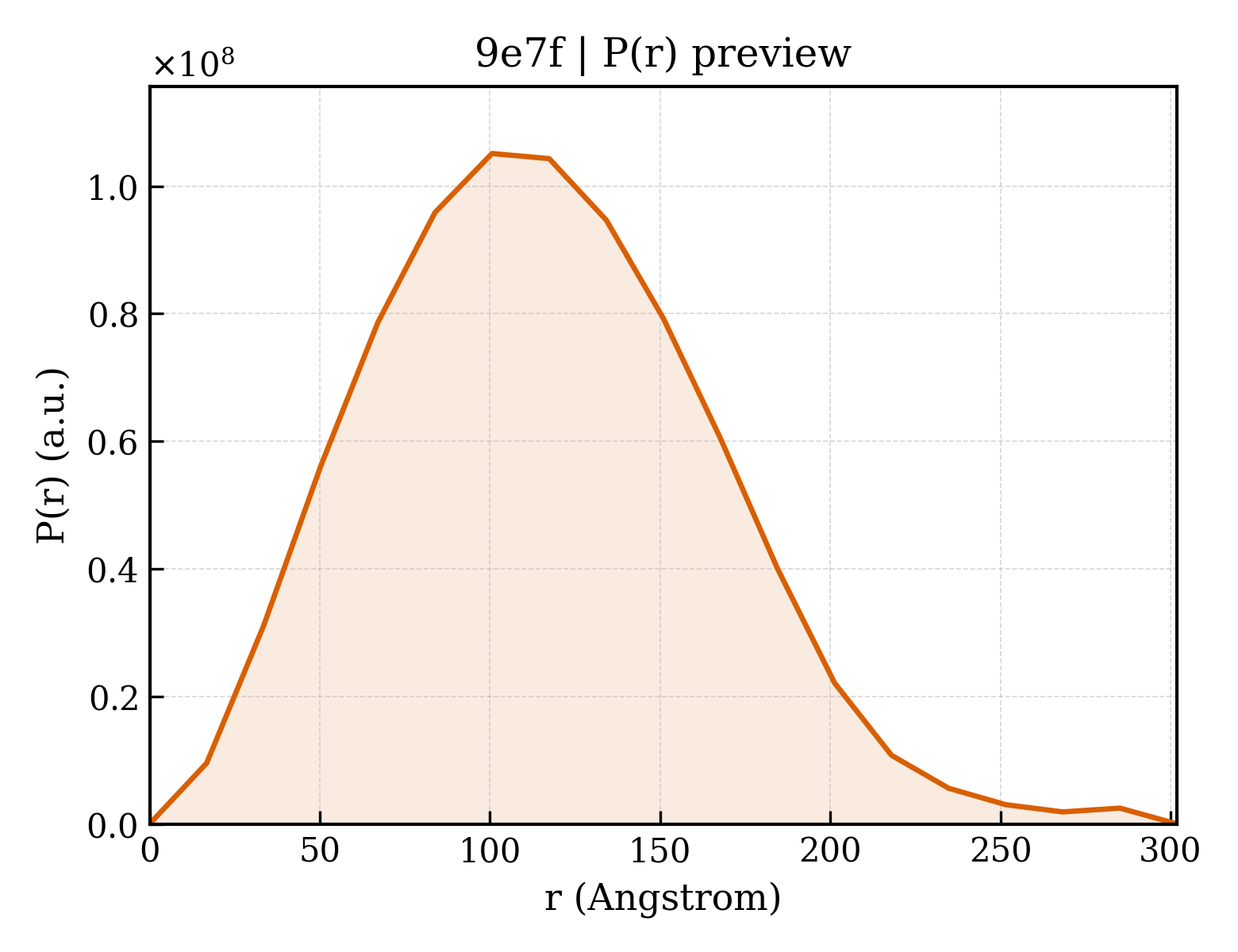

P(r) 距离分布 P(r) Distribution

P(r) distribution for 9e7f
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id9e7f
沉积日期 deposition_date2024-11-01
结构标题 titleCryo-EM structure of the Pyrobaculum calidifontis 70S ribosome in complex with Dri
关键词 keywordsRibosome, Translation, Hibernation, RNA; RIBOSOME
实验方法 methodELECTRON MICROSCOPY

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier85.89
回转半径 Rg (电子) rg_electron87.48
零角强度 I(0) i0169808000000.00
分子量 molecular_weight2447400.0 kDa
排除体积 excluded_volume2621700 ų
包络体积 envelope_volume4216200 ų
水化壳体积 shell_volume368230 ų
包络直径 envelope_diameter277.7
壳层 Rg shell_rg101.80
包络 Rg envelope_rg85.84
形状 Rg shape_rg87.58
总 Rg total_rg87.31
总原子数 total_atoms165795
残基数 n_residues13062
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax301.9
Rg (实空间) rg_real88.42
Rg 误差 (实空间) rg_real_error1.56
I(0) (实空间) i0_real1.6880e+11
I(0) 误差 (实空间) i0_real_error3.4530e+09
Rg (倒空间) rg_reciprocal87.26
I(0) (倒空间) i0_reciprocal170500000000.0000
解质量估计 total_estimate0.9022
解质量评级 solution_quality EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary100.6
偏度 Skewness skewness0.377
峰度 Kurtosis kurtosis0.012
角度范围 angular_range— – 0.0900 −1
当前正则化参数 α current_alpha1.1530
最高正则化参数 α highest_alpha8832000000.0000
实空间数据点数 n_real_points19
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.797; Stabil: 0.907; Sysdev: 1.000; Positv: 1.000; Valcen: 0.913; Smooth: 0.716
