9egd

AclA from Tenacibaculum discolor in complex with intermediate formed by C8-Lysine attack on ADP

Method: X-RAY DIFFRACTION D_max: 123.5 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9egd
沉积日期 deposition_date	2024-11-21
结构标题 title	AclA from Tenacibaculum discolor in complex with intermediate formed by C8-Lysine attack on ADP
关键词 keywords	N-acyl-cyclolysine, biosynthesis, signaling, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.89 Å
回转半径 Rg (电子) rg_electron	39.48 Å
零角强度 I(0) i0	1167430000.00
分子量 molecular_weight	188330.0 kDa
排除体积 excluded_volume	182890 Å³
包络体积 envelope_volume	329410 Å³
水化壳体积 shell_volume	66903 Å³
包络直径 envelope_diameter	134.2 Å
壳层 Rg shell_rg	47.24 Å
包络 Rg envelope_rg	39.12 Å
形状 Rg shape_rg	39.49 Å
总 Rg total_rg	39.74 Å
总原子数 total_atoms	14295
残基数 n_residues	1746
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

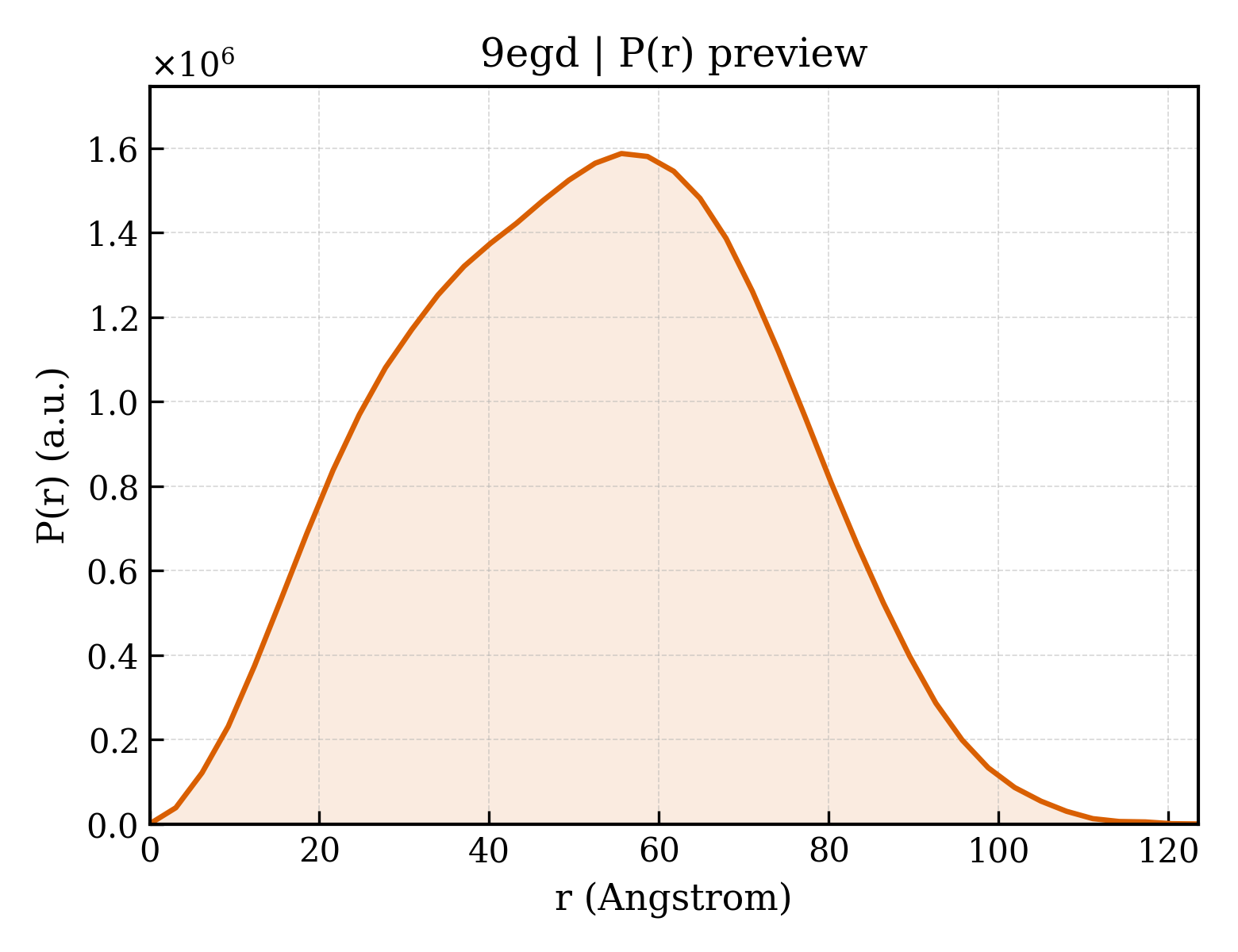

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	123.5 Å
Rg (实空间) rg_real	39.60 Å
Rg 误差 (实空间) rg_real_error	0.94 Å
I(0) (实空间) i0_real	1.1670e+09
I(0) 误差 (实空间) i0_real_error	2.1090e+07
Rg (倒空间) rg_reciprocal	39.78 Å
I(0) (倒空间) i0_reciprocal	1168000000.0000
解质量估计 total_estimate	0.9002
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	55.6 Å
偏度 Skewness skewness	0.053
峰度 Kurtosis kurtosis	-0.615
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	263000000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.928; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.925

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	THIF-type NAD/FAD binding fold domain-containing protein
分子量 formula_weight	30056.3 kDa
来源方法 src_method	man
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G
原子数 atom_count	14295

MGSSHHHHHHSQDPMKHRYSRNRLYLNPKEQELIKDYPILLGGAGIGSIIAECALRFGFENITIVDGDHVENSNLNRQNYTEGDVSVNKVEAIKARLKSINSKANIKIHNCFLTSDNVEEYIKGHKVAINALDFSSEVPLLFDEICQKMDIPVLHPYNLGWGGLVTIISPKGLSLNSIAKKGEKFNELNVVEYVSSYMRFWGKPQEWLEDIIYKFKNEREKLSPPQLSVGSWVVAGMCTHILFNIATQREIKSFPEFYLSSLEG

来源 Source

来源生物 organism	Tenacibaculum discolor
NCBI 分类编号 ncbi_taxonomy_id	361581
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ADENOSINE MONOPHOSPHATE
分子量 formula_weight	347.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 3 non-polymer

描述 description	N~2~-octanoyl-L-lysine
分子量 formula_weight	272.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 4 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	204.122 Å
晶胞边长 b length_b	83.875 Å
晶胞边长 c length_c	162.948 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.49 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	28

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.150 Å
最低分辨率 resolution_low	29.620 Å
R 因子 r_factor	0.1964
R_work r_work	0.1935
R_free r_free	0.2494
