1. Protein Identity and Related Structures Protein Identity & Related Structures

Adenosine receptor A3,adenosine A3 receptor fused to BRIL

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain R； UniProt 5–208	Mutation：S97R mutation	BAG2 Anti-BRIL Fab Heavy Chain × 1 elbow nanobody × 1 BAG2 Anti-BRIL Fab Light Chain × 1 A1BII LUF7602 × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EHS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8X16 Cryo-EM structure of adenosine receptor A3AR bound to CF101 Deposited 2023-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–318（318 aa）	Not recorded	Q8L Piclidenoson × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.29 Å
8X17 Cryo-EM structure of adenosine receptor A3AR bound to CF102 Deposited 2023-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–318（318 aa）	Not recorded	XS0 namodenoson × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
9EBH Human adenosine A3 receptor Gi1 complex bound to adenosine Deposited 2024-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–318（317 aa）	Not recorded	ADN ADENOSINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9EBI Human adenosine A3 receptor Gi complex (mini-Gsi chimera) bound to Piclidenoson (CF101, IB-MECA) Deposited 2024-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–318（317 aa）	Not recorded	Q8L Piclidenoson × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AA3R_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain R； PDBConstruct 41–244； UniProt 5–208

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ehs
Deposition date deposition_date	2024-11-24
Structure title title	Structure of a human adenosine A3 receptor complex bound to the covalent antagonist LUF7602
Keywords keywords	G protein-coupled receptor, adenosine binding, seven transmembrane protein, MEMBRANE PROTEIN, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.88 Å
Radius of gyration Rg (electron density) rg_electron	39.05 Å
Forward intensity I(0) i0	300552000.00
Molecular weight molecular_weight	94982.0 kDa
Excluded volume excluded_volume	92518 Å³
Envelope volume envelope_volume	179890 Å³
Hydration-shell volume shell_volume	39936 Å³
Envelope diameter envelope_diameter	130.0 Å
Shell Rg shell_rg	42.94 Å
Envelope Rg envelope_rg	38.15 Å
Shape Rg shape_rg	39.02 Å
Total Rg total_rg	39.28 Å
Total atoms total_atoms	7201
Residues n_residues	924
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

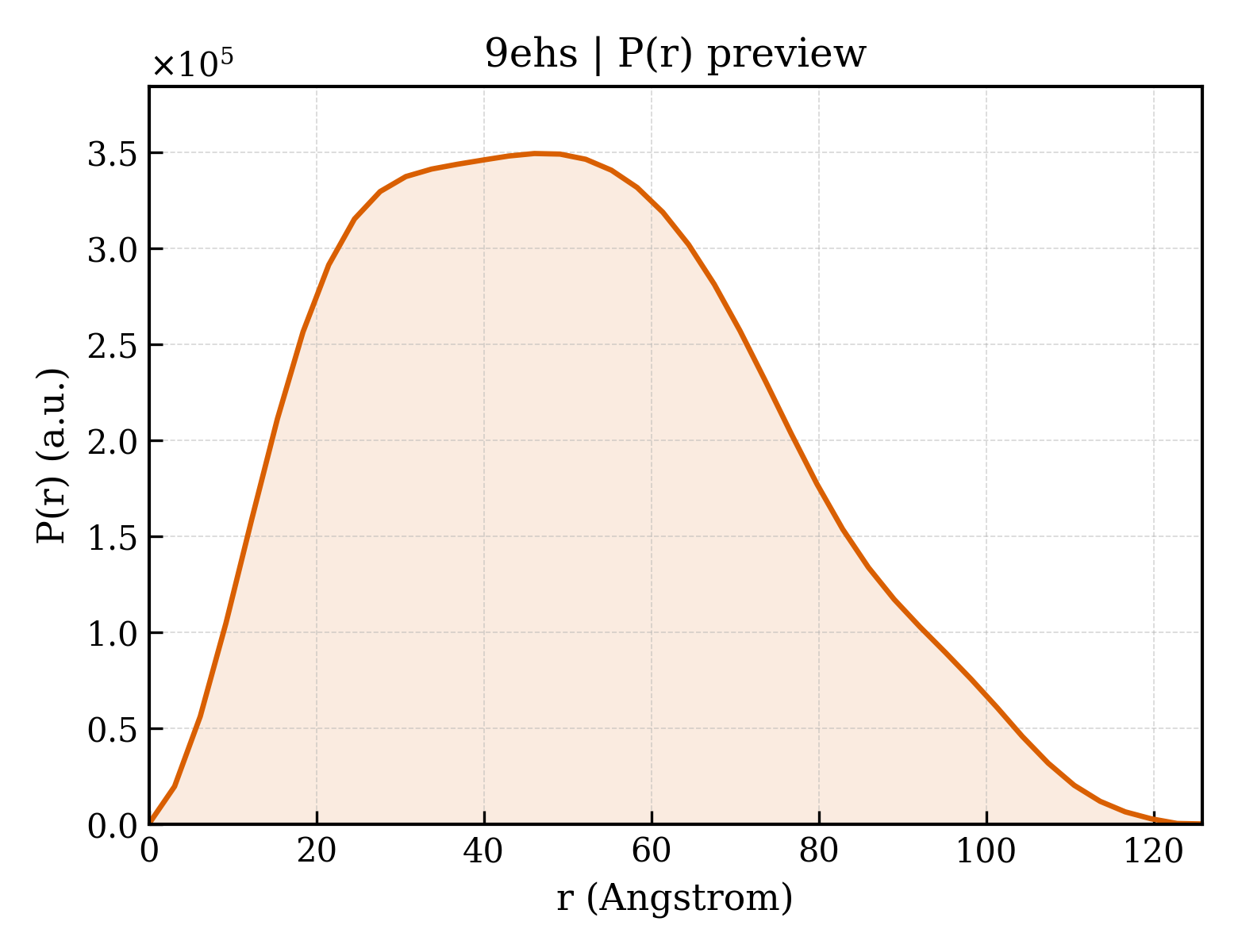

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	125.8 Å
Rg (real space) rg_real	39.05 Å
Rg uncertainty (real space) rg_real_error	0.88 Å
I(0) (real space) i0_real	3.0060e+08
I(0) uncertainty (real space) i0_real_error	4.6150e+06
Rg (reciprocal space) rg_reciprocal	38.95 Å
I(0) (reciprocal space) i0_reciprocal	300500000.0000
Solution quality estimate total_estimate	0.8538
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	46.0 Å
Skewness Skewness skewness	0.320
Kurtosis Kurtosis kurtosis	-0.572
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13410000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.904; Smooth: 0.400

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	BAG2 Anti-BRIL Fab Heavy Chain
Molecular weight formula_weight	24539.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	7201

EISEVQLVESGGGLVQPGGSLRLSCAASGFNVVDFSLHWVRQAPGKGLEWVAYISSSSGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARWGYWPGEPWWKAFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	synthetic construct

Entity 2 Entity 2 polymer

Description description	elbow nanobody
Molecular weight formula_weight	15071.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

HHHHHHGENLYFQGSQVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSS

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	synthetic construct

Entity 3 Entity 3 polymer

Description description	BAG2 Anti-BRIL Fab Light Chain
Molecular weight formula_weight	23499.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYLYYSLVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	synthetic construct

Entity 4 Entity 4 polymer

Description description	Adenosine receptor A3,adenosine A3 receptor fused to BRIL
Molecular weight formula_weight	53118.2 kDa
Mutation mutation	S97R mutation
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

DYKDDDDAMGANFTPVNGSSGNQSVRLVTSSSLEVLFQGPSTALSLANVTYITMEIFIGLCAIVGNVLVICVVKLNPSLQTTTFYFIVSLALADIAVGVLVMPLAIVVSLGITIHFYSCLFMTCLLLIFTHARIMSLLAIAVDRYLRVKLTVRYKRVTTHRRIWLALGLCWLVSFLVGLTPMFGWNMKLTSEYHRAVTFLSCQFVSVMRMDYMVYFSFLTWIFIPLVVMCAIYLDIFYIIRNKLADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTLQREFKTAKSLFLVLFLFALSWLPLSIINCIIYFNGEVPQLVLYMGILLSHANSMMNPIVYAYKIKKFKETYLLILKACVVCHPLEVLFQGPSDSLDTSIEKNSEHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	LUF7602
Molecular weight formula_weight	517.5 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.20 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	328104

fit	/app/data/saxs_computation/eh/9ehs/9ehs.fit
pddf	/app/data/pr_computation/eh/9ehs/9ehs.pr.out
profile	/app/data/saxs_computation/eh/9ehs/9ehs.dat
