X-ray crystal structure of ADC-33 beta-lactamase in complex with ceftazidime in acyl and product forms

Method: X-RAY DIFFRACTION D_max: 99.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ehy
沉积日期 deposition_date	2024-11-25
结构标题 title	X-ray crystal structure of ADC-33 beta-lactamase in complex with ceftazidime in acyl and product forms
关键词 keywords	lactamase, complex, cephalosporin, ceftazidime, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.38 Å
回转半径 Rg (电子) rg_electron	29.77 Å
零角强度 I(0) i0	93112400.00
分子量 molecular_weight	77859.0 kDa
排除体积 excluded_volume	97842 Å³
包络体积 envelope_volume	116620 Å³
水化壳体积 shell_volume	33005 Å³
包络直径 envelope_diameter	96.4 Å
壳层 Rg shell_rg	36.67 Å
包络 Rg envelope_rg	29.47 Å
形状 Rg shape_rg	29.77 Å
总 Rg total_rg	30.37 Å
总原子数 total_atoms	10820
残基数 n_residues	704
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

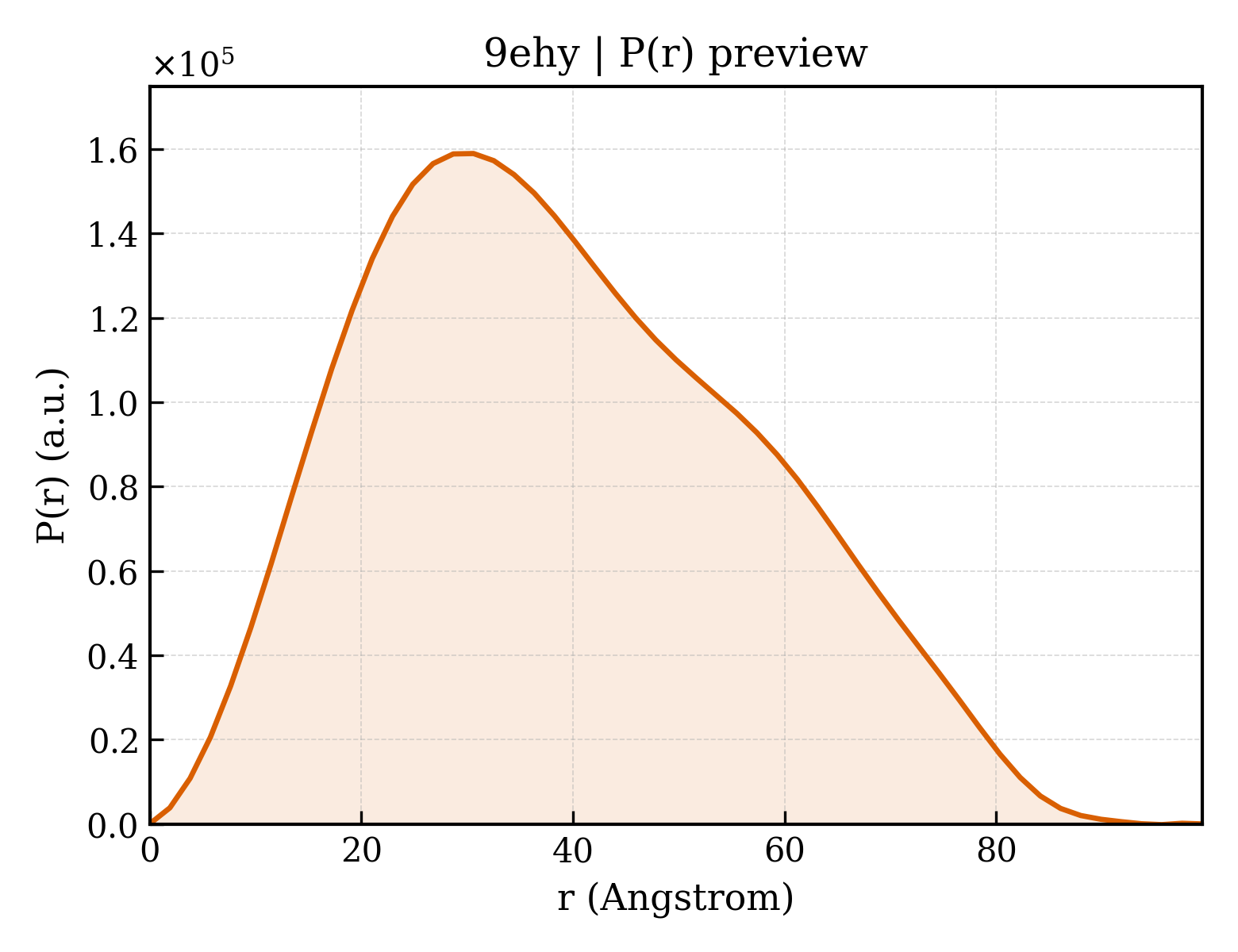

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	99.5 Å
Rg (实空间) rg_real	30.43 Å
Rg 误差 (实空间) rg_real_error	0.89 Å
I(0) (实空间) i0_real	9.3110e+07
I(0) 误差 (实空间) i0_real_error	1.4970e+06
Rg (倒空间) rg_reciprocal	30.41 Å
I(0) (倒空间) i0_reciprocal	93110000.0000
解质量估计 total_estimate	0.5989
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.6 Å
偏度 Skewness skewness	0.328
峰度 Kurtosis kurtosis	-0.634
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24940000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.873; Stabil: 1.000; Sysdev: 0.077; Positv: 1.000; Valcen: 0.934; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Beta-lactamase
分子量 formula_weight	40814.6 kDa
EC 编号 ec_number	3.5.2.6
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A
原子数 atom_count	11310

MGNTPKDQEIKKLVDQNFKPLLEKYDVPGMAVGVIQNNKKYEMYYGLQSVQDKKAVNSSTIFELGSVSKLFTATAGGYAKNKGKISFDDTPGKYWKELKNTPIDQVNLLQLATYTSGNLALQFPDEVKTDQQVLTFFKDWKPKNSIGEYRQYSNPSIGLFGKVVALSMNKPFDQVLEKTIFPALGLKHSYVNVPKTQMQNYAFGYNQENQPIRVNRGPLDAAPAYGVKSTLPDMLSFIHANLNPQKYPADIQRAINETHQGRYQVNTMYQALGWEEFSYPATLQTLLDSNSEQIVMKPNKVTAISKEPSVKMYHKTGSTNGFGTYVVFIPKENIGLVMLTNKRIPNEERIKAAYAVLNAIKK

来源 Source

来源生物 organism	Acinetobacter baumannii
NCBI 分类编号 ncbi_taxonomy_id	470
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	;(2R)-2-[(R)-{[(2Z)-2-(2-amino-1,3-thiazol-4-yl)-2-{[(2-carboxypropan-2-yl)oxy]imino}acetyl]amino}(carboxy)methyl]-5-methylidene-5,6-dihydro-2H-1,3-thiazine-4-carboxylic acid ;
分子量 formula_weight	485.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	ACYLATED CEFTAZIDIME
分子量 formula_weight	469.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	405

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	43.127 Å
晶胞边长 b length_b	84.055 Å
晶胞边长 c length_c	205.597 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.570 Å
最低分辨率 resolution_low	43.850 Å
R 因子 r_factor	0.1932
R_work r_work	0.1918
R_free r_free	0.2198
