9emo

Crystal structure of Histidine acetyltransferase with L-arginine and coenzyme A disulfide

Method: X-RAY DIFFRACTION Dmax: 73.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

SAXS profile for 9emo

P(r) 距离分布 P(r) Distribution

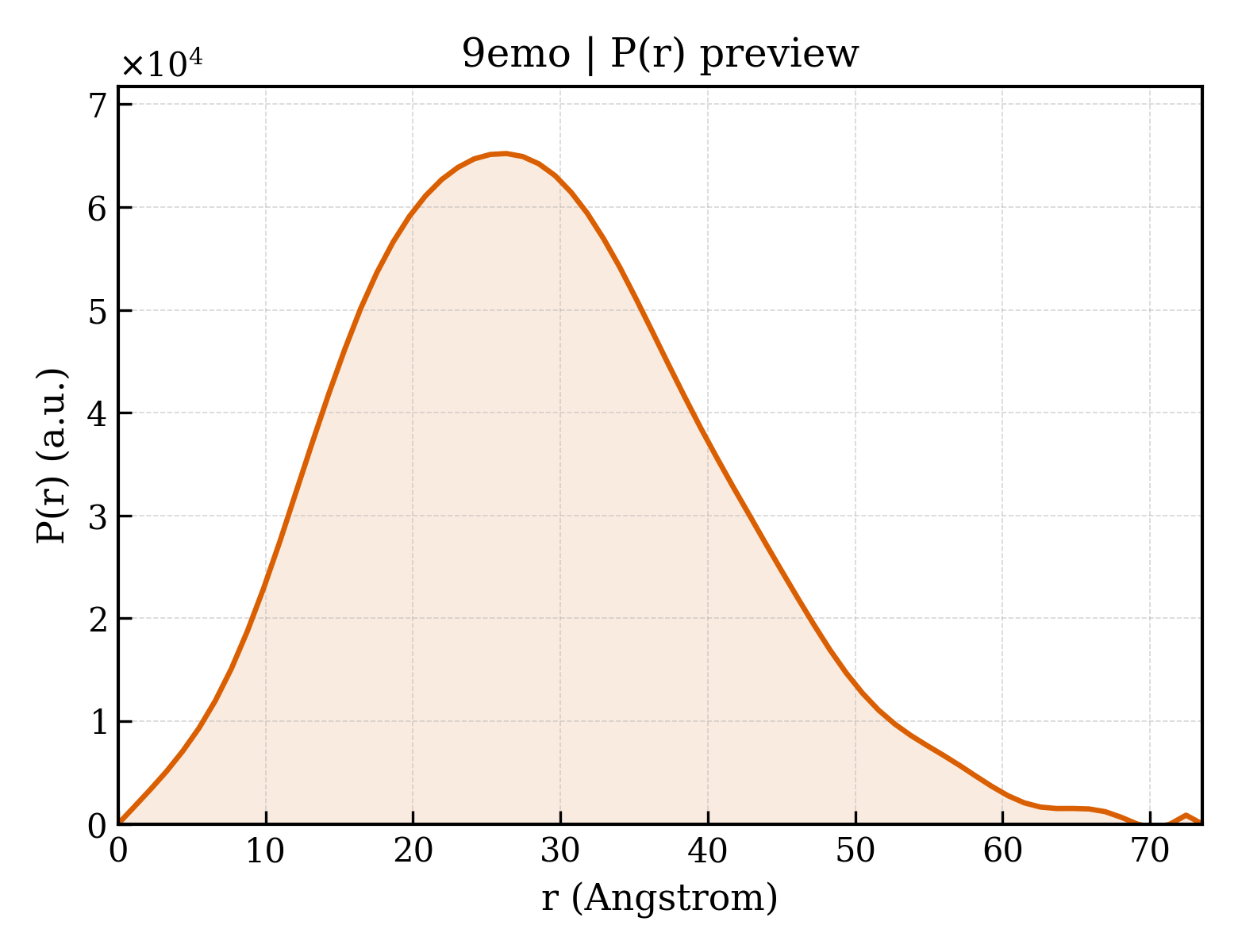

P(r) distribution for 9emo
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id9emo
沉积日期 deposition_date2024-03-09
结构标题 titleCrystal structure of Histidine acetyltransferase with L-arginine and coenzyme A disulfide
关键词 keywordsAcyltransferase, GNAT fold, TRANSFERASE; TRANSFERASE
实验方法 methodX-RAY DIFFRACTION

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier21.75
回转半径 Rg (电子) rg_electron20.54
零角强度 I(0) i025338300.00
分子量 molecular_weight37741.0 kDa
排除体积 excluded_volume47033 ų
包络体积 envelope_volume54088 ų
水化壳体积 shell_volume22128 ų
包络直径 envelope_diameter76.1
壳层 Rg shell_rg27.18
包络 Rg envelope_rg20.82
形状 Rg shape_rg20.53
总 Rg total_rg21.43
总原子数 total_atoms5309
残基数 n_residues325
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax73.5
Rg (实空间) rg_real21.72
Rg 误差 (实空间) rg_real_error0.56
I(0) (实空间) i0_real2.5340e+07
I(0) 误差 (实空间) i0_real_error3.2600e+05
Rg (倒空间) rg_reciprocal21.73
I(0) (倒空间) i0_reciprocal25340000.0000
解质量估计 total_estimate0.7932
解质量评级 solution_quality GOOD a GOOD solution
P(r) 峰数 n_peaks3
主峰位置 r_peak_primary26.3
偏度 Skewness skewness0.367
峰度 Kurtosis kurtosis-0.148
角度范围 angular_range— – 0.3650 −1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha7090000.0000
实空间数据点数 n_real_points68
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.775; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.000

4. 晶体学与实验 4. Crystallography & Experiment

5. 实体与聚合体信息 (5)

7. 引用文献 (1)

8. 文件与曲线 (10)
