SAXSdb — 9eoj

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9eoj
沉积日期 deposition_date	2024-03-15
结构标题 title	Vertebrate microtubule-capping gamma-tubulin ring complex
关键词 keywords	cytoskeleton, microtubule, microtubule nucleation, complex, template, cap, gamma-tubulin, gamma-tubulin ring complex, CELL CYCLE; CELL CYCLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	109.50 Å
零角强度 I(0) i0	37218900000.00
分子量 molecular_weight	1672400.0 kDa
排除体积 excluded_volume	2100900 Å³
包络体积 envelope_volume	4271900 Å³
水化壳体积 shell_volume	327050 Å³
包络直径 envelope_diameter	319.0 Å
壳层 Rg shell_rg	113.40 Å
包络 Rg envelope_rg	99.05 Å
形状 Rg shape_rg	109.50 Å
总 Rg total_rg	109.50 Å
总原子数 total_atoms	117778
残基数 n_residues	14563
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	369.5 Å
Rg (实空间) rg_real	113.80 Å
Rg 误差 (实空间) rg_real_error	2.42 Å
I(0) (实空间) i0_real	3.7220e+10
I(0) 误差 (实空间) i0_real_error	8.5780e+08
Rg (倒空间) rg_reciprocal	113.50 Å
I(0) (倒空间) i0_reciprocal	37550000000.0000
解质量估计 total_estimate	0.8656
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	158.4 Å
偏度 Skewness skewness	0.140
峰度 Kurtosis kurtosis	-0.334
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	0.9838
最高正则化参数 α highest_alpha	731600000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.869; Stabil: 0.905; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.004

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Mitotic-spindle organizing protein 1
分子量 formula_weight	7749.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D
原子数 atom_count	117778

MANASGNMSAVRETMDVLLEISRLLNTGLDMETLSICVRLCEQGINPEALSSVIKELRRASDTLKASESTAS

Entity 2 polymer

描述 description	Gamma-tubulin complex component 3 homolog
分子量 formula_weight	103789.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,c,d,e,f

MAVPDQKSPNVLLQNLCCRILGKGEADVAQQFQYAVRVIGSNFAPTVERDEFLVTEKIKKEFVRQRREADGALFSELHRKLQSQGVLKNRWSILYLLLSLSEDPRKQPNKTSSFAALFAQALPRDAHSTPYYYARPQSLPLSYQDRNVQCAQNAASIGSSGISSIGMYALNGPTPQSIIQGQSNQTPNMGDALRQQLGSRLAWTLAAGQQPSQQSTTTKGLPNTVSRNVPRTRREGDSSGSVEITETSLVRDLLYVFQGIDGKFVKMCNSENCYKVDGKVAVSKSLKDITSKLSELGWLHNKIKKYTDQRSLDRAFGLVGQSFCAALHQELKEYYRLLSVLHSQLQVEDDQGVNLGVESSLTLRRLLVWTFDPKIRLKTLAALVDHCQGRKGGELASAVHAYTKTGDPYMRSLVQHILGLVAYPILNFLYRWIYDGELEDTYHEFFVASDPVVKTDRLWHDKYSLRKSMIPSFMTMDQSRKVLLIGKSINFLHQVCHDQTPASKAMAVGKSAESPKDAAELFTDLENAFQTKIDAAYFDTSKYLLDVLNKNYNLLEHMQAMRRYLLLGQGDFIRHLMDLLKPELVRPATTLYQHNLTGILETAVRATNAQFDNPEILKRLDVRLLEVSPGDTGWDVFSLDYHVDGPIATVFTRECMSHYLRVFNFLWRAKRMEYILTDIWKGHMCNAKLLKGMPELSGVLHQCHILASEMVHFIHQMQYYITFEVLECSWDELWNKVLKAQDLDHIIAAHDVFLDTIISRCLLDSESRALLNQLRAVFDQIIEFQNAQDALYRAALEELQQRLQFEERKKERESEGEWGVTAAEEDVENKRIQEFQESIPKMRSQLRILTHFYQGIVQQFLVLLTTSTDESLRFLSFRLDFNEHYKAREPRLRVSMGTRGRRSFHV

Entity 3 polymer

描述 description	Gamma-tubulin complex component
分子量 formula_weight	103468.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,Y,Z,a,b

MSEFRIHHDVNELISLLHVFGLEGADVYIDLLQKNRTPYVTTSVSTHSAKVKIAEFSRTPDDFLKKYEELKSKNTRNLDPLVYLLSKLIEDKETLQYLQQNAKDKAELATSSVTSVSLPIAPNTSKISMQELEELRRQLETATVAVSCSHQPVEVLRKFLRDKLNKKHTGHPVPVFPSWVYERPALTGDFMSFSNPSTDVTVSIGTLPLPSQETCLVEDLLYILIGVDGRYISVQPLVGRQSRSFSVEQNLDSSVKELVNRILPVATNYSTVTRFVEENSSFEYGQVNHALGAAMRTLGKEYMILISQLEHLQRQGLLSLQKLWFYIQPTLRTMEVLASIATSLNKGECFGGATLSLLHDRTFGYTGDSQAQELCLYLTKAASAPYFDILERWIYRGIINDPYSEFMVEEHELQKEKIQEDYNDKYWDQRYTIVQQQIPSFLQKVADKILSTGKYLNVVRECGHDVTCPDAKEITYTLKEQAYVERIEKAYNYASKVLLDFLMEEEELVAHLRSIKHYFLMDQGDFFVHFMDLTEEELKKPVDDIIPTRLEALLELALRMSTANTDPFKDDLKIELMPHDLITQLLRVLAIETHQEKALINSDPTELALSGLESFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERLLCNVWISNKTAKQFSLHSAKWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLSHHTSFLDNCLKDCMLTNPELLKIFSKLMSVCVMFTNCLQRFTQSMQVQTEMEHLTLEHGTMMGPPTQCERTEEALKKKLTSKYLEEHIDKFPSSFGFESTINNFDSNFSAHLMDLLDKLSMYSTSDCEHSMINIIYRLDFNGFYTERLKQLSSERNQKSAPLLGPAQHAVSTK

Entity 4 polymer

描述 description	Gamma-tubulin complex component 6
分子量 formula_weight	193069.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MDSITKLFGDLCESHMVGFPWRTALNSRKHSKNRTKQTLKKLAYDTLFVHLFQDEARKLQPNCTRLPVKNKIIMLSFNLRICGMSSEADRLEELVEYLEQSNGIQISDLHAVLELLVELSGTGPPQLLPPKRDYFKNNKYVGRNVKYQGYDYYDVQVFEADLGTTVAYQELEISTTIQRTLQIMEAAPGTGLPALSFFSQNDLSTDKFEKETRGSLFGALVHSRTNDMDIKLDMPPVPENADLSGLAIKVPQSIDQSEDEGFQSASNMTPDSQSEPSMTPDIDVWEAVLTYGPSKRRCWERIGCPPGKREEPYVTEAGREAFDKLYKLHEGGLQILSATTLQPQLVLLEETDLVKAVLNVLIGVVSSTFSYNQALQSFAVKQGVYISGTSPDNVSSLLTQVAEYGTYYTRLSHFSLLTVLDSSHSNGLVFQAFTSGLRKYLQYYRACVLSTPASLTLLTISFLFRKLGRQLRYLAELCCIGTLVTSATRGISTAFPTGVKLLSYLYKEALENSSNENYPVLLSLLKTSCEPYTRFIYDWVYSGVFRDVCGEFMIQVNEDYLGFRDKRYWTHGYVLISKEVEDCVPVFLKHVANEIYICGKTINLLKLCCPKHYICWSDIPVPRISVTFSLEELKEMEKDCAVYVARMERIARHSCISKEQKALQTEIARQELIIQARETTEKVFETFKDRKLAEKLSLDTKKRELFQKLKDQYEKEQERRLTTKQEEADDDFSYAREIRDREKRLKALEEELELKTRQELIEHYSRLSEEATRKEQRALWKLQRHKLETIRLKFFLEEQKRMQDLVANFPVDICEENLGVLPDGEISHQTDNTNDAGLGNIENEKSVPEQHALHNNNDEVYTAQNCISKSESLCVDVTLPTENVHSQTSNASVLGVPSFDSNLCTPDVDIIDFLPTLPSENQEVAVVQSLVDDALISIGSDLNTDTKDKESLCALKSDLQESSTGSEYDFKTILKPIACTQVSQGHIKIGEYSSNVQPARPRWSTHGHSSDSNIKIGNYVSDINVHQPKHSQHGHSSDSNINISDHMSDVEPRLPRLNLHGHISTGHIKVGEYASDVEPSTPRHSVHGHASQGNIKIGENVSDVKLSRPRWNIHGHVSDANIKIGENTSEIAPLRPRWNIHGHASQSHIKIGELVSDIEPSQPRRTPFGHPSQSSIPIGDQPVEKYAQKSESEVHSSNSTIQHLLYSNIPDKNKDTGGTLTDSPVPVPDQGNSNDDTEKRSSTLEQRVQAADSVCDGEASPNTAQSLPCMSDTLDFGTNGEENVGNDDHTWEKQQEYLKGLAEKYCLEKYQDSYELMSHPPVLHLYSNVMPNRFSFPTDSDIKSATDETTVQLIELLSLPVLMKYSVTAPMVSHVYLVNKAIVDYYFVELKMERHFEAMRHFLLMEDGEFAQSLSDMLFEKLGSGQTPSELLNPLVLNSILNKALQYSLHGDSSLASNLTFALKYLPEVFTPTAPDALSCLELKYKVDWPLNIVITDTCMNKYSRIFSFLLQLKHMVWTLRDVWFHLKRTALVNQASNSVQYRQLQLYRHEMQHFVKVIQGYIANQILHVTWCEFRNKLSAVSNLEEIYKTHADYLNKALFRGLLTEKAAPLMNIIHSIFSLILKFRLQLISQSWICDTGKQMAVHPNFGLMQQSYNTFKYYSDFLFEVVSKLVNRGYQPHLEDFLLRINFNSYYKQS

Entity 5 polymer

描述 description	Tubulin gamma-1 chain
分子量 formula_weight	51226.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T,h,i,k,l,m,n,o,p,q,r,s,t,w

MPREIITLQLGQCGNQIGFEFWKQLCAEHGISPEGIVEEFATEGTDRKDVFFYQADDEHYIPRAVLLDLEPRVIHSILNSPYANLYNPENIYLSEHGGGAGNNWASGFSQGEKIHEDIFDIIDREADGSDSLEGFVLCHSIAGGTGSGLGSYLLERLNDRYPKKLVQTYSVFPNQDEMSHVVVQPYNSLLTLKRLTQNADCVVVLDNTALNRIATDRLHIQNPSFSQINQLVSTIMSASTTTLRYPGYMNNDLIGLIASLIPTPRLHFLMTGYTPLTTDQSVASVRKTTVLDVMRRLLQPKNVMVSTGRDRQTNHCYIAILNIIQGEVDPTQVHKSLQRIRERKLANFIPWGPASIQVALSRKSPYLPSAHRVSGLMMANHTNISSLFERTCRQYDKLRKREAFLEQFRKEDIFKDNFDELDNSREIVQQLIDEYHAATRPDYISWGTQDK

Entity 6 polymer

描述 description	Gamma-tubulin complex component
分子量 formula_weight	117577.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MAHWTRFERDQEGDIKKLVSLMSGIQDDQDGNFQQALQFAWSNFRFHRYLDVSSHTVLRTLEGIFEKLVVHSDLEKAESWKRLTEEFLLLPLPNTEGTKTDSHFAVLSLLLCLSDSPSNHDYTEKPRKKENDEQEPFDWGKYLREGEDIEFSPDADTPEWSEASEEEDAQEPPSREDSGIQVDRTPLEDPEKKGAPPLVSWKVGEPDARSWLEQHIVHQYWTSRAPRFSHSSHLHSNLSAIWDQHLYTTDPLYTPDDKTIVTETQVIRETLWLLSGVKKLLIFQLNDGKVNVRNDIIVTHMTQNCLRSVLEQIAAYGQVVFRLQKFIDEITGHGSEVPLPGTLPTAKKTTEAPFRTYQAFMWALYKYFISFKEELTEIEKCIINKDETVTLAIVLDKLAPRLAQLKVLHRVFSTGIAEVPPDTRNVVRASHLLNTLYKAILDYDNVGEASEQTVSLLFCLWVETVRPYLEIVDEWIVHGNLFDPAKEFIIQRNKDVPFNHRDFWYATYTLYSVSEKTENEDKMSDNASASSGSDQAPAGRQHTMVSFLKPVLKQIIMAGKSMQLLKNLKCRTALQQDSSRDSDRKSLYTLFLESVQSRLQHGNDSVPDIITEQQVNKLSLIKMQSIVAKHLELDEVHDPLLAINFVRLYLEQSDFLETFTCNEVCVDRSSESVTCQSFELTLRSCLYPHIGKQYLECCGNLMYTLKKDYRLVEYLQAMRNFFLLEAGDTMYDFYTPIFDKIREKEPWLNLSYLNVQIQEAVGQRYPDDSTRLSVSFESVDLAKKKLPVHTLDGLILSYKVPWPVDIVISSECQKIYNQVFLLLLLIKWAKYSLDVLQFNELGNASENESTKEGATVEPFPLPPLTSPSEPKGQQIHRMFLLRVKLMHFVNSLHNYLMTRILHSTGLEFQHQVEEAKDLDQLIKIHYRYLSTIHDRCLLREKVSSVKEAIMKVLNVVLMFADRWHAGLGAWKKESIVKMESDFTNCHKFLVKVLNKAVCRGSFPHLESLALSLMAGMEQS

Entity 7 polymer

描述 description	Gamma-tubulin complex component
分子量 formula_weight	76123.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W

MIHELLLALSGYPGSIFTWNKRTGLQVSQDIPFLHPGETSVLNRLCKLGTDYIRFTEFIEQYTGHVQQQDHHPSQQGQVGLHGIYLRAFCRGLDSILQPYRQALLDLEQEFLADPHLSISHINYSLDQFHLLFPSIMVVVEQIKSQKIHGCQILETVYKHSCGGLPPVRSALEKTLAVCHGVMYKQLSAWMLHGLLLDQYEEFFVRQGSSSGNLAAAFEEEEDDLGIGGLTGKQLRELQDLRLIEEENMLAPSLKQFSLRAEMLPSYIPVRVAEKILFVGESVQMFENQNVNMSRTGSILKNQEDTFAAELHRLKQQPLFSLVDFESVLDRIRSTVAEHLWKLMVEESDLLGQLKIIKDFYLLGRGELFQAFIDVAQNMLKTPPTAVTEHDVNVAFQLSAHKVLLDDDNLLPLLNLTIDYHGKEHKDTSQPREGPFRDMSPREAPTSGWAALGLSYKVQWPLHILFTPAVLEKYNVVFKYLLSVRRVQSELQHCWALQMQRKHLESNKTDAIKWRLQNHMAFLVDNLQYYLQVDVLESQFSQLLQQINSTRDFESIRLAHDHFLSNLLAQSFILLKPVFHCLNEILELCHSFCSLVSQNLGPLDERGAGQLDILVKGFSCQSSLLFRILSSVRNHQINPDLAQLLLRLDYNKYYTQAGGTLGSFGL

▶

7. 引用文献 (1)

▶

分辨率 resolution	17.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	8497

fit	/app/data/saxs_computation/eo/9eoj/9eoj.fit
pddf	/app/data/pr_computation/eo/9eoj/9eoj.pr.out
profile	/app/data/saxs_computation/eo/9eoj/9eoj.dat

Vertebrate microtubule-capping gamma-tubulin ring complex

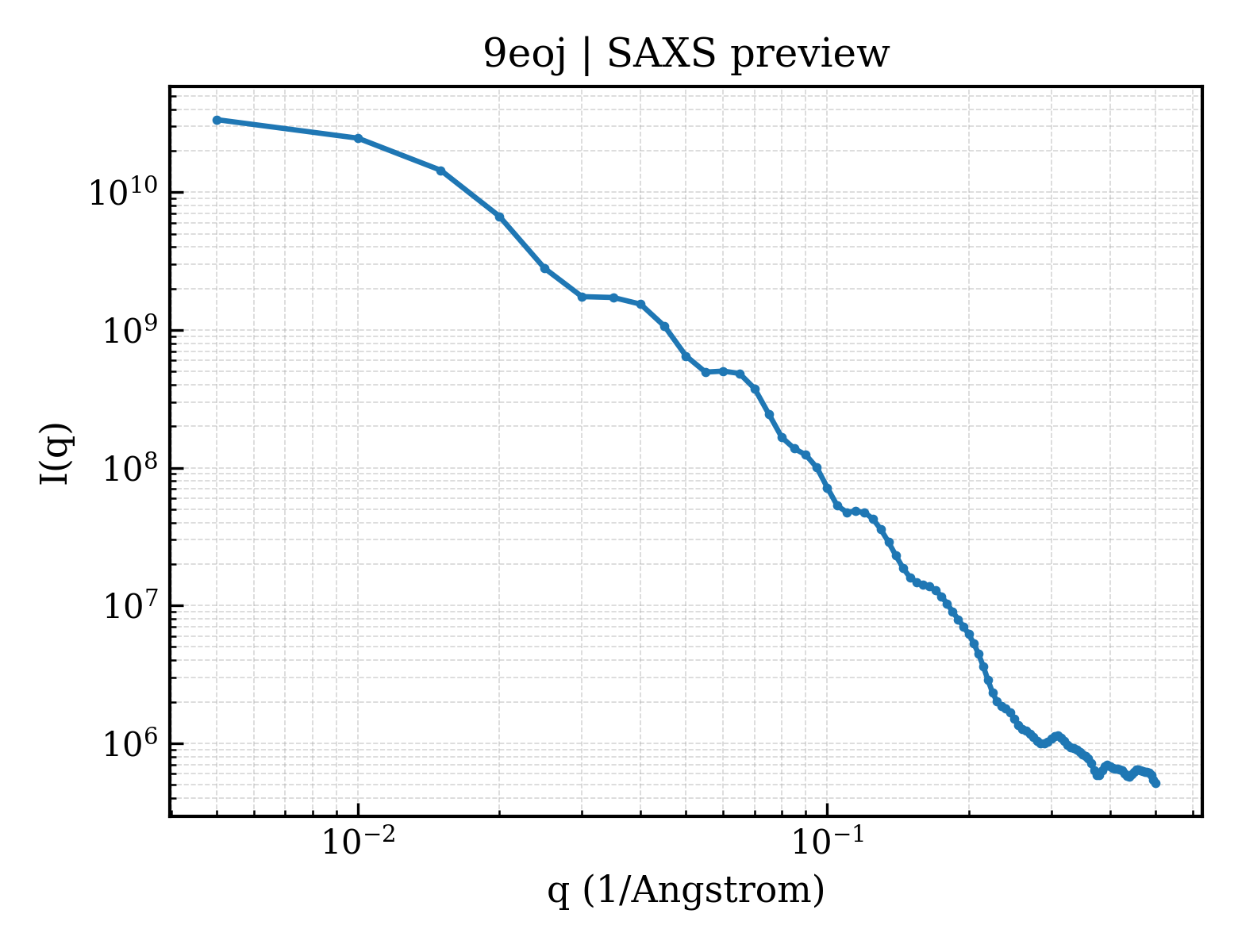

SAXS 散射曲线 SAXS Profile

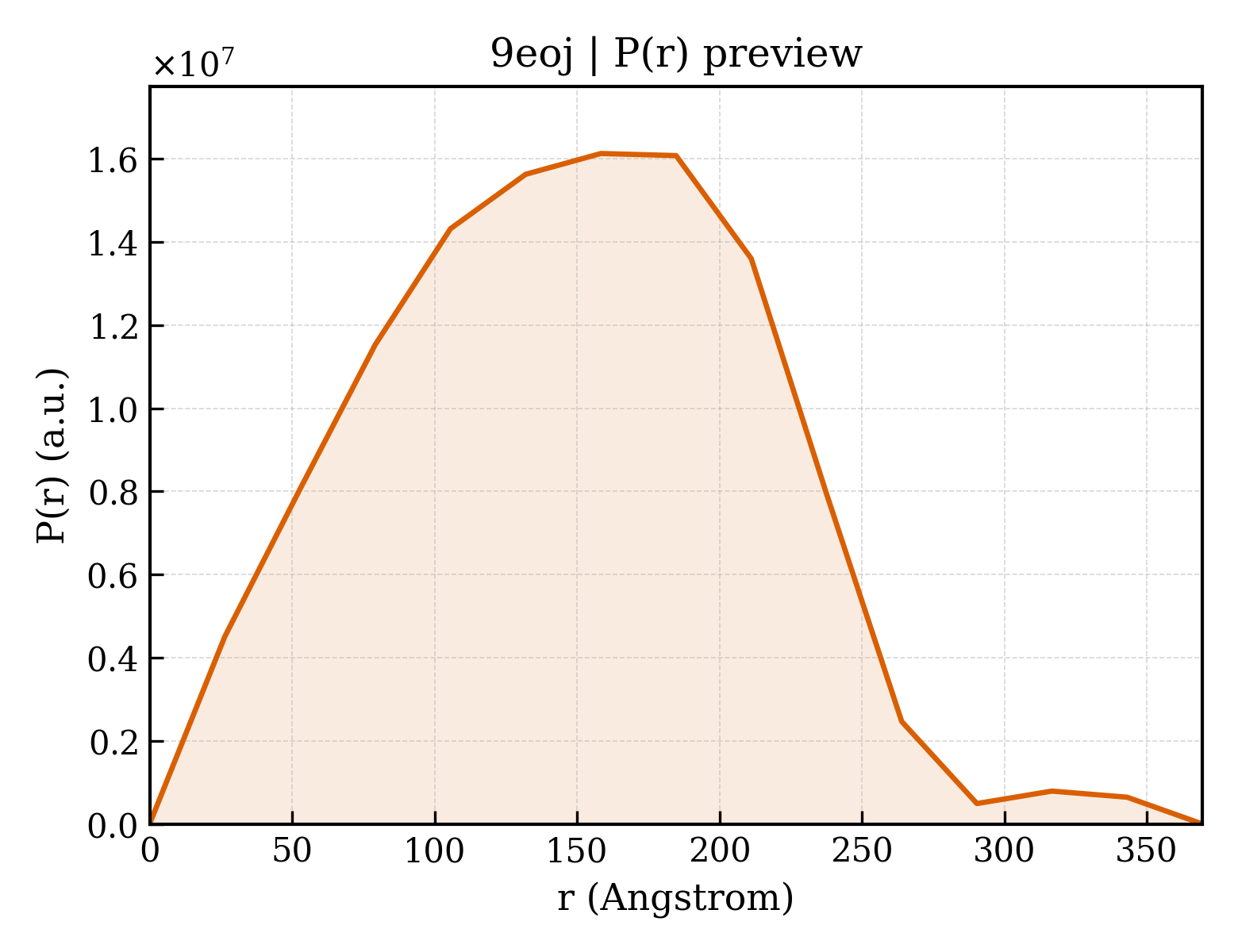

P(r) 距离分布 P(r) Distribution
