9eqg

CryoEM structure of human full-length alpha1beta3gamma2L GABA(A)R in complex with GABA and puerarin

Method: ELECTRON MICROSCOPY D_max: 133.1 Å Quality: GOOD

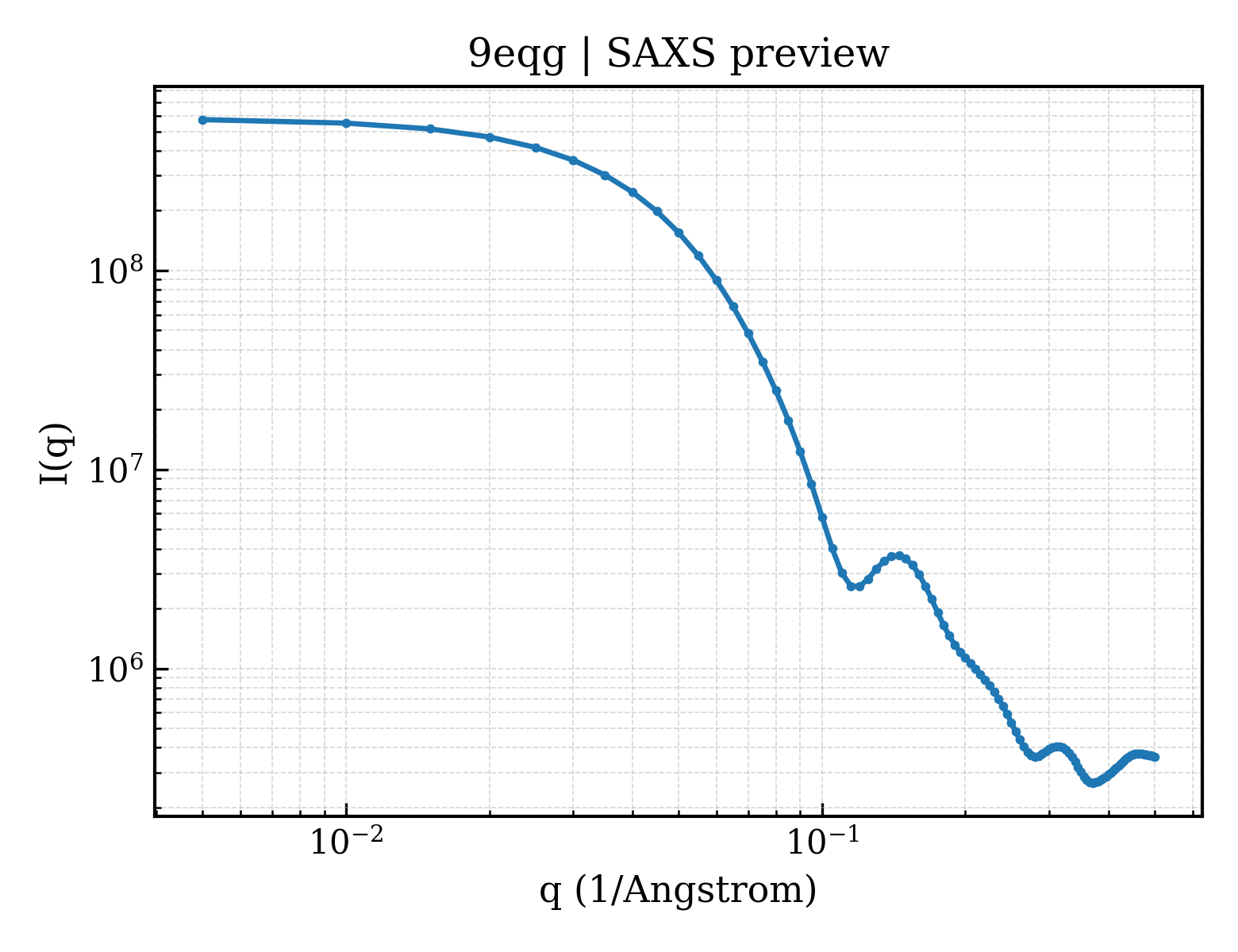

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9eqg
沉积日期 deposition_date	2024-03-21
结构标题 title	CryoEM structure of human full-length alpha1beta3gamma2L GABA(A)R in complex with GABA and puerarin
关键词 keywords	GABA(A) receptor, Inhibitory synapse, GABA, Puerarin, Fat regulation, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.07 Å
回转半径 Rg (电子) rg_electron	39.77 Å
零角强度 I(0) i0	580340000.00
分子量 molecular_weight	215120.0 kDa
排除体积 excluded_volume	276540 Å³
包络体积 envelope_volume	353550 Å³
水化壳体积 shell_volume	72664 Å³
包络直径 envelope_diameter	135.2 Å
壳层 Rg shell_rg	46.74 Å
包络 Rg envelope_rg	39.40 Å
形状 Rg shape_rg	39.77 Å
总 Rg total_rg	40.15 Å
总原子数 total_atoms	15141
残基数 n_residues	1726
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	133.1 Å
Rg (实空间) rg_real	40.07 Å
Rg 误差 (实空间) rg_real_error	1.39 Å
I(0) (实空间) i0_real	5.8030e+08
I(0) 误差 (实空间) i0_real_error	9.6280e+06
Rg (倒空间) rg_reciprocal	40.07 Å
I(0) (倒空间) i0_reciprocal	580300000.0000
解质量估计 total_estimate	0.8652
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	47.8 Å
偏度 Skewness skewness	0.407
峰度 Kurtosis kurtosis	-0.255
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	102400000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.803; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.836

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (18)

Entity 1 polymer

描述 description	Gamma-aminobutyric acid receptor subunit alpha-1
分子量 formula_weight	52916.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	15459

MKKSPGLSDYLWAWTLFLSTLTGRSYGDYKDDDDKQPSLQDELKDNTTVFTRILDRLLDGYDNRLRPGLGERVTEVKTDIFVTSFGPVSDHDMEYTIDVFFRQSWKDERLKFKGPMTVLRLNNLMASKIWTPDTFFHNGKKSVAHNMTMPNKLLRITEDGTLLYTMRLTVRAECPMHLEDFPMDAHACPLKFGSYAYTRAEVVYEWTREPARSVVVAEDGSRLNQYDLLGQTVDSGIVQSSTGEYVVMTTHFHLKRKIGYFVIQTYLPCIMTVILSQVSFWLNRESVPARTVFGVTTVLTMTTLSISARNSLPKVAYATAMDWFIAVCYAFVFSALIEFATVNYFTKRGYAWDGKSVVPEKPKKVKDPLIKKNNTYAPTATSYTPNLARGDPGLATIAKSATIEPKEVKPETKPPEPKKTFNSVSKIDRLSRIAFPLLFGIFNLVYWATYLNREPQLKAPTPHQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Gamma-aminobutyric acid receptor subunit beta-3
分子量 formula_weight	54180.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

MWGLAGGRLFGIFSAPVLVAVVCCAQSVNDPGNMSFVKETVDKLLKGYDIRLRPDFGGPPVCVGMNIDIASIDMVSEVNMDYTLTMYFQQYWRDKRLAYSGIPLNLTLDNRVADQLWVPDTYFLNDKKSFVHGVTVKNRMIRLHPDGTVLYGLRITTTAACMMDLRRYPLDEQNCTLEIESYGYTTDDIEFYWRGGDKAVTGVERIELPQFSIVEHRLVSRNVVFATGAYPRLSLSFRLKRNIGYFILQTYMPSILITILSWVSFWINYDASAARVALGITTVLTMTTINTHLRETLPKIPYVKAIDMYLMGCFVFVFLALLEYAFVNYIFFGRGPQRQKKLAEKTAKAKNDRSKSESNRVDAHGNILLTSLEVHNEMNEVSGGIGDTRNSAISFDNSGIQYRKQSMPREGHGRFLGDRSLPHKKTHLRRRSSQLKIKIPDLTDVNAIDRWSRIVFPFTFSLFNLVYWLYYVN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Gamma-aminobutyric acid receptor subunit gamma-2
分子量 formula_weight	56922.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSSPNIWSTGSSVYSTPVFSQKMTVWILLLLSLYPGFTSQKSDDDYEDYASNKTWVLTPKVPEGDVTVILNNLLEGYDNKLRPDIGVKPTLIHTDMYVNSIGPVNAINMEYTIDIFFAQTWYDRRLKFNSTIKVLRLNSNMVGKIWIPDTFFRNSKKADAHWITTPNRMLRIWNDGRVLYTLRLTIDAECQLQLHNFPMDEHSCPLEFSSYGYPREEIVYQWKRSSVEVGDTRSWRLYQFSFVGLRNTTEVVKTTSGDYVVMSVYFDLSRRMGYFTIQTYIPCTLIVVLSWVSFWINKDAVPARTSLGITTVLTMTTLSTIARKSLPKVSYVTAMDLFVSVCFIFVFSALVEYGTLHYFVSNRKPSKDKDKKKKNPLLRMFSFKAPTIDIRPRSATIQMNNATHLQERDEEYGYECLDGKDCASFFCCFEDCRTGAWRHGRIHIRIAKMDSYARIFFPTAFCLFNLVYWVSYLYLGGSGGSGGSGKTETSQVAPA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1721.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 6 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	(1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate
分子量 formula_weight	749.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 8 non-polymer

描述 description	DECANE
分子量 formula_weight	142.3 kDa
来源方法 src_method	man
拷贝数 entity_count	11

Entity 9 non-polymer

描述 description	HEXANE
分子量 formula_weight	86.2 kDa
来源方法 src_method	man
拷贝数 entity_count	10

Entity 10 non-polymer

描述 description	;[(2R)-1-octadecanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phospho ryl]oxy-propan-2-yl] (8Z)-icosa-5,8,11,14-tetraenoate ;
分子量 formula_weight	1047.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 11 non-polymer

描述 description	HEXADECANE
分子量 formula_weight	226.4 kDa
来源方法 src_method	man
拷贝数 entity_count	5

Entity 12 non-polymer

描述 description	PALMITIC ACID
分子量 formula_weight	256.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 13 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 14 non-polymer

描述 description	GAMMA-AMINO-BUTANOIC ACID
分子量 formula_weight	103.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 15 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 16 non-polymer

描述 description	Puerarin
分子量 formula_weight	416.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 17 non-polymer

描述 description	1,2-DILAUROYL-SN-GLYCERO-3-PHOSPHATE
分子量 formula_weight	535.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 18 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	258

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	122065

fit	/app/data/saxs_computation/eq/9eqg/9eqg.fit
pddf	/app/data/pr_computation/eq/9eqg/9eqg.pr.out
profile	/app/data/saxs_computation/eq/9eqg/9eqg.dat
