Pre-assembled baseplate cup of Klebsiella phage KP1 variant vB_Kpn_Lilla1

Method: ELECTRON MICROSCOPY D_max: 497.4 Å Quality: EXCELLENT

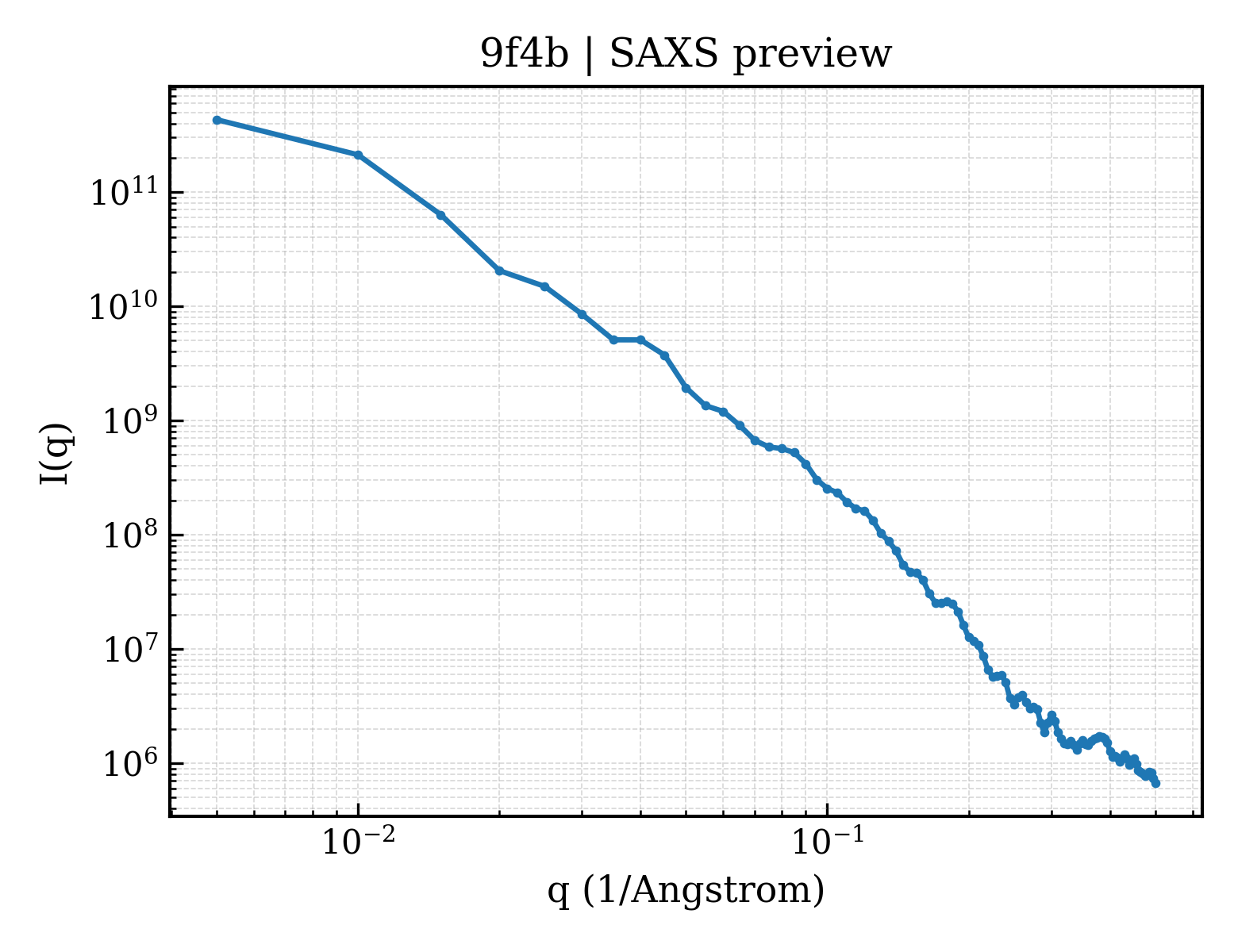

SAXS 散射曲线 SAXS Profile

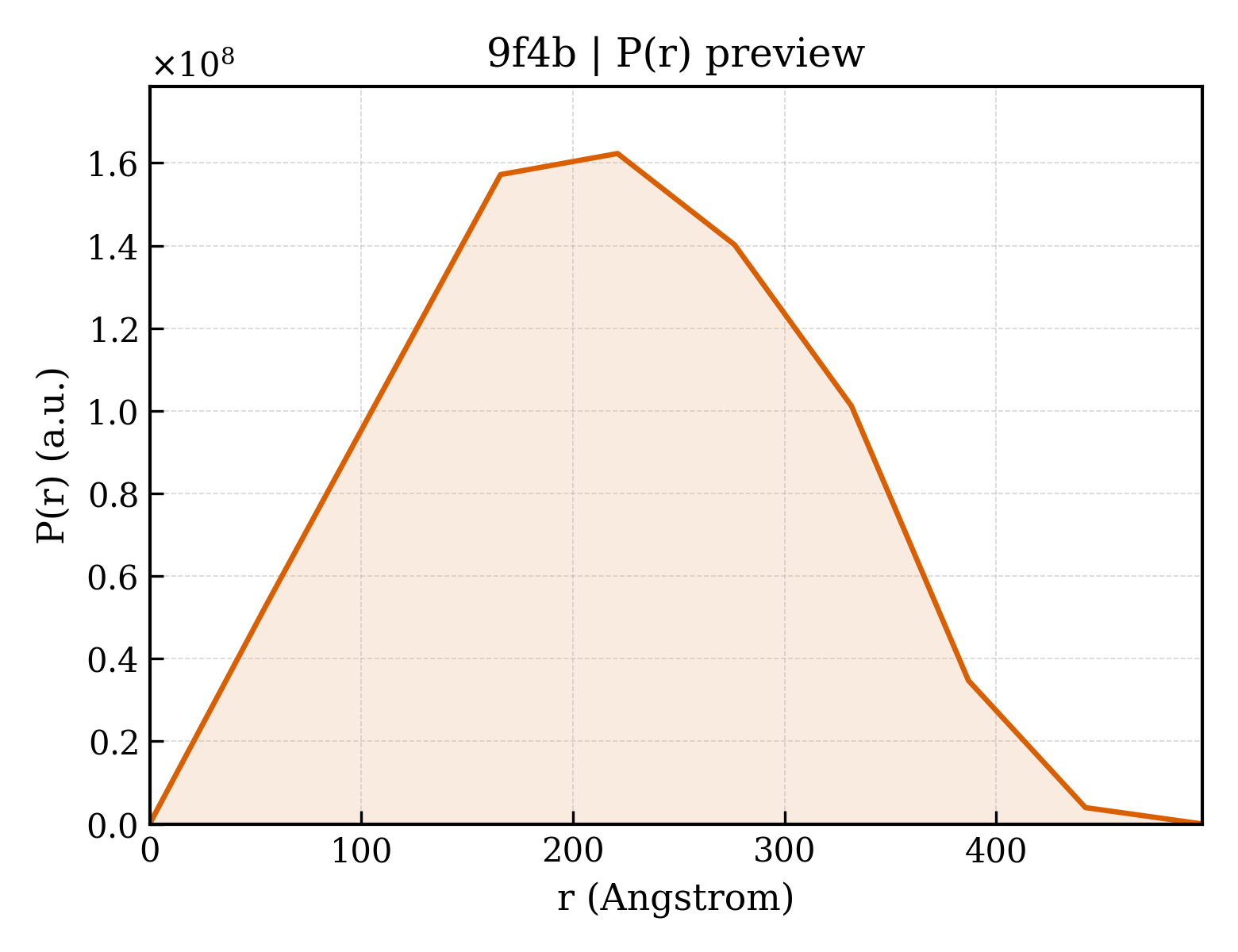

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9f4b
沉积日期 deposition_date	2024-04-26
结构标题 title	Pre-assembled baseplate cup of Klebsiella phage KP1 variant vB_Kpn_Lilla1
关键词 keywords	Baseplate cup, baseplate wedge, fibers, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	164.40 Å
零角强度 I(0) i0	541724000000.00
分子量 molecular_weight	6246300.0 kDa
排除体积 excluded_volume	7779100 Å³
包络体积 envelope_volume	17237000 Å³
水化壳体积 shell_volume	868610 Å³
包络直径 envelope_diameter	488.8 Å
壳层 Rg shell_rg	153.70 Å
包络 Rg envelope_rg	153.90 Å
形状 Rg shape_rg	164.30 Å
总 Rg total_rg	164.50 Å
总原子数 total_atoms	440315
残基数 n_residues	56329
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	497.4 Å
Rg (实空间) rg_real	165.50 Å
Rg 误差 (实空间) rg_real_error	2.01 Å
I(0) (实空间) i0_real	5.2650e+11
I(0) 误差 (实空间) i0_real_error	1.4030e+10
Rg (倒空间) rg_reciprocal	157.80 Å
I(0) (倒空间) i0_reciprocal	505100000000.0000
解质量估计 total_estimate	0.9007
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	221.1 Å
偏度 Skewness skewness	0.066
峰度 Kurtosis kurtosis	-0.716
角度范围 angular_range	— – 0.0450 Å⁻¹
当前正则化参数 α current_alpha	1.9190
最高正则化参数 α highest_alpha	8365000000.0000
实空间数据点数 n_real_points	10
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.991; Stabil: 0.919; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (19)

Entity 1 polymer

描述 description	Baseplate wedge protein gp6
分子量 formula_weight	73689.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AT,AV,AX,AS,AU,AW,AN,AP,AR,AM,AO,AQ
原子数 atom_count	440315

MAIKEPLNYQLTRTANAIPDAFTGATFDEIKNQLINWLSGQKEFQDFDFAGSRLNVLLDLLAYNTLYIQQFGNTALYESFIGTANLRSSVVQAAQQNGYLPSSKSAATASIMLEVTHPNPEPAIKIPRGTKFLAYARDSSVDPYNFVVTENVIALRDTSAPEGVNRYLPIVNLAQGRIIRTQLSYDPKKPIVIRDQSIDRKQVKLWVDGAEWTNWTDRSMVHASSISTIYYMRETVDGNTEFFFGEGVAEASVAGGVLESNFIGGLKPTKGAQVVIEYIRTDGESANGATDFSYADTLQYIVVNKIIENWSDSPDYVGADGGGEPEDIERIRELAQIKRESQMRCVSKTDYESFVSSRFGSIVQAVQCFTDQDKPGYAFIAIKPKSGLQLTAVQREDIQDYLRPFCLAPITPSVMSPDYLFIRHNIKASYALNKLQESEQWLQSKIIDSINRYYVDEVEMFNKNFSKSKLLTYIDDTDHSIIGSSVDIQMVREIVNYFTLPSAGIKYYNTITPRTLRSGDLVFTVTPTADSYPVNIVGTDPDKNGKGNMVIGPFKPGDIKENTHIQPYTEDDFDRTTNGERTRWYKIGEVDYYGDNIYWSLGAIGADPLQFEDQSIELYSTPTQDIVFARDGTLIVFENDLRPQYTTIKLEPITQ

Entity 2 polymer

描述 description	Baseplate tail tube cap
分子量 formula_weight	38263.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BL,BN,BP,BK,BM,BO

MIFEELADGLENIKKSGTRISQGKSKLTNAPTTKVAQFPAERSAGNDSAQDMRVHDLYRNGLLFTAYDFKGRTTPDLRSFRRDVMLSSVFDSPMSALANSSSSTTSTAPVANILLPRSKSDVDSVSHKFNDVGDSLVTRGGGTATGVLSNVASTAVFGSIESLTQGLMADNGEQIYNTARSMYAGPDNRTKVFTWDLTPRSADDLIQIIRIYEIFNYYSYGVTGNSSYAKEVKAAIDEWYKGTLKSAAPDGAKVENTVFEQITSFLSNVIVVSNPTIWTVRNFGYSTSMDGREDIFGPCQIQSIRFDKTPNGHFNGLAIAPNLPSTFTLEITMREILTLNRGNVYIGGIE

Entity 3 polymer

描述 description	Baseplate subunit
分子量 formula_weight	33716.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BQ,BR,BS,BT,BU,BV

MFTLEEFKSQAADIDFQRTNMFSVVFATVPSSKTQALLNDFGGELYNNMGLDGNWLGLTPGEFNQGITTIVTQGTRQVVRKSGVNTFMIGAMTQRVVQSLLGEFTVGTYLLDFFNMAFPTAGLMVYSAKIPENRLSYEMDKFHNAPNIKITGRDMEPLVLSFRMDPEASNYRAMQDWVNAVEDPVTGLRGLPQDVECDIQVNLHARNGLPHTVCLFSGAMPVACGAPEFTYDGENTIAVFDVTFAYRSMQTGSVGKQAAMDWLEDKAIQKIETINPNQGLSASASRLSRLGGAGGGISNITTTTSRII

Entity 4 polymer

描述 description	Baseplate wedge subunit
分子量 formula_weight	24693.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AH,AJ,AL,AG,AI,AK

MLFSFFSPIDYSAKTVKGAKAKAIPTADIFRNYRKYFDTVAENYLLQTYYISGAPRPEELAYILYGNSQLYWILLMCNNVYDPFRDWIKTQDACYQFAQQKYADVGGDQILYHVDANGNRYYNLEQYPENSGIWYDKGDFNHQYPQYTGALAGVDIYEDSIIENEKLRQINIINPSDIEAFLSDIIREMEKAPDSEYESGRYKSQTTIGEVL

Entity 5 polymer

描述 description	Baseplate central spike protein
分子量 formula_weight	63317.5 kDa
EC 编号 ec_number	3.2.1.17
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BB,BC,BD

MIEMNDSLKWFTGVVEDRQDPLKQGRVRVRVYGLHPFEKVQGAITGLPTEDLPWMSVIQPTNSAGISGVGSSITGMVEGTSVFGLWLDEFKTAGLVIGTYSAHRKTKPNYTEGFSDPTGQYPRQVGSDTNPLVQGDETGYSAIPNIIQDRNLDIGINPDDADLSDIPEDPNPAITITDMLNRDEGLRLKVYWDTEGYPTVGIGHLIMAQKVRDMSVINKTLSNQVGRTVTGNPGIITMDEAVALFKQDRDKMLSDIKTNSRVGPVYAKVNKSRQMALENMSFQMGVGGLAKFGKMLDAMLIGDWKTAYTEARNSVWFNQTKGRASRVSMIILTGNMESYGVPAPKPEGKNLSAAYVEPKSGGNPEDPWTPEDSRILFKEPESSYNGQYPYVHTMETESGHIQEFDDTPGYERYRIVHPTGSYEEVAPDGRRTRKTVADLYDMTQGDGNILISGDKKVNVGGNETYYNMYNRRQQIDGDNTLYVRGNETKTIEGDGTIFVKGNIKIVVEGNADIQVNGDATTKVDGNHDVTVGGNLTWQVAGTVNWNVGGAWTETMASMSSIAQGQYTVDGSRIDVG

Entity 6 polymer

描述 description	Phospholipase
分子量 formula_weight	10096.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BA

MAGLSYDKCVTAGHSAYPPTEVNATQSKVFTGGIAVLVDGDSITPHTKTVDPHDTHGGVVQPRTSKVFVTGKKAVQMADPISCGDTVAQSSSKVFIH

Entity 7 polymer

描述 description	Baseplate wedge protein gp7
分子量 formula_weight	119645.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AY,A2,AZ,A0,A1,A3

MTIAPFVTSLRIHKLSANQVNIRWDDVGANFYYFVELAETRNRAGEVIPADNLSWSSLGYTADNDWFEQNRIEPLTYYKMRVQTTSAGFEPSEWVETEEFQTFEENAYTFEHMQEFSLVKEFIKQKFSLNNMSYVNFNTSAMMASLMTESFQFSPEYSHLSAIENFVVGESGYHEIQGPIEAVCVDKNRTMLGEIDGILYLFERFQHMVKVSNDKGQNWQYVQLFNDRVGNPVSRVVIYQSKTTSYVLGYDKIFYGRKSSDVRWSSNEVKFSDNEVTFAKLGDQLKLGFEVELFGTYASLPADVTKYAEAFTCNDDYLYVVAKDTVRKVKLKDAPIDTDPLSPTFGEKVFEKEVSHITGNPKSVCFKMDSVGGKIFALITGEVKTLGLDPTDPRNVVDSATKGVYVYQEGTNTWKRVFGNTDEEKRRIEHLWTSMSTDGKEIFFSSANFKTTEYAQDIELETKYPELISTAVKNVNPIQYHSDKHYHMMSFRADEFSRWETFVPGPMRFYAEPWFVWMAREGNRCWISTADHAVVIYNDILYQKRVDAAAQGTTERILSEVWDKGDATFYCPPVSFNGFLQYASGIMFHEPDGKLIGYYAFDYRVRDQVTLNWKPTDVMFKAFLQNQTREEDWTPEHTPGLRDPDLRPYLTKMMPDSYLLQDSNFEHFCKYYLQFLSDGNGTHYNSLVNLVKNKYPREENAWEYLWSEVYKRNIYLSKDARDAVVRFFEARKNDFYATKGIEDSYKFLFKLLYNEDVEIDIESKNTTEYDIIVESTNISDDLVGRTIYTASGRSNVTYIEREYRDGRLLWRITIHNLSGRFIEGQEIKSERTDFEGIIVQGVRGKDMLSNNIDYINRSRSYYVMKIKSQLPTSRFRDDVLRFVHPVGFGFIGITLLTMFINSGLNMKHVETIINKLKNYKWDAGLPSVYPDRVAIIASDDTIERDPITNEPRYSSRAQAGEPFPLPANYNQENNNSVIAGQNPGQRRKPLSPTFDQSAVTFANYRDLVNQRLKDDAGNPRDPENPTQVKIDE

Entity 8 polymer

描述 description	Baseplate wedge subunit
分子量 formula_weight	38704.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ad,Ac,Ab,Aa,Ae,Af,A4,A5,A6,A7,A8,A9

MSNSTRASSTRSTIYRAIITSKFRTEKMYTFYKSIGPGTDQNTLYVSFGKSTPWSDNESEPGFAPPYPADNEDGVVDIWTNMMGAVKIESSMLDCVVPRRDWGDTRYPNPRTFLIGDIVVANSAPYNRTDAGFGWMVYRCIDVPKNGMCSIGNLTSKEECIKLGGKWTPSTISGSAPRGRGDANGTVDLGDGYLWEYLYEIPADVSINRCTNEYIVVPWPEEIEESPARWGFQNNLTWQQNDFNLIYRMKCNTIRFKAYLDAVYFPEFSLPGNTGFRQLSIITNPLEVKPMPNSPNVKAEKGWYSASGLERQSGEMIYMENRQPIIRSMDQTEELNLIFEF

Entity 9 polymer

描述 description	Baseplate wedge tail fiber connector
分子量 formula_weight	32380.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LA,LB,LC,LD,LE,LF,LG,LH,LI,LJ,LK,LL,LM,LN,LO,LP,LQ,LR

MYTDKGKKIIDVGEIGNASTGDILYDGGVKINDNFDAIYNAFADQRLFAAGGGALNQKIHATSYYQKIKFGDANSAGTVPMGSCIDADCSEGAVQIRLSKGKAGEAVFVVNSNGSASKARSIKITTNGEGVADAFKDGSRELIINTPRCRIELWCVEVKANGAAVWDYSISSMFGSTYSPLEATYNLTSSPINIRLGYNDDYSTVKLLLSFSANPGGQTIKRQSSEVMLMIDPTITSSAPNGRVFDTEYAVLRSGESSENEKMYSISYSINAQKDLICTASTSYGNARLAVKVIATQTVGVSQ

Entity 10 polymer

描述 description	Baseplate wedge protein gp10
分子量 formula_weight	66712.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	FA,FB,FC,FJ,FK,FL,FS,FT,FU,Fb,Fc,Fd,Fk,Fl,Fm,Ft,Fu,Fv

MKQNLIVGQSVDDGSGDYLRKGGLKINNNFDDLYSELGDGSVPFAAGAWKTFKASPTGTTLNAKFGQAFAINTQAARVNVQLPKGTANDYNKVIKLRDVWSTWRLSPITVIPAQGDTLKGSASPKIFNTNFQDLELVYCAPGRWEYIENKTVDKLTNGNLSTVAKKSIIATAGQTDFLNIFDGVEYNEDSLNVYRRGNILYYGETSVMDKANADYGSPGTVAGQLVELNGKDIRLKVPCVEGEVITFETFLDGIGVYRSSYNKLAIQIRDSAQTTSQTIPGSMIVDNLATLRRITLDDMGVLPGVGVNPNSLEISLNGKELLEAGTAGLPLFYCEGAEGGYAEDCINNGGQWVNSNQDYRLEFDSTGTNVEAIIFGEAFEDKDLLTVRWFNNNIGTTMDIDDIMAETDQVYMNAEQLVTLKNRIEYTNYDEPNQKNMRPVADDIMIKVNNIAAFFDVIYPIGTIYENAHNHANPADYMGFGVWKLYSQGRVTAGWNNDSSDPYFSRNNNNLNENGQPSLTAGGTVGDLTFTLGKEHIPELMSRDKVLISDPEHGSVVIGGCQLDPDAQGPGYSKYREDTVAVNNGVVPNDITKIQPTITVYRWIRVG

Entity 11 polymer

描述 description	Baseplate wedge subunit and tail pin
分子量 formula_weight	24534.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	FD,FE,FF,FM,FN,FO,FV,FW,FX,Fe,Ff,Fg,Fn,Fo,Fp,Fw,Fx,Fy

MTIETKTREGAKVNSRLAAFSEYRVDPQNIAVGNTAPIGSLTFEQMDLGVWYPNTEAAINDLMSLQSAEIGTIICNDTGISPQPAQQITRATFSGVVALEPKEDGSVGDPVIIHILGLPIRIANGDDFAAVATRWYDKVKELEAVGKVVQQVTQSPATPQYVDIIHLDYQNHNFETYKKYGLTVEFTITSPAKAGYGQWDAIGNESKTFGANTFTFHYFRRMG

Entity 12 polymer

描述 description	Gp12 short tail fibers
分子量 formula_weight	48092.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	FG,FI,FH,FP,FR,FQ,FY,Fa,FZ,Fh,Fj,Fi,Fq,Fs,Fr,Fz,F2,F1

MAQNNYNHYSDLAKYTIFDPTNTQWPVAIKDVQSALELIGSWARTDTGLPVASPTVAGVIRTATQAEVDAGTIGNAAVTPATLKSTVTRPEATTAVLGLTRYATNTEAAALTAGNRTITAAALGHVFKTVKAQENVDGTVRLTTAAQAQAGTDETTAVTPKRVVEMIGKFSVSPPSYTSATESNLGLVRVATQAQVAAGAVHDGYAVTPKTFMASKASDSVFGIVKFAKDSDVASATSNNLAVTPKSLQALKSTKDKYGLTRLSGSPTTDASLAAAATDAVFKTRRINGKTLDNDITITNNDINCYTRQESDGRYMPAGTRVGNVTWVEGQSWISRGATFTCNAPWEASSRLALNVNVKFERNNDGYDNRIFRFVVIVNGSQWGGELTLNIENTKGGRNGHSWRFEAYASSNFFFNNIPPNATVQIRPTEDSRIIFYDCMLTFCTNRP

Entity 13 polymer

描述 description	Tail tube protein
分子量 formula_weight	18633.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BW,BX,BY,BZ,B1,B2,B3,B4,B5,B6,B7,B8

MELTDITRAFESGDFARPNLFEVEIPYLGRNFSFKCKAAPMPAGIVEKVPVGYMNRKINVAGDRTYDDWTVTIYNDDKHEVRKAIIAWQAQAHAQGNDISGMTPADYKKVATVRQFSRDGKTITNEHTITGLWPTNVGEVQMDWDSNNEVETFETTFAIDWWE

Entity 14 polymer

描述 description	IraD/Gp25-like domain-containing protein
分子量 formula_weight	15382.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AA,AB,AC,AD,AE,AF

MSNIDKLYSDLDPEMRLAWDTDVSKTVGARSVKNSLLGIITTRKGSRPFDPEFGCDITNELFENMTPLTGDTIKRNIVSAVRNYEPRINRLSVDVLPLYDDNAIIVTVQFSIVDDPDTLERIRIQMRSNANSSSRV

Entity 15 polymer

描述 description	Putative baseplate hub subunit
分子量 formula_weight	43526.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BE,BF,BG

MTTQRLGYPNISIKLYSGYDAWLANRFVELAATFITLTMRDSLRGTNEGLLQFYDSKNMHTRMNGDELVQISVANSNTSRTQTRIYGIKHFTVGVDDKGDSIITLQLGTLHDIMNLKFSRAFFSSAYETIKEMIGAMYVDQPLIAPPINGINAYVPRVPWTSTLKDYLRYVRNVGISTDNDQFIFAWEDITGINMMDYESMISQDPNVFMFGAPQTIGQFAAGLKYPLAWDFEWLVKSNRYNRNPMKNATFYAHSFVDKDVTRIINGEGQNSVFINRSGGYSDMIFRNGYEEALRISTMAQYDGYAQTKCYGNFELTPGMKINFVDLKDQFRTDFYIDEVIHEISNNTSITNLYMFTNGSALEPVDLIKVKNELKRDSSY

Entity 16 polymer

描述 description	Baseplate hub subunit tail length determinator
分子量 formula_weight	64127.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BH,BI,BJ

MTKKSEMNSMRRRVIADSAPQKKAESQADAQINTLEDIGRRLDDQQASTDLISDVIETKSNEIIKSVEDVSAGVELTAEASERTTDVVSKLNDTASLINDKLTKLADLLSKKHDVQQDVQKTGTGTSLETITEQVPDAPTQQPLEELLERLIPPQDDRRPDADFFPSTEEQEEKAEPKKETEDKNKKFLDLKFGELIKSVKSGFGKTISLTDKISSMLFSYTVSALAQMAKTAAMVLGVIMLIDLIKVHFNYWTKLFEKNFVEFNKQAKEWGPLLTAISEMSNEIVKSFVKGDWGGLAKAIGSGLVDVIDKLGETIMLGMSKLLAGMLRALGFNDSADNIEGAALDRFQTVTGAELDEEDAKMRAKYVDRQEREYDEQPEWKRKLSAKFQKFTGQIDDDEYNKLLSGEKKQSAYADLPEDERLKIITARNNAEAELKRTKAYVEKTDASDSTRLDSAKDAVQSTTTRYKELEKLSPEVAKDLKVELDQLQKLLDSKISEPAPTAEAIPAAEQPEVKQSASIKAAADSRETARTRESNTQSQPIQVNTAVNKNSTYVYRTPPQTSTAAPGMQGAMKTS

Entity 17 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 18 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 19 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.36 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	34528

fit	/app/data/saxs_computation/f4/9f4b/9f4b.fit
pddf	/app/data/pr_computation/f4/9f4b/9f4b.pr.out
profile	/app/data/saxs_computation/f4/9f4b/9f4b.dat
