9fd7

Re-engineered peroxygenase variant of 2-deoxy-D-ribose-5-phosphate aldolase in substrate-free state

Method: X-RAY DIFFRACTION D_max: 83.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

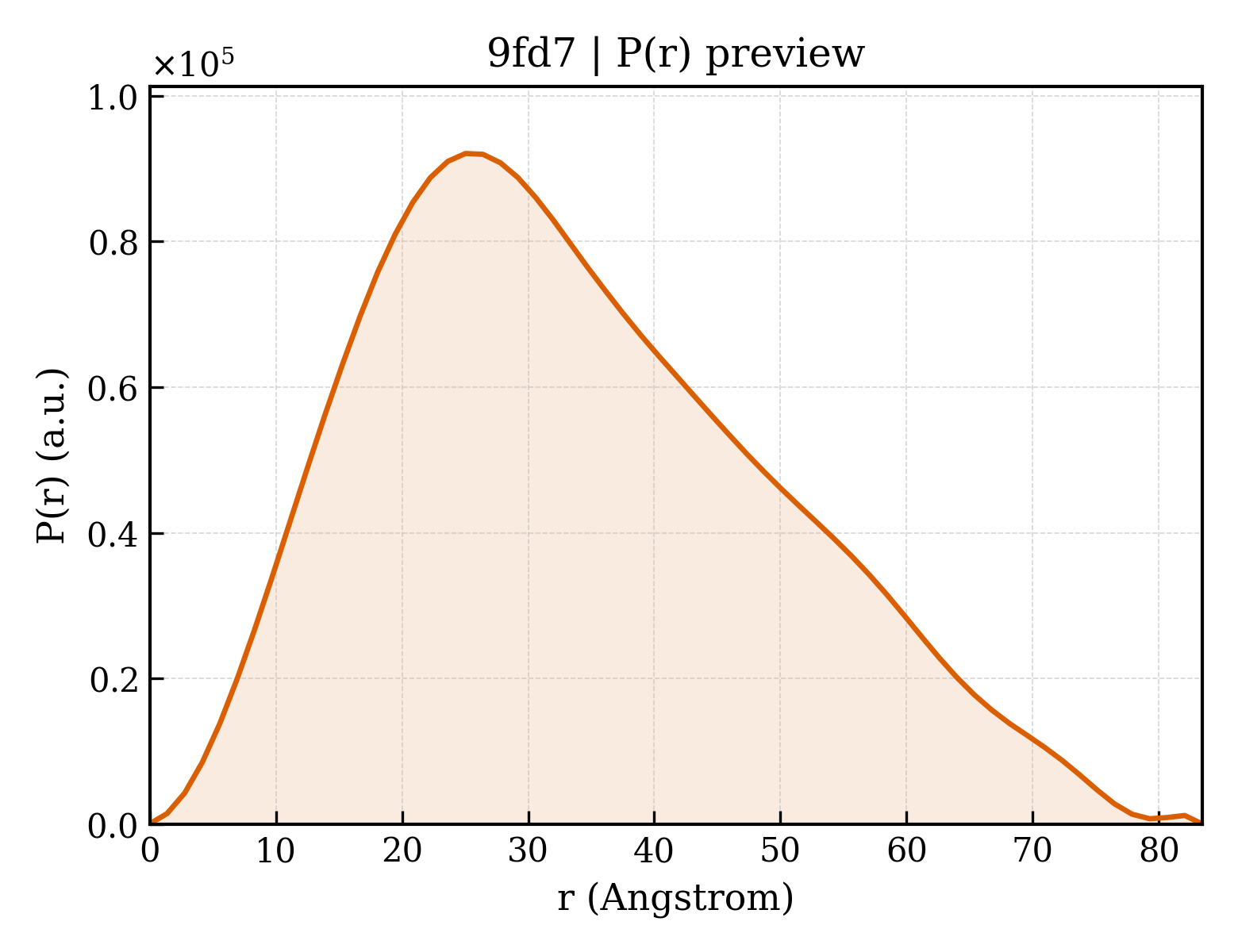

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9fd7
沉积日期 deposition_date	2024-05-16
结构标题 title	Re-engineered peroxygenase variant of 2-deoxy-D-ribose-5-phosphate aldolase in substrate-free state
关键词 keywords	protein engineering, directed evolution, aldolase, peroxygenase, Schiff base, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.25 Å
回转半径 Rg (电子) rg_electron	25.69 Å
零角强度 I(0) i0	44923400.00
分子量 molecular_weight	52465.0 kDa
排除体积 excluded_volume	66036 Å³
包络体积 envelope_volume	75960 Å³
水化壳体积 shell_volume	25589 Å³
包络直径 envelope_diameter	86.0 Å
壳层 Rg shell_rg	32.01 Å
包络 Rg envelope_rg	25.70 Å
形状 Rg shape_rg	25.69 Å
总 Rg total_rg	26.40 Å
总原子数 total_atoms	3681
残基数 n_residues	487
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	83.4 Å
Rg (实空间) rg_real	26.37 Å
Rg 误差 (实空间) rg_real_error	0.62 Å
I(0) (实空间) i0_real	4.4920e+07
I(0) 误差 (实空间) i0_real_error	5.9880e+05
Rg (倒空间) rg_reciprocal	26.33 Å
I(0) (倒空间) i0_reciprocal	44920000.0000
解质量估计 total_estimate	0.8789
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.0 Å
偏度 Skewness skewness	0.441
峰度 Kurtosis kurtosis	-0.461
角度范围 angular_range	— – 0.3000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14950000.0000
实空间数据点数 n_real_points	61
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.924; Smooth: 0.857

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Deoxyribose-phosphate aldolase
分子量 formula_weight	28715.7 kDa
EC 编号 ec_number	4.1.2.4
突变 mutation	T18S, L20S, D22G, D24Y, C47S, I48V, F52S, K172R, T197S, P202V, A203T, R207S, G236S, S239GEs
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	3937

MTDLKASSLRALKLMDLSTLNGDYTDEKVIALCHQAKTPVGNTAAISVYPRSIPIARKTLKEQGTPEIRIATVTNFPHGNDDIEIALAETRAAIAYGADEVDVVFPYRALMAGNEQVGFDLVKACKEACAAANVLLKVIIETGELKDEALIRKASEISIKAGADFIKTSTGRVAVNATPESARIMMEVIRDMGVEKSVGFKVTGGVSTAEDAQKYLAIADELFGADWADARHYRFSASGLLASLLKALGHGDGKSASSYLEHHHHHH

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	207

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	48.173 Å
晶胞边长 b length_b	72.752 Å
晶胞边长 c length_c	70.919 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	96.19 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.400 Å
最低分辨率 resolution_low	50.680 Å
R 因子 r_factor	0.1350
R_work r_work	0.1339
R_free r_free	0.1571
