9fhv

Bacteroides ovatus polysaccharide lyase family 38 (BoPL38) wild type in complex pentasaccharide (ManGul)3 at pH 3.5

Method: X-RAY DIFFRACTION D_max: 136.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

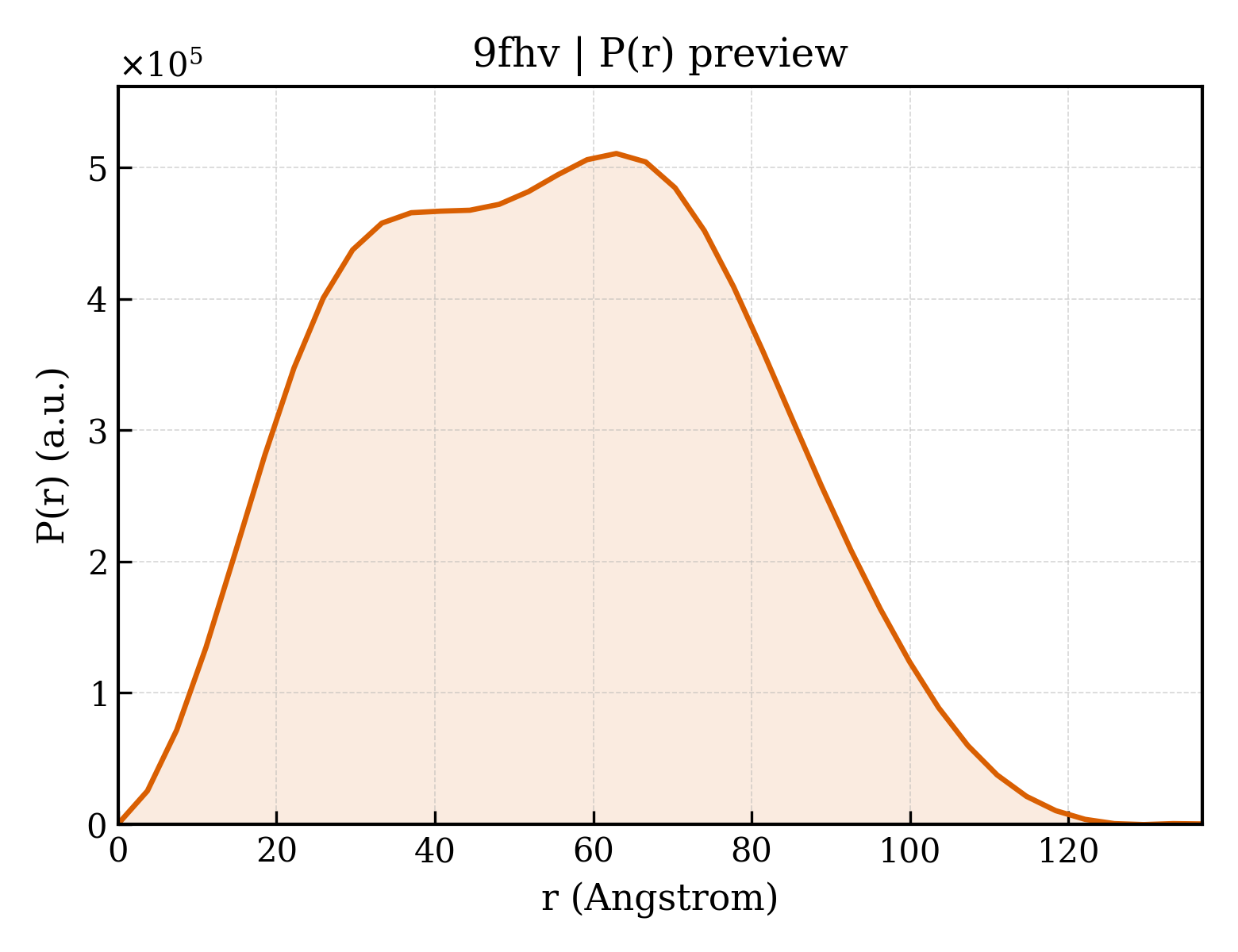

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9fhv
沉积日期 deposition_date	2024-05-28
结构标题 title	Bacteroides ovatus polysaccharide lyase family 38 (BoPL38) wild type in complex pentasaccharide (ManGul)3 at pH 3.5
关键词 keywords	polysaccharide lyase, complex, alginate, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.45 Å
回转半径 Rg (电子) rg_electron	42.04 Å
零角强度 I(0) i0	451933000.00
分子量 molecular_weight	176880.0 kDa
排除体积 excluded_volume	221960 Å³
包络体积 envelope_volume	291900 Å³
水化壳体积 shell_volume	57094 Å³
包络直径 envelope_diameter	138.6 Å
壳层 Rg shell_rg	48.77 Å
包络 Rg envelope_rg	40.68 Å
形状 Rg shape_rg	42.00 Å
总 Rg total_rg	42.48 Å
总原子数 total_atoms	12461
残基数 n_residues	1520
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	136.9 Å
Rg (实空间) rg_real	42.36 Å
Rg 误差 (实空间) rg_real_error	1.06 Å
I(0) (实空间) i0_real	4.5190e+08
I(0) 误差 (实空间) i0_real_error	9.1190e+06
Rg (倒空间) rg_reciprocal	42.45 Å
I(0) (倒空间) i0_reciprocal	452000000.0000
解质量估计 total_estimate	0.8251
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	62.9 Å
偏度 Skewness skewness	0.122
峰度 Kurtosis kurtosis	-0.733
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	112600000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Alginate lyase family protein
分子量 formula_weight	45972.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	12608

MGSSHHHHHHSSGLVPRGSHMASAPLGPFNATLLEQLKNDYQKGEKEVTRYIELQEKVAEKYIKMTPLSVTAKKKLPPSKDPRDYMTLSPYWWPDSTKIDGLPYIRKDGERNPEVYEYPERENANRFGDAAYCLGVLYYITGKEVYAKACANHLRTWFTDPKLGMNPNMTYAQAVPGMKKMRGSGFIDSRRFSRALGVAKLIEGSKSWTPSDKKKLDDWATAFCYWMENSTQGQRESHAANNHGLWYEAIHLMVLAYLDRTDRIREVAEQSILPKMGAQIADDGSLPQELKRTLSLHYSTFALEALMEANQITSQIGINLWSTPASNGKVASQAVDYLYPFYLNPEDWKFKQIKPFDQSRAAILLYEAGTALGNQKYVDTAKRIGLKYSTSDVETIPYLVLKKK

来源 Source

来源生物 organism	Bacteroides ovatus
NCBI 分类编号 ncbi_taxonomy_id	28116
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	;beta-D-mannopyranuronic acid-(1-4)-alpha-L-gulopyranuronic acid-(1-4)-beta-D-mannopyranuronic acid-(1-4)-alpha-L-gulopyranuronic acid-(1-4)-beta-D-mannopyranuronic acid ;
分子量 formula_weight	898.6 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	102

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	198.679 Å
晶胞边长 b length_b	89.700 Å
晶胞边长 c length_c	146.988 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	120.56 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	2.340 Å
最低分辨率 resolution_low	48.990 Å
R 因子 r_factor	0.1981
R_work r_work	0.1960
R_free r_free	0.2380
