1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9flx
沉积日期 deposition_date	2024-06-05
结构标题 title	CryoEM structure of the fragment-4 (4074-4421) in the grappling hook protein A (GhpA) in the bacterium Aureispira sp. CCB-QB1
关键词 keywords	ixotrophy, type 9 secretion system, cryoEM, surface protein, predation, CELL ADHESION; CELL ADHESION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.40 Å
回转半径 Rg (电子) rg_electron	56.02 Å
零角强度 I(0) i0	976521000.00
分子量 molecular_weight	251350.0 kDa
排除体积 excluded_volume	311000 Å³
包络体积 envelope_volume	528870 Å³
水化壳体积 shell_volume	85929 Å³
包络直径 envelope_diameter	199.4 Å
壳层 Rg shell_rg	53.31 Å
包络 Rg envelope_rg	52.59 Å
形状 Rg shape_rg	56.06 Å
总 Rg total_rg	55.79 Å
总原子数 total_atoms	17675
残基数 n_residues	2436
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	195.9 Å
Rg (实空间) rg_real	55.68 Å
Rg 误差 (实空间) rg_real_error	2.42 Å
I(0) (实空间) i0_real	9.7650e+08
I(0) 误差 (实空间) i0_real_error	2.1410e+07
Rg (倒空间) rg_reciprocal	55.16 Å
I(0) (倒空间) i0_reciprocal	975800000.0000
解质量估计 total_estimate	0.7717
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	56.0 Å
偏度 Skewness skewness	0.553
峰度 Kurtosis kurtosis	-0.146
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	347900000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.430; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.742

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

Entity 1 polymer

描述 description	The grappling hook protein A in the bacterium Aureispira sp. CCB-QB1
分子量 formula_weight	610114.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A,C,D,E,F,G
原子数 atom_count	17675

MQIQRHSFKWILYGFLCWMTSFVQAQTPTLTNATPAEGFIGEQVCFPVTFVNTGAPGYGPYVRLIVPTGFTFDNASFGGSIQTVQNLGVIVSGAPNNFVIDPIAQSNNNSTTSDTIFAPVGSTVILLEYPVGSMVQGGVSLISEVCMTVDPAATIGVPVDICTQGVYEFGDTPTGDNGPIAGANECEPIIPILFRFDKKVNGSDGVYNEVPGGGASLCHIHQYELNIDIAAAGTLNGPITITDVLPGELAYFGNISLPAGCSAVEPTVGGLGGTLTVTCNGSYPGSTANIDMQVTFDAAVSDTLDETICDDTDINNGATVNVPGNPSQSDTVVTHVEHVLLGHTNNTVSPVTIGQTVLYTIGAEITEYTAGLTAASITFIVPDGMIYNPASLTWAGTPVAAGNVVIVPGPGTGSTVTVDVHTQNGANILPCASPSLQYTADVNQTYANGDPVLSRDRLTHSSTLTYDLVEGATGCTTSAGTPIDVIDIFFQKTVNNSPPTGPGRNGQWWPGDVVQYRLELQIPSLDLDDVVITDFFPLPIHDVASLAATFGTDVRFDPATCWNTAPVTYTRDIPTNSLILDFGDVSDLVTGGCVDIVLLIDIPITTLPFADGLFHSNFMQVNSDNSTADNITNSALTLIQVGAPDLELTKGIVSSDNPNVTISPTVVPPDGNATDVSAGDQLFFDITIENVGGAPGYDVQVRDVAPPELTNCALVAPNPVVDGSNNALAFSGGFVGNTLTIDLVAPNDSIAFATAPNNNDLITVSYVCEAVAGIQAGTRFDNTAEVDWSSTRGGVKFPPVEDDANGRIADPTMNKVVDYIFPNYSNTNTQASIGEVVAYELQLNIPEGNMNNVTLVDQVDEGLAFVAVDSIVICNSSGSTNIITSIGGGFPAVQSGATITNLGANPQQQDRVLTLDFGNLQNLDTDNIEDTIKVYYRTIVINHVTNFDGERVRNRAVLSWDNPNTPGDRSSINDRAPFVTIVEPQLEISKSFTPDEVLPGNNSFVTLTVRNPGTSSAPAFDVSLTDILPTGMTFVSGFSAGGTASITTPPTNGGGTITAHWDTINVGEVYSITFEVQASSSITPCFTLTNCANLVWESIAEADEPNMPTAFSSNLGVQRTGNPGNLGGAANTYTQDSCADLDVVIDNTFDPFITANTPLCEGDRVVLTVQQYQGNVVRYNWTGPGVPAGFNNYELVLDPVTTADTGTYFVYVELDGCITDTSNFFSLQLRPKPVTPNINPGDTTICEGTSIQFSTSTIANDYTWTGPNGFTANSATTPLISPVTLADAGRYTLFTTNAQGCNSDPISSNLTVTPRPAQPSIASNTPICSNENIILTSSTSAITYQWMAPNGQDTITTNNTLTLEPNNPLYTAGNWTLVVFDANGCASQPSTAANVIINGTPIAPMTSNSGPICEGEDVTLMVNTVSSGTYAWYSDANLTNLVASTQNPVISGLLASNSPDTFYVQVSSNGCLSDTGFTVVQVNPNPAAVSPGYTPLCSGDTIFLFANATANIYNWTGPNGFVSNLENPFIANSAALNAGSYTVSITDANGCSNSGIVQVAVDERPVTPTITGNGPVCEGDNIQLNIGSYTGTTVQYTWSTPTGVVTTGVPSLNINNTTVADSGLYSVVVAVDGCTSLADSINIVVRPNPIAPNVPSNFSVCEGDGIALTTTTNANIYNWTGPNGFSSNSPNPTVISPASSANAGTYTLVVQDFNGCTSPAASTVVTVNAAPAQPSMTTNSPICNGADLVMSTSAAGNSYIWRAPNGADTTTASSTLTIVPTSSLYQSGNWTLSVVNAAGCVSPASIASAVEINSIPSTASAGNNGPVCTGTDASLSAGTVSGASYAWYTDAGTSNQFSTLQNPTVNNLTNDSTFYLLVTVNGCPSALDSTTVVVYPLTPSPSLPANFAVCEGDDIALSTSTVASSYDWSGPNGFTSNAQNPVVITNATGSNAGVYTLSIVDGNGCSSADTSVQVTVNAAPTQPSMTTNSPICNGADLVMSTSAVGNSYIWRAPNGADTTTASSTLTIVPTSSLYQSGNWTLSVVNAAGCVSPASIASAVEINSIPSTASAGNNGPVCTGTDASLSAGTVSGASYAWYTDAGTSNQFSTLQNPTVNNLTNDSTFYLLVTVNGCPSALDSTTVVVYPLTPSPSLPADFAVCEGDDIALSTSTVASSYDWSGPNGFTSNAQNPVVITNATGSNAGVYTLSIVDGNGCSSADTSVQVTVNAAPAQPSMTTNSPICNGADLVMSTSATGNSYIWRAPNGADTTTASSTLTIVPTSSLYQSGNWTLSVVNAAGCVSPASIASAVEINSIPSTASAGNNGPVCTGTDASLSAGTVSGASYAWYTDAGTSNQFSTLQNPTVNNLTNDSTFYLLVTVNGCPSALDSTTVVVYPLTPSPSLPADFAVCEGDDIALSTSTVASSYDWSGPNGFTSNAQNPVVITNATGSNAGVYTLSIVDGNGCSSADTSVQVTVNAAPTQPSMTTNSPICNGADLVMSTSAVGNSYIWRAPNGADTTTASSTLTIAPTSSLYQSGNWTLSVVNAAGCVSPASVASMVTINNGTNPTAFNNGPVCRGDAVQLNTTTINNALYEWYSDAALTNLISTQQNPTVANITTDSTFYLVVTVNGCPSSAVATTVTLHPTPATPNIPANFVVCEGETIALSTSTVASSYNWTGPNGFTSNLQNPAVIQPATTADAGSYTLFIVDANGCQSADTSVVVGVNRGPAAPVLTNNSAICDGDTLLLSTTASADTFRWISPNGIDTITTVNSLMIVPTNGTYYQSGDWTLITQVANNCPSEPSAPSSVVINSSTAAPTAFNDGPVCVGGDVTLSTPSAPGAFYQWYTDAALTNLVATTASFTAINITQDSTFYLVVTVNGCTSPAGSTVVNVIGQPSAPNVPADFEVCEGDDIILGTTTIAASYSWTGPNGFTSNLQNPAAITNASLIDSGIYRLVVTYSNGCVSADTTVRVGVNSNPPVPNIVSNGPICFGDTLVLSSSTSCGQSQWIGPNGNSQSTLGTPGGSNVLWTIGSTTSIPMNNANYLPGNWYMICIDTVTGCRSESNTINVIINANPDTPAVFNDGPVCEGGNSNLSTATVSGASYAWYSDSSLTSLVSTAQNPMIVNISTDTTWYLVVTVNGCSSVAGSTTVIVHPTPVTPNVPANFAVCEGDNITLSTSTVASSYNWSGPNGFTSNVQNPVVITNATTSNAGVYTLSIIDGNGCESGDTAVTVTVDSIPATPVLSSNSAICFGDTLELSTTALATSYEWIAPDGSRITTGTNILSISSNNSLYQSGDWMLVTTNASGCTSMPSSVATVVINANPAQPAVFNDGPVCEGGNSNLSTATVSGASYAWYSDSSLTSLVSTAQNPMIVNISTDTTWYLVVTVNGCSSVAGSTTVIVHPTPATPNVPANFAVCEGDNITLSTSTVASSYNWSGPNGFTSNVQNPVVITNATTSNAGVYTLSIVDGNGCESGDTTVTVTVDSIPVTPVLSSNSAICFGDTLELSTTALATSYEWIAPDGSRITTGTNILSISSNNSLYQSGDWMLVTTNASGCTSMPSSVATVVINANPAQPAVFNDGPVCEGGNSNLSTATVSGASYAWYSDSSLTSLVSTAQNPMIVNISTDTTWYLVVTVNGCSSVAGSTTVIVYPTPATPNVPANFAVCEGDNITLSTSTVASGYNWSGPNGFTSNVQNPVVITNATASNAGVYTLSIVDGNGCESGDTTVTVTVNGNPPVATITSNSPICFGDTLTLSSSTNCGQSQWIGPNGNSSGTLGTPGGNNVLWTIGSTTNIPSTDVNYLSGDWYMICIDTITGCRSESNTITIEINPIPVVSAFNNGPICAGEDGELSATFITGASYRWYSDATLTTLISTSRTPIISSMMSSETYYVVATVNGCTSLADSTTIVVNPTPVIPNPTYTPLCQLDTLFLQANAVGPIATYWWTGPNGFTSHLENPVIPNIYPFNAGSYILTVTDSLGCEAVSTVEVTIYPKPQTPTIAHNAPFCEGTNDLTLTTQAYFGTDVRYIWTLPNGNLDTTFVPSLVLPNATVQDTGAYSLVVWIDGCLSLPAEEIIRIYPTPATPNVPADFAVCEGEAIVLTTTTNATSYFWTGPNGFQSNLQSPSVVNATLVDAGSYHLYVTNTWGCQSLDTSVQVTVNANPPIATITSNSPICFGDTLTLSSSTNCGQSQWIGPNGNSTGTLGTPGGNNVLWTIGSTTNIPSTDSNYLSGDWYMICIDTITGCRSESNTITIDINPIPSTPAAFNNGPICIGGTAQLSTTTVSGATYAWYADATLTTLVATNQNPTISNITTDSTFYIVVTVNGCSSLAGSTTVSTYPVPATPAVPADFAVCEGDNIVLSTTTVAAGYNWTGPNGFTSNLQNPSVVSASLVDSGTYTLFIIDANGCPSGDTSVQVSVHPNPVQPVLSSNSAICDGDSLVLSTTATATTYRWVAPDGADTLTTVNTLVILPSNAFYQDGNWTLMTMDANGCQSILSNPESVTIHSIPAAQAVFNNGPVCRGSSVNLSTSFISGATYEWYADAALTILVATSQNPTINNITTDSTFYLVITVNGCTSAAGATTVVVHPTPTTPNVPSNITVCEGDAIVLTTTTNASAYVWSGPNGFSSNQQSPTVINAATVVDSGKYSLYVIDANGCRSEDTSLQVVVNPTPTTPLIVSNNTPICEGSNIVLSANAGAAGTTYEWFNASNVSVGTGQTLTIVGATVADAGDYYVITTLNSCSSAASSTTTAIVDQVPSTAAFAGNDINLCNSFTTTLDATPPNSATGFWTTNSGATIANPNLANSAVYNLPTGTSTFYWTLSNGACIDFSVDSMVVEVTPASTDVADAGLDQNLCGQTSATLTAANPSTATGQWTQSASQAGQGIVITNPTNPNTTVTGLQQGNNYTFTWTLSNGNCTDYSTDMVQINVDVSPPDNAYAGVDILLCNQNTANLDAFVSQYGTGMWTSTSSATIIDPTLANTTVINLPQDTSVFVWTLSNGTCQNYSTDSVLVVVSTTTDTAEAGNNQVVCSVNALTLGATMPSSGFGTWSQTAAQAAQGVVIVDVNDPNTQVVGLNAGTTYAFTWTLSNGTCQDYSSDVTTISVNATPPDNAFAGNDINLCGVATTTNLAASVPTVAMGLWTTTSSATISNPTQPNSTVSGLSAGQNIFIWTLSNGTCQDYDSDTVIVTVTTPSSDVADAGLDSAYCAQSVVTLNAVAPSVGGGYWSQTPSQASLGAVIDNPTDTATTVSNLMPGVTYTFTWTLTNGGCVDYSSDQVLITIDVLPTNVAYAGEDTILCGGNAVQLDGLAPPIGTGFWTTNDTATIVTPVDPNSLVVNIAEDTTTYYWTLSNGACVDYSVDSVTVIISPASTDLAFAGYDEVLCGVDSIMLSAAVPTTSTGIWTQSAGQASQGIVITNPTNPNSSVTGIQAGQVYTFTWTLSTFGCANFSTDDVQYTINALPPEVAYAGPDIVLCTGNSVTMDANNPIFSTGVWSSNSSAVIVNPTLSNSNIVNIPTDTVAFYWSLSNGSCADYSIDTMLIIVTPTFSVDTANAGLDINLCNEDTAQLMAIAPNVATGRWTQPFNQSSAGVVITDPNAAMTTATGLQLDSTYTFTWSVSNGPCRDYDRDQVIVQVSTLPTDAAYAGEDFVICGIDTAIVSATAPSIGAGMWTTTTTATIVTPPSTRTELLNLSLGSNEFIWTLSNGACRDYSSDTIVITMDSAPIANADSFVVIYNSNGNTIDVTPNDGLNNNWVITISESIASGTLDNLGTGEFDLFLQDVLVDQRFIYQLCNPNCPAIYCDTALVTIDVQGGTECNFPNMITPNNDDANETFIVPCLDGLEGTKFAVYNRWGDLMYENDNYKNDWGGTHNGVPVPDATYFYIMELADGQRFQGFVEVRR

▶

7. 引用文献 (2)

▶

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	39561

fit	/app/data/saxs_computation/fl/9flx/9flx.fit
pddf	/app/data/pr_computation/fl/9flx/9flx.pr.out
profile	/app/data/saxs_computation/fl/9flx/9flx.dat

CryoEM structure of the fragment-4 (4074-4421) in the grappling hook protein A (GhpA) in the bacterium Aureispira sp. CCB-QB1

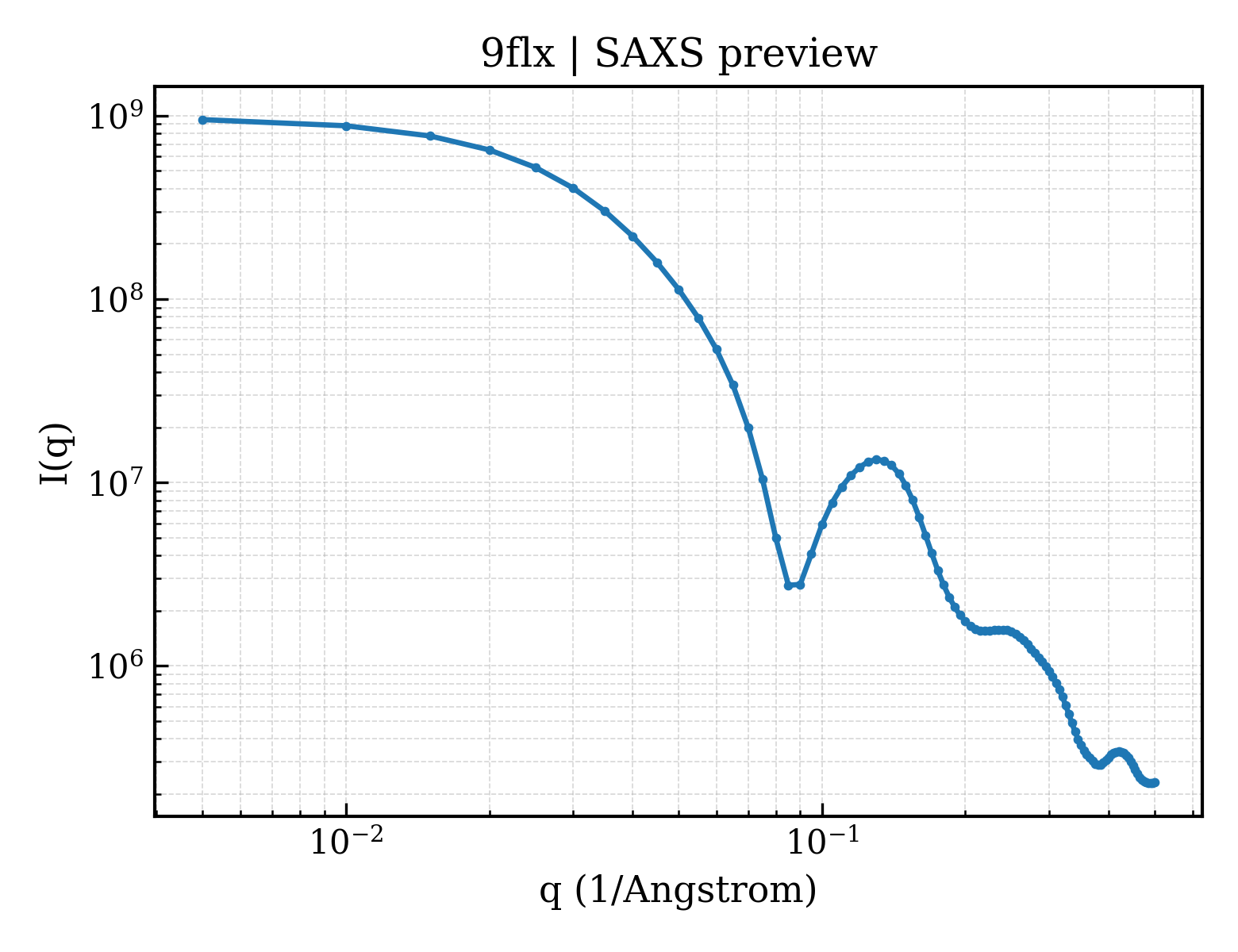

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
