9fmb

Crystal structure of human IgD-Fc

Method: X-RAY DIFFRACTION D_max: 122.5 Å Quality: GOOD

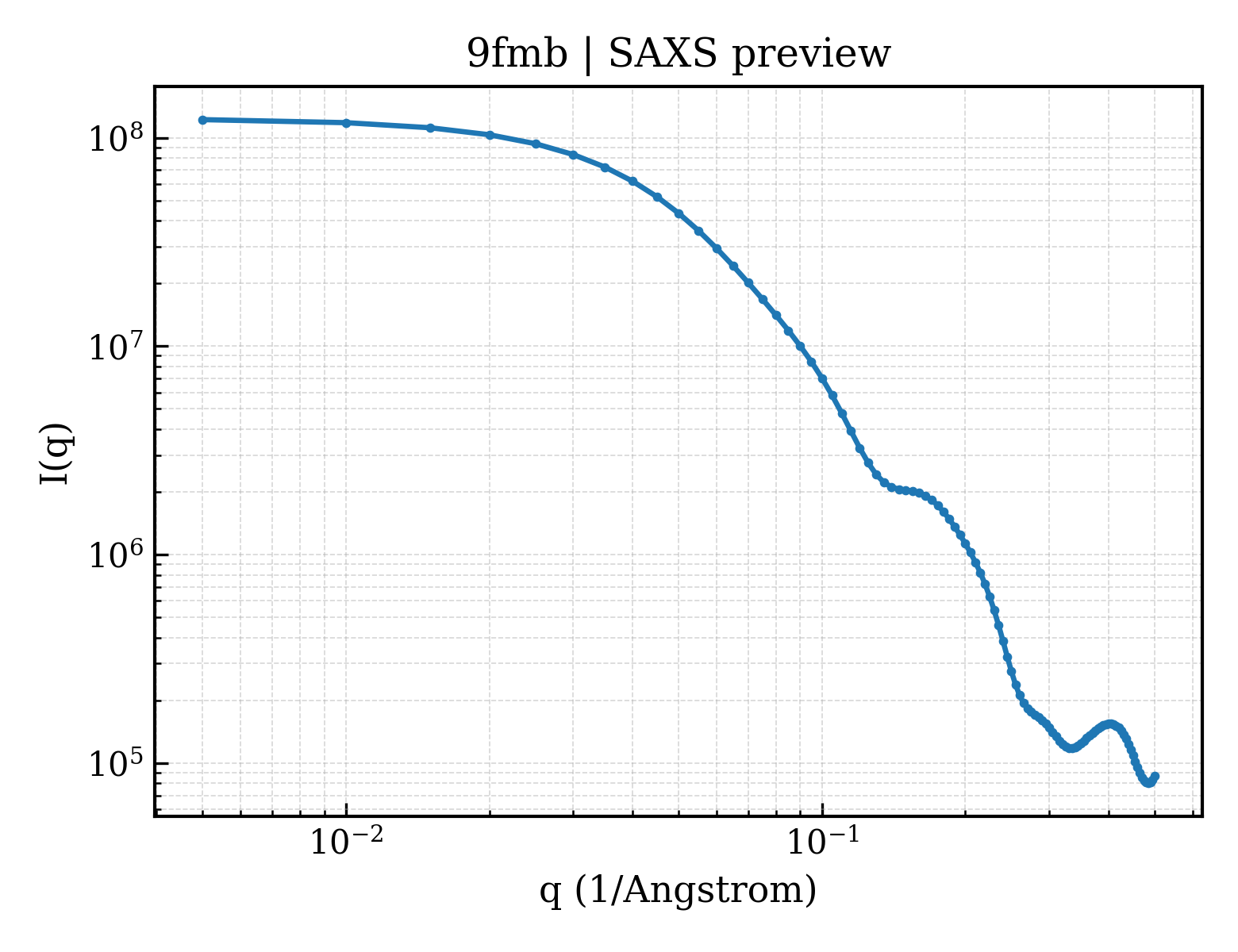

SAXS 散射曲线 SAXS Profile

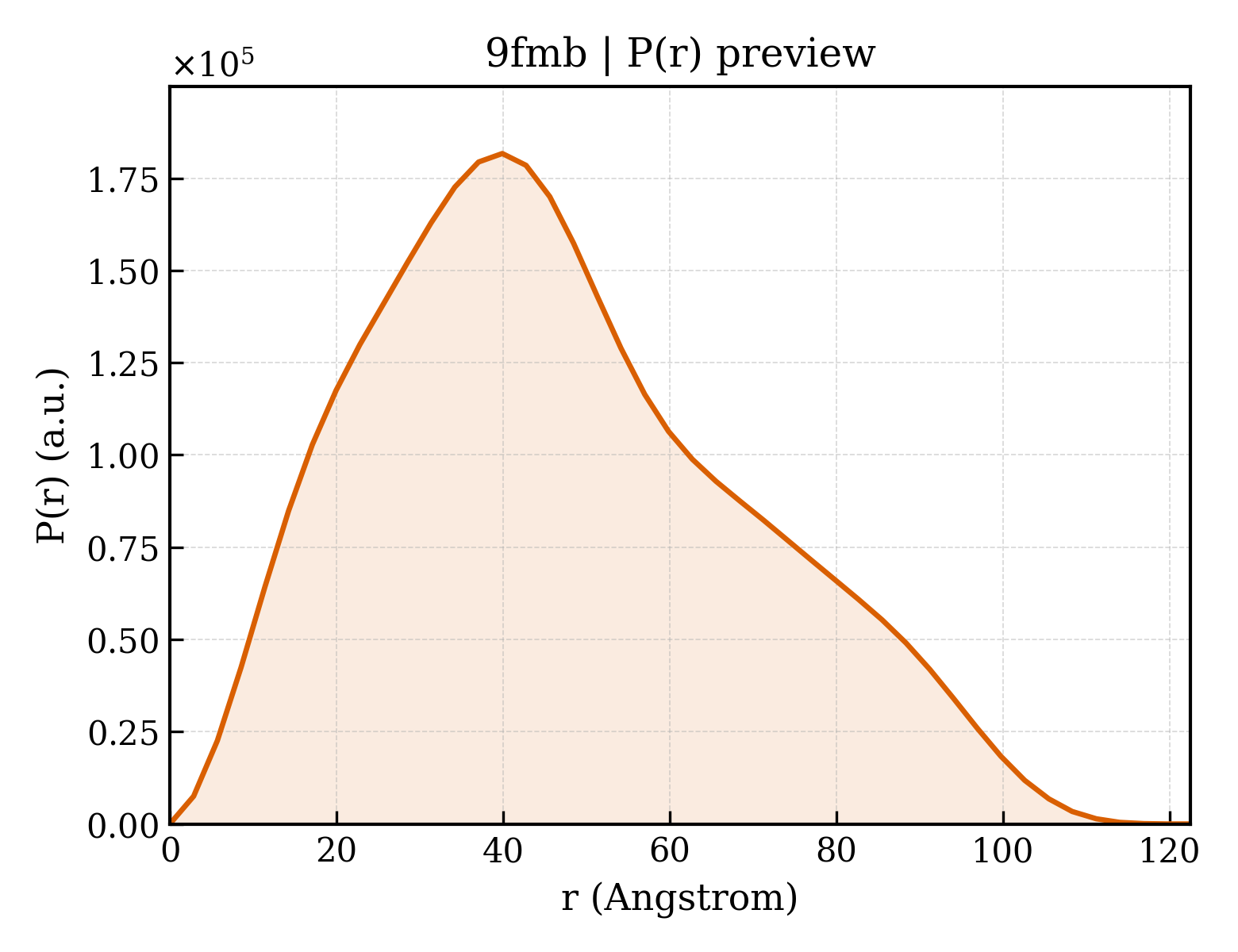

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9fmb
沉积日期 deposition_date	2024-06-05
结构标题 title	Crystal structure of human IgD-Fc
关键词 keywords	antibody, immunoglobulin, IgD, Fc region, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.47 Å
回转半径 Rg (电子) rg_electron	36.47 Å
零角强度 I(0) i0	123481000.00
分子量 molecular_weight	89379.0 kDa
排除体积 excluded_volume	112000 Å³
包络体积 envelope_volume	156250 Å³
水化壳体积 shell_volume	37564 Å³
包络直径 envelope_diameter	121.4 Å
壳层 Rg shell_rg	40.32 Å
包络 Rg envelope_rg	35.71 Å
形状 Rg shape_rg	36.47 Å
总 Rg total_rg	36.76 Å
总原子数 total_atoms	6287
残基数 n_residues	772
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	122.5 Å
Rg (实空间) rg_real	36.68 Å
Rg 误差 (实空间) rg_real_error	1.43 Å
I(0) (实空间) i0_real	1.2350e+08
I(0) 误差 (实空间) i0_real_error	2.1770e+06
Rg (倒空间) rg_reciprocal	36.55 Å
I(0) (倒空间) i0_reciprocal	123500000.0000
解质量估计 total_estimate	0.8619
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	39.9 Å
偏度 Skewness skewness	0.425
峰度 Kurtosis kurtosis	-0.502
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6160000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.808; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.871; Smooth: 0.904

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Isoform 1 of Immunoglobulin heavy constant delta
分子量 formula_weight	25757.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	6302

KTPECPSHTQPLGVYLLTPAVQDLWLRDKATFTCFVVGSDLKDAHLTWEVAGKVPTGGVEEGLLERHSNGSQSQHSRLTLPRSLWNAGTSVTCTLNHPSLPPQRLMALREPAAQAPVKLSLNLLASSDPPEAASWLLCEVSGFSPPNILLMWLEDQREVNTSGFAPARPPPQPRSTTFWAWSVLRVPAPPSPQPATYTCVVSHEDSRTLLNASRSLEVSYVTDHGPMKHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1235.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1559.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	ACETATE ION
分子量 formula_weight	59.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 8 non-polymer

描述 description	1,2-ETHANEDIOL
分子量 formula_weight	62.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	15

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	105.825 Å
晶胞边长 b length_b	43.667 Å
晶胞边长 c length_c	121.470 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	107.96 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	52.450 Å
R 因子 r_factor	0.2313
R_work r_work	0.2283
R_free r_free	0.2882
