9fng

The glycoside hydrolase family 71 (GH71) member AnGH71C from Aspergillus nidulans in complex with glucose.

Method: X-RAY DIFFRACTION D_max: 100.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9fng
沉积日期 deposition_date	2024-06-10
结构标题 title	The glycoside hydrolase family 71 (GH71) member AnGH71C from Aspergillus nidulans in complex with glucose.
关键词 keywords	alpha-glucan, hydrolase, mutan, nigeran, CARBOHYDRATE; CARBOHYDRATE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.07 Å
回转半径 Rg (电子) rg_electron	29.18 Å
零角强度 I(0) i0	127684000.00
分子量 molecular_weight	89504.0 kDa
排除体积 excluded_volume	111420 Å³
包络体积 envelope_volume	130500 Å³
水化壳体积 shell_volume	37217 Å³
包络直径 envelope_diameter	106.7 Å
壳层 Rg shell_rg	36.52 Å
包络 Rg envelope_rg	29.27 Å
形状 Rg shape_rg	29.15 Å
总 Rg total_rg	29.90 Å
总原子数 total_atoms	6336
残基数 n_residues	793
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

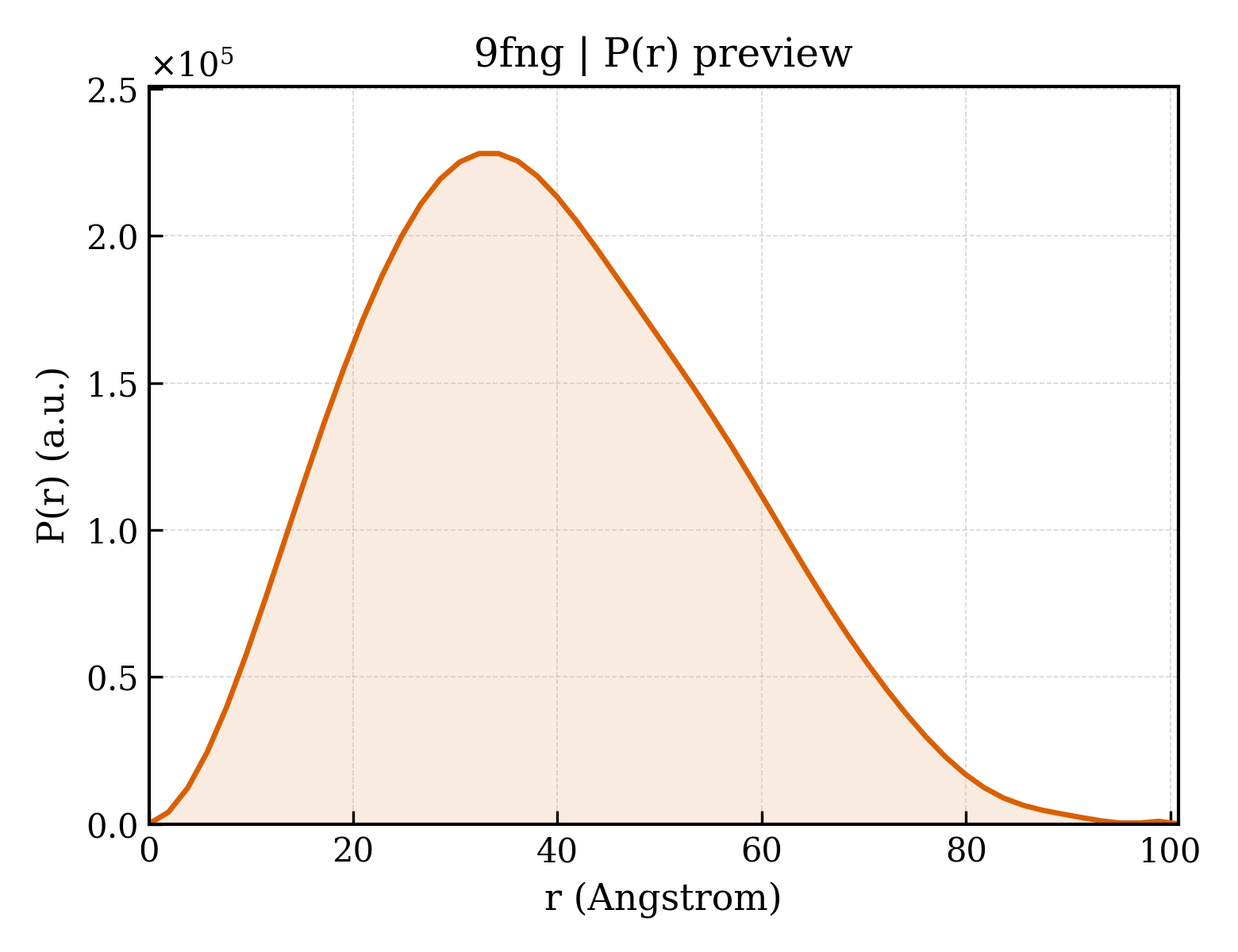

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	100.8 Å
Rg (实空间) rg_real	30.05 Å
Rg 误差 (实空间) rg_real_error	0.66 Å
I(0) (实空间) i0_real	1.2770e+08
I(0) 误差 (实空间) i0_real_error	1.9380e+06
Rg (倒空间) rg_reciprocal	30.06 Å
I(0) (倒空间) i0_reciprocal	127700000.0000
解质量估计 total_estimate	0.8855
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	98.9 Å
偏度 Skewness skewness	0.330
峰度 Kurtosis kurtosis	-0.423
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	29210000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.855; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.953

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Glycoside hydrolase family 71
分子量 formula_weight	48211.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7476

MGSSHHHHHHSSENLYFQGHSLPGANSLTIRKDSNKYVTAHFMVGIVENYTVDDWKHDMELAKETGIDAFALNCASIDSYTDKQLAYAYEAAEEVDFKVFISFDFAYWSNGDTARITSIMQTYADHPGQFQYNGAALVSTFVGDSFDWGPVKRAVDHPIFAVPNLQDPNWAGHATTSIDGAFSWYAWPTDGGNSIIKGPMTTIWDDRFRNNLKDKVYMAPVSPWFSTHFNTKNWVFICEDLPHLRWQQMLEMQPELIEIISWNDYGESHYIGPYSEAHSDDGSAQWTKDFPHDAWRIIAKPYIAAYKAGEREPTVESDQLVYWYRPTPKAVTCSKDPLGPPNGINLLEDSVFVTTLLTEPATLTVGSGSLEFSVDVDAGIVTNSFPMGVGSQAFSVTRDGEEILGGDGGLDVQDRCDYYNFNVYVGSFSA

来源 Source

来源生物 organism	Aspergillus nidulans FGSC A4
NCBI 分类编号 ncbi_taxonomy_id	227321
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	alpha-D-glucopyranose
分子量 formula_weight	180.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	beta-D-glucopyranose
分子量 formula_weight	180.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1012

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	135.018 Å
晶胞边长 b length_b	84.413 Å
晶胞边长 c length_c	102.224 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	130.56 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	1.370 Å
最低分辨率 resolution_low	42.090 Å
R 因子 r_factor	0.1647
R_work r_work	0.1633
R_free r_free	0.1821
