9fup

;Serial microseconds crystallography at ID29 using fixed-target (small foils): A2a adenosine receptor co-crystallised with Istradefylline ;

Method: X-RAY DIFFRACTION Dmax: 107.4 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

SAXS profile for 9fup

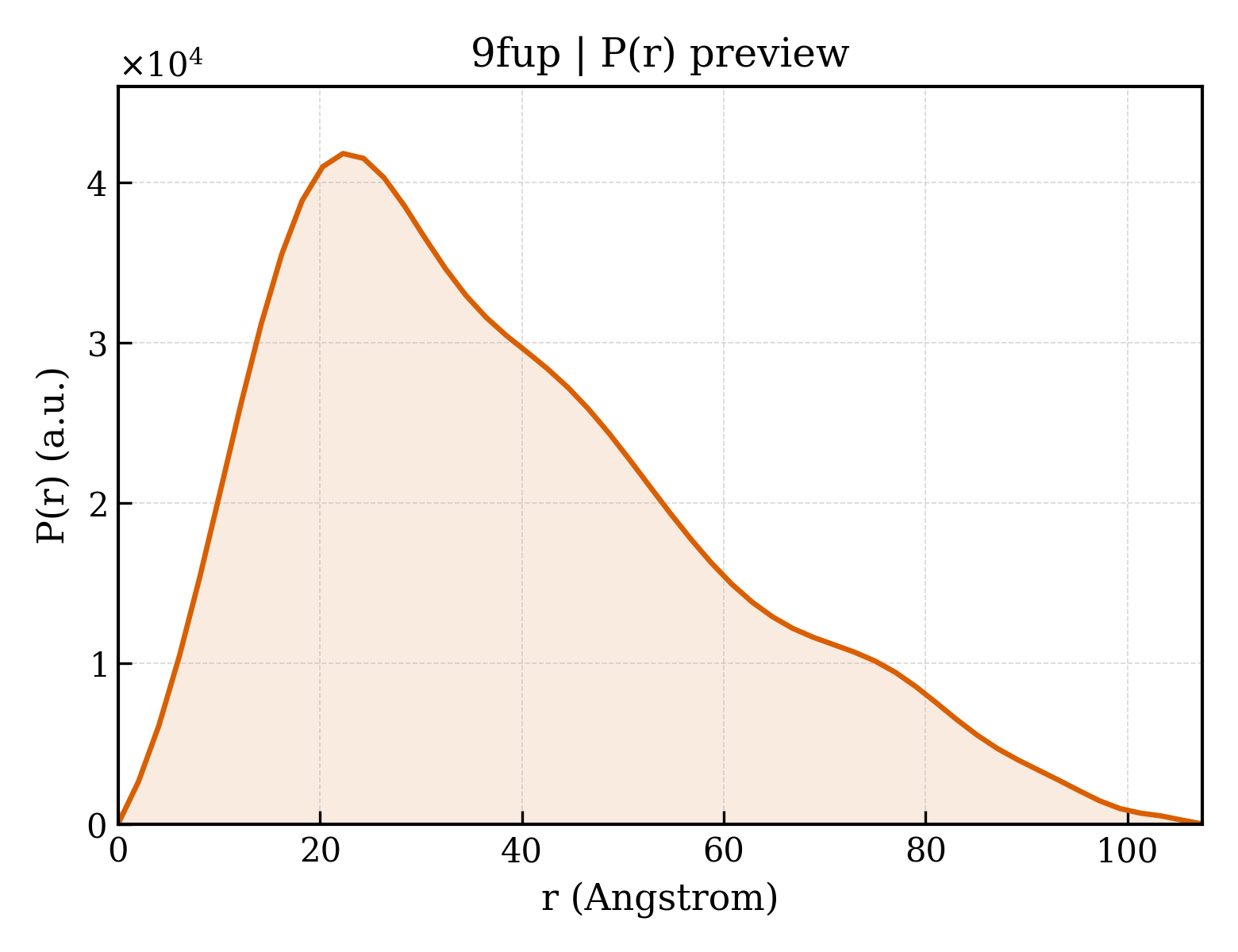

P(r) 距离分布 P(r) Distribution

P(r) distribution for 9fup
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id9fup
沉积日期 deposition_date2024-06-26
最后修订 last_revision2025-01-22
结构标题 title;Serial microseconds crystallography at ID29 using fixed-target (small foils): A2a adenosine receptor co-crystallised with Istradefylline ;
关键词 keywords;Serial crystallography, serial microsecond crystallography, room temperature, ID29, ESRF-EBS, fixed-target, foils, membrane protein, A2A receptor, Istradefylline, SIGNALING PROTEIN ;; SIGNALING PROTEIN
实验方法 methodX-RAY DIFFRACTION

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier30.07
回转半径 Rg (电子) rg_electron28.94
零角强度 I(0) i024057400.00
分子量 molecular_weight44716.0 kDa
排除体积 excluded_volume58894 ų
包络体积 envelope_volume70376 ų
水化壳体积 shell_volume23383 ų
包络直径 envelope_diameter109.9
壳层 Rg shell_rg31.32
包络 Rg envelope_rg29.51
形状 Rg shape_rg28.94
总 Rg total_rg29.24
总原子数 total_atoms6386
残基数 n_residues383
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax107.4
Rg (实空间) rg_real30.63
Rg 误差 (实空间) rg_real_error1.28
I(0) (实空间) i0_real2.4060e+07
I(0) 误差 (实空间) i0_real_error4.0760e+05
Rg (倒空间) rg_reciprocal30.39
I(0) (倒空间) i0_reciprocal24050000.0000
解质量估计 total_estimate0.7317
解质量评级 solution_quality REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks1
主峰位置 r_peak_primary22.3
偏度 Skewness skewness0.671
峰度 Kurtosis kurtosis-0.215
角度范围 angular_range— – 0.2650 −1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha3120000.0000
实空间数据点数 n_real_points54
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.515; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.265; Smooth: 0.699

4. 晶体学与实验 4. Crystallography & Experiment

5. 实体与聚合体信息 (8)

7. 引用文献 (1)

8. 文件与曲线 (10)
