9g0w

auxin transporter PIN8 as asymmetric dimer (inward/outward) with 2,4-D bound in the inward vestibule prebinding state

Method: ELECTRON MICROSCOPY D_max: 94.7 Å Quality: GOOD

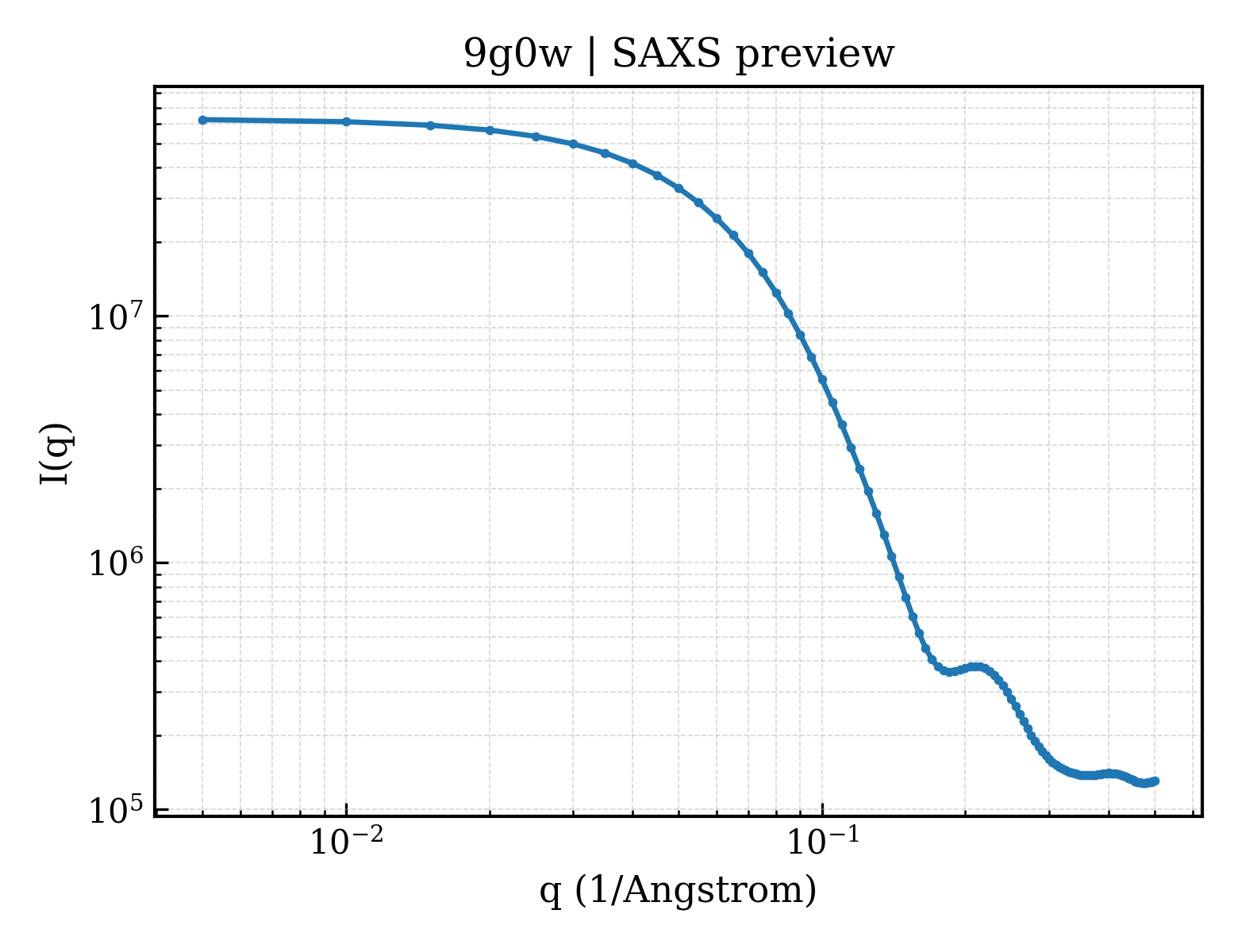

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9g0w
沉积日期 deposition_date	2024-07-09
结构标题 title	auxin transporter PIN8 as asymmetric dimer (inward/outward) with 2,4-D bound in the inward vestibule prebinding state
关键词 keywords	Auxin transport, AEC family, BART superfamily, MEMBRANE PROTEIN, TRANSPORT PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.87 Å
回转半径 Rg (电子) rg_electron	27.46 Å
零角强度 I(0) i0	62913100.00
分子量 molecular_weight	71825.0 kDa
排除体积 excluded_volume	94219 Å³
包络体积 envelope_volume	112900 Å³
水化壳体积 shell_volume	34034 Å³
包络直径 envelope_diameter	98.4 Å
壳层 Rg shell_rg	35.03 Å
包络 Rg envelope_rg	27.73 Å
形状 Rg shape_rg	27.45 Å
总 Rg total_rg	28.39 Å
总原子数 total_atoms	10470
残基数 n_residues	640
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	94.7 Å
Rg (实空间) rg_real	27.88 Å
Rg 误差 (实空间) rg_real_error	0.78 Å
I(0) (实空间) i0_real	6.2910e+07
I(0) 误差 (实空间) i0_real_error	1.0230e+06
Rg (倒空间) rg_reciprocal	27.88 Å
I(0) (倒空间) i0_reciprocal	62910000.0000
解质量估计 total_estimate	0.8726
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.6 Å
偏度 Skewness skewness	0.385
峰度 Kurtosis kurtosis	-0.276
角度范围 angular_range	— – 0.2850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11000000.0000
实空间数据点数 n_real_points	58
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.953

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Auxin efflux carrier component 8
分子量 formula_weight	41541.0 kDa
突变 mutation	;N-terminal tag: First two residues MG are cloning tags. Uniprot sequence aligns from Ile2. Note MG is added as residue 0 and 1, to maintain correct numbering compared to uniprot. ;
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A
原子数 atom_count	10482

MGISWLDIYHVVSATVPLYVSMTLGFLSARHLKLFSPEQCAGINKFVAKFSIPLLSFQIISENNPFKMSPKLILSDILQKFLVVVVLAMVLRFWHPTGGRGGKLGWVITGLSISVLPNTLILGMPILSAIYGDEAASILEQIVVLQSLIWYTILLFLFELNAARALPSSGASLEHTGNDQEEANIEDEPKEEEDEEEVAIVRTRSVGTMKILLKAWRKLIINPNTYATLIGIIWATLHFRLGWNLPEMIDKSIHLLSDGGLGMAMFSLGLFMASQSSIIACGTKMAIITMLLKFVLGPALMIASAYCIRLKSTLFKVAILQAALPQGVVPFVFAKEYNLHPEIISTGVIFGMLIALPTTLAYYFLLDLPGENLYFQ

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	thale cress
NCBI 分类编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 non-polymer

描述 description	(2,4-DICHLOROPHENOXY)ACETIC ACID
分子量 formula_weight	221.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	DIMETHYL SULFOXIDE
分子量 formula_weight	78.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	1,2-DILINOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
分子量 formula_weight	782.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.54 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	98941
