9g23

Yeast RNA polymerase I elongation complex stalled by an apurinic site bound to nucleotide analog AMPCPP at A-site

Method: ELECTRON MICROSCOPY D_max: 170.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

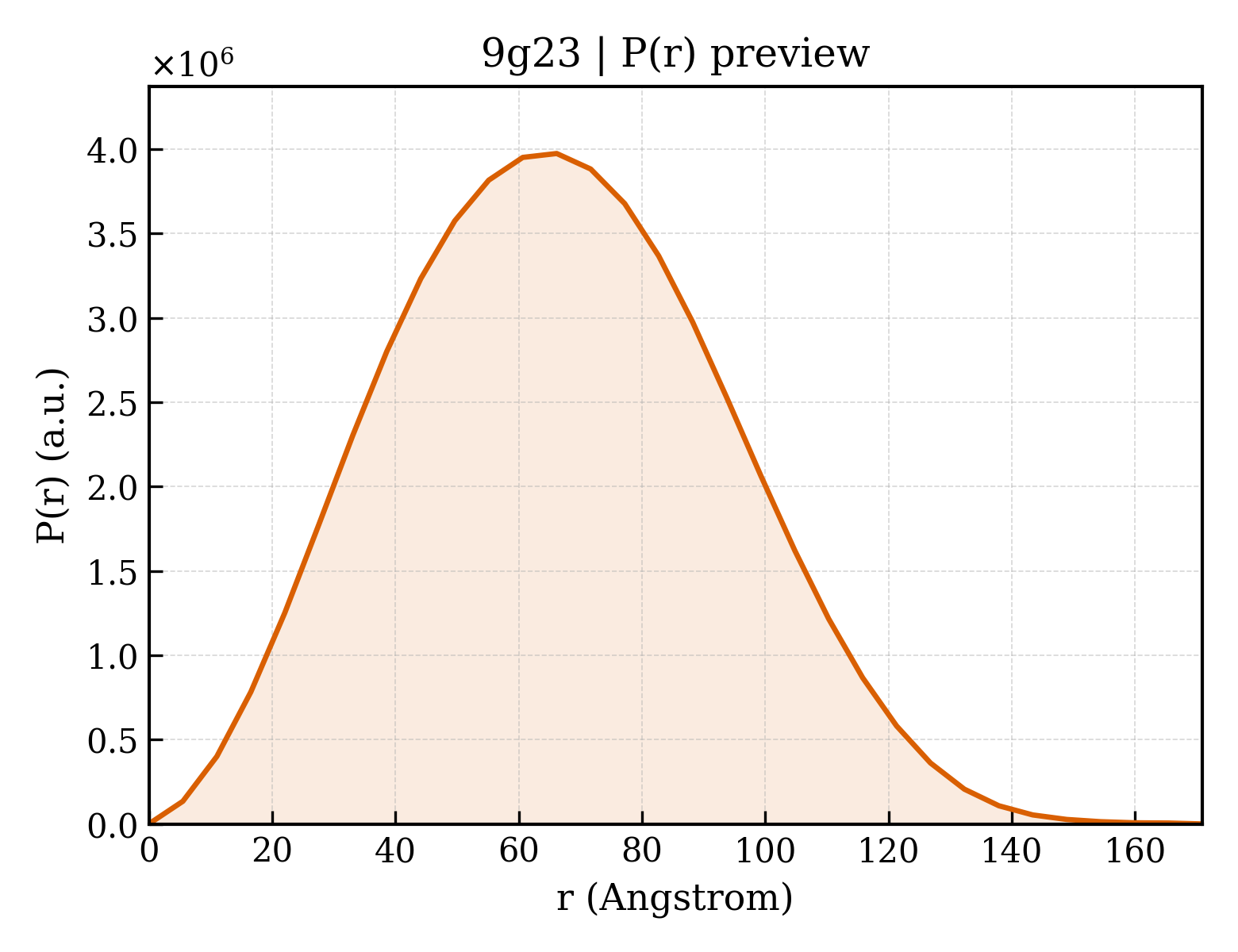

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9g23
沉积日期 deposition_date	2024-07-10
最后修订 last_revision	2025-06-18
结构标题 title	Yeast RNA polymerase I elongation complex stalled by an apurinic site bound to nucleotide analog AMPCPP at A-site
关键词 keywords	DNA lesion, TRANSCRIPTION; TRANSCRIPTION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	50.87 Å
回转半径 Rg (电子) rg_electron	50.79 Å
零角强度 I(0) i0	3572360000.00
分子量 molecular_weight	487240.0 kDa
排除体积 excluded_volume	603990 Å³
包络体积 envelope_volume	833690 Å³
水化壳体积 shell_volume	128100 Å³
包络直径 envelope_diameter	184.9 Å
壳层 Rg shell_rg	60.34 Å
包络 Rg envelope_rg	50.66 Å
形状 Rg shape_rg	50.81 Å
总 Rg total_rg	50.95 Å
总原子数 total_atoms	34137
残基数 n_residues	4187
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	170.9 Å
Rg (实空间) rg_real	50.67 Å
Rg 误差 (实空间) rg_real_error	1.09 Å
I(0) (实空间) i0_real	3.5720e+09
I(0) 误差 (实空间) i0_real_error	6.8030e+07
Rg (倒空间) rg_reciprocal	51.03 Å
I(0) (倒空间) i0_reciprocal	3574000000.0000
解质量估计 total_estimate	0.8745
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	66.2 Å
偏度 Skewness skewness	0.181
峰度 Kurtosis kurtosis	-0.403
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	850600000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.978

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (20)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase I subunit RPA190
分子量 formula_weight	186677.0 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	34137

MDISKPVGSEITSVDFGILTAKEIRNLSAKQITNPTVLDNLGHPVSGGLYDLALGAFLRNLCSTCGLDEKFCPGHQGHIELPVPCYNPLFFNQLYIYLRASCLFCHHFRLKSVEVHRYACKLRLLQYGLIDESYKLDEITLGSLNSSMYTDDEAIEDNEDEMDGEGSKQSKDISSTLLNELKSKRSEYVDMAIAKALSDGRTTERGSFTATVNDERKKLVHEFHKKLLSRGKCDNCGMFSPKFRKDGFTKIFETALNEKQITNNRVKGFIRQDMIKKQKQAKKLDGSNEASANDEESFDVGRNPTTRPKTGSTYILSTEVKNILDTVFRKEQCVLQYVFHSRPNLSRKLVKADSFFMDVLVVPPTRFRLPSKLGEEVHENSQNQLLSKVLTTSLLIRDLNDDLSKLQKDKVSLEDRRVIFSRLMNAFVTIQNDVNAFIDSTKAQGRTSGKVPIPGVKQALEKKEGLFRKHMMGKRVNYAARSVISPDPNIETNEIGVPPVFAVKLTYPEPVTAYNIAELRQAVINGPDKWPGATQIQNEDGSLVSLIGMSVEQRKALANQLLTPSSNVSTHTLNKKVYRHIKNRDVVLMNRQPTLHKASMMGHKVRVLPNEKTLRLHYANTGAYNADFDGDEMNMHFPQNENARAEALNLANTDSQYLTPTSGSPVRGLIQDHISAGVWLTSKDSFFTREQYQQYIYGCIRPEDGHTTRSKIVTLPPTIFKPYPLWTGKQIITTVLLNVTPPDMPGINLISKNKIKNEYWGKGSLENEVLFKDGALLCGILDKSQYGASKYGIVHSLHEVYGPEVAAKVLSVLGRLFTNYITATAFTCGMDDLRLTAEGNKWRTDILKTSVDTGREAAAEVTNLDKDTPADDPELLKRLQEILRDNNKSGILDAVTSSKVNAITSQVVSKCVPDGTMKKFPCNSMQAMALSGAKGSNVNVSQIMCLLGQQALEGRRVPVMVSGKTLPSFKPYETDAMAGGYVKGRFYSGIKPQEYYFHCMAGREGLIDTAVKTSRSGYLQRCLTKQLEGVHVSYDNSIRDADGTLVQFMYGGDAIDITKESHMTQFEFCLDNYYALLKKYNPSALIEHLDVESALKYSKKTLKYRKKHSKEPHYKQSVKYDPVLAKYNPAKYLGSVSENFQDKLESFLDKNSKLFKSSDGVNEKKFRALMQLKYMRSLINPGEAVGIIASQSVGEPSTQMTLNTFHFAGHGAANVTLGIPRLREIVMTASAAIKTPQMTLPIWNDVSDEQADTFCKSISKVLLSEVIDKVIVTETTGTSNTAGGNAARSYVIHMRFFDNNEYSEEYDVSKEELQNVISNQFIHLLEAAIVKEIKKQKRTTGPDIGVAVPRLQTDVANSSSNSKRLEEDNDEEQSHKKTKQAVSYDEPDEDEIETMREAEKSSDEEGIDSDKESDSDSEDEDVDMNEQINKSIVEANNNMNKVQRDRQSAIISHHRFITKYNFDDESGKWCEFKLELAADTEKLLMVNIVEEICRKSIIRQIPHIDRCVHPEPENGKRVLVTEGVNFQAMWDQEAFIDVDGITSNDVAAVLKTYGVEAARNTIVNEINNVFSRYAISVSFRHLDLIADMMTRQGTYLAFNRQGMETSTSSFMKMSYETTCQFLTKAVLDNEREQLDSPSARIVVGKLNNVGTGSFDVLAKVPNAA

Entity 2 polymer

描述 description	DNA-directed RNA polymerase I subunit RPA135
分子量 formula_weight	135910.3 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSKVIKPPGQARTADFRTLERESRFINPPKDKSAFPLLQEAVQPHIGSFNALTEGPDGGLLNLGVKDIGEKVIFDGKPLNSEDEISNSGYLGNKLSVSVEQVSIAKPMSNDGVSSAVERKVYPSESRQRLTSYRGKLLLKLKWSVNNGEENLFEVRDCGGLPVMLQSNRCHLNKMSPYELVQHKEESDEIGGYFIVNGIEKLIRMLIVQRRNHPMAIIRPSFANRGASYSHYGIQIRSVRPDQTSQTNVLHYLNDGQVTFRFSWRKNEYLVPVVMILKALCHTSDREIFDGIIGNDVKDSFLTDRLELLLRGFKKRYPHLQNRTQVLQYLGDKFRVVFQASPDQSDLEVGQEVLDRIVLVHLGKDGSQDKFRMLLFMIRKLYSLVAGECSPDNPDATQHQEVLLGGFLYGMILKEKIDEYLQNIIAQVRMDINRGMAINFKDKRYMSRVLMRVNENIGSKMQYFLSTGNLVSQSGLDLQQVSGYTVVAEKINFYRFISHFRMVHRGSFFAQLKTTTVRKLLPESWGFLCPVHTPDGSPCGLLNHFAHKCRISTQQSDVSRIPSILYSLGVAPASHTFAAGPSLCCVQIDGKIIGWVSHEQGKIIADTLRYWKVEGKTPGLPIDLEIGYVPPSTRGQYPGLYLFGGHSRMLRPVRYLPLDKEDIVGPFEQVYMNIAVTPQEIQNNVHTHVEFTPTNILSILANLTPFSDFNQSPRNMYQCQMGKQTMGTPGVALCHRSDNKLYRLQTGQTPIVKANLYDDYGMDNFPNGFNAVVAVISYTGYDMDDAMIINKSADERGFGYGTMYKTEKVDLALNRNRGDPITQHFGFGNDEWPKEWLEKLDEDGLPYIGTYVEEGDPICAYFDDTLNKTKIKTYHSSEPAYIEEVNLIGDESNKFQELQTVSIKYRIRRTPQIGDKFSSRHGQKGVCSRKWPTIDMPFSETGIQPDIIINPHAFPSRMTIGMFVESLAGKAGALHGIAQDSTPWIFNEDDTPADYFGEQLAKAGYNYHGNEPMYSGATGEELRADIYVGVVYYQRLRHMVNDKFQVRSTGPVNSLTMQPVKGRKRHGGIRVGEMERDALIGHGTSFLLQDRLLNSSDYTQASVCRECGSILTTQQSVPRIGSISTVCCRRCSMRFEDAKKLLTKSEDGEKIFIDDSQIWEDGQGNKFVGGNETTTVAIPFVLKYLDSELSAMGIRLRYNVEPK

Entity 3 polymer

描述 description	DNA-directed RNA polymerases I and III subunit RPAC1
分子量 formula_weight	37732.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSNIVGIEYNRVTNTTSTDFPGFSKDAENEWNVEKFKKDFEVNISSLDAREANFDLINIDTSIANAFRRIMISEVPSVAAEYVYFFNNTSVIQDEVLAHRIGLVPLKVDPDMLTWVDSNLPDDEKFTDENTIVLSLNVKCTRNPDAPKGSTDPKELYNNAHVYARDLKFEPQGRQSTTFADCPVVPADPDILLAKLRPGQEISLKAHCILGIGGDHAKFSPVSTASYRLLPQINILQPIKGESARRFQKCFPPGVIGIDEGSDEAYVKDARKDTVSREVLRYEEFADKVKLGRVRNHFIFNVESAGAMTPEEIFFKSVRILKNKAEYLKNCPITQ

Entity 4 polymer

描述 description	DNA-directed RNA polymerase I subunit RPA14
分子量 formula_weight	14599.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MMKGSRRTGNNTATTLNTPVVIHATQLPQHVSTDEVLQFLESFIDEKENIIDSTTMNTISGNAADADAAAVANTSLNIDTNLSSSISQLKRIQRDFKGLPPAQDFSAAPIQVSTTEKKETSIGVSATGGKKTTFADE

Entity 5 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC1
分子量 formula_weight	25117.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MDQENERNISRLWRAFRTVKEMVKDRGYFITQEEVELPLEDFKAKYCDSMGRPQRKMMSFQANPTEESISKFPDMGSLWVEFCDEPSVGVKTMKTFVIHIQEKNFQTGIFVYQNNITPSAMKLVPSIPPATIETFNEAALVVNITHHELVPKHIRLSSDEKRELLKRYRLKESQLPRIQRADPVALYLGLKRGEVVKIIRKSETSGRYASYRICM

Entity 6 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC2
分子量 formula_weight	17931.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MSDYEEAFNDGNENFEDFDVEHFSDEETYEEKPQFKDGETTDANGKTIVTGGNGPEDFQQHEQIRRKTLKEKAIPKDQRATTPYMTKYERARILGTRALQISMNAPVFVDLEGETDPLRIAMKELAEKKIPLVIRRYLPDGSFEDWSVEELIVDL

Entity 7 polymer

描述 description	DNA-directed RNA polymerase I subunit RPA43
分子量 formula_weight	36264.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MSQVKRANENRETARFIKKHKKQVTNPIDEKNGTSNCIVRVPIALYVSLAPMYLENPLQGVMKQHLNPLVMKYNNKVGGVVLGYEGLKILDADPLSKEDTSEKLIKITPDTPFGFTWCHVNLYVWQPQVGDVLEGYIFIQSASHIGLLIHDAFNASIKKNNIPVDWTFVHNDVEEDADVINTDENNGNNNNEDNKDSNGGSNSLGKFSFGNRSLGHWVDSNGEPIDGKLRFTVRNVHTTGRVVSVDGTLISDADEEGNGYNSSRSQAESLPIVSNKKIVFDDEVSIENKESHKELDLPEVKEDNGSEIVYEENTSESNDGESSDSD

Entity 8 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC3
分子量 formula_weight	16525.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MSNTLFDDIFQVSEVDPGRYNKVCRIEAASTTQDQCKLTLDINVELFPVAAQDSLTVTIASSLNLEDTPANDSSATRSWRPPQAGDRSLADDYDYVMYGTAYKFEEVSKDLIAVYYSFGGLLMRLEGNYRNLNNLKQENAYLLIRR

Entity 9 polymer

描述 description	DNA-directed RNA polymerase I subunit RPA12
分子量 formula_weight	13676.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MSVVGSLIFCLDCGDLLENPNAVLGSNVECSQCKAIYPKSQFSNLKVVTTTADDAFPSSLRAKKSVVKTSLKKNELKDGATIKEKCPQCGNEEMNYHTLQLRSADEGATVFYTCTSCGYKFRTNN

Entity 10 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC5
分子量 formula_weight	8290.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MIVPVRCFSCGKVVGDKWESYLNLLQEDELDEGTALSRLGLKRYCCRRMILTHVDLIEKFLRYNPLEKRD

Entity 11 polymer

描述 description	DNA-directed RNA polymerases I and III subunit RPAC2
分子量 formula_weight	16167.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MTEDIEQKKTATEVTPQEPKHIQEEEEQDVDMTGDEEQEEEPDREKIKLLTQATSEDGTSASFQIVEEDHTLGNALRYVIMKNPDVEFCGYSIPHPSENLLNIRIQTYGETTAVDALQKGLKDLMDLCDVVESKFTEKIKSM

Entity 12 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC4
分子量 formula_weight	7730.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MSREGFQIPTNLDAAAAGTSQARTATLKYICAECSSKLSLSRTDAVRCKDCGHRILLKARTKRLVQFEAR

Entity 13 polymer

描述 description	DNA-directed RNA polymerase I subunit RPA49
分子量 formula_weight	46721.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MSVKRSVSEIEIESVQDQPSVAVGSFFKGFRAPSDTTFDLYKKKKSEKDEFVLHGENERLEYEGYTDSSSQASNQYVVGLFNPEKKSIQLYKAPVLVSKVVSKSSKNLRGPKIKSKSDTRPSALRNALGEAFGTKKAKKAIADLERNRIDSDKLTDSAIDIVDSVRTASKDLPTRAQLDEITSNDRPTPLANIDATDVEQIYPIESIIPKKELQFIRVSSILKEADKEKKLELFPYQNNSKYVAKKLDSLTQPSQMTKLQLLYYLSLLLGVYENRRVNNKTKLLERLNSPPEILVDGILSRFTVIKPGQFGRSKDRSYFIDPQNEDKILCYILAIIMHLDNFIVEITPLAHELNLKPSKVVSLFRVLGAIVKGATVAQAEAFGIPKSTAASYKIATMKVPFKLPEMTRRGRGPRR

Entity 14 polymer

描述 description	DNA-directed RNA polymerase I subunit RPA34
分子量 formula_weight	26933.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MSKLSKDYVSDSDSDDEVISNEFSIPDGFKKCKHLKNFPLNGDNKKKAKQQQVWLIKFPSNVDISKLKSLPVDFESSTTMTIDKHDYKIMDDTDIESSLTQDNLSNMTLLVPSESKESLKIASTAKDNAPLQFDKVFSVSETAKIPAIDYSKVRVPRKDVPKVEGLKLEHFATGYDAEDFHVAEEVKENKKEPKKRSHHDDEEESSEKKKKKKEKREKREKKDKKDKKKKHRD

Entity 15 polymer

描述 description	RNA
分子量 formula_weight	3883.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	R

AUAAAUCGAGAG

Entity 16 polymer

描述 description	Non-template DNA
分子量 formula_weight	11553.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	S

GATTTCATACGCCATTCCTTCTCTCTGCTTATCGGTAG

Entity 17 polymer

描述 description	Template DNA
分子量 formula_weight	11529.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T

CTACCGATAAGCAGATNCTCTCGATTGCGTATGAAATC

Entity 18 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 19 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 20 non-polymer

描述 description	DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
分子量 formula_weight	505.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	207080

fit	/app/data/saxs_computation/g2/9g23/9g23.fit
pddf	/app/data/pr_computation/g2/9g23/9g23.pr.out
profile	/app/data/saxs_computation/g2/9g23/9g23.dat
