9gf0
Cryo-EM Structure of Pentameric Outer Membrane Protein A from Bdellovibrio bacteriovorus
SAXS 散射曲线 SAXS Profile

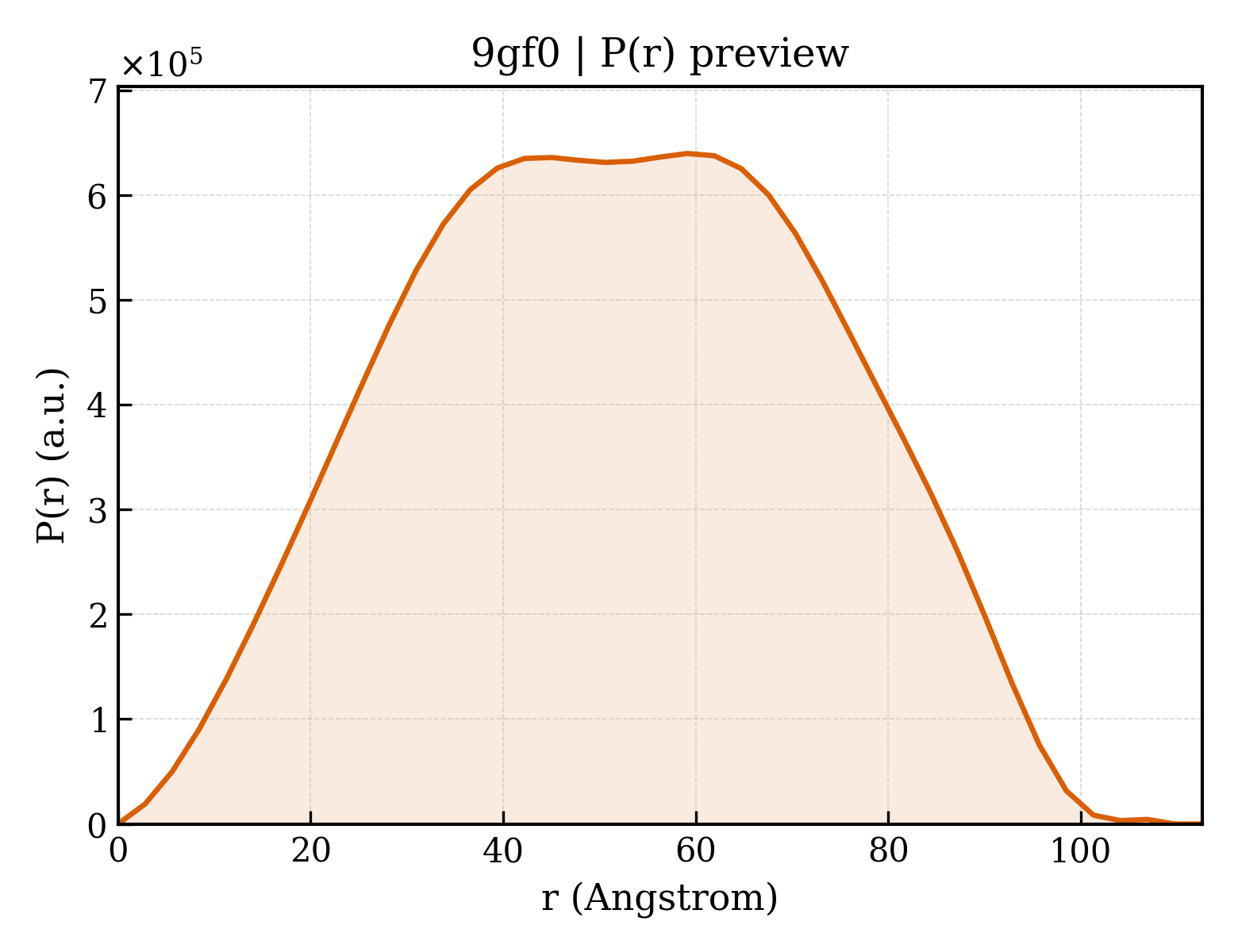

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 9gf0 |
| 沉积日期 deposition_date | 2024-08-08 |
| 结构标题 title | Cryo-EM Structure of Pentameric Outer Membrane Protein A from Bdellovibrio bacteriovorus |
| 关键词 keywords | Outer membrane protein, porin, beta-barrel, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN |
| 实验方法 method | ELECTRON MICROSCOPY |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 39.91 Å |
| 回转半径 Rg (电子) rg_electron | 39.19 Å |
| 零角强度 I(0) i0 | 505335000.00 |
| 分子量 molecular_weight | 178230.0 kDa |
| 排除体积 excluded_volume | 220300 ų |
| 包络体积 envelope_volume | 322740 ų |
| 水化壳体积 shell_volume | 65558 ų |
| 包络直径 envelope_diameter | 113.7 Å |
| 壳层 Rg shell_rg | 48.41 Å |
| 包络 Rg envelope_rg | 38.01 Å |
| 形状 Rg shape_rg | 39.15 Å |
| 总 Rg total_rg | 39.79 Å |
| 总原子数 total_atoms | 12562 |
| 残基数 n_residues | 1657 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 112.6 Å |
| Rg (实空间) rg_real | 39.59 Å |
| Rg 误差 (实空间) rg_real_error | 0.63 Å |
| I(0) (实空间) i0_real | 5.0530e+08 |
| I(0) 误差 (实空间) i0_real_error | 7.7600e+06 |
| Rg (倒空间) rg_reciprocal | 39.80 Å |
| I(0) (倒空间) i0_reciprocal | 505400000.0000 |
| 解质量估计 total_estimate | 0.8905 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 59.1 Å |
| 偏度 Skewness skewness | -0.006 |
| 峰度 Kurtosis kurtosis | -0.774 |
| 角度范围 angular_range | — – 0.2000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 69620000.0000 |
| 实空间数据点数 n_real_points | 41 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.989; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.612 |
