9ggh

;Crystal structure of Danio rerio histone deacetylase 6 catalytic domain 2 (CD2) in complex with N-((6-(Hydroxyamino)-6-oxohexyl)oxy)-4-(4-(pyrrolidin-1-yl)phenyl)thiazole-2-carboxamide ;

Method: X-RAY DIFFRACTION D_max: 63.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ggh
沉积日期 deposition_date	2024-08-13
结构标题 title	;Crystal structure of Danio rerio histone deacetylase 6 catalytic domain 2 (CD2) in complex with N-((6-(Hydroxyamino)-6-oxohexyl)oxy)-4-(4-(pyrrolidin-1-yl)phenyl)thiazole-2-carboxamide ;
关键词 keywords	Histone deacetylase, zinc enzyme, inhibitor, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	19.77 Å
回转半径 Rg (电子) rg_electron	18.84 Å
零角强度 I(0) i0	52760200.00
分子量 molecular_weight	37232.0 kDa
排除体积 excluded_volume	35526 Å³
包络体积 envelope_volume	53983 Å³
水化壳体积 shell_volume	22943 Å³
包络直径 envelope_diameter	65.5 Å
壳层 Rg shell_rg	26.34 Å
包络 Rg envelope_rg	19.27 Å
形状 Rg shape_rg	18.84 Å
总 Rg total_rg	19.49 Å
总原子数 total_atoms	2792
残基数 n_residues	354
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

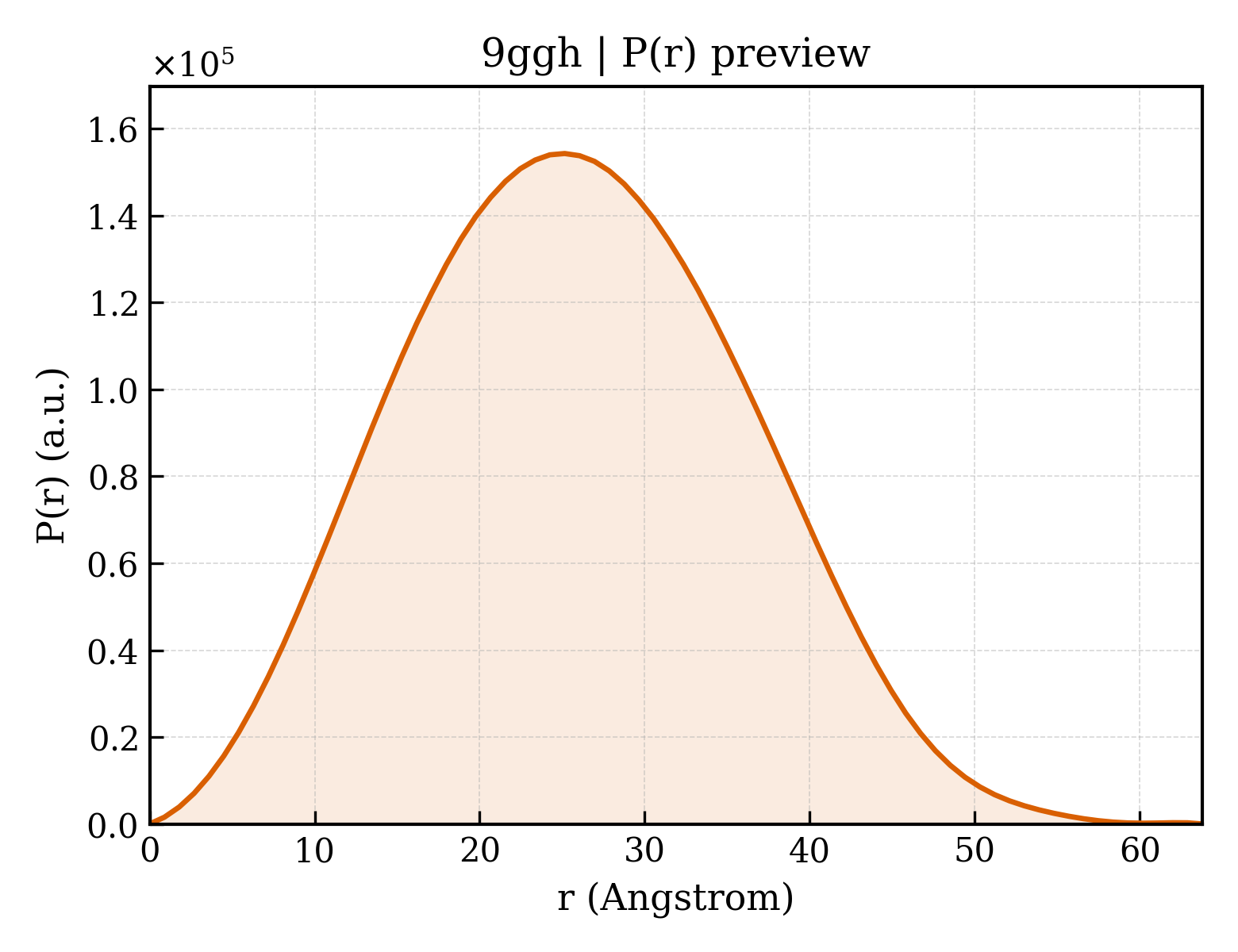

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	63.8 Å
Rg (实空间) rg_real	19.62 Å
Rg 误差 (实空间) rg_real_error	0.27 Å
I(0) (实空间) i0_real	5.2760e+07
I(0) 误差 (实空间) i0_real_error	6.3950e+05
Rg (倒空间) rg_reciprocal	19.64 Å
I(0) (倒空间) i0_reciprocal	52760000.0000
解质量估计 total_estimate	0.8855
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.1 Å
偏度 Skewness skewness	0.142
峰度 Kurtosis kurtosis	-0.424
角度范围 angular_range	— – 0.4000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	12110000.0000
实空间数据点数 n_real_points	72
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.837; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.999

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Histone deacetylase 6
分子量 formula_weight	40285.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	2828

SNAGGSSPITGLVYDQRMMLHHNMWDSHHPELPQRISRIFSRHEELRLLSRCHRIPARLATEEELALCHSSKHISIIKSSEHMKPRDLNRLGDEYNSIFISNESYTCALLAAGSCFNSAQAILTGQVRNAVAIVRPPGHHAEKDTACGFCFFNTAALTARYAQSITRESLRVLIVDWDVHHGNGTQHIFEEDDSVLYISLHRYEDGAFFPNSEDANYDKVGLGKGRGYNVNIPWNGGKMGDPEYMAAFHHLVMPIAREFAPELVLVSAGFDAARGDPLGGFQVTPEGYAHLTHQLMSLAAGRVLIILEGGYNLTSISESMSMCTSMLLGDSPPSLDHLTPLKTSATVSINNVLRAHAPFWSSLR

来源 Source

来源生物 organism	Danio rerio
通用名 common_name	zebrafish
NCBI 分类编号 ncbi_taxonomy_id	7955
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	~{N}-[6-(oxidanylamino)-6-oxidanylidene-hexoxy]-4-(4-pyrrolidin-1-ylphenyl)-1,3-thiazolidine-2-carboxamide
分子量 formula_weight	418.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	29

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	42.711 Å
晶胞边长 b length_b	87.033 Å
晶胞边长 c length_c	178.864 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.140 Å
最低分辨率 resolution_low	44.760 Å
R 因子 r_factor	0.2094
R_work r_work	0.2075
R_free r_free	0.2472
