SAXSdb — 9gja

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gja
沉积日期 deposition_date	2024-08-22
结构标题 title	Entamoeba histolytica Gal/GalNAc lectin, mode 1
关键词 keywords	Entamoeba histolytica, lectin, Gal/GalNAc, trogocytosis, CELL ADHESION; CELL ADHESION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.22 Å
回转半径 Rg (电子) rg_electron	31.38 Å
零角强度 I(0) i0	199152000.00
分子量 molecular_weight	108000.0 kDa
排除体积 excluded_volume	133270 Å³
包络体积 envelope_volume	180710 Å³
水化壳体积 shell_volume	47095 Å³
包络直径 envelope_diameter	106.0 Å
壳层 Rg shell_rg	39.28 Å
包络 Rg envelope_rg	31.25 Å
形状 Rg shape_rg	31.37 Å
总 Rg total_rg	32.09 Å
总原子数 total_atoms	7551
残基数 n_residues	920
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.5 Å
Rg (实空间) rg_real	32.01 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	1.9920e+08
I(0) 误差 (实空间) i0_real_error	2.8370e+06
Rg (倒空间) rg_reciprocal	32.10 Å
I(0) (倒空间) i0_reciprocal	199200000.0000
解质量估计 total_estimate	0.8982
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.4 Å
偏度 Skewness skewness	0.139
峰度 Kurtosis kurtosis	-0.462
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	28710000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.911; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.953

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Galactose/N-acetyl-D-galactosamine lectin heavy subunit 1
分子量 formula_weight	76160.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H
原子数 atom_count	7551

MKLLLLNILLLCCLADKLNEFSADIDYYDLGIMSRGKNAGSWYHSYEHQYDVFYYLAMQPWRHFVWTTCTTTDGNKECYKYTINEDHNVKVEDINKTDIKQDFCQKEYAYPIEKYEVDWDNVPVDEQRIESVDINGKTCFKYAAKRPLAYVYLNTKMTYATKTEAYDVCRMDFIGGRSITFRSFNTENKAFIDQYNTNTTSKCLLKVYDNNVNTHLAIIFGITDSTVIKSLQENLSLLSQLKTVKGVTLYYLKDDTYFTVNITLDQLKYDTLVKYTAGTGQVDPLINIAKNDLATKVADKSKDKNANDKIKRGTMIVLMDTALGSEFNAETEFDRKNISVHTVVLNRNKDPKITRSALRLVSLGPHYHEFTGNDEVNATITALFKGIRANLTERCDRDKCSGFCDAMNRCTCPMCCENDCFYTSCDVETGSCIPWPKAKPKAKKECPATCVGSYECKDLEGCVVTKYNDTCQPKVKCMVPYCDNDKNLTEVCKQKANCEADQKPSSDGYCWSYTCDQTTGFCKKDKRGKEMCTGKTNNCQEYVCDSEQRCSVRDKVCVKTSPYIEMSCYVAKCNLNTGMCENRLSCDTYSSCGGDSTGSVCKCDSTTGNKCQCNKVKNGNYCNSKNHEICDYTGTTPQCKVSNCTEDLVRDGCLIKRCNETSKTTYWENV

Entity 2 polymer

描述 description	Galactose/N-acetyl-D-galactosamine lectin light subunit 1
分子量 formula_weight	33637.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MIILVLLISYSFGKTQDGKDQLSPNYPYGKMNKDVNFNKPFTSAVDSYQIQQYAENGVFSANQENYVRAKCKTCCRVIFASDYNYKTNTQFTDEDDKKGDERYVMDMEFDDKRSVRFRNGGYEQNILLRPLKQGNELQFFEFAPYRMYTSYAIPKRVHDIRGGANEGATLIIWPKNPPLSDAPGTRNQRFVYVHPYPTEWYPEYNSTTKYTQNGKTVIKTLKWPTYKRHFYLPYRLDVDLCYQARKATDGRSTWTGNKNLNTTSKSYQIIASRCSATEARQIFIPVFA

Entity 3 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1235.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	98775

fit	/app/data/saxs_computation/gj/9gja/9gja.fit
pddf	/app/data/pr_computation/gj/9gja/9gja.pr.out
profile	/app/data/saxs_computation/gj/9gja/9gja.dat

Entamoeba histolytica Gal/GalNAc lectin, mode 1

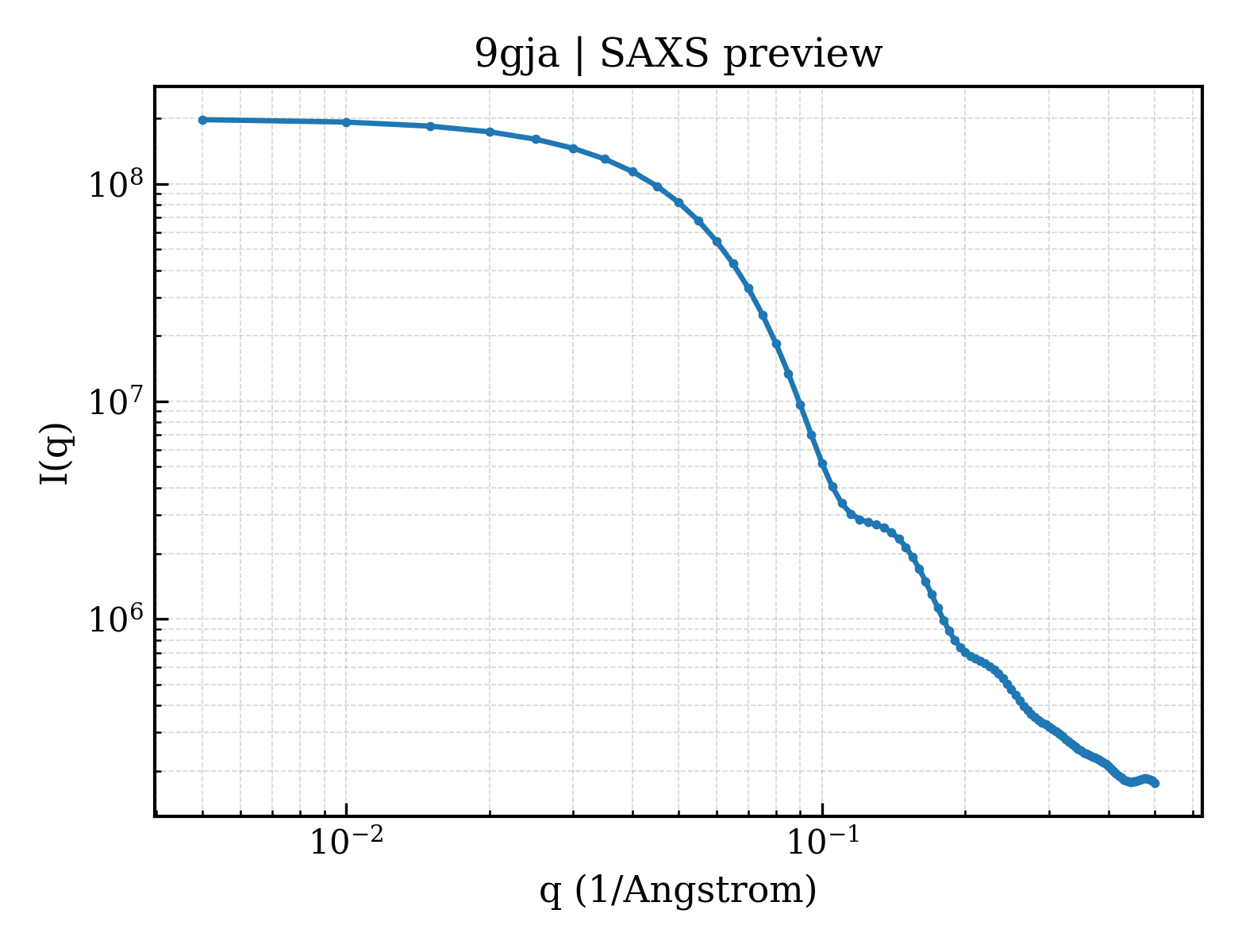

SAXS 散射曲线 SAXS Profile

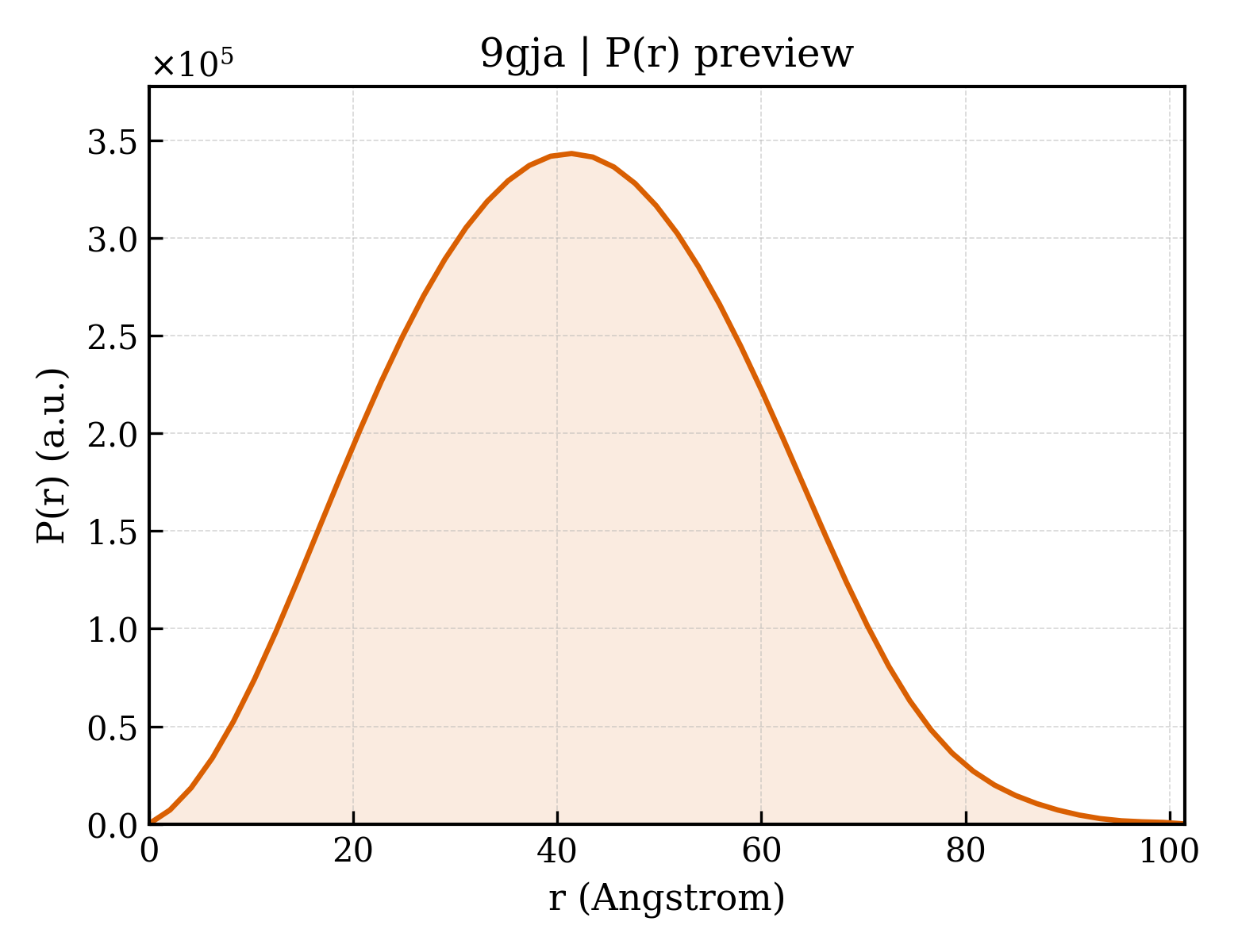

P(r) 距离分布 P(r) Distribution
