1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gjg
沉积日期 deposition_date	2024-08-22
结构标题 title	Entamoeba histolytica Gal/GalNAc lectin bound to monoclonal antibody CP33-H/L-LA22
关键词 keywords	Entamoeba histolytica, lectin, Gal/GalNAc, trogocytosis, CELL ADHESION; CELL ADHESION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.41 Å
回转半径 Rg (电子) rg_electron	50.27 Å
零角强度 I(0) i0	434262000.00
分子量 molecular_weight	164110.0 kDa
排除体积 excluded_volume	202130 Å³
包络体积 envelope_volume	308660 Å³
水化壳体积 shell_volume	55606 Å³
包络直径 envelope_diameter	181.5 Å
壳层 Rg shell_rg	48.97 Å
包络 Rg envelope_rg	49.31 Å
形状 Rg shape_rg	50.31 Å
总 Rg total_rg	50.07 Å
总原子数 total_atoms	11475
残基数 n_residues	1439
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	179.8 Å
Rg (实空间) rg_real	50.29 Å
Rg 误差 (实空间) rg_real_error	2.18 Å
I(0) (实空间) i0_real	4.3430e+08
I(0) 误差 (实空间) i0_real_error	9.8660e+06
Rg (倒空间) rg_reciprocal	49.42 Å
I(0) (倒空间) i0_reciprocal	433800000.0000
解质量估计 total_estimate	0.7373
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.3 Å
偏度 Skewness skewness	0.565
峰度 Kurtosis kurtosis	-0.543
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	30990000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.409; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.531; Smooth: 0.823

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Galactose/N-acetyl-D-galactosamine lectin heavy subunit 1
分子量 formula_weight	108965.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H
原子数 atom_count	11475

MKLLLLNILLLCCLADKLNEFSADIDYYDLGIMSRGKNAGSWYHSYEHQYDVFYYLAMQPWRHFVWTTCTTTDGNKECYKYTINEDHNVKVEDINKTDIKQDFCQKEYAYPIEKYEVDWDNVPVDEQRIESVDINGKTCFKYAAKRPLAYVYLNTKMTYATKTEAYDVCRMDFIGGRSITFRSFNTENKAFIDQYNTNTTSKCLLKVYDNNVNTHLAIIFGITDSTVIKSLQENLSLLSQLKTVKGVTLYYLKDDTYFTVNITLDQLKYDTLVKYTAGTGQVDPLINIAKNDLATKVADKSKDKNANDKIKRGTMIVLMDTALGSEFNAETEFDRKNISVHTVVLNRNKDPKITRSALRLVSLGPHYHEFTGNDEVNATITALFKGIRANLTERCDRDKCSGFCDAMNRCTCPMCCENDCFYTSCDVETGSCIPWPKAKPKAKKECPATCVGSYECKDLEGCVVTKYNDTCQPKVKCMVPYCDNDKNLTEVCKQKANCEADQKPSSDGYCWSYTCDQTTGFCKKDKRGKEMCTGKTNNCQEYVCDSEQRCSVRDKVCVKTSPYIEMSCYVAKCNLNTGMCENRLSCDTYSSCGGDSTGSVCKCDSTTGNKCQCNKVKNGNYCNSKNHEICDYTGTTPQCKVSNCTEDLVRDGCLIKRCNETSKTTYWENVDCSNTKIEFAKDDKSETMCKQYYSTTCLNGKCVVQAVGDVSNVGCGYCSMGTDNIITYHDDCNSRKSQCGNFNGKCIKGNDNSYSCVFEKDKTSSKSDNDICAECSSLTCPADTTYRTYTYDSKTGTCKATVQPTPACSVCESGKFVEKCKDQKLERKVTLEDGKEYKYNIPKDCVNEQCIPRTYIDCLGNDDNFKSIYNFYLPCQAYVTATYHYSSLFNLTSYKLHLPQSEEFMKEADKEAYCTYEITTRECKTCSLIETREKVQEVDLCAEETKNGGVPFKCKNNNCII

Entity 2 polymer

描述 description	Galactose/N-acetyl-D-galactosamine lectin light subunit 1
分子量 formula_weight	33637.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MIILVLLISYSFGKTQDGKDQLSPNYPYGKMNKDVNFNKPFTSAVDSYQIQQYAENGVFSANQENYVRAKCKTCCRVIFASDYNYKTNTQFTDEDDKKGDERYVMDMEFDDKRSVRFRNGGYEQNILLRPLKQGNELQFFEFAPYRMYTSYAIPKRVHDIRGGANEGATLIIWPKNPPLSDAPGTRNQRFVYVHPYPTEWYPEYNSTTKYTQNGKTVIKTLKWPTYKRHFYLPYRLDVDLCYQARKATDGRSTWTGNKNLNTTSKSYQIIASRCSATEARQIFIPVFA

Entity 3 polymer

描述 description	monoclonal antibody CP33-H/L-LA22 scFv
分子量 formula_weight	27653.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

ETGEVKLMESGGGVVQPGRSLRLSCAASGFRFSTYAIHWVRQAPGKGLEWVARISHDGSQTHYADSVQGRFGVSRDNSNYTAYVQLNSLRPDDTAVYFCARAYSSTPDYGMDVWGQGTAVTVSSGGSSRSSSSGGGGSGGGGDIEMTQSPSSLSASVGDRVTITCRASQSISSYLNWYQQKPGKAPKLLIYAASSLQSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQSYSTPRTFGQGTKVEIKRGTKHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1235.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	275764

fit	/app/data/saxs_computation/gj/9gjg/9gjg.fit
pddf	/app/data/pr_computation/gj/9gjg/9gjg.pr.out
profile	/app/data/saxs_computation/gj/9gjg/9gjg.dat

Entamoeba histolytica Gal/GalNAc lectin bound to monoclonal antibody CP33-H/L-LA22

SAXS 散射曲线 SAXS Profile

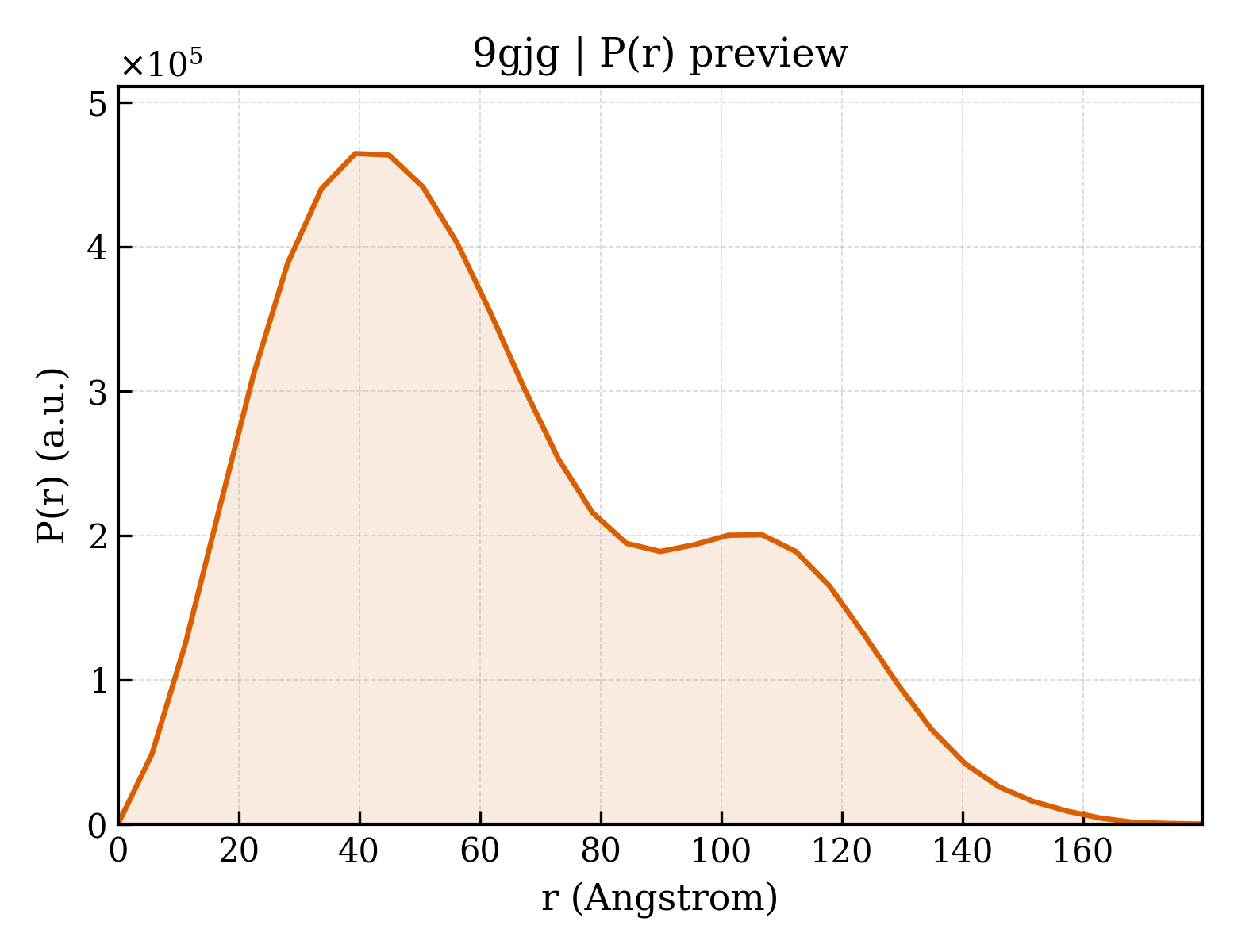

P(r) 距离分布 P(r) Distribution
