9gjp

OCCM maturation intermediate stalled with an Arginine Finger mutation in Mcm5: Conformer 2

Method: ELECTRON MICROSCOPY D_max: 213.1 Å Quality: GOOD

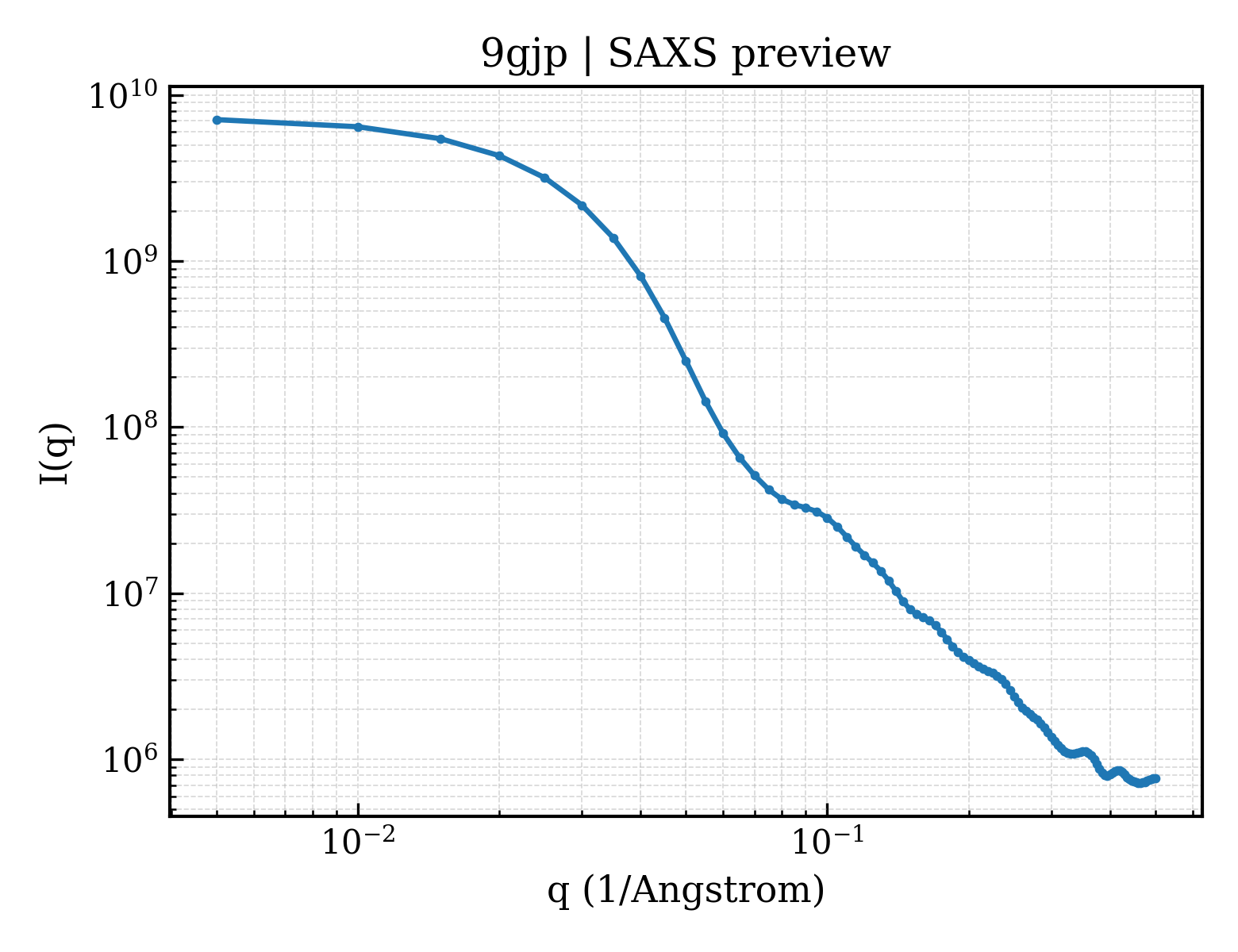

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gjp
沉积日期 deposition_date	2024-08-22
结构标题 title	OCCM maturation intermediate stalled with an Arginine Finger mutation in Mcm5: Conformer 2
关键词 keywords	AAA+ ATPase, DNA translocase, ATPase switch, DNA replication, REPLICATION; REPLICATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.97 Å
回转半径 Rg (电子) rg_electron	63.06 Å
零角强度 I(0) i0	7346330000.00
分子量 molecular_weight	717040.0 kDa
排除体积 excluded_volume	894590 Å³
包络体积 envelope_volume	1380800 Å³
水化壳体积 shell_volume	174550 Å³
包络直径 envelope_diameter	206.1 Å
壳层 Rg shell_rg	69.87 Å
包络 Rg envelope_rg	61.65 Å
形状 Rg shape_rg	63.11 Å
总 Rg total_rg	63.03 Å
总原子数 total_atoms	50292
残基数 n_residues	6120
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	213.1 Å
Rg (实空间) rg_real	62.69 Å
Rg 误差 (实空间) rg_real_error	1.67 Å
I(0) (实空间) i0_real	7.3460e+09
I(0) 误差 (实空间) i0_real_error	1.4700e+08
Rg (倒空间) rg_reciprocal	63.17 Å
I(0) (倒空间) i0_reciprocal	7352000000.0000
解质量估计 total_estimate	0.8653
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	76.7 Å
偏度 Skewness skewness	0.233
峰度 Kurtosis kurtosis	-0.436
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	1054000000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.860

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (17)

Entity 1 polymer

描述 description	DNA replication licensing factor MCM2
分子量 formula_weight	98911.5 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2
原子数 atom_count	50292

MSDNRRRRREEDDSDSENELPPSSPQQHFRGGMNPVSSPIGSPDMINPEGDDNEVDDVPDIDEVEEQMNEVDLMDDNMYEDYAADHNRDRYDPDQVDDREQQELSLSERRRIDAQLNERDRLLRNVAYIDDEDEEQEGAAQLDEMGLPVQRRRRRRQYEDLENSDDDLLSDMDIDPLREELTLESLSNVKANSYSEWITQPNVSRTIARELKSFLLEYTDETGRSVYGARIRTLGEMNSESLEVNYRHLAESKAILALFLAKCPEEMLKIFDLVAMEATELHYPDYARIHSEIHVRISDFPTIYSLRELRESNLSSLVRVTGVVTRRTGVFPQLKYVKFNCLKCGSILGPFFQDSNEEIRISFCTNCKSKGPFRVNGEKTVYRNYQRVTLQEAPGTVPPGRLPRHREVILLADLVDVSKPGEEVEVTGIYKNNYDGNLNAKNGFPVFATIIEANSIKRREGNTANEGEEGLDVFSWTEEEEREFRKISRDRGIIDKIISSMAPSIYGHRDIKTAVACSLFGGVPKNVNGKHSIRGDINVLLLGDPGTAKSQILKYVEKTAHRAVFATGQGASAVGLTASVRKDPITKEWTLEGGALVLADKGVCLIDEFDKMNDQDRTSIHEAMEQQSISISKAGIVTTLQARCSIIAAANPNGGRYNSTLPLAQNVSLTEPILSRFDILCVVRDLVDEEADERLATFVVDSHVRSHPENDEDREGEELKNNGESAIEQGEDEINEQLNARQRRLQRQRKKEEEISPIPQELLMKYIHYARTKIYPKLHQMDMDKVSRVYADLRRESISTGSFPITVRHLESILRIAESFAKMRLSEFVSSYDLDRAIKVVVDSFVDAQKVSVRRQLRRSFAIYTLGH

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 polymer

描述 description	DNA replication licensing factor MCM3
分子量 formula_weight	111720.2 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MKRRWKKNFIAVSAANRFKKISSSGALENLYFQGEMEGSTGFDGDATTFFAPDAVFGDRVRRFQEFLDTFTSYRDSVRSIQVYNSNNAANYNDDQDDADERDLLGDDDGDDLEKEKKAASSTSLNILPHRIIISLDDLREFDRSFWSGILVEPAYFIPPAEKALTDLADSMDDVPHPNASAVSSRHPWKLSFKGSFGAHALSPRTLTAQHLNKLVSVEGIVTKTSLVRPKLIRSVHYAAKTGRFHYRDYTDATTTLTTRIPTPAIYPTEDTEGNKLTTEYGYSTFIDHQRITVQEMPEMAPAGQLPRSIDVILDDDLVDKTKPGDRVNVVGVFKSLGAGGMNQSNSNTLIGFKTLILGNTVYPLHARSTGVAARQMLTDFDIRNINKLSKKKDIFDILSQSLAPSIYGHDHIKKAILLMLMGGVEKNLENGSHLRGDINILMVGDPSTAKSQLLRFVLNTASLAIATTGRGSSGVGLTAAVTTDRETGERRLEAGAMVLADRGVVCIDEFDKMTDVDRVAIHEVMEQQTVTIAKAGIHTTLNARCSVIAAANPVFGQYDVNRDPHQNIALPDSLLSRFDLLFVVTDDINEIRDRSISEHVLRTHRYLPPGYLEGEPVRERLNLSLAVGEDADINPEEHSNSGAGVENEGEDDEDHVFEKFNPLLQAGAKLAKNKGNYNGTEIPKLVTIPFLRKYVQYAKERVIPQLTQEAINVIVKNYTDLRNDDNTKKSPITARTLETLIRLATAHAKVRLSKTVNKVDAKVAANLLRFALLGEDIGNDIDEEESEYEEALSKRSPQKSPKKRQRVRQPASNSGSPIKSTPRRSTASSVNATPSSARRILRFQDDEQNAGEDDNDIMSPLPADEEAELQRRLQLGLRVSPRRREHLHAPEEGSSGPLTEVGTPRLPNVSSAGQDDEQQQSVISFDNVEPGTISTGRLSLISGIIARLMQTEIFEEESYPVASLFERINEELPEEEKFSAQEYLAGLKIMSDRNNLMVADDKVWRV

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 3 polymer

描述 description	DNA replication licensing factor MCM4
分子量 formula_weight	105138.4 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MSQQSSSPTKEDNNSSSPVVPNPDSVPPQLSSPALFYSSSSSQGDIYGRNNSQNLSQGEGNIRAAIGSSPLNFPSSSQRQNSDVFQSQGRQGRIRSSASASGRSRYHSDLRSDRALPTSSSSLGRNGQNRVHMRRNDIHTSDLSSPRRIVDFDTRSGVNTLDTSSSSAPPSEASEPLRIIWGTNVSIQECTTNFRNFLMSFKYKFRKILDEREEFINNTTDEELYYIKQLNEMRELGTSNLNLDARNLLAYKQTEDLYHQLLNYPQEVISIMDQTIKDCMVSLIVDNNLDYDLDEIETKFYKVRPYNVGSCKGMRELNPNDIDKLINLKGLVLRSTPVIPDMKVAFFKCNVCDHTMAVEIDRGVIQEPARCERIDCNEPNSMSLIHNRCSFADKQVIKLQETPDFVPDGQTPHSISLCVYDELVDSCRAGDRIEVTGTFRSIPIRANSRQRVLKSLYKTYVDVVHVKKVSDKRLDVDTSTIEQELMQNKVDHNEVEEVRQITDQDLAKIREVAAREDLYSLLARSIAPSIYELEDVKKGILLQLFGGTNKTFTKGGRYRGDINILLCGDPSTSKSQILQYVHKITPRGVYTSGKGSSAVGLTAYITRDVDTKQLVLESGALVLSDGGVCCIDEFDKMSDSTRSVLHEVMEQQTISIAKAGIITTLNARSSILASANPIGSRYNPNLPVTENIDLPPPLLSRFDLVYLVLDKVDEKNDRELAKHLTNLYLEDKPEHISQDDVLPVEFLTMYISYAKEHIHPIITEAAKTELVRAYVGMRKMGDDSRSDEKRITATTRQLESMIRLAEAHAKMKLKNVVELEDVQEAVRLIRSAIKDYATDPKTGKIDMNLVQTGKSVIQRKLQEDLSREIMNVLKDQASDSMSFNELIKQINEHSQDRVESSDIQEALSRLQQEDKVIVLGEGVRRSVRLNNRV

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 4 polymer

描述 description	Minichromosome maintenance protein 5
分子量 formula_weight	86419.6 kDa
EC 编号 ec_number	3.6.4.12
突变 mutation	R549A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5

MSFDRPEIYSAPVLQGESPNDDDNTEIIKSFKNFILEFRLDSQFIYRDQLRNNILVKNYSLTVNMEHLIGYNEDIYKKLSDEPSDIIPLFETAITQVAKRISILSRAQSANNNDKDPENTSMDTDSLLLNSLPTFQLILNSNANQIPLRDLDSEHVSKIVRLSGIIISTSVLSSRATYLSIMCRNCRHTTSITINNFNSITGNTVSLPRSCLSTIESESSMANESNIGDESTKKNCGPDPYIIIHESSKFIDQQFLKLQEIPELVPVGEMPRNLTMTCDRYLTNKVIPGTRVTIVGIYSIYNSKNGAGSGRSGGGNGGSGVAIRTPYIKILGIQSDVETSSIWNSVTMFTEEEEEEFLQLSRNPKLYEILTNSIAPSIFGNEDIKKAIVCLLMGGSKKILPDGMRLRGDINVLLLGDPGTAKSQLLKFVEKVSPIAVYTSGKGSSAAGLTASVQRDPMTREFYLEGGAMVLADGGVVCIDEFDKMRDEDRVAIHEAMEQQTISIAKAGITTVLNSRTSVLAAANPIYGRYDDLKSPGDNIDFQTTILSAFDMIFIVKDDHNEERDISIANHVINIHTGNANAMQNQQEENGSEISIEKMKRYITYCRLKCAPRLSPQAAEKLSSNFVTIRKQLLINELESTERSSIPITIRQLEAIIRITESLAKLELSPIAQERHVDEAIRLFQASTMDAASQDPIGGLNQASGTSLSEIRRFEQELKRRLPIGWSTSYQTLRREFVDTHRFSQLALDKALYALEKHETIQLRHQGQNIYRSGV

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 5 polymer

描述 description	DNA replication licensing factor MCM6
分子量 formula_weight	113110.2 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MSSPFPADTPSSNRPSNSSPPPSSIGAGFGSSSGLDSQIGSRLHFPSSSQPHVSNSQTGPFVNDSTQFSSQRLQTDGSATNDMEGNEPARSFKSRALNHVKKVDDVTGEKVREAFEQFLEDFSVQSTDTGEVEKVYRAQIEFMKIYDLNTIYIDYQHLSMRENGALAMAISEQYYRFLPFLQKGLRRVVRKYAPELLNTSDSLKRSEGDEGQADEDEQQDDDMNGSSLPRDSGSSAAPGNGTSAMATRSITTSTSPEQTERVFQISFFNLPTVHRIRDIRSEKIGSLLSISGTVTRTSEVRPELYKASFTCDMCRAIVDNVEQSFKYTEPTFCPNPSCENRAFWTLNVTRSRFLDWQKVRIQENANEIPTGSMPRTLDVILRGDSVERAKPGDRCKFTGVEIVVPDVTQLGLPGVKPSSTLDTRGISKTTEGLNSGVTGLRSLGVRDLTYKISFLACHVISIGSNIGASSPDANSNNRETELQMAANLQANNVYQDNERDQEVFLNSLSSDEINELKEMVKDEHIYDKLVRSIAPAVFGHEAVKKGILLQMLGGVHKSTVEGIKLRGDINICVVGDPSTSKSQFLKYVVGFAPRSVYTSGKASSAAGLTAAVVRDEEGGDYTIEAGALMLADNGICCIDEFDKMDISDQVAIHEAMEQQTISIAKAGIHATLNARTSILAAANPVGGRYNRKLSLRGNLNMTAPIMSRFDLFFVILDDCNEKIDTELASHIVDLHMKRDEAIEPPFSAEQLRRYIKYARTFKPILTKEARSYLVEKYKELRKDDAQGFSRSSYRITVRQLESMIRLSEAIARANCVDEITPSFIAEAYDLLRQSIIRVDVDDVEMDEEFDNIESQSHAASGNNDDNDDGTGSGVITSEPPADIEEGQSEATARPGTSEKKKTTVTYDKYVSMMNMIVRKIAEVDREGAEELTAVDIVDWYLLQKENDLGSLAEYWEERRLAFKVIKRLVKDRILMEIHGTRHNLRDLENEENENNKTVYVIHPNCEVLDQLEPQDSS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 6 polymer

描述 description	DNA replication licensing factor MCM7
分子量 formula_weight	95049.9 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MSAALPSIQLPVDYNNLFNEITDFLVTFKQDTLSSDATRNENEDENLDAENIEQHLLEKGPKYMAMLQKVANRELNSVIIDLDDILQYQNEKFLQGTQADDLVSAIQQNANHFTELFCRAIDNNMPLPTKEIDYKDDVLDVILNQRRLRNERMLSDRTNEIRSENLMDTTMDPPSSMNDALREVVEDETELFPPNLTRRYFLYFKPLSQNCARRYRKKAISSKPLSVRQIKGDFLGQLITVRGIITRVSDVKPAVEVIAYTCDQCGYEVFQEVNSRTFTPLSECTSEECSQNQTKGQLFMSTRASKFSAFQECKIQELSQQVPVGHIPRSLNIHVNGTLVRSLSPGDIVDVTGIFLPAPYTGFKALKAGLLTETYLEAQFVRQHKKKFASFSLTSDVEERVMELITSGDVYNRLAKSIAPEIYGNLDVKKALLLLLVGGVDKRVGDGMKIRGDINVCLMGDPGVAKSQLLKAICKISPRGVYTTGKGSSGVGLTAAVMKDPVTDEMILEGGALVLADNGICCIDEFDKMDESDRTAIHEVMEQQTISISKAGINTTLNARTSILAAANPLYGRYNPRLSPLDNINLPAALLSRFDILFLMLDIPSRDDDEKLAEHVTYVHMHNKQPDLDFTPVEPSKMREYIAYAKTKRPVMSEAVNDYVVQAYIRLRQDSKREMDSKFSFGQATPRTLLGIIRLSQALAKLRLADMVDIDDVEEALRLVRVSKESLYQETNKSKEDESPTTKIFTIIKKMLQETGKNTLSYENIVKTVRLRGFTMLQLSNCIQEYSYLNVWHLINEGNTLKFVDDGTMDTDQEDSLVSTPKLAPQTTASANVSAQDSDIDLQDA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 7 polymer

描述 description	Cell division cycle protein CDT1
分子量 formula_weight	68486.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MSGTANSRRKEVLRVPVIDLNRVSDEEQLLPVVRAILLQHDTFLLKNYANKAVLDALLAGLTTKDLPDTSQGFDANFTGTLPLEDDVWLEQYIFDTDPQLRFDRKCRNESLCSIYSRLFKLGLFFAQLCVKSVVSSAELQDCISTSHYATKLTRYFNDNGSTHDGADAGATVLPTGDDFQYLFERDYVTFLPTGVLTIFPCAKAIRYKPSTMATTDNSWVSIDEPDCLLFHTGTLLARWSQGMHTTSPLQIDPRANIVSLTIWPPLTTPISSKGEGTIANHLLEQQIKAFPKVAQQYYPRELSILRLQDAMKFVKELFTVCETVLSLNALSRSTGVPPELHVLLPQISSMMKRKIVQDDILKLLTIWSDAYVVELNSRGELTMNLPKRDNLTTLTNKSRTLAFVERAESWYQQVIASKDEIMTDVPAFKINKRRSSSNSKTVLSSKVQTKSSNANALNNSRYLANSKENFMYKEKMPDSQANLMDRLRERERRSAALLSQRQKRYQQFLAMKMTQVFDILFSLTRGQPYTETYLSSLIVDSLQDSNNPIGTKEASEILAGLQGILPMDISVHQVDGGLKVYRWNSLDKNRFSKLLQIHKSKQQD

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 8 polymer

描述 description	Origin recognition complex subunit 1
分子量 formula_weight	108612.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MKRRWKKNFIAVSAANRFKKISSSGALENLYFQGEMAKTLKDLQGWEIITTDEQGNIIDGGQKRLRRRGAKTEHYLKRSSDGIKLGRGDSVVMHNEAAGTYSVYMIQELRLNTLNNVVELWALTYLRWFEVNPLAHYRQFNPDANILNRPLNYYNKLFSETANKNELYLTAELAELQLFNFIRVANVMDGSKWEVLKGNVDPERDFTVRYICEPTGEKFVDINIEDVKAYIKKVEPREAQEYLKDLTLPSKKKEIKRGPQKKDKATQTAQISDAETRATDITDNEDGNEDESSDYESPSDIDVSEDMDSGEISADELEEEEDEEEDEDEEEKEARHTNSPRKRGRKIKLGKDDIDASVQPPPKKRGRKPKDPSKPRQMLLISSCRANNTPVIRKFTKKNVARAKKKYTPFSKRFKSIAAIPDLTSLPEFYGNSSELMASRFENKLKTTQKHQIVETIFSKVKKQLNSSYVKEEILKSANFQDYLPARENEFASIYLSAYSAIESDSATTIYVAGTPGVGKTLTVREVVKELLSSSAQREIPDFLYVEINGLKMVKPTDCYETLWNKVSGERLTWAASMESLEFYFKRVPKNKKKTIVVLLDELDAMVTKSQDIMYNFFNWTTYENAKLIVIAVANTMDLPERQLGNKITSRIGFTRIMFTGYTHEELKNIIDLRLKGLNDSFFYVDTKTGNAILIDAAGNDTTVKQTLPEDVRKVRLRMSADAIEIASRKVASVSGDARRALKVCKRAAEIAEKHYMAKHGYGYDGKTVIEDENEEQIYDDEDKDLIESNKAKDDNDDDDDNDGVQTVHITHVMKALNETLNSHVITFMTRLSFTAKLFIYALLNLMKKNGSQEQELGDIVDEIKLLIEVNGSNKFVMEIAKTLFQQGSDNISEQLRIISWDFVLNQLLDAGILFKQTMKNDRICCVKLNISVEEAKRAMNEDETLRNL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 9 polymer

描述 description	Origin recognition complex subunit 2
分子量 formula_weight	71342.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MLNGEDFVEHNDILSSPAKSRNVTPKRVDPHGERQLRRIHSSKKNLLERISLVGNERKNTSPDPALKPKTPSKAPRKRGRPRKIQEELTDRIKKDEKDTISSKKKRKLDKDTSGNVNEESKTSNNKQVMEKTGIKEKREREKIQVATTTYEDNVTPQTDDNFVSNSPEPPEPATPSKKSLTTNHDFTSPLKQIIMNNLKEYKDSTSPGKLTLSRNFTPTPVPKNKKLYQTSETKSASSFLDTFEGYFDQRKIVRTNAKSRHTMSMAPDVTREEFSLVSNFFNENFQKRPRQKLFEIQKKMFPQYWFELTQGFSLLFYGVGSKRNFLEEFAIDYLSPKIAYSQLAYENELQQNKPVNSIPCLILNGYNPSCNYRDVFKEITDLLVPAELTRSETKYWGNHVILQIQKMIDFYKNQPLDIKLILVVHNLDGPSIRKNTFQTMLSFLSVIRQIAIVASTDHIYAPLLWDNMKAQNYNFVFHDISNFEPSTVESTFQDVMKMGKSDTSSGAEGAKYVLQSLTVNSKKMYKLLIETQMQNMGNLSANTGPKRGTQRTGVELKLFNHLCAADFIASNEIALRSMLREFIEHKMANITKNNSGMEIIWVPYTYAELEKLLKTVLNTL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 10 polymer

描述 description	Origin recognition complex subunit 3
分子量 formula_weight	72161.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSDLNQSKKMNVSEFADAQRSHYTVYPSLPQSNKNDKHIPFVKLLSGKESEVNVEKRWELYHQLHSHFHDQVDHIIDNIEADLKAEISDLLYSETTQKRRCFNTIFLLGSDSTTKIELKDESSRYNVLIELTPKESPNVRMMLRRSMYKLYSAADAEEHPTIKYEDINDEDGDFTEQNNDVSYDLSLVENFKRLFGKDLAMVFNFKDVDSINFNTLDNFIILLKSAFKYDHVKISLIFNINTNLSNIEKNLRQSTIRLLKRNYHKLDVSSNKGFKYGNQIFQSFLDTVDGKLNLSDRFVEFILSKMANNTNHNLQLLTKMLDYSLMSYFFQNAFSVFIDPVNVDFLNDDYLKILSRCPTFMFFVEGLIKQHAPADEILSLLTNKNRGLEEFFVEFLVRENPINGHAKFVARFLEEELNITNFNLIELYHNLLIGKLDSYLDRWSACKEYKDRLHFEPIDTIFQELFTLDNRSGLLTQSIFPSYKSNIEDNLLSWEQVLPSLDKENYDTLSGDLDKIMAPVLGQLFKLYREANMTINIYDFYIAFRETLPKEEILNFIRKDPSNTKLLELAETPDAFDKVALILFMQAIFAFENMGLIKFQSTKSYDLVEKCVWRGI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 11 polymer

描述 description	Origin recognition complex subunit 4
分子量 formula_weight	60772.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MTISEARLSPQVNLLPIKRHSNEEVEETAAILKKRTIDNEKCKDSDPGFGSLQRRLLQQLYGTLPTDEKIIFTYLQDCQQEIDRIIKQSIIQKESHSVILVGPRQSYKTYLLDYELSLLQQSYKEQFITIRLNGFIHSEQTAINGIATQLEQQLQKIHGSEEKIDDTSLETISSGSLTEVFEKILLLLDSTTKTRNEDSGEVDRESITKITVVFIFDEIDTFAGPVRQTLLYNLFDMVEHSRVPVCIFGCTTKLNILEYLEKRVKSRFSQRVIYMPQIQNLDDMVDAVRNLLTVRSEISPWVSQWNETLEKELSDPRSNLNRHIRMNFETFRSLPTLKNSIIPLVATSKNFGSLCTAIKSCSFLDIYNKNQLSNNLTGRLQSLSDLELAILISAARVALRAKDGSFNFNLAYAEYEKMIKAINSRIPTVAPTTNVGTGQSTFSIDNTIKLWLKKDVKNVWENLVQLDFFTEKSAVGLRDNATAAFYASNYQFQGTMIPFDLRSYQMQIILQELRRIIPKSNMYYSWTQL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 12 polymer

描述 description	Origin recognition complex subunit 5
分子量 formula_weight	55347.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MNVTTPEVAFREYQTNCLASYISADPDITPSNLILQGYSGTGKTYTLKKYFNANPNLHAVWLEPVELVSWKPLLQAIARTVQYKLKTLYPNIPTTDYDPLQVEEPFLLVKTLHNIFVQYESLQEKTCLFLILDGFDSLQDLDAALFNKYIKLNELLPKDSKINIKFIYTMLETSFLQRYSTHCIPTVMFPRYNVDEVSTILVMSRCGELMEDSCLRKRIIEEQITDCTDDQFQNVAANFIHLIVQAFHSYTGNDIFALNDLIDFKWPKYVSRITKENIFEPLALYKSAIKLFLSTDDNLSENGQGESAITTNRDDLENSQTYDLSIISKYLLIASYICSYLEPRYDASIFSRKTRIIQGRAAYGRRKKKEVNPRYLQPSLFAIERLLAIFQAIFPIQGKAESGSLSALREESLMKANIEVFQNLSELHTLKLIATTMNKNIDYLSPKVRWKVNVPWEIIKEISESVHFNISDYFSDIHE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 13 polymer

描述 description	Origin recognition complex subunit 6
分子量 formula_weight	50369.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MSMQQVQHCVAEVLRLDPQEKPDWSSGYLKKLTNATSILYNTSLNKVMLKQDEEVARCHICAYIASQKMNEKHMPDLCYYIDSIPLEPKKAKHLMNLFRQSLSNSSPMKQFAWTPSPKKNKRSPVKNGGRFTSSDPKELRNQLFGTPTKVRKSQNNDSFVIPELPPMQTNESPSITRRKLAFEEDEDEDEEEPGNDGLSLKSHSNKSITGTRNVDSDEYENHESDPTSEEEPLGVQESRSGRTKQNKAVGKPQSELKTAKALRKRGRIPNSLLVKKYCKMTTEEIIRLCNDFELPREVAYKIVDEYNINASRLVCPWQLVCGLVLNCTFIVFNERRRKDPRIDHFIVSKMCSLMLTSKVDDVIECVKLVKELIIGEKWFRDLQIRYDDFDGIRYDEIIFRKLGSMLQTTNILVTDDQYNIWKKRIEMDLALTEPL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 14 polymer

描述 description	DNA (42-MER)
分子量 formula_weight	12931.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	X,Y

CGATCGATCGATCGATCGATCGATCGATCGATCGATCGATCG

Entity 15 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 16 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 17 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	151030

fit	/app/data/saxs_computation/gj/9gjp/9gjp.fit
pddf	/app/data/pr_computation/gj/9gjp/9gjp.pr.out
profile	/app/data/saxs_computation/gj/9gjp/9gjp.dat
