9glc

NONO/SFPQ filament: local refinement central units (strand 1)

Method: ELECTRON MICROSCOPY D_max: 206.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

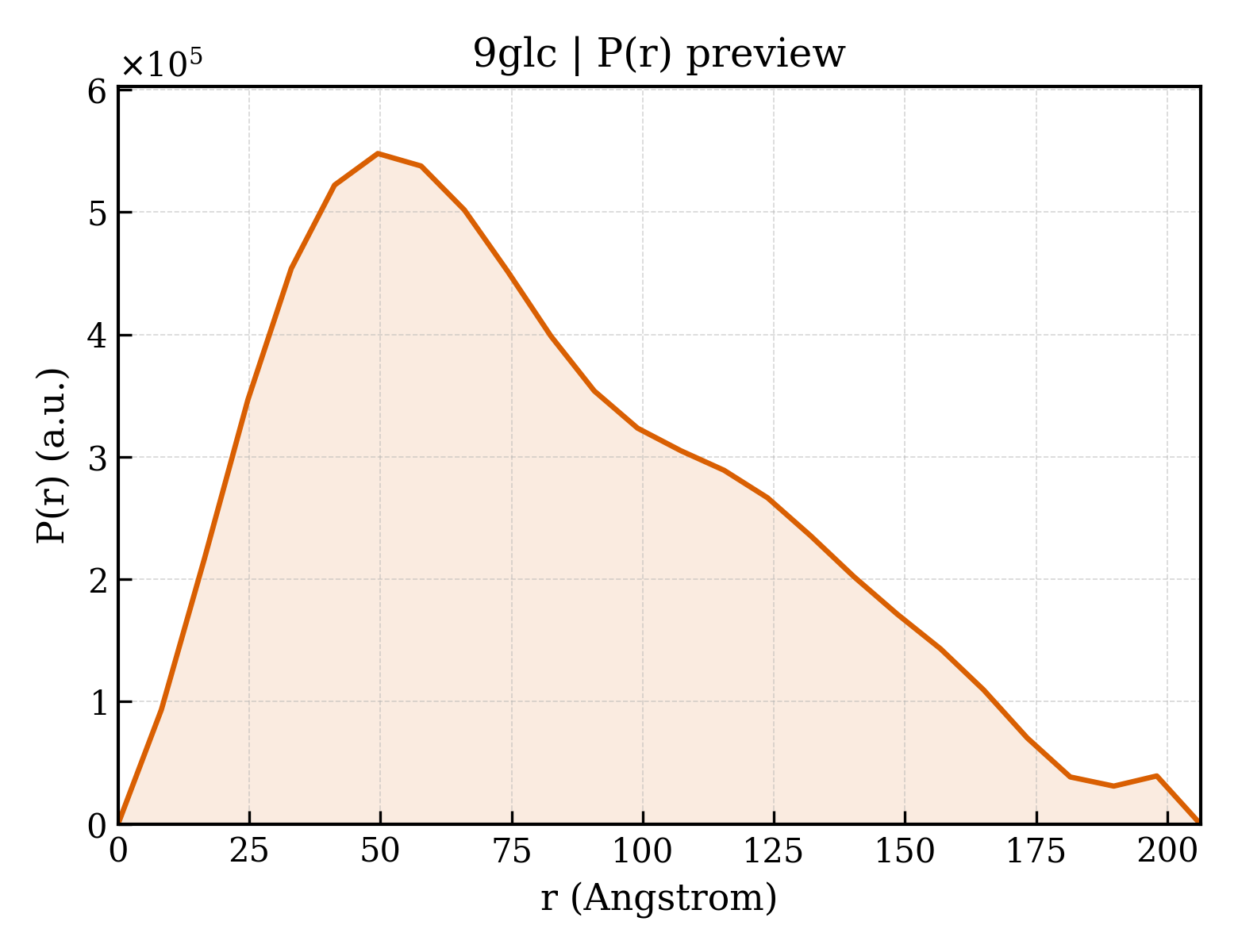

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9glc
沉积日期 deposition_date	2024-08-27
结构标题 title	NONO/SFPQ filament: local refinement central units (strand 1)
关键词 keywords	filament, RNA binding, DNA binding, gene regulation, NUCLEAR PROTEIN; NUCLEAR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	63.01 Å
回转半径 Rg (电子) rg_electron	64.17 Å
零角强度 I(0) i0	690291000.00
分子量 molecular_weight	205960.0 kDa
排除体积 excluded_volume	252630 Å³
包络体积 envelope_volume	445670 Å³
水化壳体积 shell_volume	62043 Å³
包络直径 envelope_diameter	247.7 Å
壳层 Rg shell_rg	56.03 Å
包络 Rg envelope_rg	63.73 Å
形状 Rg shape_rg	64.18 Å
总 Rg total_rg	63.91 Å
总原子数 total_atoms	14423
残基数 n_residues	1728
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	206.3 Å
Rg (实空间) rg_real	63.79 Å
Rg 误差 (实空间) rg_real_error	1.74 Å
I(0) (实空间) i0_real	6.8940e+08
I(0) 误差 (实空间) i0_real_error	1.4370e+07
Rg (倒空间) rg_reciprocal	62.05 Å
I(0) (倒空间) i0_reciprocal	687900000.0000
解质量估计 total_estimate	0.7968
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	49.5 Å
偏度 Skewness skewness	0.544
峰度 Kurtosis kurtosis	-0.460
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0028
最高正则化参数 α highest_alpha	40660000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.778; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.869; Smooth: 0.154

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Splicing factor proline/glutamine rich (polypyrimidine tract binding protein associated)
分子量 formula_weight	75880.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BC,BE,AC,AE,CC,CE
原子数 atom_count	14423

MSRDRFRSRGGGGGGFHRRGGGGGRGGLHDFRSPPPGMGLNQNRGPMGPGPGGPKPPIPPPPPHQQQPQQPPPQQPPPQQPPPHQQPPPHQPPHQQPPPPPQDSSKPVVPQGPGSAPGVSPAPPPAGSAPPANPPTTGAPPGPGPTPTPPPAVTSATPGPPPPSTPSSGVSTTPPQSGGPPPPPAGGAGPGPKQGPGPGPGGPKGGKMPGGPKPGGGPGMGAPGGHPKPPHRGGGEPRGGRQHHPPYHQQHHQGPPPGGPAARTEEKISDSEGFKANLSLLRRPGEKTYTQRCRLFVGNLPADITEDEFKRLFAKYGEPGEVFINKGKGFGFIKLESRALAEIAKAELDDTPMRGRQLRVRFATHAAALSVRNLSPYVSNELLEEAFSQFGPIERAVVIVDDRGRSTGKGIVEFASKPAARKAFERCSEGVFLLTTTPRPVIVEPLEQLDDEDGLPEKLAQKNPMYQKERETPPRFAQHGTFEYEYSQRWKSLDEMEKQQREQVEKNMKDAKDKLESEMEDAYHEHQANLLRQDLMRRQEELRRMEELHSQEMQKRKEMQLRQEEERRRREEEMMIRQREMEEQMRRQREESYSRMGYMDPRERDMRMGGGGTMNMGDPYGSGGQKFPPLGGGGGIGYEANPGVPPATMSGSMMGSDMRTERFGQGGAGPVGGQGPRGMGPGTPAGYGRGREEYEGPNKKPRF

Entity 2 polymer

描述 description	Non-POU domain containing octamer binding
分子量 formula_weight	54519.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BD,BF,AD,CF

MQSNKTFNLEKQNHTPRKHHQHHHQQHHQQQQQQQQQPPPPIPANGQQASSQNEGLTIDLKNFRKPGEKTFTQRSRLFVGNLPPDITEEEMRKLFEKYGKAGEVFIHKDKGFGFIRLETRTLAEIAKVELDNMPLRGKQLRVRFACHSASLTVRNLPQYVSNELLEEAFSVFGQVERAVVIVDDRGRPSGKGIVEFSGKPAARKALDRCSEGSFLLTTFPRPVTVEPMDQLDDEEGLPEKLVIKNQQFHKEREQPPRFAQPGSFEYEYAMRWKALIEMEKQQQDQVDRNIKEAREKLEMEMEAARHEHQVMLMRQDLMRRQEELRRMEELHNQEVQKRKQLELRQEEERRRREEEMRRQQEEMMRRQQEGFKGTFPDAREQEIRMGQMAMGGAMGINNRGAMPPAPVPTGTPAPPGPATMMPDGTLGLTPPTTERFGQAATMEGIGAIGGTPPAFNRPAPGADFAPNKRRRY

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	2974535

fit	/app/data/saxs_computation/gl/9glc/9glc.fit
pddf	/app/data/pr_computation/gl/9glc/9glc.pr.out
profile	/app/data/saxs_computation/gl/9glc/9glc.dat
