;The crystal structure of ManDH5 Selenomethionine derivative at 1.6 Angstroms resolution - a beta-D-Mannanase of GH5 family from Dictyoglomus thermophilium ;

Method: X-RAY DIFFRACTION D_max: 89.8 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

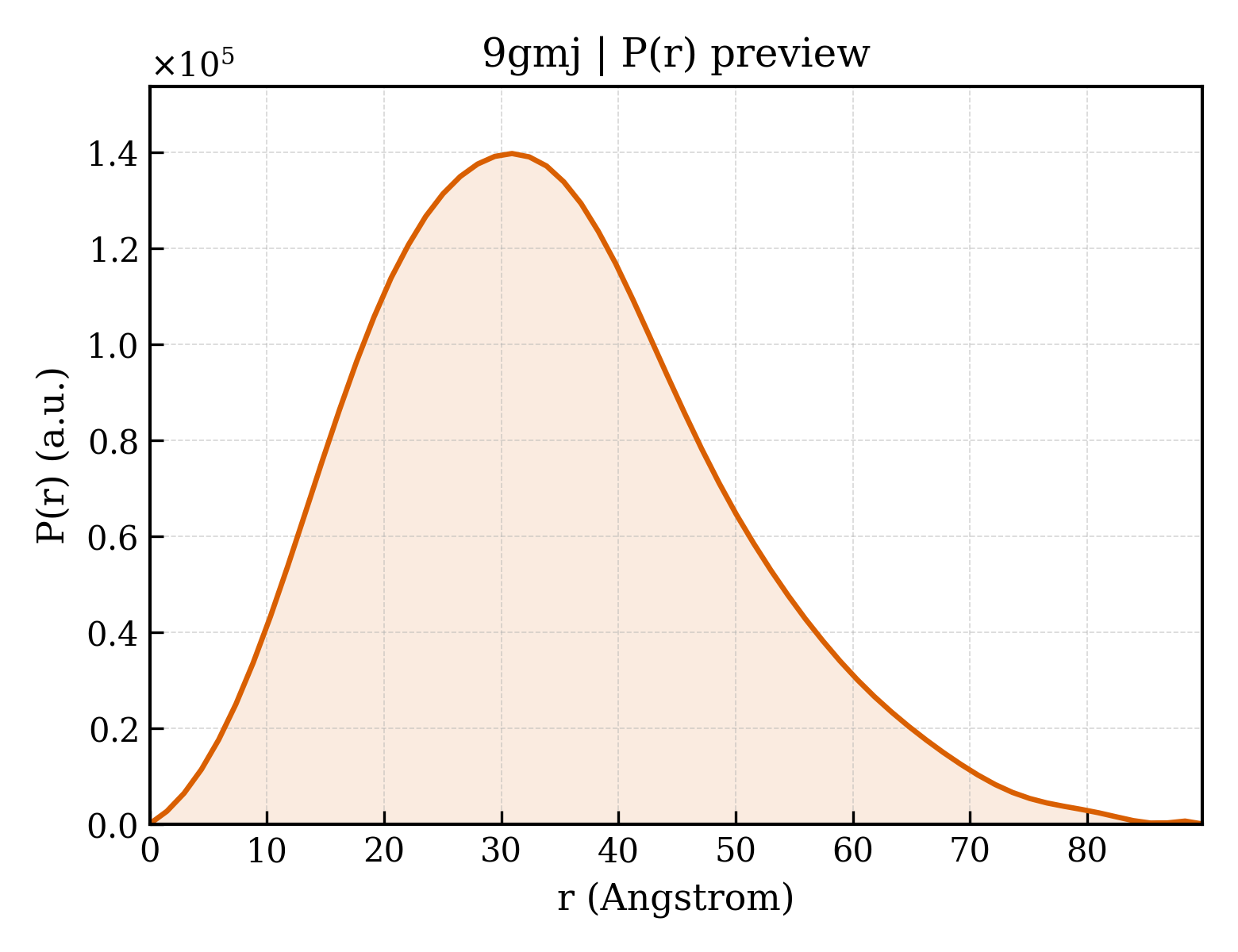

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gmj
沉积日期 deposition_date	2024-08-28
最后修订 last_revision	2025-09-10
结构标题 title	;The crystal structure of ManDH5 Selenomethionine derivative at 1.6 Angstroms resolution - a beta-D-Mannanase of GH5 family from Dictyoglomus thermophilium ;
关键词 keywords	Glycoside-Hydrolase, Mannanase, Thermostable protein, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.06 Å
回转半径 Rg (电子) rg_electron	25.37 Å
零角强度 I(0) i0	65021000.00
分子量 molecular_weight	66676.0 kDa
排除体积 excluded_volume	84571 Å³
包络体积 envelope_volume	96588 Å³
水化壳体积 shell_volume	31512 Å³
包络直径 envelope_diameter	92.4 Å
壳层 Rg shell_rg	33.09 Å
包络 Rg envelope_rg	25.91 Å
形状 Rg shape_rg	25.34 Å
总 Rg total_rg	26.27 Å
总原子数 total_atoms	4722
残基数 n_residues	556
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	89.8 Å
Rg (实空间) rg_real	26.08 Å
Rg 误差 (实空间) rg_real_error	0.62 Å
I(0) (实空间) i0_real	6.5020e+07
I(0) 误差 (实空间) i0_real_error	9.0010e+05
Rg (倒空间) rg_reciprocal	26.07 Å
I(0) (倒空间) i0_reciprocal	65020000.0000
解质量估计 total_estimate	0.6780
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.9 Å
偏度 Skewness skewness	0.448
峰度 Kurtosis kurtosis	-0.083
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	23940000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 0.221; Positv: 1.000; Valcen: 0.980; Smooth: 0.929

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	DUF5060 domain-containing protein
分子量 formula_weight	67689.8 kDa
突变 mutation	;Selenomethionine replacing all Metionine residues; According to the phase solution (performed using Crank 2), only 6 out of 7 MET residues were substituted by MSE. The first in the sequence appears to be MET. ;
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5168

ESRYKDNRPLNILGIDISKMELGRYNLFEVSIFLQGSYLNPFDPQEIDVEGIFEDQYGNQYRVPGFFYQEYKRELKNDYEYLVPVGDPYFKIRFSPINIGSYKFFIKVKDKTGREVSSDKYTIYVKESEKPGYIRVSEKNWRYFKFDNGRQFLPIGANICWATSKGTYDYDVWLPKCAENGGNYFRVWLGPSWATFALERESVKEYDLKNAWKLDYVLNLAEKLNMYIMFCFDSYNELRYQKEGAYPYWEHTPHYEKNGGPLKEPKDFWTNNEMIKYYKNKLRYIVARYGYSTNVFAWEFWNEVDIISPTAFVIGEVKKWHEDMAKYLNSIDPWKHLITTSFAFSPGKPEIDSISGLNFVQTHIYKSNRYIDALLSLIAYKEKYRKPHLVGEFGLDAGGNDLWVDPNGYVIHNAIWTTILSGASGTAMSWWWDNHIHPNNLYFHYRALADFVKDINFLEEKFERLTNYKFNVYNREIKVIGLQGKKYILLWLYNAKEAYQYKKDIPNMDSSKFLGSIELLIKPPIKVIYYDTYRGEKIKELDLDKNVIPIIEFERDLAIKIELLGEGE

来源 Source

来源生物 organism	Dictyoglomus thermophilum
NCBI 分类编号 ncbi_taxonomy_id	14
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
分子量 formula_weight	122.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	420

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	95.207 Å
晶胞边长 b length_b	99.274 Å
晶胞边长 c length_c	153.724 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	orthorhombic

分辨率 resolution	1.600 Å
最低分辨率 resolution_low	83.400 Å
R 因子 r_factor	0.1776
R_work r_work	0.1770
R_free r_free	0.1903
