9gtp

;Cryo-EM structure of a contractile injection system in Streptomyces coelicolor, the baseplate complex in extended state applied 6-fold symmetry. ;

Method: ELECTRON MICROSCOPY D_max: 230.9 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

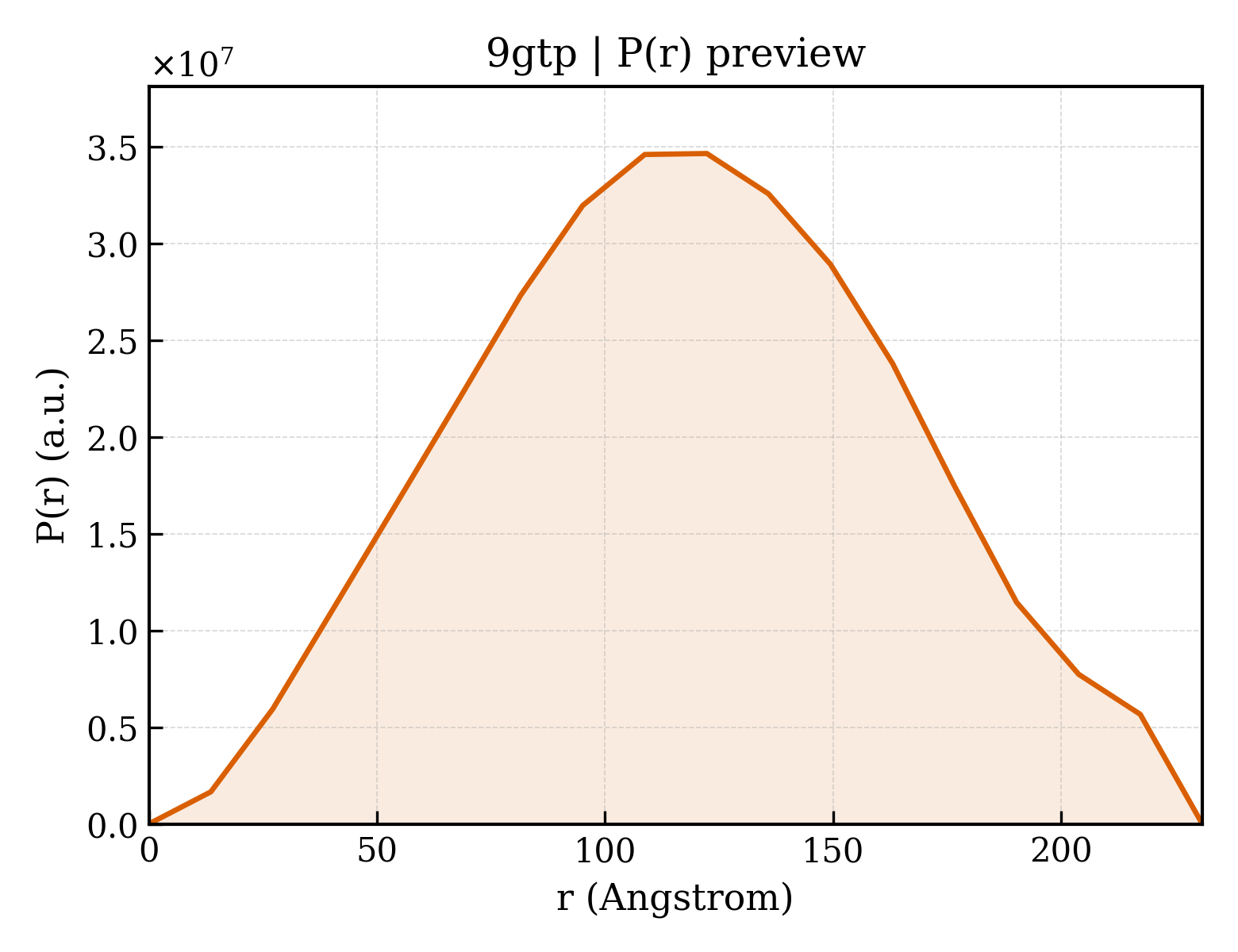

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gtp
沉积日期 deposition_date	2024-09-18
结构标题 title	;Cryo-EM structure of a contractile injection system in Streptomyces coelicolor, the baseplate complex in extended state applied 6-fold symmetry. ;
关键词 keywords	Contractile injection system, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	91.50 Å
回转半径 Rg (电子) rg_electron	90.53 Å
零角强度 I(0) i0	55837200000.00
分子量 molecular_weight	1986600.0 kDa
排除体积 excluded_volume	2472200 Å³
包络体积 envelope_volume	4415800 Å³
水化壳体积 shell_volume	381340 Å³
包络直径 envelope_diameter	281.1 Å
壳层 Rg shell_rg	103.10 Å
包络 Rg envelope_rg	87.25 Å
形状 Rg shape_rg	90.52 Å
总 Rg total_rg	90.64 Å
总原子数 total_atoms	140250
残基数 n_residues	18262
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	230.9 Å
Rg (实空间) rg_real	89.27 Å
Rg 误差 (实空间) rg_real_error	0.27 Å
I(0) (实空间) i0_real	5.3550e+10
I(0) 误差 (实空间) i0_real_error	9.0380e+08
Rg (倒空间) rg_reciprocal	93.71 Å
I(0) (倒空间) i0_reciprocal	56240000000.0000
解质量估计 total_estimate	0.9100
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	122.3 Å
偏度 Skewness skewness	0.043
峰度 Kurtosis kurtosis	-0.584
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.9945
最高正则化参数 α highest_alpha	8026000000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.955; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Phage tail protein
分子量 formula_weight	16493.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o,p,k,l,m,n
原子数 atom_count	140250

MSLPKPEDVLVAPNFGIQIDGVMVEYLNSVSNLQIEQDVIRYQQNQGTTGRNNVTLMPGVAKDGSVQVERGMSQSSVFTQWINDSMAGRMATARKNATIIVMDYEDNPVKRWNLRNAWCSKVVAGTLKAGDTNALTETITIVFEELVVE

Entity 2 polymer

描述 description	Phage tail sheath family protein
分子量 formula_weight	57009.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1h,2i,3i,1i,2j,3j,1j,2e,3e,1e,2f,3f,1f,2g,3g,1g,2h,3h

MPSYLSPGVYVEEVASGSRPIEGVGTSVAAFVGLAPTGPLNEPTLVTNWTQYVAAFGDFTGGYYLAHSVYGFFNNGGSAAYVVRVGGSAEDAAADGSVNGAAAPAAVTGSTAKALPAAEPKQLGTFAVTATAAGQSGPLTVEVADPEGEGPAERFKLIVKDGDKPVETFDVSAKKGNRSYVVTQVKERSKLITVTEAAPSAQLVRPENQSLTLPAPPSAAPAVPAGQAESAHPGPAQYLGDSSDRTGFGGLEAIDEISMVAVPDLMAAYQRGAIDLEAVKAVQLGLIAHCELMGDRVAIIDPPPNQNARQIRVWRQETAGYDSKYAALYYPWIKSFDPATGQSRLVPPSGHVAGIWARNDSERGVHKAPANEVVRGAVDLELQITRGEQDLLNPIGVNCIRSFPGRGIRVWGARTLSSDPAWRYLNIRRYFNYLEESILIGTQWVVFEPNDHNLWARIRRNVSAFLVNEWRNGALFGQSPDQAYYVKCDEETNPPESVDLGRVVCEIGIAPVKPAEFVIFRLAQFSSGGGELDE

Entity 3 polymer

描述 description	Baseplate protein J-like domain-containing protein
分子量 formula_weight	70889.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1K,2K,1L,2L,1G,2G,1H,2H,1l,2l,1J,2J

MPLPSPNLDDRRFQQFVDDAKRYIQQRAPEWTDHNVSDPGVTLVETVAHMADQIVYRLNRVPDKNHLAFLDLVGITLFPPSAARTDVTFWLSAPQEDAILVPVGTEVATLRTERDEAVVFATEQDLRIVPCTMGRLVTQVSGEAVSDRTTDLAESKDVLCFAEAPNPGDCMLIGLSAAVPDCALALELDSRVDGVGVDPRQPPLVWEAWTEDGWQSCEVDRDGTGGLNRPGDVVLHIPGGHVLSRNGGHEAGWIRCRVTEPLSGQPFYTTSPTIRSAEAYTIGGTTGSIHAETVLDEPLGESTGLPGQRLRLEHAPVVAGEPSVLLQTAADDGWQDWQVVPHFSGSHPDDHHITVDATTGEIAFGPAVREADGTLRQYGAVPPKGAVIRARRYRTGGGRAGNVARGAVQVLRTSIPYVSEVVNREAALGGVDGETIEEAKLRAPITLRAQERAVTLRDYEELARRAAPETARITCLEGAENEYGAHAVRVLVVPQAVPDPGGRLRFEQLVPGDALLNRITRHLDERRLIGTRLAVGPPYYQGVTVVATVHAFRDVDADRVRRQTHDALYRHLDPLTGGSDGKGWPFGRPVQTGELFAVLQRVPGVELVDEVVLHPADPLTGKRGDPTNRIDLDAPALVFSYDHRVRVIGDSA

Entity 4 polymer

描述 description	LysM domain-containing protein
分子量 formula_weight	25716.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q,R,M,N,O

MAKSSKGAGKSLVRANLAIHEPPTGKSTSPGGLIKRFPFEFNPAQLSISQRSQWKATPTAAVRKAAKPQFMGAEPREMTLEIFLDSSMKPGGNTVMKKVESLLICCEVTAKSLAAKQPSPPWVIFEWGSFSTARFNAYVASIETQYTLFGTAGVPIRATCQMGLVEIPGPTPNQNPTSGALTAQRVHRVVAGDSLQSLAWSEYGSANAWRVIAEANGIDDPSHLPTGTELILPATEEVPH

Entity 5 polymer

描述 description	Secreted protein
分子量 formula_weight	20282.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,A,B,C,D

MKPASQRGSVDGLGSSLPIASMLPAVFADDDLALRFVAGLDDVLAPILNVLDCLDTYFDPALTPADFAQWLGTWVGAETDGTEAEPMLRAAVAAAARLHRVRGTLQGLSETVRLAFGVAPEITESGGATWNARPLGPFPGRPRPQLHVALRLPEPRPVDVHRLDALVAAARPAHMPYTVEVTASERTPER

Entity 6 polymer

描述 description	IraD/Gp25-like domain-containing protein
分子量 formula_weight	16609.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W,X,S,T,U

MAEQFVGSGWSFPLRIGPTGGIALVSGEQEVEEAMRLILATAPGERPMRPEFGCAIHDLVFAPVNEQTAGRIQHEVYVTLDRWEPRIEVHDVDVTTGEEQNVLFIDVRYSIRGTNNPRSLVFPFYVIPSHDEPDLPDAPAGLPGSPESDR

Entity 7 polymer

描述 description	Phage tail protein
分子量 formula_weight	15194.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e,f

MTRKDPGSSIWFSLAIDGESLGYFNGCEGLSTQVEVEQRQEGGNNGFVWQLPTRVTYSNIRLTRPLTPDTAKVAKWISSVQTGIQRPTAQISALRADGSLVARWGLIDVLPVSWQGPSLDPGSASVANEVLEIAHHGFTD

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	22980

fit	/app/data/saxs_computation/gt/9gtp/9gtp.fit
pddf	/app/data/pr_computation/gt/9gtp/9gtp.pr.out
profile	/app/data/saxs_computation/gt/9gtp/9gtp.dat
