9gts

Cryo-EM structure of a contractile injection system in Streptomyces coelicolor, the cap portion in extended state.

Method: ELECTRON MICROSCOPY D_max: 179.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

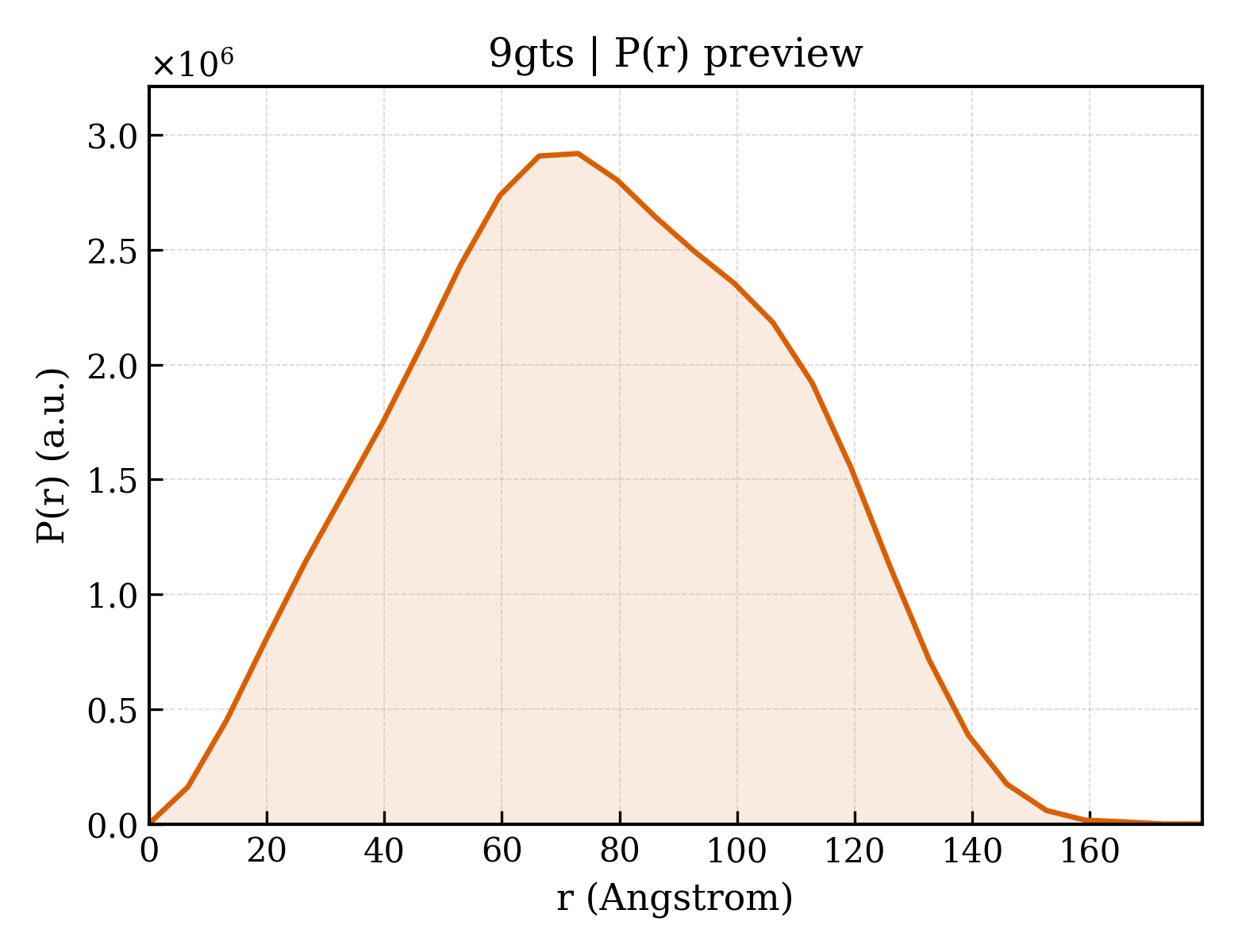

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gts
沉积日期 deposition_date	2024-09-18
结构标题 title	Cryo-EM structure of a contractile injection system in Streptomyces coelicolor, the cap portion in extended state.
关键词 keywords	Contractile injection system, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.51 Å
回转半径 Rg (电子) rg_electron	58.13 Å
零角强度 I(0) i0	3106440000.00
分子量 molecular_weight	467520.0 kDa
排除体积 excluded_volume	584440 Å³
包络体积 envelope_volume	932770 Å³
水化壳体积 shell_volume	129830 Å³
包络直径 envelope_diameter	181.4 Å
壳层 Rg shell_rg	65.55 Å
包络 Rg envelope_rg	55.76 Å
形状 Rg shape_rg	58.17 Å
总 Rg total_rg	58.16 Å
总原子数 total_atoms	33000
残基数 n_residues	4260
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	179.1 Å
Rg (实空间) rg_real	58.15 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	3.1060e+09
I(0) 误差 (实空间) i0_real_error	5.8000e+07
Rg (倒空间) rg_reciprocal	58.78 Å
I(0) (倒空间) i0_reciprocal	3109000000.0000
解质量估计 total_estimate	0.8299
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	73.0 Å
偏度 Skewness skewness	0.021
峰度 Kurtosis kurtosis	-0.668
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	111300000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Phage tail protein
分子量 formula_weight	16493.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1a,1f,1e,1d,1c,1b
原子数 atom_count	33000

MSLPKPEDVLVAPNFGIQIDGVMVEYLNSVSNLQIEQDVIRYQQNQGTTGRNNVTLMPGVAKDGSVQVERGMSQSSVFTQWINDSMAGRMATARKNATIIVMDYEDNPVKRWNLRNAWCSKVVAGTLKAGDTNALTETITIVFEELVVE

Entity 2 polymer

描述 description	Phage tail sheath family protein
分子量 formula_weight	57465.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2A,2F,2E,2D,2C,2B

MPSYLSPGVYVEEVASGSRPIEGVGIEGVGTSVAAFVGLAPTGPLNEPTLVTNWTQYVAAFGDFTGGYYLAHSVYGFFNNGGSAAYVVRVGGSAEDAAADGSVNGAAAPAAVTGSTAKALPAAEPKQLGTFAVTATAAGQSGPLTVEVADPEGEGPAERFKLIVKDGDKPVETFDVSAKKGNRSYVVTQVKERSKLITVTEAAPSAQLVRPENQSLTLPAPPSAAPAVPAGQAESAHPGPAQYLGDSSDRTGFGGLEAIDEISMVAVPDLMAAYQRGAIDLEAVKAVQLGLIAHCELMGDRVAIIDPPPNQNARQIRVWRQETAGYDSKYAALYYPWIKSFDPATGQSRLVPPSGHVAGIWARNDSERGVHKAPANEVVRGAVDLELQITRGEQDLLNPIGVNCIRSFPGRGIRVWGARTLSSDPAWRYLNIRRYFNYLEESILIGTQWVVFEPNDHNLWARIRRNVSAFLVNEWRNGALFGQSPDQAYYVKCDEETNPPESVDLGRVVCEIGIAPVKPAEFVIFRLAQFSSGGGELDE

Entity 3 polymer

描述 description	Pvc16 N-terminal domain-containing protein
分子量 formula_weight	24713.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0A,0F,0E,0D,0C,0B

MIHEVDEVLKALLKGGALTDSGIDVAFEAPTRDWAARRNAPVVNAYLYDIREDVGRRHRGQVAVRDQDDIVVKRRQPPRWFRLSYLVTAWTKTPQDEHRLLSAVLATLLPREQLPPYELPGALGAMNLPVPMTVAGVQTESRSLAEIWSALGGELKPSLDLVVTAPFPAYPEYDAGPPVTEGATVRIGGVEGDPPMSEGRSHRPHQVAAARAARKAVTDGRTKRQ

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	19218

fit	/app/data/saxs_computation/gt/9gts/9gts.fit
pddf	/app/data/pr_computation/gt/9gts/9gts.pr.out
profile	/app/data/saxs_computation/gt/9gts/9gts.dat
