9gyg

The structure of ornithine decarboxylase from Leishmania infantum in complex with PLP

Method: ELECTRON MICROSCOPY Dmax: 94.5 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

SAXS profile for 9gyg

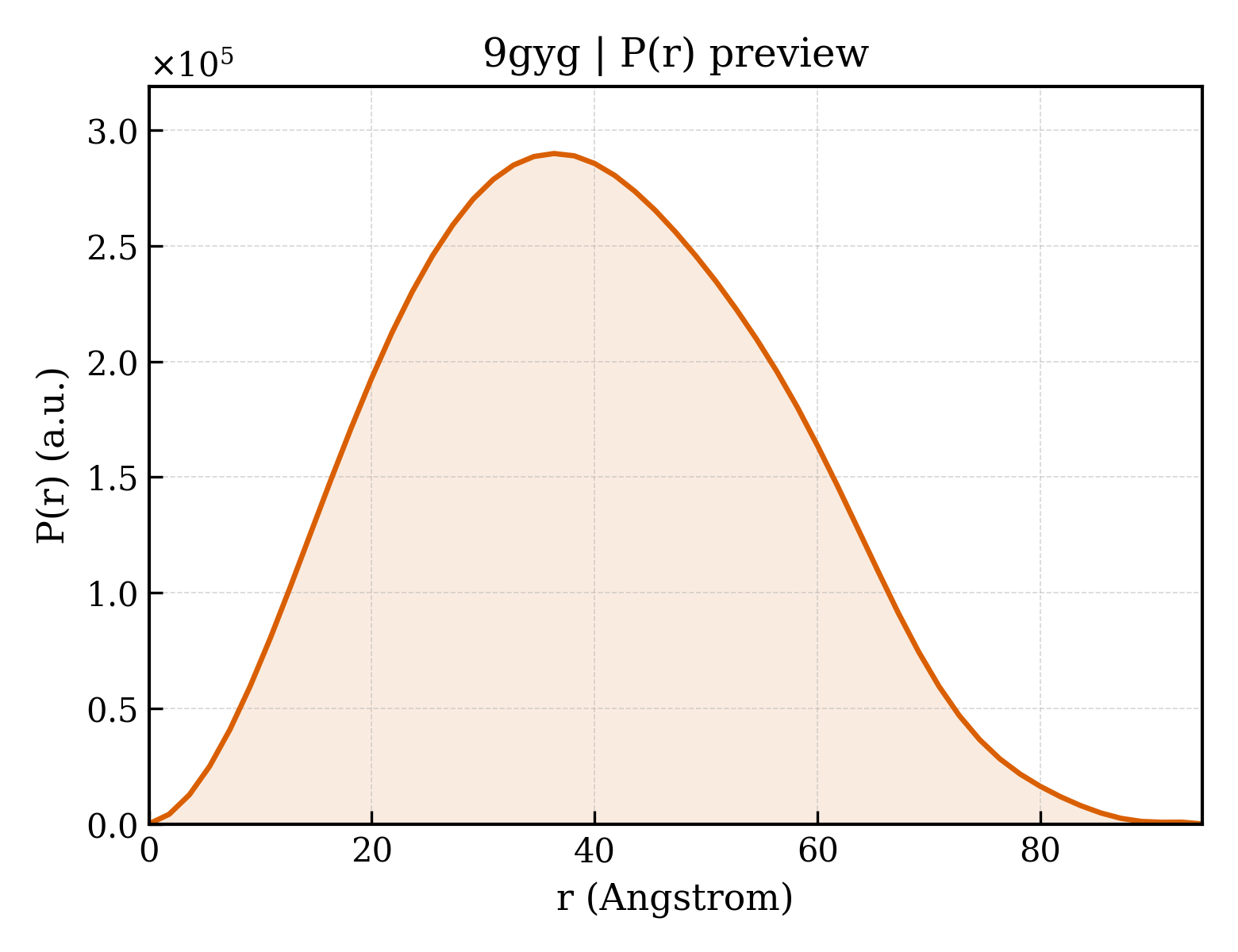

P(r) 距离分布 P(r) Distribution

P(r) distribution for 9gyg
下载 Download
▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id9gyg
沉积日期 deposition_date2024-10-02
结构标题 titleThe structure of ornithine decarboxylase from Leishmania infantum in complex with PLP
关键词 keywords;decarboxylase pyridoxal 5'-phosphate polyamine biosynthesis Orn/Lys/Arg decarboxylase class-II family, LYASE ;; LYASE
实验方法 methodELECTRON MICROSCOPY
▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier30.48 Å
回转半径 Rg (电子) rg_electron29.58 Å
零角强度 I(0) i0164818000.00
分子量 molecular_weight102400.0 kDa
排除体积 excluded_volume128180 ų
包络体积 envelope_volume154650 ų
水化壳体积 shell_volume41997 ų
包络直径 envelope_diameter95.1 Å
壳层 Rg shell_rg38.06 Å
包络 Rg envelope_rg29.55 Å
形状 Rg shape_rg29.58 Å
总 Rg total_rg30.31 Å
总原子数 total_atoms7214
残基数 n_residues906
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 Å−1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3
▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax94.5 Å
Rg (实空间) rg_real30.34 Å
Rg 误差 (实空间) rg_real_error0.44 Å
I(0) (实空间) i0_real1.6480e+08
I(0) 误差 (实空间) i0_real_error2.4400e+06
Rg (倒空间) rg_reciprocal30.40 Å
I(0) (倒空间) i0_reciprocal164800000.0000
解质量估计 total_estimate0.9044
解质量评级 solution_quality EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary36.4 Å
偏度 Skewness skewness0.179
峰度 Kurtosis kurtosis-0.551
角度范围 angular_range— – 0.2600 Å−1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha55370000.0000
实空间数据点数 n_real_points53
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.921
▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
