9h3b

Lotus japonicus CERK6 extracellular domain in complex with chitopentaose

Method: X-RAY DIFFRACTION D_max: 59.2 Å Quality: GOOD

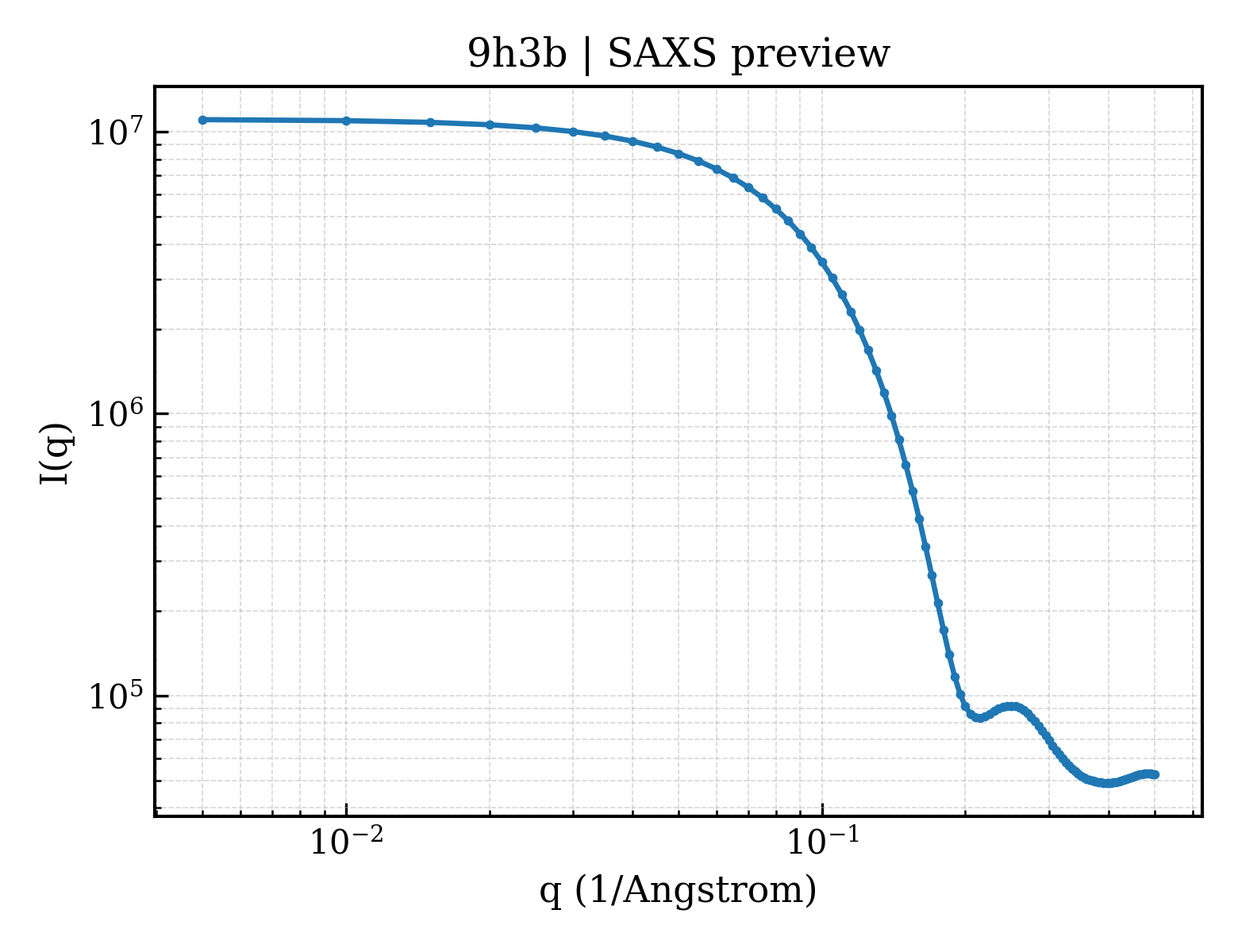

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9h3b
沉积日期 deposition_date	2024-10-16
最后修订 last_revision	2025-07-16
结构标题 title	Lotus japonicus CERK6 extracellular domain in complex with chitopentaose
关键词 keywords	LysM, chitin receptor, carbohydrate, PLANT PROTEIN; PLANT PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	18.34 Å
回转半径 Rg (电子) rg_electron	17.11 Å
零角强度 I(0) i0	11073900.00
分子量 molecular_weight	24019.0 kDa
排除体积 excluded_volume	29743 Å³
包络体积 envelope_volume	35297 Å³
水化壳体积 shell_volume	17231 Å³
包络直径 envelope_diameter	59.4 Å
壳层 Rg shell_rg	23.18 Å
包络 Rg envelope_rg	17.41 Å
形状 Rg shape_rg	17.08 Å
总 Rg total_rg	18.13 Å
总原子数 total_atoms	1686
残基数 n_residues	199
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	59.2 Å
Rg (实空间) rg_real	18.22 Å
Rg 误差 (实空间) rg_real_error	0.29 Å
I(0) (实空间) i0_real	1.1070e+07
I(0) 误差 (实空间) i0_real_error	1.2060e+05
Rg (倒空间) rg_reciprocal	18.24 Å
I(0) (倒空间) i0_reciprocal	11070000.0000
解质量估计 total_estimate	0.8843
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	24.0 Å
偏度 Skewness skewness	0.143
峰度 Kurtosis kurtosis	-0.375
角度范围 angular_range	— – 0.4350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2423000.0000
实空间数据点数 n_real_points	75
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.841; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.979

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	LysM type receptor kinase
分子量 formula_weight	22517.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	1686

SKCTHGCALAQASYYLLNGSNLTYISEIMQSSLLTKPEDIVSYNQDTIASKDSVQAGQRINVPFPCDCIEGEFLGHTFQYDVQKGDRYDTIAGTNYANLTTVEWLRRFNSYPPDNIPDTGTLNVTVNCSCGDSGVGDYGLFVTYPLRPGETLGSVASNVKLDSALLQKYNPNVNFNQGSGIVYIPAKDQNGSYVLLGSHHHHHHH

来源 Source

来源生物 organism	Lotus japonicus
NCBI 分类编号 ncbi_taxonomy_id	34305
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 branched

描述 description	alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	367.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1034.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	60.137 Å
晶胞边长 b length_b	60.137 Å
晶胞边长 c length_c	390.422 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 61 2 2
空间群编号 int_tables_number	178
晶系 crystal_system	hexagonal

分辨率 resolution	2.580 Å
最低分辨率 resolution_low	19.680 Å
R 因子 r_factor	0.2514
R_work r_work	0.2504
R_free r_free	0.2694
