;Cryo-EM structure of an octameric G10-resistosome from wheat in 'back-to-back' arrangement ;

Method: ELECTRON MICROSCOPY D_max: 285.6 Å Quality: GOOD

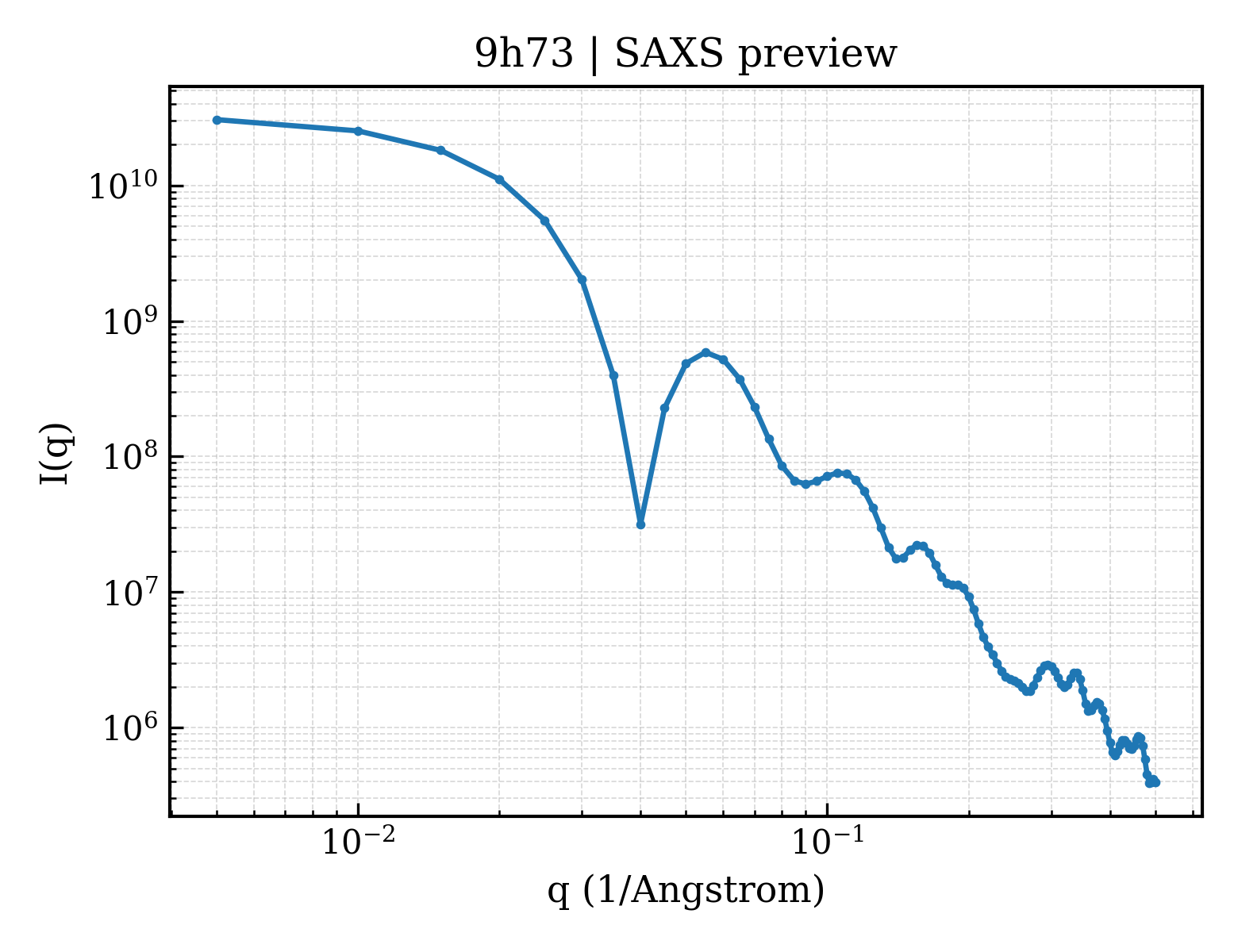

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9h73
沉积日期 deposition_date	2024-10-25
结构标题 title	;Cryo-EM structure of an octameric G10-resistosome from wheat in 'back-to-back' arrangement ;
关键词 keywords	Resistance, G10-NLR, Wheat, resistosome, PLANT PROTEIN; PLANT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	87.24 Å
回转半径 Rg (电子) rg_electron	86.20 Å
零角强度 I(0) i0	32571400000.00
分子量 molecular_weight	1562900.0 kDa
排除体积 excluded_volume	1967400 Å³
包络体积 envelope_volume	3600200 Å³
水化壳体积 shell_volume	337980 Å³
包络直径 envelope_diameter	290.7 Å
壳层 Rg shell_rg	97.23 Å
包络 Rg envelope_rg	80.06 Å
形状 Rg shape_rg	86.21 Å
总 Rg total_rg	86.28 Å
总原子数 total_atoms	109664
残基数 n_residues	13664
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

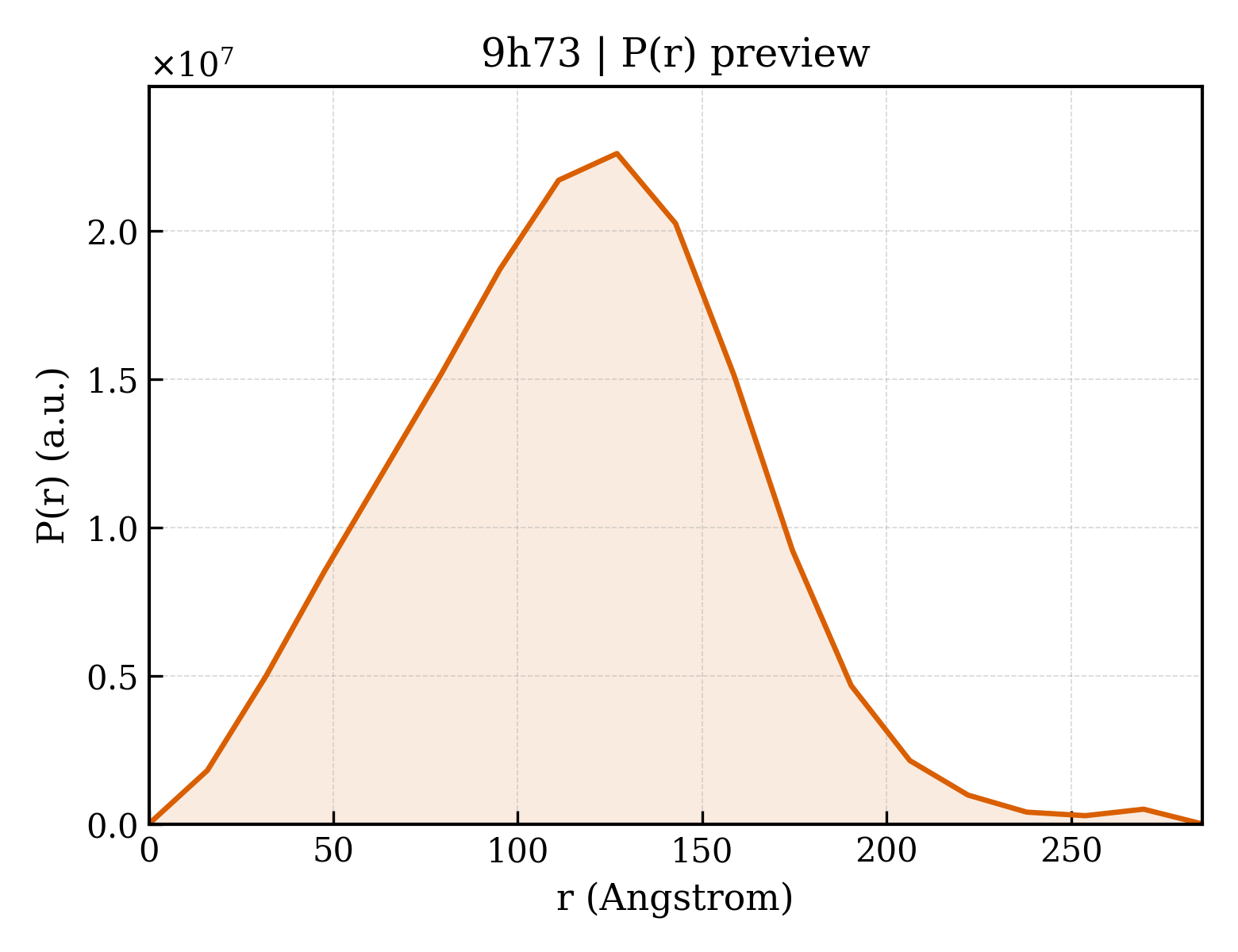

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	285.6 Å
Rg (实空间) rg_real	87.42 Å
Rg 误差 (实空间) rg_real_error	1.22 Å
I(0) (实空间) i0_real	3.1700e+10
I(0) 误差 (实空间) i0_real_error	6.1520e+08
Rg (倒空间) rg_reciprocal	89.75 Å
I(0) (倒空间) i0_reciprocal	32830000000.0000
解质量估计 total_estimate	0.8859
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	126.9 Å
偏度 Skewness skewness	0.122
峰度 Kurtosis kurtosis	-0.018
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.5670
最高正则化参数 α highest_alpha	19940000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.697; Stabil: 0.926; Sysdev: 1.000; Positv: 1.000; Valcen: 0.900; Smooth: 0.757

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	NB-ARC domain-containing protein
分子量 formula_weight	107700.4 kDa
来源方法 src_method	man
拷贝数 entity_count	16

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P
原子数 atom_count	109664

MADAISAAGSCEQPECECLDGTGMLDAAAREVASFLHLKSNWSDLDKAKKLLLAVETTVRARVTAEVDKLNICDPQVQVWLRRVEELQLDAIDEDYSQLRKYSCLGQCTIHAHRRASIGRRVLEALDEANKLIEEGRRFKKFGFKPLPKIVDPLPQIKTFGLETMLSQLYDLFEKGDSNIIGVWGQGGVGKTTLLHVFNNDLEKKAHDYQVVIFIEVSNSEALNTVEIQQTISERLNLPWNDAEPIAKRARFLIKALGRKRFVILLDDVRKKFCLEDVGIPTPDINSQSKLILTSRYREVCFQMNAQRSLIEMQILGNDASWELFLSKLSTETSAAVEPLGSQSATREHAMKIAQSCGGLPLALNVIGTAVAGLEEGEWQSAADAIATNMDNIDGVDEMFGRLKYSFDRLTPTQQQCFLYCTLFPEYGSISKEQLIGYWLAEGLLLNDSEKGYQIIRSLVSACLLQVSGSMSSKVKMHHVIRQLGLWLVNKSDTKFLVQPGMALDNAPSAEEWNEATRISIMSNNITELSFSPKCKNVTTLLMQNNPNLNKMSYGFFRTMSSLKVLDLSHTAITSLPECDALVALEHLNLSHTHIMRLPERLWLLKELRHLDLSVTVAFEDTMNNCSKLHKLKVLNLFRSHYGIRDVDNLNLDSLKELLFLGITIYAEDVLKKLNMPRPLAKSTHRLNLKYCAEMQSIKISDLSHMEHLEELYVESCYDLNTVVADAELTTSQLQFLTLSVLPSLESVLVAPMSHNFQYIRKLIISHCPKLSNITWVRRLQLLERLVISHCDGVLEIVEDEEQYGEQMKMQDHASYEQEEHAMVETSRNDTGQSDFPKLRLIVLTGLKKLRSICKAREFPCLETLRVEDCPNLRSIPLSCTHNYWKLKQICGSVEWWEKLQWENRKEVACLDSKYFIPIGSDYKDHDGDYKDHDLDAAAADYKDDDDK

来源 Source

来源生物 organism	Triticum aestivum
通用名 common_name	bread wheat
NCBI 分类编号 ncbi_taxonomy_id	4565
宿主生物 host_organism	Nicotiana benthamiana

Entity 2 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	27667

fit	/app/data/saxs_computation/h7/9h73/9h73.fit
pddf	/app/data/pr_computation/h7/9h73/9h73.pr.out
profile	/app/data/saxs_computation/h7/9h73/9h73.dat
