9h99

Native structure of the full-length pesticidal protein Cry1Ca18 at pH7, from crystals formed in vivo

Method: X-RAY DIFFRACTION D_max: 170.4 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

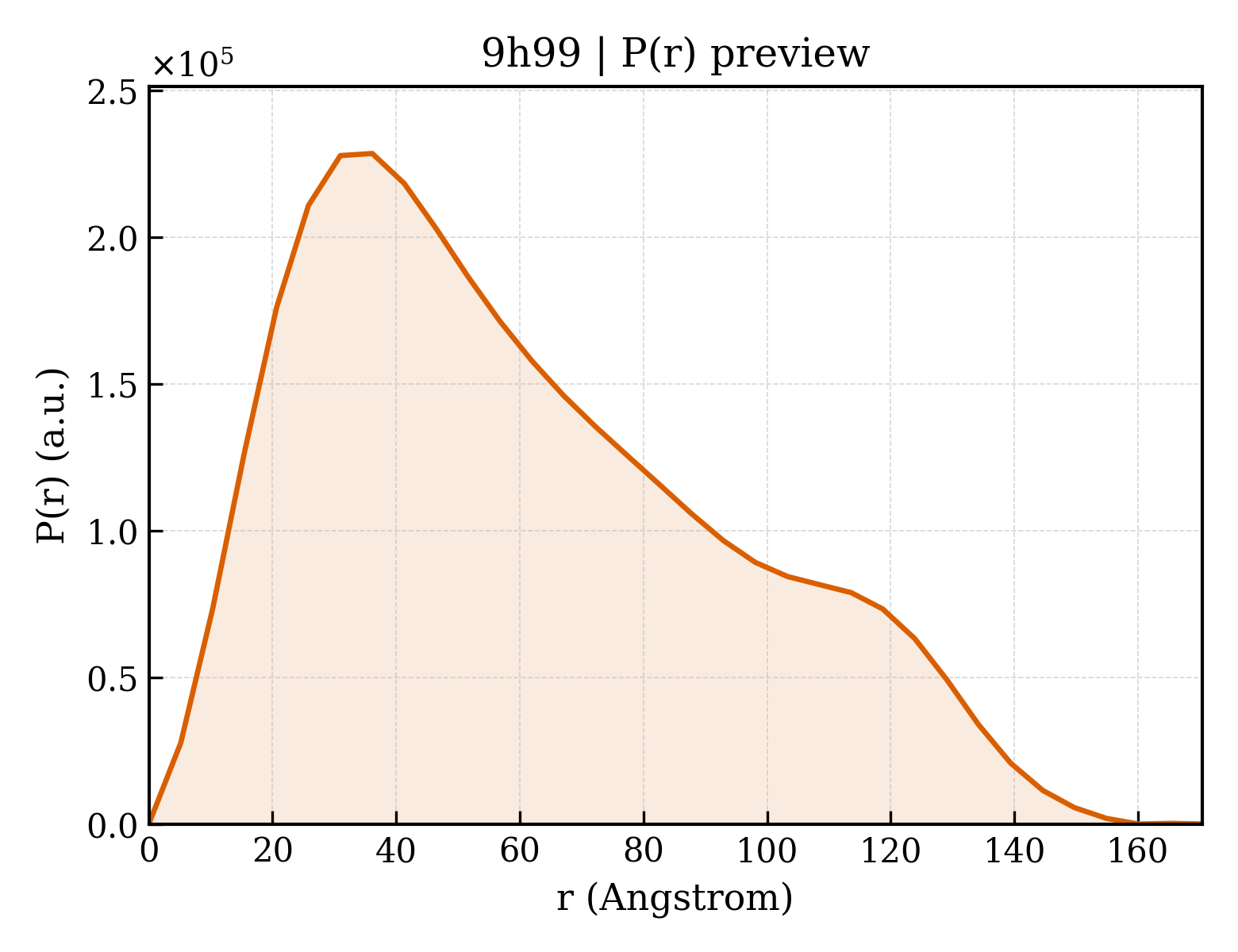

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9h99
沉积日期 deposition_date	2024-10-30
结构标题 title	Native structure of the full-length pesticidal protein Cry1Ca18 at pH7, from crystals formed in vivo
关键词 keywords	bacterial toxin, TOXIN; TOXIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.78 Å
回转半径 Rg (电子) rg_electron	48.84 Å
零角强度 I(0) i0	215883000.00
分子量 molecular_weight	120200.0 kDa
排除体积 excluded_volume	150220 Å³
包络体积 envelope_volume	220910 Å³
水化壳体积 shell_volume	42162 Å³
包络直径 envelope_diameter	171.3 Å
壳层 Rg shell_rg	45.58 Å
包络 Rg envelope_rg	48.33 Å
形状 Rg shape_rg	48.83 Å
总 Rg total_rg	48.72 Å
总原子数 total_atoms	8495
残基数 n_residues	1057
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	170.4 Å
Rg (实空间) rg_real	48.70 Å
Rg 误差 (实空间) rg_real_error	2.35 Å
I(0) (实空间) i0_real	2.1590e+08
I(0) 误差 (实空间) i0_real_error	4.5340e+06
Rg (倒空间) rg_reciprocal	47.79 Å
I(0) (倒空间) i0_reciprocal	215600000.0000
解质量估计 total_estimate	0.6743
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.553
峰度 Kurtosis kurtosis	-0.599
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15340000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.462; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.376; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Crystaline entomocidal protoxin
分子量 formula_weight	134851.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	9318

MEENNQNQCIPYNCLSNPEEVLLDGERISTGNSSIDISLSLVQFLVSNFVPGGGFLVGLIDFVWGIVGPSQWDAFLVQIEQLINERIAEFARNAAIANLEGLGNNFNIYVEAFKEWEEDPNNPATRTRVIDRFRILDGLLERDIPSFRISGFEVPLLSVYAQAANLHLAILRDSVIFGERWGLTTINVNENYNRLIRHIDEYADHCANTYNRGLNNLPKSTYQDWITYNRLRRDLTLTVLDIAAFFPNYDNRRYPIQPVGQLTREVYTDPLINFNPQLQSVAQLPTFNVMESSAIRNPHLFDILNNLTIFTDWFSVGRNFYWGGHRVISSLIGGGNITSPIYGREANQEPPRSFTFNGPVFRTLSNPTLRLLQQPWPAPPFNLRGVEGVEFSTPTNSFTYRGRGTVDSLTELPPEDNSVPPREGYSHRLCHATFVQRSGTPFLTTGVVFSWTHRSATLTNTIDPERINQIPLVKGFRVWGGTSVITGPGFTGGDILRRNTFGDFVSLQVNINSPITQRYRLRFRYASSRDARVIVLTGAASTGVGGQVSVNMPLQKTMEIGENLTSRTFRYTDFSNPFSFRANPDIIGISEQPLFGAGSISSGELYIDKIEIILADATFEAESDLERAQKAVNALFTSSNQIGLKTDVTDYHIDQVSNLVDCLSDEFCLDEKRELSEKVKHAKRLSDERNLLQDPNFRGINRQPDRGWRGSTDITIQGGDDVFKENYVTLPGTVDECYPTYLYQKIDESKLKAYTRYELRGYIEDSQDLEIYLIRYNAKHEIVNVPGTGSLWPLSAQSPIGKCGEPNRCAPHLEWNPDLDCSCRDGEKCAHHSHHFTLDIDVGCTDLNEDLGVWVIFKIKTQDGHARLGNLEFLEEKPLLGEALARVKRAEKKWRDKREKLQLETNIVYKEAKESVDALFVNSQYDRLQVDTNIAMIHAADKRVHRIREAYLPELSVIPGVNAAIFEELEGRIFTAYSLYDARNVIKNGDFNNGLLCWNVKGHVDVEEQNNHRSVLVIPEWEAEVSQEVRVCPGRGYILRVTAYKEGYGEGCVTIHEIEDNTDELKFSNCVEEEVYPNNTVTCNNYTGTQEEYEGTYTSRNQGYDEAYGNNPSVPADYASVYEEKSYTDGRRENPCESNRGYGDYTPLPAGYVTKDLEYFPETDKVWIEIGETEGTFIVDSVELLLMEE

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	809

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	88.160 Å
晶胞边长 b length_b	88.160 Å
晶胞边长 c length_c	266.430 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	36.190 Å
R 因子 r_factor	0.1835
R_work r_work	0.1816
R_free r_free	0.2217
