SAXSdb — 9h9q

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9h9q
沉积日期 deposition_date	2024-10-31
最后修订 last_revision	2025-01-15
结构标题 title	Candida albicans gamma-tubulin small complex within ring-like higher oligomer in complex with Spc72 CM1
关键词 keywords	;cytoskeleton, microtubule, microtubule nucleation, complex, template, cap, gamma-tubulin, gamma-tubulin ring complex, gamma-tubulin small complex, Spc72, CM1, CM1 motif, GCP2, GCP3, Spc97, Spc98, Candida, albicans, CELL CYCLE, gamma-TuRC, gamma-TuSC, yeast, fungi ;; CELL CYCLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.43 Å
回转半径 Rg (电子) rg_electron	66.56 Å
零角强度 I(0) i0	3516280000.00
分子量 molecular_weight	518730.0 kDa
排除体积 excluded_volume	656050 Å³
包络体积 envelope_volume	973490 Å³
水化壳体积 shell_volume	121870 Å³
包络直径 envelope_diameter	236.4 Å
壳层 Rg shell_rg	65.93 Å
包络 Rg envelope_rg	65.58 Å
形状 Rg shape_rg	66.54 Å
总 Rg total_rg	66.62 Å
总原子数 total_atoms	36618
残基数 n_residues	4486
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	225.2 Å
Rg (实空间) rg_real	66.52 Å
Rg 误差 (实空间) rg_real_error	2.85 Å
I(0) (实空间) i0_real	3.5160e+09
I(0) 误差 (实空间) i0_real_error	7.5160e+07
Rg (倒空间) rg_reciprocal	66.27 Å
I(0) (倒空间) i0_reciprocal	3514000000.0000
解质量估计 total_estimate	0.8609
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	65.7 Å
偏度 Skewness skewness	0.266
峰度 Kurtosis kurtosis	-0.605
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	237600000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.518

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Tubulin gamma chain
分子量 formula_weight	56228.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,G,I
原子数 atom_count	36618

MPGETITLQVGQCGNQVGLQYWQQLATEHGIQSDGSSTPYPKDINDLQLQELNNSGSSPQSYPQQTKPNGKYRNDHPELFFTLSDSNTYTPRSILIDMEPSVIAKSTSALPMFNPRNVHLSNQGNGAANNWINGYKYGTEEEETLLNLIDREVDKCDNLSNFQLFHSVAGGTGSGVGSKMLEVISDRYGHKKLLNTFSIFPSNEDTSDVVVQPYNTILTLKRLIDYSDATFVFHNDSLNRIENILFNNNSNIQHDDNDLFLGANKLIALVSASVSNPLRFPGYMYSSMESIVSNLIPTPDLKFLTSSIAPFSTQKHNYLNEYDMLLELSNDRYKTNRVSGDTSYISMLNYLIGDNLDQREIRKGILKSQQRISFVPWVARSVLVVHGKKSPYLKNTNLEGIQVTNNTSMIDVFTKILKQFDLLIKRKAYLNRYYSSVEEENEVMEMFNESRESVKSIIDEYKACKEITYLDDDDEDDLEDGGGNGNGYNNIDDADMGI

来源 Source

来源生物 organism	Candida albicans
NCBI 分类编号 ncbi_taxonomy_id	5476
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Spindle pole body component
分子量 formula_weight	104692.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,J

MHHHHHHDYDIPTTENLYFQGAMDPMNTFSSPPNVIREYNDSTYQSPLNSQFHQSPFLQTQSPDYVSLREEEDDNNDKNLDIMSSCIVDSVIYKSQKIAGPLLSQISNLNIQQALIIRELLFTLLGHEGHYIQYSKRYDPTSQISRIEGPDYKIAKNLDISLKVITKKLVKFGKFYSGLKSFIQVFDNNKFGKIVQKFCSEVRKFLSSYQQVLINVEHEFKFNKNFNLNMLDSLLHQEISNEMTHLYQIGIEISRITEERQKMSQAEIMGNFEPTTLANTSMNGINSEPNLYYGKFDCCKGGLLLQVIQERMVYYKGDPTSLDFLTQLFDIVSSDYIGMLNQWLLEGVINDPFDEFMIREKRVPDSFMEIFQSKSEYYWNELFLIKIDGLLNQFQNSTIQSKILNTGKYLNIFKRCTGLHNFESLKEKLTTITSLAAPDLELKIDEFYHRANKMLMKLLFDGYNFPSVVNIFQRLFLFADSFQIDNFIDSTFSELKRGKLKISVSRLQKQYDDIFKEKIENKVGVRPSVYDVLKKNQKLSVTSESLYKVVEELMEKNSDYLISDNNLRGIFHRVASLRDDSRLTISSTADSATENVKDEPTITSVDLTIPLPFPLNLVLNQQLSYQYEIMFKLLINIKFISKYNSSNWQEMNYSKIWTNSHFNSSVKKWILRCRVLHSRICSFIHELENYIVHDVIEHNFEEIKNLIHTTATNLATSELGSDINDEGDNIFNGSLIRGTFNNNSIFDSKVHKHRTTTYVEGISTVEQLIQKFLDYSSTLLNDSLLTREESLRQLRKMLDFIFHFNNYIVQVKKVLVLLNHELFNEYSKEFPTKFEKPMDQESIDKRFANLSDTFLMQYEKFGENLVTFLATIKQVGERENQGLLELSNRLELCFPE

来源 Source

来源生物 organism	Candida albicans
NCBI 分类编号 ncbi_taxonomy_id	5476
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	Spc98p
分子量 formula_weight	95318.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H

MHHHHHHDYDIPTTENLYFQGAMDPMALNKVQLIKLYSNRLVKSLVPVEFGEAFIQSIINDLQTTLLNTSSEEQNLSIIINKLKMQFLSNNLKNEWVEFQNIVNSLSKFKSLDQICNYLAFLDALRDEKPEDILSTSTASLSPGKQNVMINTVNTALTLSQLIEPYYDTLSEQTILTYLPYTMLGSDSKIFTFSNNYTRLEIPKDINNSFSSLLREVFEFAILYKQLAIVVDRYKGTLVSAIKTAYIAILEAQLNKYVNDINNIFNNKPNSILVVYNSIFPWISILRFLYRVSNRLNRLDGYEFLTFIYSFTNHGDPKIRGIAVTAFTEVVKPYYNIVEHWIVKGELIDNNNEFFIIFDQEQNEFNSIIKLLPKKIPAFIKSSDKIFQIGKTLIFLNKYCRELKWVNQYNVKYSAILFNNHQGLASMTTNEMIKLIDSQYNEILTFLTQIIQGNNKLFTHVYNFKRFYFMETNDFIDAIMVKGKDVFNESSVNISSTYLRKVLQDAIQISSVKNFEYVDRLDSRVLNPQHGNLGWESFTIEYKIDDLPMSYLFEGHQHLQYLKMFHFLWKLRQLNNLLNWHFEMFNELNHNVVTKLSSRNRRPLAKSLSIITSIRFHFTQFLNELIAYLSYDVIEENFQQHIVRKLFYNKNDQDLLLNKSFMNLSEIDPNNDLPKFNVNLLTIDELVELHGTYIDSIINSSLLNEKLKGNETNISYIDQIFNILQTIFNFINTSQEFYSLVCTFGLLVRSDSNANKIELEQDQEDLEFQLHKIKRKIYKDIYQHDYKRQLNDLKNDLNRDYNLKDLSKLL

来源 Source

来源生物 organism	Candida albicans
NCBI 分类编号 ncbi_taxonomy_id	5476
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	Mto2p-binding domain-containing protein
分子量 formula_weight	70622.6 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,K,L

MSNLSINESNDNSNVSILSNKSGAQSSTNSSPNLIVFKQPEDLSIQLQQQQQGTQEDTPEEEEEEEEEMEQITQLEVQQENQPDTLSSSPFISRPNSPLDDIIRPQGTSSPSLTIRDSYSSQVDINISNLHKSLNEMRLSTDPVDNNNNNNKVNKNNPTNSDISNDDIITIDNLTPSRIQPKNISPWRQFRPTLRGSPESTPRSLFQNKPNLKFNNGLSPTNGSRDMVTNNIATTTKSREEELNKRIVNYKIQLKLMKNFLQELIDRNNLDPHEFHTLLRRNNNNIMNNENNPLSTSLSQTSTLEIQHQNLQIELDEALELNKQLYNKIETANKEISDKDLQISNYESRINLINYSVDELIYILINEYDKNNYSHGGSNTTSPGKETLQQSISAQLEVKLNVLKLELMTRLDQSHQYNNKPHDLFTPPYTSSEYGVSTNNVANKNDLEGYIHIIEDLIKTVDELELTCENYKANKNELQNQLVEQINESIRIKNNFQIMSNKFNQLRQSLSEKENDKNLDEFSKNNHQQQQQQQIQQLEQKLIEYEKCITILQDELDQYKQPSDTTNTTNNNNNNNNNNNRSSYSSYNNHRNSSLNELNGSGSGSEQKLISEEDL

来源 Source

来源生物 organism	Candida albicans
NCBI 分类编号 ncbi_taxonomy_id	5476
宿主生物 host_organism	Spodoptera frugiperda

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	129908

fit	/app/data/saxs_computation/h9/9h9q/9h9q.fit
pddf	/app/data/pr_computation/h9/9h9q/9h9q.pr.out
profile	/app/data/saxs_computation/h9/9h9q/9h9q.dat

Candida albicans gamma-tubulin small complex within ring-like higher oligomer in complex with Spc72 CM1

SAXS 散射曲线 SAXS Profile

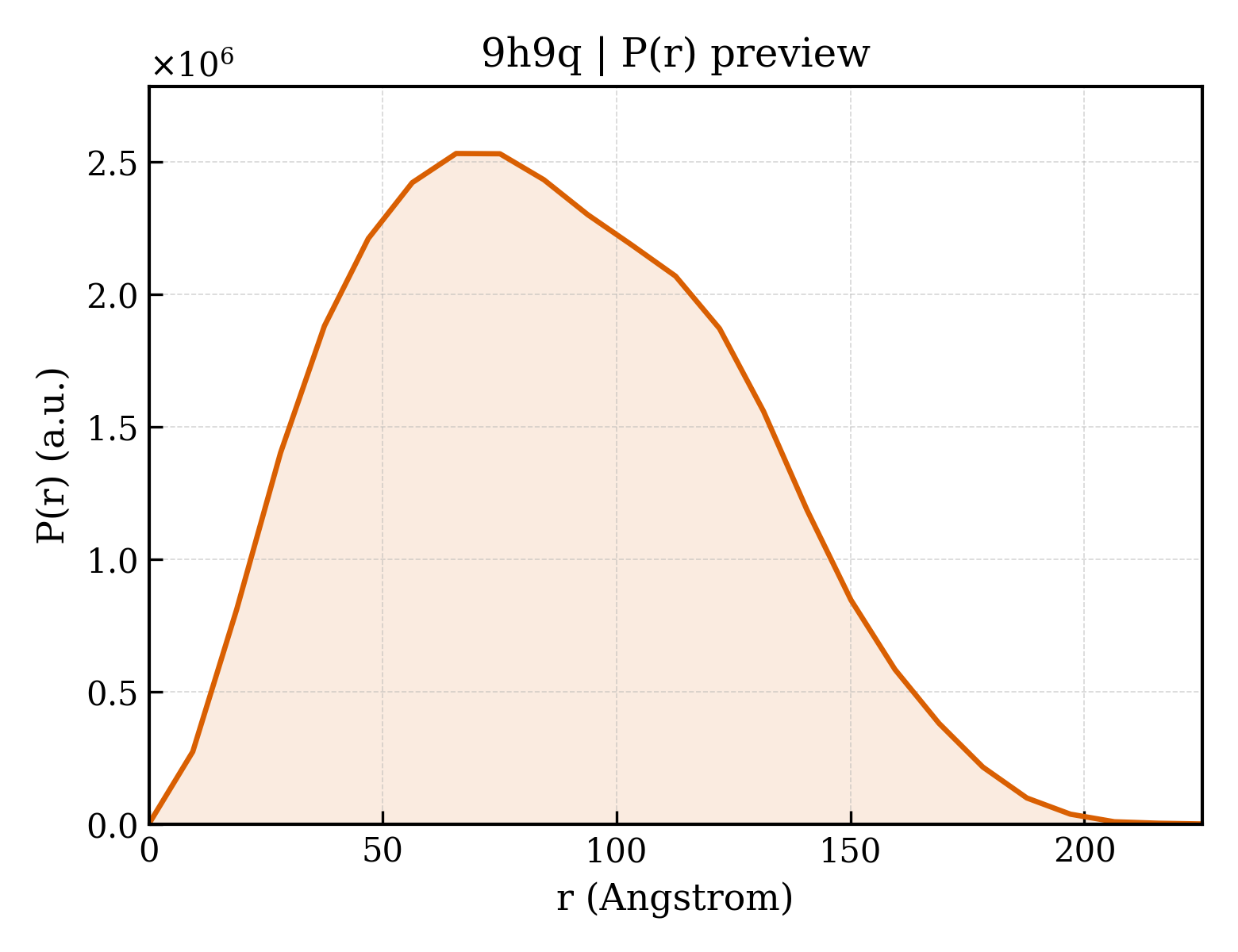

P(r) 距离分布 P(r) Distribution
