9hcj

D. discoideum nuclear pore complex

Method: ELECTRON MICROSCOPY D_max: 645.2 Å Quality: GOOD

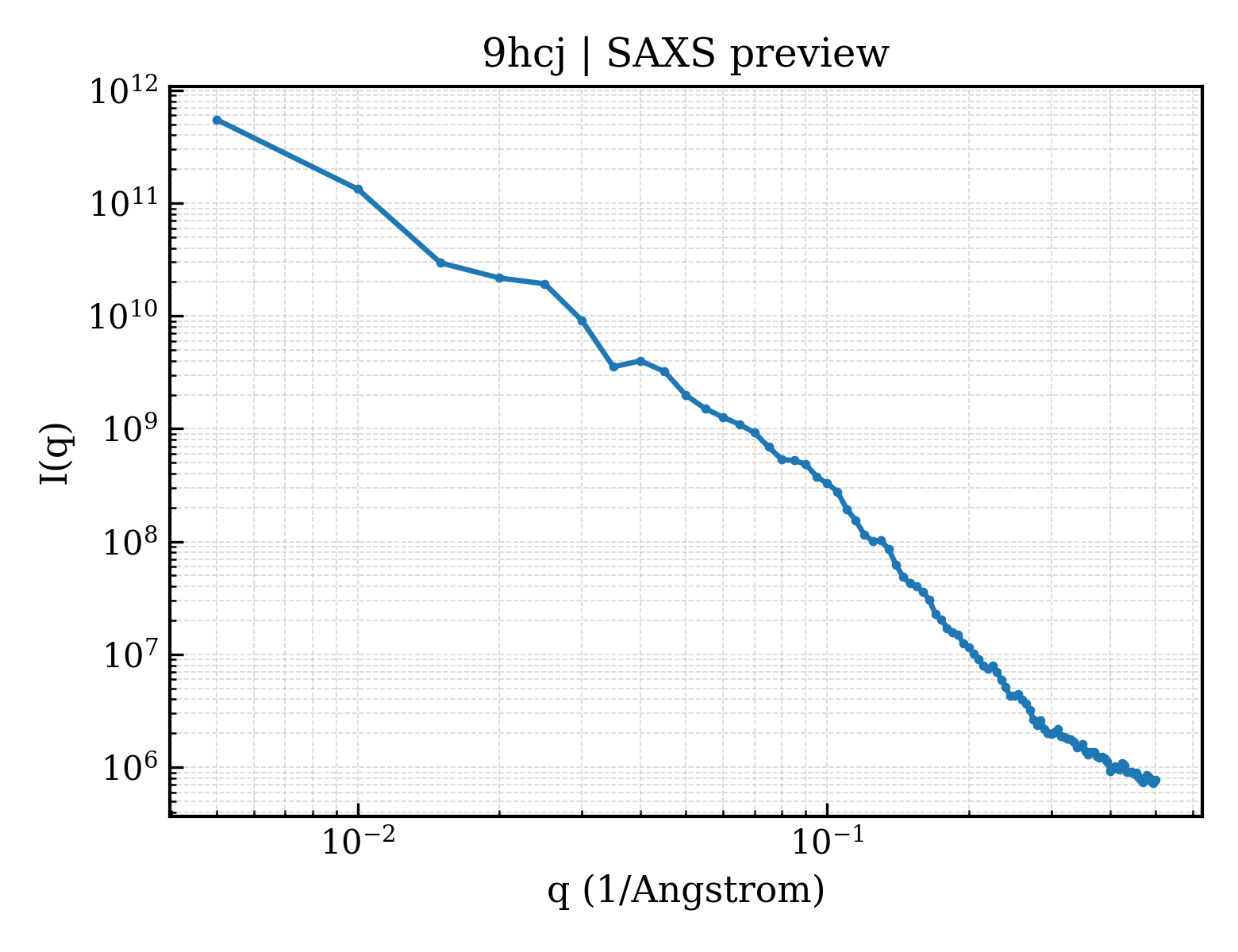

SAXS 散射曲线 SAXS Profile

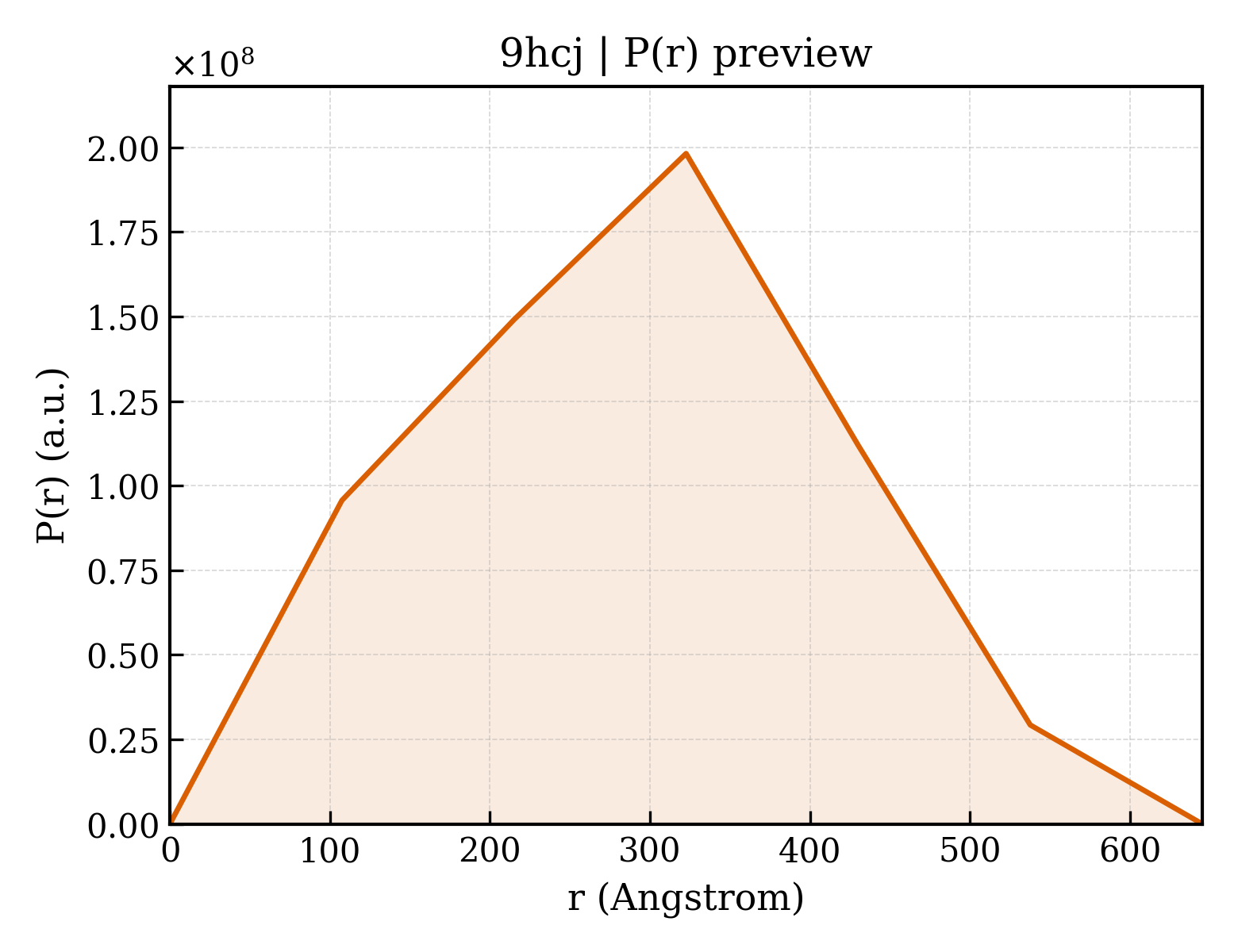

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9hcj
沉积日期 deposition_date	2024-11-10
结构标题 title	D. discoideum nuclear pore complex
关键词 keywords	Nuclear pore complex, NUCLEAR PROTEIN; NUCLEAR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	239.40 Å
零角强度 I(0) i0	889526000000.00
分子量 molecular_weight	8224400.0 kDa
排除体积 excluded_volume	10338000 Å³
包络体积 envelope_volume	35821000 Å³
水化壳体积 shell_volume	1271800 Å³
包络直径 envelope_diameter	881.4 Å
壳层 Rg shell_rg	207.40 Å
包络 Rg envelope_rg	226.50 Å
形状 Rg shape_rg	239.40 Å
总 Rg total_rg	239.40 Å
总原子数 total_atoms	579851
残基数 n_residues	71673
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	645.2 Å
Rg (实空间) rg_real	222.40 Å
Rg 误差 (实空间) rg_real_error	3.00 Å
I(0) (实空间) i0_real	7.8930e+11
I(0) 误差 (实空间) i0_real_error	2.6360e+10
Rg (倒空间) rg_reciprocal	168.40 Å
I(0) (倒空间) i0_reciprocal	549500000000.0000
解质量估计 total_estimate	0.8253
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	322.6 Å
偏度 Skewness skewness	0.085
峰度 Kurtosis kurtosis	-0.722
角度范围 angular_range	— – 0.0300 Å⁻¹
当前正则化参数 α current_alpha	2.4850
最高正则化参数 α highest_alpha	11040000000.0000
实空间数据点数 n_real_points	7
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 12.960; Oscil: 0.997; Stabil: 0.916; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (25)

Entity 1 polymer

描述 description	RanBP2-type zinc finger
分子量 formula_weight	392613.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	00,01
原子数 atom_count	579851

MSLPIRNSIKRYKEQLKKPLFKNEALYQLTKLYLSLENEINENELDECKDYFNQLKQSGVLKESQKELKEITIDFQTITKQYDLAEQSLQSAIKSYPDNLNFLLKNINLLSINKKYYEFFKSIKDSKIKYQRDLKYLNFIIKQIDNVAIKAIKESVEEIQANTMLLNDSMSYLNLITLKTEILDYIIRATIHNNLVSSNSSGSIDDIDDIGDYYGNNNFNQKLTRQLKEFKKQVKKIRELVSLYKEPITLSPSLEEFNERYFFYKGILIDYEYSNISNITTSISNIKNRQNPPFKSYLKSLQKDITKSSSSNMLEPIVKLSSEVSRQLFYSINRIIGDGNEIDLKLNFYASLNNNINMNLNIGDSGMYKYLDYLVSKFNSVSSPNDTDQLDTLFIESIEKNDFQYLLNNPLEFQRFISFSLWHINKTSSYTTLICWLDKIFNKFINRINFELQQLSSKSSSSTTTTTTSSSSHITLLHIIVYCINLIFETDYQQDYQQQQKQQQQQQQQQSYQLSSLEVYLDSTLNVPFLRNSLPWKIWNSMIYYSNLKPSSKINSTEIFSITTLSELLNGILKNGDHLHPLTCYKIAKDLPMITQHYQNEVDLSQTDIDISKIQATYYLITLRHITYLNQQRQQQQQDNNNNNDINNNNNNNNQIIQDKNFLKNIENTCNHCLSDLYKDKQNLKGALQYLLKVDTPIAYVETIYLCRDIIYNNKSNPAYTRPVIQSLITLMNQVWNKCQDFNANDLDYYQVDHDEYLNDIDASLEIITKLKDQYNFYDVPSTPSSSSLYTTPTKPTTVVPFSSIYGNNYNNNNNNNNNSLISSTPQRGRLSLPSTSTPLKVSMLSNSPNKSNNNNNNNNKQIQQSQQNKSDLPKFNVVEEEEEEEEVDINSFKDVFLQRRKERAELLKTLSNKRKALVCPQEFNKPLRSLDYVPPEGTVITKPTVVPTTTTSPIQTNSAFFGTTTPNSLLVNPVVPLPTTSTSPPSLFGVTTTTTTTSPTSLFGKTNTSPSSIFGTTPTSTSTSTAPLFGTSAPTSSLFGTTASSTPSTTATPATPFSTTATSTPSTTTTPATPFSTTATTTPNIFGSTLTTGLFGTKTPTSVSLPQSISTPTLADKTIKTEESTTSVSPPPPPPLPTKSNTPTKPATITPTTSNATSSSSSMSSIFANASVNASSMFGNTSSSSSIFGTPSSQTFGSISSPTSNLGSLFGGTKDFKPVETTTITTATSPPSISENKSTTTSDTNKPVETTTTTTATSPPSISENKPITTSDTNKPVETTTSNTLFGATTTTTGLFGLTKTSNTATGISLFGNSSSILNSSLLSKKDGSSDEDSDEDSDEQDSEEDSEEEKGKTTKSNSSLQRKKNEVSHKKDSKNRLQTLKDKISKKNNNNNTQKDIIKPQQQKQQTSQSSKNLSDDDQDEEYESQEEDENQDDDQANEEYDEDDYEEEDEDYEEDEEDEDEEEEEEEDYKEDPNKPKPTFLFGTSSTTSNPAQTTTPTTSTPTPSSSIFGQPPTSSSVFGSKPTVFGSASSNSSSVFGQTTTKPSTGSSVFGQNSSSVFGQTTTPSSGTGVFGQNSSSVFGQTSTGTGVFGQNSSSIFGQSNGVMGSTSTPSSTSIFGVKKSDELTKKTEESVKKTEESASSTTPSKLIWKCLCCENENSEKEKSCSVCMVPVPKNVKFESPASESNTKPSLIAPTAFGSNVTQTSTPLGKLIWKCLCCETENLEKETSCSVCMVPLPKNVKFESPASESNNKPSSLFAPTAFGGNAPPTTSTAVESSKLFGGGGITFNAPNIFGNNSNPSNLFGSGNNNSSSLFGGNSTTNPPPLFGNKSDVKTEESEKKAEASTPSPSTTSGKLIWKCLCCETENSEKEKSCSVCMVPVPKNVKFESPASESNTKSSLFAPTAFGGNAPPTTSTAVESSRLFGGGGGNGITFNAPNIFGNNNNPSNLFGNGNNNSSSLFGGNSTTNPPPLFGNKSDVKIQESEKKAEESEKKANESTPSPSTSTPSGKLIWKCLCCETENSEKEKSCSVCMVPVPKNVKFESPASESNTKSSLFAPTAFGGNAPPTSTAVDSSKLFGGGGGGSNTITFNAPNIFGNNNNNTSNLFGSGNSTSTPLFGTKPTETKAEVKAESKTESNVEETAPSSTSTPSGKLIWKCLCCETENSEKEKSCSVCMVPLPKNVKFESPASESNTKPSSLFAPTAFGGNAPPTSTAVESSKLFGGGGGNTFNAPNLFGNNNTSNLFGSGNSTSTPLFGTKQTEIKTEVKAESKIESKVEETAPSSTSTPSGKLIWKCLCCETENSEKEKSCSVCMVPLPKNVKFESPASESNTKPSSIFAPTAFGGNAPPTTSTAVDSSKLFGGGGSNTITFNAPTLFGNNNNSNPSNLFGSGNNNSSSLFGGNSTTIQPSQSLFGTKSTETKSDDPMSLKEMSNTIQDNDDQNSDSESHEELESGSEEEEEQQQQPKVTLLSSSFTPPSFAPPSFAPSSFAPSSFAPPSFAPPSFAPSSFAPSSFAPPSFAPPKPENTSTPTSSIFGSFSSQPSGGGISAFGPVSSNSSSPFGSGFGSASIPSFGQSQVNPLTINPTSTSPTAVFGGSTTSQFSSSSPAPIFGSTATIKTFGDLSKPSLSNNENKDQTSSSPSKPSPSPSNPTFESINKEKESVEDKNQEKDELKDEKDELKDENEKKDENEKKEETVESDKEKEKEETLEETKQSIESDKKEEKKEEKLEEIVQSDKEKEKEETLEETKQSIESDKKEDEKEEKLEEIVESDKEKEKEETLEETKQSIESDKKEDEKEEKLEEIVQSDKEKEKEETLEEIKQSIESESDKKEDEMEKVFSRIEETIKPNFFSTKEDEEEKGDELKDEKDENENEIESDNEKEKEETLEETKQSIESDKKEDEKEETLEEIVQSDKEKEKEETLEETKQPIETDKKEDEKENETEPEKHIDNEKKDENEKKNEDEKKEEETVESDQEKEKEETKQSIESESDKKEDEMEKEFSRIEETIKPNFFSTNKDEKDQETKEDNGNSDNNIDQETKENEKASKEIQDEEEEKEKEQEEPNLSLLSMDPVRCMSLSGLPIFDQTVKVEEEIEYEKDDGDDDDDDETIEKDSSSTTTSTTTTSTTTASTLTPQKPLFAPSSFAPPSFSLPTPTIQASSIFGSFSSQPSGGGISAFGPVSSNSSSSPFGSAFGSSFGSTTIPSFGQSQVNPLTINPTSTSPTPVFGGSTTSQFSSSSPAPIFGSTATIKTFGDLSKSSSSNNENKDQPSSSPSPSKPTSESTTKEEKVDIVEDKTDKIEENKEDSEDEKVITEDTNNQSEIKVEENKEENKEENKEENKEENKEEEKEEEKRIKQQQQSIESESDKRENEMEDKFSKIEELVKPDFIPCKVEEKLSEEQTKENIDNNDDNNTTSSIVVQENTTETISENDNDQSIQLDSNKQEIKKSIESESDKKEEVMEKNFTEIENLVKPNLMNSTQEEQQNQENKVEKEEENVNKTEEKEEDENLEKQNQTIEKENEEISELKDIQENNENNEESSTSSDGEESKSIKDVDTSYDDVD

Entity 2 polymer

描述 description	Nucleoporin 210
分子量 formula_weight	212799.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	10,11,12,13,14,15,16,17

MIIINKNNDKKSLFLLLVSLIFVLFVSNVIADTDYAISPVSLLLPYSTSKYRKPYKLEANKGCFEWINTNPDLVEITPLYESAASCSPSSNDKQQNIGAPDLSLWDNSLNQPNKKCSKAVLVSVRSGTVSERNSAFIYAEEQVTGKKLQCEVFVDRISSIVIETTTKTMYKDDLEELHVRAYDSVGNVFSSIIGLEFEWSITSGNIIQIVPFRGFPLDDVALKMEQESLQTSFVLVQGVDTGRTEINTKLTEPTYKDIQHSTTISILEPLQLNPSYLLYVIPGTQIQYQLLTKKRNILENIPLPNPNYIWSSSNSKVGKVDNSGNFMALDLGRTDLKVQHKNMSDNKVQAFVNVVHPSYLAIKIEPLKSGLGPVSNWNLIENRDYILVVELYDASGHKIHSSEITFDLNIPTEYFERLPSSQIPPNTPKRSDTFYLKAIKQGLVALKASLVKVYDLNLKKYTQLLNPISVEQEVTIHSQIQLSPPIVYLPYLPNHRQYSMIRPIGGSGEYNWYTNNSAIVTVDPTGAITSQTSSGQTEVIVVDKKNPHNRDKVLVIVLQPDEIIITPSQVEVQVGQTLKLSTQLLSKQLSKGVHFDSCNLDDLEWRVDDSNANNDNNGGGGSNQERSFSLLPLQKTNTPKKEQPDLCSTREFLAIKEGSNVISVSYMGMRAKILIFAYPPLKSDQSEILLTLGSTLNVFFSGGPEPWHLERKSHFQSIVSNLTNEQNVLSIVPGNGNSFRVTCLTHTNPSKPIGIELTIGNKVTTTNPYPASPSITIPYSCRPPASIQLQVANLPKDHQIQDSSHHQQIQQQEQQQQQQQQQSTCQDTIFSIKKQKQGEIGTYKIRNDRDIPFIAQVFDDNGKPFTNYSSLVFDWKSSDQTQAKWLRDYNQNDHLSTLSLSKEQGKVIITVSILGYDQELLRQNKIRSSDLDTSKLVSSLELHLLSSVVLFPDYYTMYLNDKNHLKIEAIGGSKNFAFTSNNSKIASLSYQPNSDFVTVIPNQQGYLKVEVRDICLGSDNNKDQQQQYQQKQQKHQQQQQSNTSPSIVQISEVHSIELDVQDMVQVGDSINLIVKGFSQNGQQFDSTQYQYMNIIPHIDNPNVLSMTQSSDSQVFTLKGLDQGLVTLSVTIQNPKTSFSATSKTIQIQVFPPFRVSPSVLHLVPGGHFQIHWTGGAPIRQDVSFVSSDPSIVNLSGREDLVGELVALKVGEATIKAIAQIVDPITGKKTIIGEDKLMVYVKNMTGIRIHSSINKILVGNEAKLRVVGANGETPFTYGTVDLFFKWECLDSNIATLLPIYERANTTVEAEGSFSVRVMGKNAGSTSITVWAYSGGDKTKHLFQAASLQINVIPDIPIQTTSLLLPLNTPSSFIVNNHLDKTGIEFYPLMDGHGSSSCKDVIDIGDNKIVSLDKIGTCYVSAVRDGRMDTSKLFKINSKPFSHLELLPINPTSTVIPIGGSMSFAIYLRDDIGEVFTEYGSSAIFSSEVSNTGIISSSIDANVVTIKGIRAGLVTLHVYLKDMPHLDDYIKIFVGRLVEPHQPILHVGSMITFSIAKDQLEQRGFSLPSSDEKVWSSGDPSILQVDPITGKATAIAAGTTTINYIRNPSSQTQVVISKIGRIKVDFSDQIINNSKKRYEYNLKFFTAGSDIELSQDSTIDQNIKGICTIKESTFATAFFEKVKGKEQYRCVVQPSGVATSSIDKVTLYVEVSNAHKTYQYDTTINLPFESTFSIINVRDNKIQLSPRQSTFILNIQSSSPIFVESSDNSLLSVQQISSSGGDDQLNNLYKYAIQPMSVSTSFQNVPLLISSADGKSKTTVTVSYSKSGSTTSDQNTSYVESSTINSHPFLFSFIIIVGTLLIGLYASKKHNDKPRVYINPNSNLQTSSISSPYRTPPPHSFTSPNRSTYGSSSIYLNN

Entity 3 polymer

描述 description	WD40 repeat-containing protein
分子量 formula_weight	54003.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	40,41

MIEEHNCFEEFINTAAIGEQQVYGEYKSKLDSFTDESKLPYELLLERKNLVELKISDEEYKKSESALKTPNPTLLQKFQINFYQTIESINQVFKPSSSSSNQSSSSSSSNEDDSLQNKKIKVMSWHPQHRLLAVCNKNDVIYIYYFPNQDMYGMGNVRPLTLWFELQSKVYDIQWKPFLPYTLAVACENGIILWEIDISDLKVELKRTSPNYRINQSSTCANILNYPYFLSNTITWSSNGLQLACGSTNHSSILLWDVVSRVPTFIPRYNGNSLLVWSPKNDYLLSCGGKTCRIFDISKWDYNNKEWPMLTNYQTGSWNGKGEYLAVASGDRIQFIQCINRAFESGGELMYVEKTSTYRLQNVGGSGGGSSSSELFLGGHIKKIAWSPDSQRLAVIFYLNSKSRNNDTYCAIYKIKTYPKFSVTPRGFIRSKDQSIQSVSFVPNYKKGSLLSIAYNDGTIKFFPLLYQYKQ

Entity 4 polymer

描述 description	Nuclear pore protein
分子量 formula_weight	113070.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A0,A1,A2,A3,A4,A5

MNVKEMDFNDLSNKSNQIINRISSFSSPIGLSSFNIERNLQEIGDTSKQLNDLTSSKTPFSNPLEPNVFQDSKINRKYGLDPKVLAKNLSNINTSSFTDVQSVPTDIDGYLKVQFENIILNTICDIQKKTSKEFQSHYEQTSIHDWNRDKKYLEEILGQKHIKVLPSVGGASASNQSSSSSSLFQQSVRGGLSSSIMGQSVRPTYGQQSQFGGSSTISIGGNISRVGGGSGGGIYSQRQTGQNEDRTKLSDKMKKYASIIEEYDIHMADQSKSYGFPLVHRLMDACLSTDINIGGGINTNTATTIVTHVWNLLLTLTSEIDTTNYIQQLKEQQQQQQQQTPQLKEQQQKQQQLTELQKHTKYHTKPTMAQLLKRSISFLETQFSQVIESRLPKHSNVSLPLNIIVAYIKSLNQSPLTDSSDEIYEGCSIWCIIYYLLRSGYTLEAYQFALEKCGSRYFDILSPIFKEKQQQQQQQQQQQQQQQQQQQQKSSLPTTTNNTSINKDQRDRMTREFNTAKTESKDVFKISVFNLLSCNDPNSTKQQVITSIQDYIWWRLNFIRERITIEPTNDSAISLLESLQNDIKNSIEKNRNNYETLEIFQLLLVSLQFEDAIVSLYQFCPDDSLHLAIALDYYKLLRTSNSGINNKHVDEINKFNKSTTNTNTMTYQQNQQQQQQQQQQQQQEQQKEIYDQTSKSIHLVEMIKQYTKIFSFEENREAFFYYLLIADNDIKIQEISELVVSSPNGFKFAHELSLFSEFINKQQWRTIIEQSALELENKNEYQSAIEFWIMIEEYPRVLEIYNSRISVLLTSISSERDQLYQFGKQLFNDYQGRLKTTSTARTSYLAFEQLLKLCDFFDLYNKEKYQEAIQKIENLEILPISESEIDSKVQDYRFLSPHITRNFSSIIQAYVDIIVKQYHLLNNFDEFTNRSALFAGRKQTIQDLQSRTQCIALFAGKIDFPMSGNILPRLMNLFISMSN

Entity 5 polymer

描述 description	Nup188
分子量 formula_weight	249094.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B0,B1

MSNTGGNGNDNAAPSLSTTTENVNGNDDTPSSNLTINDLGGSKFPPQPKKSKQQQQQNITDRLSTFSNFFEDEKLDKDDMKLEFDKIEKKLCDIFETDTIPNNASKDQITSGKIKIKGEEITISKEAQDFTLELSSLLNLDQILTFILIREYLTNNNNKVLNYDKSELFNLLDYYYNERASLLCILGSIIKKESSQSKYSSFLKPFIEKNRASIESRLLSYLISFYNFTIPSNLEELQQFYCSSIIKEQLIIVETLFSYNYLKVKKSGNCSNSSSNMNDVNELLIILKKINQLQIGSYSDQLIGILNSMKRNSEVIQWLKRIEYVLVLLVFCNNRDLLRHESLQQNELEIINTITTLSQSIHYNAPLATSLFFTIINLFISTSSSSSSSSPSSSSSVNFSNSLQQYFTKASSQYDPIDYIFNCLSNGFNDSTYLAGYCDCIHIFLNRFSEVISLTDVSEQHVDRIIDIYCMLHEKGGEVLSSILWSERSNDPVYQFSISPDCLNRNPDRVLSILKSIIINDTSSQAVFNELILININNQSSSKQIISFNDFNKVKEVLDITNDDGNGTISGVMKRDIISQSFRLYKSQFKSFSVINDGSGGDGGIEIVFTLHDLIIDLVAIEFNSFLDSLGQQAFFDQRTIEVSKAYIVVLDLISKLVNFTPDSYSKYFWQLFENNRILESIIQVYLRLCNQQNFTVNSIPTNINIKESNGNGGFQQKINKQQQQQPTLMSSYSTAHYNFNIITNVITSILSLFTSFSKMNPLPILNLLIEKGIWSSSPTVLISLFKRGSFNHLYDVEKRSSTTSSTSSTSSSSLSSSTFPLTKSIVKLFNTFINPLNQFEKCIDRSQYIGYLESFISFHLQVISDYPIISGNNNHNETWEMISEIFSALDFILNKSQSRNSILKSLAFKIICSFSGGILQCTLSSLLDLEVLQNTNKSIDRTSSIDNILKSSLKFSKSILSTIYLSIVLKRSNKINNNNQNNDNNNENNNNNNNGDNNNNNNNNENNNNNENNDNINDNNIENYENEYSNNLVEQFLTTFFIVKQNETNLLIDQEDRNGLTSTIVTNSITTETITSKTDYNNLFIVLFNYINIISDCQDIQILSCEILSSLVRILRVLESNFSVSTLFNTDEPFILMIEKFSKKFIINNNEFDVWSLQLKTNILRLLVESSTNQIYFINRLLNCENNNINNNNNNNDDSGGDKKNKSFIIKLLLDRNVSINDNSEFSLALFQLVNNLYCNSIYYDSFVDQLNNTQDFWNLLLDMQKTINEEEEQEEESIINEELICKKLKITYAIEILSLSVLLSSDITTATTTVGNLVCSTLSNNKWNEIFKNNKSGIVNMINNYYFQFIDLENVFPIQKIRDYWMVNNLPSPDQLQTTIAYQYFPNINNNIPIVELFAIDTIIETSKQFNDQYYLELLIQRNLFELLTTTNLCLSRAFSKLFRVILMKQPQNFININGGSGSGSGSSNSGVPLSTILHTLVDKATSIENQSIKTLVVRNDILMFLCESISTASHLWCKSCPIESVDIEILSKLSNLLAQCSSNPILGHSISYHILTSILILVENTSQHQYIEIKVFNQLINTLSLFITEPHFRVPPISSMDGTTTTTTSGGNVGEGKTINGKQKKPLPSICNLSIYLLQVLIDRLDPNALIAAFPNNLLENLAKLLKNSLNMVNGNQIDNITASSVLNLLISFCKQPLVSEQLLDNRIIQLLSDHSLKYLQFSMDPYLASTEISAATASIYGGINYYFHNNDDDYDNHRQFNQKKNKWHRVWTLVIKFLISVSKPLESSERFIEQLSNFILSHKDRLFYYFDLFNEFGATQHSQYFTKQWFQQLEYITSLFSIFTKYTKRYYLSMNIYREFLSLAYRLLVSISIQCSELNFIENNFIPITKNEKHKNLVQVKEFIDDSQRLQQQQLQQQQQLQQSQLQQSTPYRTSHYQQQLLQLQQQLQKQQQPQQQNIQNSFFKFSIESNYTHIINNCFTILIRINEYVRSSNEFVPQLTIYPNVATFGTFGQLSQYIISKLFQISNVVDKLSRNNNNNNNNNNNNNSSSIYNNLEDQNSISVDELLDLNLYKTKIKQTLEKNTLLLILYAKQTPPSTSPQETLRENQVNNIITHLLKQQFNNNNNNNNFSQNRTPLKNNNNNLNNNNTSENDENDEFLNFLSDLQRVK

Entity 6 polymer

描述 description	Nup205
分子量 formula_weight	218896.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C0,C1,C2,C3

MEFINSFNLVMSNIFDNHNNSSIEFWRICEQINYFQNLWFRIHDDLIISSFKLMGSLARCNTNEVFNFFAQGSAQFTWAKLFQNFSSYAHALNSIEFSQSIQSNQMNSSTTTTQQISSTPQQHQQHQQQQQQQQGYNNQQIPNTPYQQFQPTMQYQGQQSSMQQSVGQQQQPQQQPQQQNTPNTPNSTTSSNTANTTSPVKITQLLLSEKDSDALSSIFQLISRLVESSMAVGNVFLKIGPLISLAFQFAVSQVDSKLKSSALSVITSYSQYPIYVADIWRLINETNLFNSGLSAIGGLNELSFTQQSLELLLQLIQQSSFLFDKSNHYQESLKLKSYLDSCMDLFNLLNIKSFNTLDEKWKFALTLMKIFEFSIIQFNQSIQNFQIDKQHPCYQLYIELNRSSLSSNLYQQQQQQQNKYQQQQQQQQQSKKTTLENIIKIIDYSNDQSILIQQQIQQQQQQQQQGYNQDSSRVILNLVFQQLQQQDNDDFNLLVLKCLDLLLLISDNTVYDIENAKSLVVNLSNMDYSRPIVSIAKLIDHELPAISLRAIRLIYSFECYTHQISTVFLDSDPNLILSKFIKMMEFNESNFEDFSGTNYDQTISFIRYASNSVQWTIAQLIMLCLSNISSGRYTLAHFLLGCSSNLDLSKDFIPNSKSCLTLIIKNVMNSQFVERYPHLVDCYHEIIWKMSSDPITWKPMIKYIQEEFPNYYHDSLLILRNAITINGSSERRTEALISSMSWVFKTCSISIQNSYSIEMKQFLTRLIFPSLMNLNQPSMNGGIGGLNGTINNGLIMGISPINILSLYNTIEFQLPEINRPRIFSMYPNLIEYFTTNININNLNSNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNITNGGTSQLLDIIKIREVLKNDFNRFSNEFEIERELEECCLINSSIQLYNSKLKALDGWKSFINISLAQNTIEIDTLDESLLLSLLQRIVIDFSNERNPIESTLSIGYTILTILFTLKLKKDSYQLFINSSLTTNSTDSNVIEQKMKSIFEGLLQTVLKSPHQAIRGISYTCLIQYLDLSATTPTTPSLSPLSTSINNVVEMNNKSKNKNNQDKEQGYGNLNIGLIISKIEDKFIRILSSDCNSFSRGWRITAISCMQSILSIDNLCGHRSLMFLQNKGFIINMINDTCSKYLSDNWENIDPKDLHVYKSQMSLLLKISQQMDGVHLLMNNNVIGSFVKSPFLNYIPTDKIFGKFIEILLPILQLFASLCCYCNNTSKNNGNINNNNNVGGTVLIGSDRNEIYQELFDFLSNHSDLFIIILSDQSSFSHPTLSSLKVLKLTCFLFSKVSSLFFKKSTTTSSSTSTTSSHNRTQFNRFHYCLINLLVKYSVNSKQIIELVKPENIDEELLTEKIDFSYLPKSSIENQFKNIPDDINIGGVNIGLTSKNSNNNNNNNNNNNGSINGKKSKRKNQFQILIKETITSIIHDLLLYCRKVSIVQDSNFGFVCFNSNLNIYQQFQSFSSLRSTNRNNSNNNNINNNNNNNSNNNYNNNSMNSDMDNDDDNIINNNSYKFNNKNNNNNNDNNNQNKNSIFGGFGVNNSIINGNNNNNNGNNNNNNGNNGVNILPSIDLAINILVDNILQYSFYKVDLSQCFKLLQSYDQLTNYQYQEILQTGEDYPAFGPTQRNHMVENILKEKIIDIETQISIIHENIEILLLLIVSHSFYFCNSLYLLFQNSNNNFYSSAIGGTISPTLASSAYYPTTQQQQQQQQQGGSNLKITDLNASTTTSNIKKNNESAFLSSKTNQNSGGMLSSVFSYFKGQQNNTPSAQVSQIPINSTPYSTNYATPHQHQQLLQQQQQRQQQIQQQINQTPSNELSPQEIEVFLKRLKQSIFEREVNQLGGKLSDVILNQIDKKSTLIDLLLKKLQDLTK

Entity 7 polymer

描述 description	Nucleoporin 155
分子量 formula_weight	181416.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D0,D1,D2,D3

MRQSQLYPNLGYNNQNGQFNYLPSPEQQSIYRNNIQTPTSGISNNLFPLQSQQRIIQPQYHYQTPLINNNIINNNNNINNNNIVYQQDQQTQPQAQPQQQPQQTQTQSPSQQEKEQEQQQQELKEQQQKQQQQQEQEQQELMRQKKTNSLLSITPFNKEEDLKKIFLNSIESIDSSIDKVATIPDPTLKVLYKRDPGFNYFDGGSYFWSTLVIEKHIELPQEITNGYLSTSTKSLLGLFPEIGRAWISIDQTLYLWDYRDSGELISHNLSQIITNCALIQPKKNTFKDAVKKVMVVCTHVEIFLFALCYSNETKFEILSTLSIPSDNIFITDIVGTKEGRIFLSGQDGNIYEIEYSKDNLFWFSNEKIKKINLTQTFFNSFINLSKKKEIIQLIYDEDRYLLYSLSKDSTINVYSLGKIGDKFEHLKTIYPINDIDSLFNNNINNNNNNNNYYSQQYQYQQQQQNQQYQQSQYGQQQQQQQPNQYGQQQQQQQPLQQQQQQQQQQQQNFSRKNMVIMSIHISPKETEFNFIAILSSGERLYYTLNRLAYIRSPPNNVDNNGNSNIHYTYYSNGVFFTASEVSDQEDRLVGTTLFGNDIIKSHYETSKSGFSNQISQDTLSEKSNLFSIRGRVSVIKEDIVNDGKPTVYYKELSNEHMNTPRRFLCLNSLGLHFISKLRYVDLLQNILSSNNPQDIDNFFDAFGKIIASSLCISLYCSSPHSSILLHDQVYSGISIPKTTTTRIADLAMTFLRRKSGKPQYYQPVVIQQMFGDMGAPVNKTELMYSNAYNGLLAYLARVLYPLWNQSVVTSAGCSYWSIVQLQLFQSHLSNLLSFLDISQLIPKGQEIPIIKIATNKTSSTTTTTTTANNSSSNEIYGEDEAIKNEKRSLIGLKNIIVKSIQILNLFLILSQYNFKQLFDSSSIELDIKRKIDLLKFRDILNSDILGKNLPLPTISSLTTSTTTTTTTTTTSTTSSSSSSTSPLTTSTSNSTLTLLIDSLMKTLNSHNINIDQVSNQLETECPIFFKKENRELYKVKEKLNMVLRDGSTYFTDSLVKDSALILDSISPNYNLSEIVDLFIAIKAFNYVTPLCLQYAQDLDPRGITLIPSNNPSDEFKLKLSQKKSTFQEIIKLLNFIQSDNNNNNNNSGGGGGDNNNYNNTFEIIDIIIQQVLVCQDRLAHEMIYSWILNNGMTSKFFEINTPFITEFLFANDIDLCWKVLAKHQELLKAVHVLFQIAERSTTLDEKILAYTNCTMILSEQKDEDAYIQAKNQITFANIQKQIVLQLENYLNNPNESNNRNNSSNNNGGQPFDINQIKESISNLNKTIFDITTLFTDYARKYYLHEQMLYLCHIGNHSDQNFIQILWKIIIDKEIPPPSSNLSLDDNAENDDGLKISVGGVIESLVSKISNIGYDFYPNEITFPVEFIINYGERAIFNFSRNKSEAEKKEISPNWLTSSLHDHVKIDYWILVDYYNNTIEKGSWKEEDESLIYITSVYFYLVESLINTIQTATERRLFSSKQILQSLENRESTFKSIFNRQRSSLNQETIKKLEQLLIKFEKIISISKSFKDFRGY

Entity 8 polymer

描述 description	NDC1
分子量 formula_weight	78487.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E0,E1

MQSQPQQLQQQQLQQQQLLQQSQLLQPQYFEKQQIADYIDKTFEKKIKEWKTWTFSSVFIIFLPLLLFQMLFLSFMFSPSPKSTSTSMISVILRTTGNHIFGIILYVIGQLILGASYHSICSVYRQVPASFKEQFTVLSIPHLIFITLNTLIQPLFLYFFFSIPLNKFSLSSIIEVCYQDFSETIPVAKCELEYNLFFYLFVLSCIGLVCSGLFRIYSNQEFVYSFPKANIPTFIQIKSMLYNNFWISFYTSFYLFFLGSFLLGILFLILFKTFTIQILIFSIKLWCFTFAIIFQNLTRNRLFEIYFTRGLRFTLETFNSVTFDSSNSQQQQQQQQQPQQQQQQQQQTLFDNKPIIENGSIFLLKAIYSCDPLIQALGWKDFLHLSKYSQPRRTYLYREMSELLDQPSILKIIRQYEDQINDLSLKLSCPREYYESLNSGNIKKEDDKNKNSNNNNNNNNNNNNNNNNNNNNNNSNNNNNSIIFKIGNNIEKIIKKTLNFISGVKFDYNLYECEIRQALSNTQSILWSIESIGSLIVSAQINDDRETMELLHRYQIPQKFLIPLFQILALIDQLEKDLSHQIELDKFTINRDYYFLKSFSNLIEPPLNCLGILKTSRPHFRIFKLVGKNMISQVLETIGHQISDISFPYDLRTTLNSYRNGEFSIYQ

Entity 9 polymer

描述 description	Nup35
分子量 formula_weight	11130.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F0,F1,F2,F3

NDLLSIPVNSIYEEKYDKRWLTVFGFSHDKTDLIVDELSKYGNIIEIEYPQQPNCNWIYLKFESEYSSIDLLKKNGLILGNCMIGIVPCKEKIRN

Entity 10 polymer

描述 description	Nuclear pore complex protein nup54
分子量 formula_weight	48239.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H0,H1,H2,H3

MSLFGNTTTGGGGLFGNTTTPTQTTGGGLFGNTTTGGGLFGNTATPTTGGGGLFGNTATPTLTTGGGGGLFGNTTAPTTGGGGLFGNTPTQTTGGGLFGNTATGGGGLFGNTQQQQQQQQQQQQQQQQQQQQQPSTSLFSQSSLGSQSSLGSQSSLGSQSSLGSQSSLGSFGQTQQPQTSSLFGNLQQQQQLQQPQRSIIEQKLYDFMQSISPNSLNCRFLYWFYNYQANGQLVDPNSIPKPPNVTVDQWAYALSNNPDPSILIPVAAKSFDDLINRRMKQEETIIALDQNTQEALKRMRDLENHLNFHIHTQLEMMRKKQIELIQRYIEVWSNLEIYQSKGKTFTTSEERIMKKIYELFEEINQPNSIKSKVEEISNQLKLGSMEKEKIKYEISPEAVEPLYNLLKNMTISIERITNELEIAVKDAQILKNELYQLKKC

Entity 11 polymer

描述 description	Nup58
分子量 formula_weight	60271.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I0,I1,I2,I3

MFQTSGLFGQASTTTGGGLFGTAVTPTSTGGSGLFGTSTSIAPTSTGGGLFGTSTAVTPTSTGGGGLFGTSTAVAPTSTGGGGLFGGGGGGGLTSSIGPQGGGGLFGSTTLPTSTSGSGLFGGQSSIGFGQPNSGSGSVSGGLFGSTSVQQPQQQQQQPQQPLITESTKFSDLPPQLKNELQILNKMIINNNSLMNSFSNYDTKINEISIGLDQVASVMDNLFNNFDIHIQSFKYLEESLAKPLNSVNEQVHLLSTQFHSPFSQARPSKEMEIIVDSLVEKIDRIKQTILCVTPTNKSQSQNLSFQESFISTLQSNQIILRNLAYIVDNLVTELERHKKHFLLYKKKYYNQNYNPFLKQPKLNEKTDYHGSSSLHHSHFSQSSNLLSSQSSLFGSSMYGRQSQQQQQQQNPQQSQYLQSSTFQPIQTSTSFFNPTSTTTTTSFGLTNNNNNNNSLASNNSSGGSSGSSLGSLGSLGSGSGSGLFGSTATNNSLGSTSSSGSTSSSIGGSNSIVIPPLAIGSITNNNSGGGLFGSSNSSSNSLNSLSTSSSNLFGPPQTPTLSGQGSTLGSVVFQSLVQLQI

Entity 12 polymer

描述 description	Nuclear pore protein
分子量 formula_weight	69129.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J0,J1,J2,J3,J4,J5

MSNNLFGTGSSTSSSLFGSTPSAGGLFGGGSSTTPATGGGGLFGGASTTPATGGGLFGGASTTPATGGGLFGGASTTPATGGGGLFGGSSTTAPATGGGGLFGGSTTTAPATTGGLFGGSSTTAPSTTTGGLFGGSSTTTPSITTTGGLFGGASTTAPSTTTGGLFGATTPATTATTTTGGLFGGSTTTPSLTSGGGLFGATTPAATTTTTSSAIPSLTSGGGLFGGSTTTPSLTSGGLFGATTPAATTTTSTTTPSLTSGGLFGATTPSTTGGLFGASTTTTTTPSTTSTTTPSTTTGGLFGATTPATTTTSGGLFGASTTTPSTTGGLFGVSTTTPSTTSATTPTTTTTGGLFGAATTSATTPSTTTTTTTTTPTTGLFGSSTTPSTTTSGGLFGSSTTPSTTTTTTTATTPTTGGLFGSSTTPSTTTTSGGLFGSSATPSTTSSGGLFGATTTSATTTTTTPTTTSGGLFGTSSTTTTTTTPAAVAATSSNPLTTSMLGGSSTTPNPVSASLNNSDPIGINESKLLEQLLNEWVSEIENQTKNFYDQAKTIFVWDQRIMDNSQKLGKLMDVVVKLNSQQNALNQCIDVVRDQQALLERSLNALDSKIKSSPKDNETTADLERERIYSLATKIDDDIIKVENKLLGVVNKINQNQVKDDNPKDLNQKVSKILNDHLNTLQWIDKSTNILQESLKVIESTSLPETSRR

Entity 13 polymer

描述 description	Nucleoporin 133
分子量 formula_weight	137969.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K0,K1,K2,K3

MYYSSSKPIKKKPNTGISEFNPTQSQIQQQSCNYKITPTYDLPFILTQAINDENQQHQIEQDLTGSLSSRDGTCFIIYSNELFIWTIDKPQYCDRIELPIKQNITRQHIVVYKNKSSSERFSVFLCSPLTGYIRFWGNSSKPNVSQDLPLENPGNNNNFKIFITECQPFGVIVGNSLGSIYLVSVKNNNNLISKKINKSQGMLSYLYLSRQSPVISVFSSPINQQQLQNNNNSHHHHHHHSTTLSSNNFSTIPSRFIYILTEGSLLKYEIENGTERIILDFPIQKEITKLFSNFPKFHQMNIDTIIDQNKDEIQIVNFILYETSASQNLVKYYILQIEIQDDQVLRIKRLDSFSANKKLGGGVTSIEPILQTNSLKYYLTWFDNIYYYSNGGGGGGGVNGIISGSISFQSDIAFSGFYKNQFYFFSEQGINKLDIQPFGSGQLASSELHIQDTIKNIESDIYMDTDNTTSVTGTPATTASATISTTPTIVSPILFDIPKDENLIGSKRNNVLKLMNSFSLKQHTRVDQFVKICKGYNDFDQVIQQVSLWIIDQQPNSKFWAEDGKLLHMFVKEISVQLNQQLEDKKKRHNFLLTCIKDTDLDKLLTTQTKEILKKNEIKIKCAIELRNYQNQQEQSRKSLNYTTTTTTIMKGASSSSSIFSQLIESLVAERNPNWTNIGMNVFELFYSNVSGIDQILINITSKLQELLQNQPQQQQLLTSANKAQILLENCELFYLISSSFPVEYLNSPIIQSTSISIHNLFPKVIQSILNFIQLEFPNQVAGLLGGGGIGGLGNGHSSSSSTILFKKDLGIPNVDKQLYDHLYKLTEKYLYSLKINQFEQFNQFKTKLIEPFVECFKFQEAITLANQFDDFFTLINVYCYQQHQLQNSTITIATTITPADNNKLLIDCLNKFEKIGQLSKVYEYMLERDLKSELLQLPSDFNDSLFRFLQSNSELSWIHSIRMKNWTNVSNTLYQKSISNQHHQQQQQQQQHQVMTLKEKQKLLSLSKVSLMVSTATSSSSSSSSLELQLQPSQQIQLDVINQNLSLIKSQKFFLPDLKNVLSVSEVVQLILQREIGDEDPMVNFVSCIEIISESPLLLKKEEVKELLKLILELSIVNETVFFEKSISDIQLSYSLKETKFYNLISHPHFPKEIALVLLSPIIEDFYKTHINSNKFSSLDDKRQFEISVARLLELSKLEIGQKQI

Entity 14 polymer

描述 description	Nuclear pore complex protein
分子量 formula_weight	114744.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L0,L1,L2,L3

MSENFKWNLGNNLNSNNNDDFFSTQPFNNNNKFDFSILPDDNNEDEFSGIVNNNNNMNNNNTLVKGDGGIFGNTQINFNNNNNNNNQFGNSLFGNTINNNNNNMEVNNDNDNNNNEQEFEMDNQQLQNNQMEMEEDENQFNNIFNDKSRTDDTIYHNTLEYELQPKLNDDPHLIPIELSDTFLKLSQAKINSINDDESNKLFYMQNNRKQKEQQLKNYQMEKDTWSILKKLYEYRDIQRSIDQKEKIDISQPNQVQVYNYLIKKDHKLRENLILLEWLEEMSSQVELNDNDAVFWEYTLIKLKKSNSITMLTNNQMVSELDPDAMSRQNKPIDKDDEKNQSRFLKTVWSFLRAGDRVGAAEYCTNVGQFWRAQTLIGLNYYQGEHSIGNPYFNLWKSNCLNISKNSNDQYERAIYGLLCGNLEATLPIQKNWYDYFWCYLRVLYDESLYRELKPYRSPLSIEEDIDSPPSTCISQINTPKDILEILKNNTSQIEIKNQSENPYHQIQELIIADDYSILFNSLPNLLLKNKTPEFNRFAVLLILFFRKREQYELISTSEDCPENIVINEYVQHLINSQQYELVALYTSLLNNESLQVDVYSRFLVNIIDPNQRQQLLVLAEKFGLNTQEIAQSVVKTITSGSINTTSNSFENLEFTGFATTINKNKQPKNKSTTTTKASTTETTTNTNTTTTPNLTNTIINQDSSITTQDDLVKINSIQWLCFEKQLLIKAILQSNLLLRDFISLNKYGAASELLKSLPKDIVMIAKQQSPLNESDTNNIIKEFRDWENYITANIRINLWLQNYSNQPKISNYLPQSLNNNNNYINNNNNSFNNIINNSIINSSIAFRLRGNESYAEKLDIERRKKEYDDVYGQWNQNNINFGKEAIVSIRSIIKTGWLCPLENQIGLFSEDDQSGHEVTLIRKKCIPSLFKSLYTILVGIGSIQKSSQLCNQIANERFRWYSIFSKKELQEILQLVRESSIKLLN

Entity 15 polymer

描述 description	Nuclear pore complex protein Nup98-Nup96
分子量 formula_weight	102656.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M0,M1,M2,M3

SKYSAPDFDEDDQQMQQQTQQKQQQTQPSKVTFQQPSTKLTKPKFTANLDNFDSDSETSSGDENQDEMVPQKKTPFIKRVSNRESGLFDTPSVVPMSEKIETTPSKIARVSEPTSQSSRMSNNALKFSTFNPQQQQLQSSRFKSTGLSILSNPVKNLIQSDVNNEQSMFSNTTTTSTTRIQPLPSQQHLVQPIPTTISLNKNYFSKVRIDPQVYDRIVPKEESITNQYRMKNERLNHSTQDVSLFMRRSFRVGWAPGGKLISITKSSFKNLLIKKLPTDTKEDKKESIIKFLKNHHSHSSLVPENLKSIGWFSISNVQEQIESQLTLNVPSSQSVYYNRIWSLISNLWGNVLKGNGSKYINTNYSEDTIRKLNLNQWLKDVIAPLLRDEMDSLRKKTNSNYLEQIFSYLSAKQIKEASDLANENKDFRLATMMSQIWSSSESGKELILKQLTTYHSNGSDEFINEKRLEILHLIAGSVNKIYKNLNDWIRCFAVSFWFKYSLEYSIEDSVENFERSFNAHRSVYPLPPYLIKSTSTNSKQIEEQQHYYDICFLLLKLFAVNRGSSHFDKFKNIFYPENIGQDLLDYHLSWNLYTVLKSIPSLNKQPDLVNASNLHSSFALQLERLGLWQWSIYVLLHTPDQSNHVREEAVKSLIARAAPVITSEDRVFLTTKLHIPEIWIDEAKAWYSGYDCNNDIYDQIDALFKSYQYTKIHDIIFSNIGPNYIIQKRYHSLKDLLIRLEPHSSFISTWRYGGSIFLEFADICIQYKEILSQLSNTAEEIQRTKYYVNLKDITTRIVNILSDISKITQSSEIKNTSASYKQSLSFMSEALITKASLLRDLPESIVKLVSTNNLVSTLNSLPLTQDYRSKNLESLTDQIQDTLLNSIYQ

Entity 16 polymer

描述 description	Protein SEC13 homolog
分子量 formula_weight	33637.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N0,N1,N2,N3

MATQNVDSGHEDMVHDAQFDYYGKFLATCSSDKMIKIFDVGGENPQHLVDLRGHEGPVWQVAWAHPKFGKILASASYDRKVIVWKEVGNNSWSIIHQYAGHELSVNSISWAPHEFGLSLACASSDGSVTIHNYNNNVWEAPQKIQVSQIGVNSVSWSPAAIPTSLVNSANTIIPAPIKRIVTGSCDNLIKIFKNVEDKWILDKQLEDHKDWVRDVAWAPNIGLPYSKIASCSQDRSVIVWTQDENGVWSGKPLPKFDDIVWRVSWSVIGNILAVSCGDNQVTLWKEGVDSEWKLISHVENN

Entity 17 polymer

描述 description	Seh1
分子量 formula_weight	50160.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O0,O1,O2,O3

MRVFHRLSTAHDDLIHDVSYDFYGKRLATCSSDQKIKVWDQNDNQKWELSAEWKAHSGSVWKLAWAHPEYGQVIASCSFDRTVCIWEESEDEKGQKKWQLKAHLVDSRDSVTDIKFAPKSFGLRLATCSSDGYIRIYEAMDIMNLSQWTIVEEFESQKGTSNCISWNPSSYDKPMIAVGSNEPYIKIWEYSETARKWLQIDTLTAYPIGSTISSSNLNSGGGIGGGIGSGIGGGIGGGIGGAGGSIGGVSGVNNSSMGNLGSGIGNNINNSNINNISVGVGSGVGGGVGSGVGGSLNNGLNSAQGNSIGNGNIGSLNNISGNSGGLNSNSLMSGANSSINVSSGNNSIYSNNNFDSSSDGGSRAIHDVCWAPNMGRSYHLIATASKDHKVRIWKLSSDKSKMELKEVMRKDDHKSEVWRVEWNITGTILASSGDDGNVCLWKCNMNGEWKLFSLISGEESTEDKYDR

Entity 18 polymer

描述 description	Nuclear pore complex protein nup85
分子量 formula_weight	102040.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P0,P1,P2,P3

MFSLNPQSNGNSNNLFGNVTLGNFSNNSNNLFGGSSTTSTNTNNSNNLFGGSSTTNSNNLFGSGGSSTTNNNNFNSNFNNNNIKNENKIKNGKKFYNFRWSPTGEILLYNTLNNFDNHNFDQKNGGSDTIRYEMNTTLSTIKKFYNDLYTNFETMQRIAGLSNQVIPDDRVREISHHSRTYLSVILAAINQMSKSQKTGSYIDDEDSCMNCDPLDNDLIKIQTPRVLEYFKQYPNKTLIFFCGSIDSIYPYLCSKLSMETKSKCILIARESNVPNSKRLDLIRTISNQGELKILNKDEYSNRYQIANENYGELDDVLTLEIDDTYLAYEREIDNLICMSTMWRVANLFYFSVSSSSNSVSPTQLLDCIELERKELLNSIEQQGTQDPMDSEYYNQIARLLVCGCIDQVIQQLNILSRAPRSASQIKSTSRKSPINLLIDILSSIPLKKKSINGGGGAPLYPNEHLIQWNKWHQETQKILSQYIESGSSSTNQVDENLLPIVKILLGDQQTIMSTCNSFLQLVVSNILFVEYTTSTTQLRQLFTQCYQTIQAPTTVDKIFLSFATKDLDITLKKIFKHSPAWLAVHLSDLLYHHPYVMRKLPNSESQLTNIREYLLSDFGQSLASDSSLLSIGCNYLKYVKNGGLEMIDQFISRQPIHFEKNAIKMLDKWATSVETKNSIYKMLSLQDFKRKRYAASLNWLMLANDNSHITLLSNYLLENQLNSEFLNDLQSLLEKNDEIDCNINNNNNNNNNNNSNNRISGNNNNNMIIDENKFEITNNSELIFLIRYRELISLWKERSFKEYSSSLCLMFKDRVIPKRFWLRLLIDCVPLLESLKNLYFTYQDTLLLQSCLEEIIQSHLFDQYSFNISNQDIQILRSALARNLAKSIIS

Entity 19 polymer

描述 description	Nuclear pore complex protein nup43
分子量 formula_weight	47162.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q0,Q1,Q2,Q3

MSSVSVHYSTHKINKVRFLNRNFHNDTSLFVTGTNHPVLSKNKISVWGLESRQNSDEIEELASVPIDGIVTELKVIEINNKPMIIGSTSKGSIFMYSIFNLPNKFEYIGYDGLLDKKYENYNNINNINDTYDTCNLLKERIWFNSSSNNNNVNSNNINNNNYNNNNNNYNNNNNNNNNNNNNNNNNNNNGSCINSFDISYDQHSLVTVGNDGVMNLLSIENLIPIYTNRYIDGLSVNVVKSITSNQIITSGELGRYIKFWDIRSNSSQPVKTIKTQCPRIFSLAIHKDEQHIIAAGSSDGQVNLFDIRNDYSIDQNKTHNSNVWELSFSKSNPNQLYSCSEDGFIYQYSYNKDNLGGGGMMTLPNQINNTFDIYSKEVSLLQLPTSIGSIDSFDINSNINRLICCSTSSQCLIVKSL

Entity 20 polymer

描述 description	Nup160
分子量 formula_weight	208172.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R0,R1,R2,R3

MSDNTMNTEEIENENGFDIINDFNKVLKYNEISLKSFSDHSSNQWREFTIDSNSQGYYGYSNNNDINFIQDKFTSTPYRSGGFNYKKSPLTDGRFIIWRLVNKSSTLELCEHYSHHSLESNQIRIHFNNTSIIGDVFIQELNDYVIIMVTTISKTIYRFLLPHPSIIEHSDSRVGIKRKVEVDSFGSGSGNNNKRNYKSIFSNLLNSNLDNQWSRVRGVLPDSFEPTVIRYYSATKLIIGSSGSGSTWLELSDIKQSGDITVKKFDCKEGQGFFSSWKWGEKQEPVQDIQFLSTTTNSNNNNNFPLALILLNNSQLKVWSANDKKFIKEITISPENWNNNNNNNNENNNNNNNNIPTSPNINSNQQQQQQQNLSLIHKRFKIYQRSTKSFLLVVYFQFNSESQFQFFSGTNDFSNGINIKEERFAFLKGKGLIDFNIHNGILYSIWSQIKERNYNRGRINRDQEFDEDDNKFDRNHFVDDNNDQEEEVIFKHIYIGDLINFNHQKLSTSNGNGNGNGNNNLENEKEINMEYNQFYNGEMINTFDKYYETIIEHSDEDSDQPTDQTYYYNLLFNRGLFSPNSIEQALNEYKKLKDIDDHGGDNDVEMNNGFDNDNSLESVVSNILNQEDFKFQSNEQWSIFFKLCTKFQKQTCLLGSGLFIEPTSSIIFLIRSNQLSIMKPMKPIECLYTISNNINNSNIISDKQFYNIILNCFGSNSNVLVNDFLYLMKCCNFIDRFIKDDYRSFEYELSRQHVNHTLLKVSEKLIANSYNNSNNNNNNNNNSNNNNIEDNINNYSIGFIKLFKLIENPIETINLILKKFKEEFSNQNDMVIQLQQGYKNIDKGWSGDLFADILTNCFVSTIEIKYQLLTKLSLLLGTVSNLRTHLGIDTKTLFTLEKSILPDSIKLLSTYYLLNWFTKQNFIKSFDNSTTSDIDKILISQNQYGDDSDNNNNINNNEYYEDQQQQQNQQQFTISKNLNILTILINRNLNQFTSKNEFFENIEKQLSKLLCVLAPHMDLFSMGCYLVEKNQYKQLMEFLQIIENNELIEMITPFYYLMGICYAHYSKFNEAYQYLLKATESIENQNQDMLKICSISKEELVCSLFVDIPIDNRMMNQTNANTTQTLISNYYLKCIKIFETRNQPEFIIQFSLFAIDYLTLEKENFSRLDYLNKLESLYSLVFKYSLKIQEYDLAFTASTLNPNQDVSQENKRRLILTLCENSVTTVNNNNNNNNNNNTNNNTNNNNNIGSGNSIKVLCKLPFPQKDIEDNLLKLASAQDLNKKPDYHTILYAYYISRCNYRNASMIYYERSIRVNIEGLGKSRGKSIFDQQQLLDTKLELLSTTINTLKLLDPSDQWIEINSSSLDIRSTNIYNNNSSLNIANHHQHQHQQRKFNYIGNNDEFKDISVVTLKEIEKEYSYYLASKHLCSIDSQINSDFILSPQQLLEKLIQYSLFDVAFSLAITQEIDLGAIFESFASKCVQLQLNPQSNPFFIKNTNGYGSGVIGNGANNNNNNYGFDCSELQHLKDKVTLTWKVLENYLQRYDSDKDFQCLSPSEINENSQNPNTKATIIGNQQMQLRMFGEIQQGSLVDRDCNGCSFRVSDSKGFYLDVHYSHRVPPFFNDTQSGQQVIVIGKLQDGRFIADNVLCKQGQLRYHELVADTILYEGTLDLPTWLIQWFSKGRQDTLFKLYFRHSRLIDASITLRDLFKHAQFELNQINNNNNNNNTIKTSSQITSKTISLNIPYDLIDRFFIEAKKIKSSIIDQKEKQQLTQELTLAENEMIKYFSKVN

Entity 21 polymer

描述 description	ELYS-like domain-containing protein
分子量 formula_weight	257926.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T0,T1,T2,T3

METKINRKLLYPPIDNFNYGNTHHNNNKQPNINHEEIPSGITSDGNYSWFTKENEIFFYDLNNGKRITTFCFVVENSIECSVTAVGEIIVEDQIFIVVALKGGNSTSLKVLDIQTGDTLKTLDTTPLSTITYIKQLYRESKFSKAQADLIRNIKTPLALGIQNSCQVIIVDIYFNLREQFLSSNQLILQDITNYDYKHFFNNKTNNLVPYFILGGDQLFNGNSYKFEYPAGKHSSEGYLVEDRNGITQQNLKSKLQHQYPQQQQQQQQQQQQQQTNQFTQLDVTSIEYIESLRMIAIGYSIGTFQLFSSNNFKLYYCSPAREVGLHSSVSHLENKQSPVTNFLYQELEDDDTSSVSHLWIGRGSKNNKSSNNNISIILYKLEFDLQLSPDSSKTINNLISLTQNVDTPIDITKINQTNSQTNQFGEILLMSYLYQNKDLKLNNGIIPKSKSIFIYQFIENGTIKIEIKLFDLFLLERHGINYSSNSQQHWLHSIKLDDENGNFKNNGYHSIWIDQQSVLNNVLYQLENNNSKVFLSKEDQYQTSGSNSGSGSDNFDDNYENFEENKLNLTIYHPNFKFKLLSFSTIDNIDYLSPKERLVYELSNKGAILFESSTLLNSVYVKFVESNIFPFYKSDQQQQRNDLLIFSLNNNLISIVKDYILNYKSSNAKLILESFWSHFQTLNRNFGLSEIYSKLNSDTPKLLELVYVKITDLVRIFKSLADRYIQENLNKLNSNDMIIDGGGGGGGSNSNSNLNSNSNLLPDTLKIKIDQAINIARFIEILKWSLYFGLFKPSTLNDMESVRNYTIQKRKIIKEKLTIEMGNIGRTNQYLSDRLLIDLFYSNIDLSSSTSTTTTTTTTTTDGNQIMSSYPPHNSQTMKSFFKIFESSQQFTKKISVLFYLLIDLELTDLNGGNGSNGKSLHQSETLKSFFGSFHISSNYYSFIMGIWKLDSYLLKSQDQMNIDDDDDDDEDATNRENNSNLIDEDIKSAFTLLNSSKVTKKYLYPILARFYSFGFKNYAQLLMKGFNFQPQTPDEAQLYVRILLSNHSILEAILFQRSFRNRLQDQLTIDSIERLLFSIFNYTFNLKKLDLILNMSLDEIEEQVFLHFLFKMKASSLISLYYIKRGRIPEACKVNRYYQSTRVNGDVFDGHDTINHLLLNYEQSLPLIQRPIHFNITNESQDKPKQQPQSQQQQQQPQPQQFLNSEEDNIPLLPKSISKVNLVPPQSFIQKPIVMPSPIPKLYNDSLYLSSTLSTAPISNLEILTKKSNEEQQERLLIQQRLAQQEKELQEQQRIKKEFEDQQEKLLDFQRQQELLQHQMEVHSQLLLQQKQQQQQQQKQIKEQEYEEYDEEYEEEEEEQVATSNKSSLDMIFPTMVTTTSTTTSSPNLSVASGSTPQGSPLKSALKSGGSAKKTTNVRFKDSLNREYPIPKLKKRGMPDSDDDDDDDDENYDSDDDDDDDEDSEFEDIYKIDSNEDEEEDEEDEEEEDDDSAVVHDDDELDDQQASQAQQFLQNQKHQKLLQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQHETDDTEEELEDDIVEEDDDSEEDRFKDFERPKHGGKEPPKFSTYSGLQPSKQQQQKFLSPQDDDDYDEEDEEDDQSYDDDDDGEEEDDGNYRVPTQQFMRQPIVNSSSSGGTQDEPMEIGSSSDEDNSQIVKNQYNYNNEEDNDEDEQEDDNEEEQEEDEEEEEDSPKQPKRVVAHKPLPKVQFNNNDEEEQQQQQQQQQQQQQQQQQQQQQQQQQQQKEEEEEEEEEEEEKKMNESDESGGEISKNENSSDDDSDNDQFNSPFTNQFLSKTSGNTSGQSIDFDQDEKYSTPTDKGSNNNDTTVDSDIFQSQQSDSSFVQSQENESLKKSDENLSTFNDLNNSILSNISSQQPQEDDEKFQELEGDTNNNNNNNNNNNNNNNNNNNTDEVMGDEEKNDNQNVEMENTEQDKKDSPFQEIEDDESIINSQQKEESDVEGKSNDQSLETSIHQKVEDKQMDDDDDEKSNNQNEENVQPTQEKQDEQEPEEQEEQEKQPEEEEEEEEKVKEIEQQEEEEEEPKEEQSEEEEEEQPEEEQPEEEQTKEEQPGEEQPGEEEEEPEEEEEEKEPEEEEEEEKEMEEDEEEKEDEEEEKEDTPKKQPIVPISTRPSRQSKTDGIAKTLSIAEMRRGEKDKKKQLAPQKPTSKLKPKVQAATKPKKTKKASKK

Entity 22 polymer

描述 description	Nuclear pore complex protein Nup98-Nup96
分子量 formula_weight	118083.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U0,U1,U2,U3

MFGGQFGSFGAKPAATASPFGAPSAAPTTSLFGSTAPSSGFGGFGSTAQTTQPTTGGFGGFGGFGGATTTQQPAASPFGGGGTGGSGLFGSSAQTTTQQPGASPFGGGFGTTTTTTTQQPGASPFGGTGGGLFGSSAQTTTQQQGASPFGGFGGATTTQPSLLSGATGGFGGFGGSTTSGTQLGGGGGATSGAFGGSSSPFGGSGGATTSSPFGGGGGSFGATTQKQYGTPIPYQQTTIEGNTFVSISAMPQYNDRSFEELRFEDITHRKDIVYKTGGGSGGGNSLFGSTPTTQPSSPFGAQTTTQTTGGLFGGQTTTSPFGGQTSATPGSSLFGSTQPTQQQTSGGLFGSVQPTQQQAGGGLFGSMPSTGGSSLFGSTQPTQQQTGGAQPTQSLFGGQTQTTTSPFGSQTSTPFGQPQQTNTGSGLFGAQQTQQTNTGGGLFGAQPTQQTSGGGLFGTQPTSGTGLFGTSPTAGGTGLFGTTQPTSQGTGLFGTTQPTTQGTGLFGTSPTSGTGLFGSTPTSGTGLFGSTPTSGTGLFGSAQPPQNQQSQTSLFGNTGTGATNTGTGLFGSAQPSSNPGGGLFGSAQPSTTTGGLFGSNQPTAQPTTSLFGNTTGSVGGLGATPNITSGLFGSNPAQTGGLFGSTQPTTQTSLFGNTGSTGGLGAQNGGGLFGNLSQPTATAGQGLSGGLFGNLSQPTATAGQGLSSGGLFGNTLLGQPSTQGLSSALPTLGLGLMGGQPQQTQQLPQGSLMLQQTQQPLQQQPLQQQQQPLQQSTIQLNNQINSASPYFPISSPAPFATFVKDLTSTSKVVSPPSYTQRSLSHHGYIPKSTTKLVPRRGPNNVDLGFSVIQNQNGLFPIDKFITKHSKSLNINTTNETEDTLRSLNTKSSSLFNNNNNNNNNNNNRNVNTNVNDYQNNGLPSSSLYNSNINQLSNNNNNNNNIYNNNNNNNINNNNNNNNISTQFNLRNNQSSSDNLNNDKSLSSSSSNKSQQQQQKEQKEEQPPKPIKEKEFINPNAPKLTRDGYQCVPSIKELSKKTDKELSSVQGFTISRDGCGSIYFPGSTNLVALDLDDIVDIEPREVSVYKDEETKPEIGYGLNRDAVVTLENCWPKNKNGEVVKEDGTILDKYENALKKVSAKSDCGFVSYSRSNGTWVFTVKHF

Entity 23 polymer

描述 description	WD40-like domain-containing protein
分子量 formula_weight	185653.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V0,V1

MESQDIDYLKFNDFKSDIEDFEIGQDISGYDNSKIDFDSNVITISNEYGILLIVSPELNDLLVTPIEGLLNYIQSNDQDTNDQTTILSCPTIIKVGKVFEIPSSTKTSFKINLLFSPNGDYFSISYHKTLKVYSTKDSISKKWVNIKPIVEINGKFDSNIASTKWNHSNDTIAVVTANSSLFFVSIGNGSLNKIEEPAVDVCWDVKKSKQIYVALEDSSIILIDSSKPGHEIFRIENPITNYEDEDEEEEELNYYVSSINLVADEFLLVQYYIVRMDEYEDSPAFLFDLKDDESKSQEFQLSIMPEGNFQSAIHLASSFIKDWNLLIVCSNKGMGPDLLQLDTKTREWKTLKLEDEFGITLPNPVVLGMQLITCYPTQPKNLNGIQKYTTNGTFPPVPILLIVDDSAHFKFSNLFNINSKNLSIIQSPKSIQQQQQQQQQEQQQQQQTPSLFQSQTPSLFQQQKPQQPSSSLFQTTQTPAPSLFQQPQQTPTTSIFQQPKAPTTSIFQQQQQAPTTSIFQQQQQSPTTSILQQQQAPTTSIFQQQQQQQQSTQQQQKPKTIPTISPIKSMSTTFTNSVSTAPSQKQQQPSQQPSQQQQSQQQPFKRQNSAPTPISTPISTPIKNELSGNSNVYPNSTLKKYMQKIENTSNVYNGQSPISQQIRKNLKSIENYYQAIRRNSIEGNKIHQTIKNGFLANHQNTKTEIEEFQQSINSLTTEFKKNDKQSSLLKSQVLKNLSLSLDLESHTQQYSSTNYKQILANRNLDPSTLEQKDKLLSNYRNLSLDIQNFEQTHFKFLENNQNNQNNQNNIEKVHINSMSLIYQSLSNISQTETNLRCEIEKIEKKLNKLKLNKDKMDRLKDSIDINQYTELQLSRLSLENNVNILNDNGSGKDIKSTTKPTIENYRHEVNVSKSNGYKNLISVLKRKSSQVIKPQYPDFTSFFKSEQIDDPQFDDDIINNEYNNNNNNNSEIIEPPPALRGISLSKDNAFANSSYKFTSNITPIKTSGTISSPSSTTSSFTPTSHISFASTAQNFINNNQSYDDYQDGNEEYDEDDDDDDEQYDEDDEEYIEEPINPIPSLNKQQPQQQQQFGNNNNFGNLFNSQQPTNSNSLFTKNLDLEKEAKERQEKIERETRELQDKLEREEREAKEKQARELKDKLEREAKEKQARELKEKQEREAKEKAEKEANEKQEREAKEKAEKEAREKIEKEAKEKLEREAKEKLEREAKEKAEKEAKEKLEKEAKEKLEKEAKEKAEKDSANANNALGALNFGGNTTSTASGSSPFGSGGLFGTTTTPTTTAATPTPPSVFGGNSASTTTGGGSIFSQASTNSPPSPFGGSVFGAKPAPQTSSVFGSAPSTASAFGGSTTTSSFGATTATPTPFGGGGSVFGAKPAPQTSSVFGSTSSPSTTTSAFGSTSTTPSVFGNTSAFGGGGSTTTPTTSAFGSSSTTPAFGGTPAFGSAPTTSAFGSAPTTTTSAFGSSSTPAFGGTSAFGSAPTTSAFGSTPATGAFGSAPTTSAFGSTPATSAFGSTPTTGAFGSTPTTGAFGSTPTTSAFGSTPTTGAFGSTPTTSAFGSTSAFGSTPTTSAFGGAPTTNAFGSSSTPAFGSTPTTSAFGSSSTPAFGGTSAFGGAPTTSAFGSSSTPAFGGTSAFGSTPTTSAFGGGSVFGSTSSQPTSSVFGSQFGSNSAPSFASLGGGSFGK

Entity 24 polymer

描述 description	Nup88
分子量 formula_weight	111075.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W0,W1

MKIREIIPLLSSNPLFSKTPQSSQKPSSFTSENNELSFTAKNFLSVNNQSSEIYYYSPIECKLYVIKVESTLDNTICAIRFQELKLKINFEVYKIELNEDSRYLCISGHVNCIIVDLNPQTVNSYFTSQEIFSDQENKTFGYDSLTVRSFTLDKTFYQSQISNIIKQVEWHPLSNIHLVILYSNNTLKIYNIQSGNEEIEQTFNLESIHTFESLKNLKNNDIRNQTKNTKKFISFCFGSNINFWTRFTIFLLSDSGEIFNLCPVIPNNCLVETSFYRDFQNHILYEKNQIENNSGSGSSNGDDSDEFIKQQQQQKKYYDFQFKWLMAASINTIPFEIENVSWLKLSSPSNSSTTFNPLLQGPISRISDSLPPSSNRVPLKILSIQPLVSNIDQNSNSSIINKINNNNNNDDDDNNNNNNNNNNNNNNNNNNDNDNDDDEKKKHNLSLSSTNKLIPFVIIVLMESCESLVNICCQDTIPMWSNDNGILYLEENNSNSNSKKQQQQQQQQQQPKYIDLILYEILDLNVKKSIKPSFSNIDKNLKNKSTIAIASTNQTKDYLSYSLPTMKYDQWSDSLYFYHNQGVQIAKFPWLYQIYLEINNIVAFENNNNNNNNNNNNNKNNINNSSTTNNNNNKNKNKNDEIDENIEFETTSLMSVINNGSGNGDQCIPIIGIQVFSNIKIGTYFLILPNTFKIIIFDMDGLINQQPNLHEQKQQQQQNDDNDDDDDDDDNDEDEINLKSPIQPFIDNPPSFIGRIILPNSFTQKEFLQTLVNTKKKLYNLYIYSNQLEIELNSRVKGLELISKDQLKLIDKLKIYIENLKSNQQALNAKLKYVWDKKEIDSEEIKELYKVEMEGKPLSNQEKELAKTLKQINSQVNIYSERLNQVEKDLQENNNNNNNNNNNNSSNINNNNNNNGLISVTSYETIPIEHQTEIKKVLNLHGQKIEEDVTKLEKLLKNIQI

Entity 25 polymer

描述 description	Nup205
分子量 formula_weight	47082.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X0,X1,X2,X3

MDEEIFDNPIQKLNYNIRTEESGSLLKYLQSQKSNFTDSKKFISFKQKGNDSVGIRKEITQKKSFPLDNGFIGTVADPFIAIAFQISDRFNIDEYLACRILYSVVDHSTTRDEKELIELSEKFIYQNRSCYLQFLREILHTLQSRDSVNDINHSKMKHDILQSFIGELISEQTNDKNIVTILIKTLEEKVKDMNGTVNPLECCFRVKECIQIVECLFLISIQFTIKEDIIKLYIRVLNQVIEKEKREDSILKKSLFEIMFTLYFTIFAVFDNVKNSQVFNAIEKRYTFNEISSTDSIENEIKQIDNQHPIKSSLYAIFNIILIAKENNNSNSNSNSNSNSNSNSNNNNNRITPENDSYKFLLQAVQTQEYQLSPLNILFGSFINILSCRFLSNLSSHPTKKDILY

▶

7. 引用文献 (1)

▶

分辨率 resolution	30.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	4921

fit	/app/data/saxs_computation/hc/9hcj/9hcj.fit
pddf	/app/data/pr_computation/hc/9hcj/9hcj.pr.out
profile	/app/data/saxs_computation/hc/9hcj/9hcj.dat
