9hgb

Amyloid fibril from the antimicrobial peptide citropin 1-3 - Polymorph Nr.3

Method: ELECTRON MICROSCOPY D_max: 95.6 Å Quality: REASONABLE

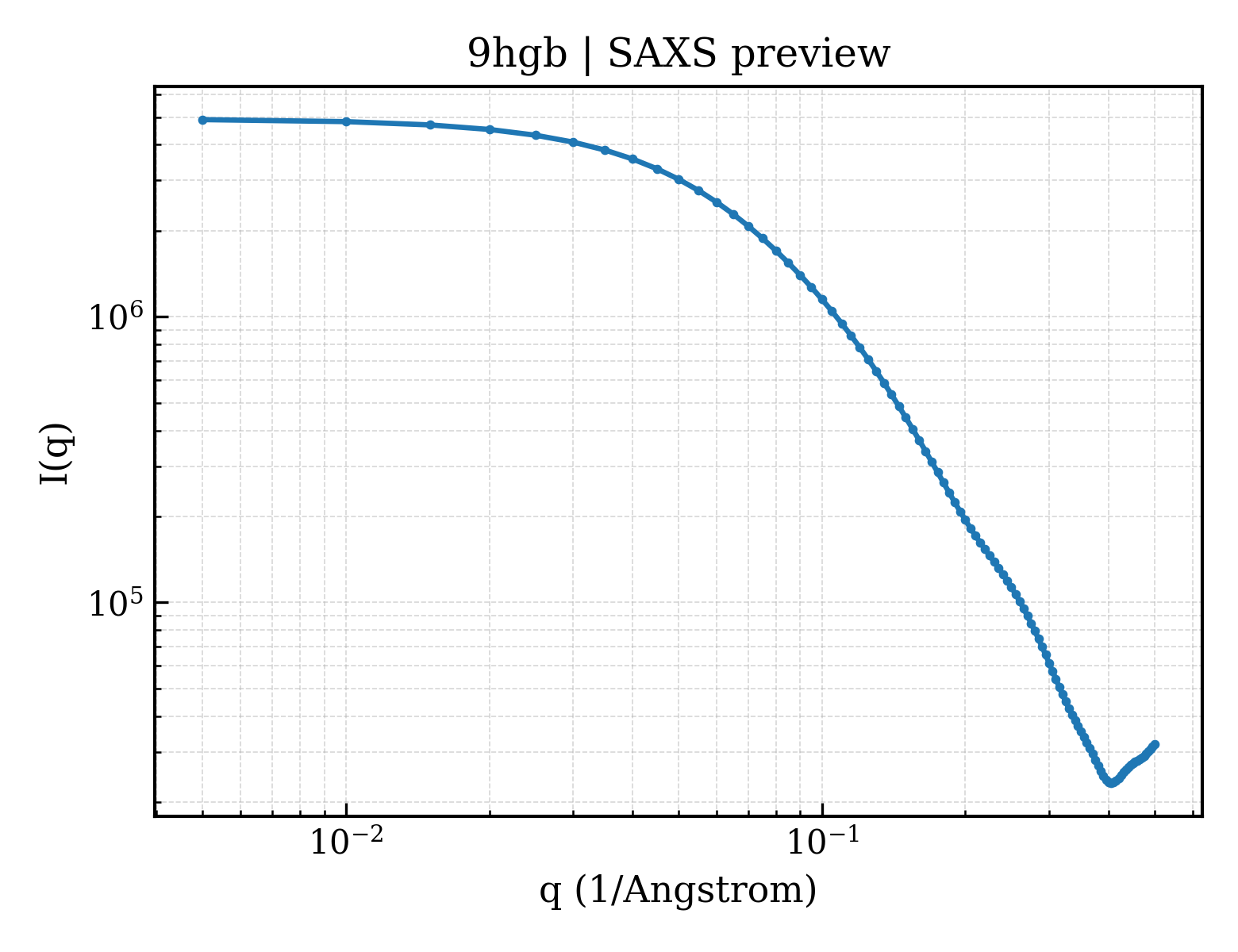

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

P(r) distribution for 9hgb

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9hgb
沉积日期 deposition_date	2024-11-19
结构标题 title	Amyloid fibril from the antimicrobial peptide citropin 1-3 - Polymorph Nr.3
关键词 keywords	Amyloid Helical, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.59 Å
回转半径 Rg (电子) rg_electron	25.76 Å
零角强度 I(0) i0	4925090.00
分子量 molecular_weight	19572.0 kDa
排除体积 excluded_volume	26164 Å³
包络体积 envelope_volume	33085 Å³
水化壳体积 shell_volume	13695 Å³
包络直径 envelope_diameter	103.0 Å
壳层 Rg shell_rg	26.39 Å
包络 Rg envelope_rg	26.57 Å
形状 Rg shape_rg	25.81 Å
总 Rg total_rg	25.69 Å
总原子数 total_atoms	2976
残基数 n_residues	192
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	95.6 Å
Rg (实空间) rg_real	25.34 Å
Rg 误差 (实空间) rg_real_error	1.28 Å
I(0) (实空间) i0_real	4.9250e+06
I(0) 误差 (实空间) i0_real_error	8.3510e+04
Rg (倒空间) rg_reciprocal	25.16 Å
I(0) (倒空间) i0_reciprocal	4925000.0000
解质量估计 total_estimate	0.6709
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	22.8 Å
偏度 Skewness skewness	0.836
峰度 Kurtosis kurtosis	0.349
角度范围 angular_range	— – 0.3250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	508100.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.403; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.092; Smooth: 0.417

▶
