1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9hmf
沉积日期 deposition_date	2024-12-09
结构标题 title	Periplasmic scaffold of the Campylobacter jejuni flagellar motor (alpha carbon trace)
关键词 keywords	molecular machines, flagellar motor, molecular evolution, in situ, scaffold, MOTOR PROTEIN, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	89.38 Å
回转半径 Rg (电子) rg_electron	89.98 Å
零角强度 I(0) i0	3158410000.00
分子量 molecular_weight	491370.0 kDa
排除体积 excluded_volume	602820 Å³
包络体积 envelope_volume	925830 Å³
水化壳体积 shell_volume	95129 Å³
包络直径 envelope_diameter	289.1 Å
壳层 Rg shell_rg	76.51 Å
包络 Rg envelope_rg	83.40 Å
形状 Rg shape_rg	90.20 Å
总 Rg total_rg	89.84 Å
总原子数 total_atoms	1
残基数 n_residues	—
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	232.5 Å
Rg (实空间) rg_real	85.55 Å
Rg 误差 (实空间) rg_real_error	0.90 Å
I(0) (实空间) i0_real	3.0460e+09
I(0) 误差 (实空间) i0_real_error	5.7290e+07
Rg (倒空间) rg_reciprocal	87.24 Å
I(0) (倒空间) i0_reciprocal	3137000000.0000
解质量估计 total_estimate	0.9205
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	109.4 Å
偏度 Skewness skewness	0.210
峰度 Kurtosis kurtosis	-0.634
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.3404
最高正则化参数 α highest_alpha	90230000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.992; Stabil: 0.969; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.116

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Flagellar protein FliL
分子量 formula_weight	19902.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P,Q,R
原子数 atom_count	4298

MDEELENEETKKKKGGSLVIIIVILLFVLLLSIMGVIAWLISSSSSDESEVKEAPKEEAKADKPKVSAPTQRGSDFANIGPMYPLDPFTLNLLSDSGSRYVKCTIELEQNSELLKPELDKKVPVIRDIIIRTLTAKTFEEVSTQKGKERLKDELVGKINEILTDGFIKNVYFTDFVVS

Entity 2 polymer

描述 description	Paralyzed flagella protein PflA
分子量 formula_weight	91084.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MRILFLILLSFLNAFAFELVLNTGRENNQAFAVLHASNDLEFTCQKFITEAKVHFECDIVGMVDNKLKDQSFSAFDLKFIQEAQKIKMIILPKIQARMFDTSQNIYIDKELSSSSSHKSKAFTFIFTPELAPIKDYDGLDFNINFPHESLPYVGALDLNSDPVVIPQSADINTYLRIKKEYDKANYNQVVIDAQNAINRYRGSIFTSEFILYKLRAQNKLYTQDPSMRDQQILEKMIDDAKNWTRTFTSDKNFSEVLHIMLRTYIALAQRADVEYTMSILDNEQPNNYFTQLSKLDYADYIYNLNEKEKAVNIYENTYFNTKNLDLAARAAMSLAKNLLSNEQVNKAIEYINTILKANPEYFGKDIPRSLELAKLFNQKGQFDISASIYEDAFAKMSKLDPSYEETLKDLALVLSHANRSSDAKKYLDLYMDDYLDGKYLDEIKKASDEVFFALGDNNASFLHQRYTDLMKQYANKDENIANKALDEDVALYYKEGNFSAILAYKDLIESKKIPNATQFLEKAAINDLKNAIKADNCINAANIFMRFSAYDIGQKIENKKQMLACLIRTSNVEQALDYIDKNYNEDSIFYGLQKASILFDNKQYPQVIKISKDIANSRILKSDDENFKAYYLQFLSLLRLNDYNQAIKILQILESFPMNFSMVEAYDALLSYANDHNMQTTILTYAPKAIDYQNFKGINLFSPNLEFIYLDALTKINKNEESLAVLTDLLKLKLSDEDRARALYIQALTYERMQNIQAEKESLKQCLEIKSASNWQNLCKSKNQILNQ

Entity 3 polymer

描述 description	TPR domain protein
分子量 formula_weight	93534.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MAEQEDIILEKPEDGLNQPRLDESLEGFKGQEGQAPEDEEFASLPEELPQENSESGFKFTRESAPEDVSTFEEVESQEPTPWYKDRKFMSLVGLSLGIICILVFTLFYLTFSEGKIKPDIIASKPLEQPVVMPDESYKYNDMQRIDGMIQKANALYLKGEVEQALKVYEQVAVYNESLSNYNLGVSQMNENKFQEAFESFKKAIANGENQSVAAINAAVCALKLNDKEKFRYYIDLAQVYLPKEGKSKLYDYYLSLINYYKGYYPEALQMLQRTDMEPYSDVAKYLSAKIYAKMDFDSKAIQQLNSQGNFESSLSLGLLYARIGEYAKAKVALSTAMKIERDFNQSLAALTLVDIKTGNYQDMLARLQNSYDNDKDRYKILDAYKIQVRLNKDLFNIAVAQNSFSKDLLKKQKDQFDLLFYFAPYQVFDSKQAALYIKKANVTDFVDDSADAGVYLNTSKALSSTNVKIANIINYALNQKLRLANQEFQKLIKDYPEHSILHYNLALTYAQMQNYELAYKHFSSSYHLNPKNYLAGAFAMFCAKLIDIDTTKLYNEILDNIAADSNFKANMQKSMLFLVNNNYISMLPYLDETKKDTPLSLIFEAIVAKNNNLNNQVDVKIAKLRSELPEDILANILYFNSLNSNLNIKEYAQNAQIHFKNLKLDYRSVFGGPNIAREFYVNLMHIAGLLNLERQKIKELINVSGAKDEGILQTLAYLDIFAQQYEEAYALYNSLIDDYGAKDTKTLFLAAVAAIGANNPNSAIALLQLSKLTDKNNKESKAALGMLYQEVKNYEAAISQYKTLPNNFKSEFFTFDINNN

Entity 4 polymer

描述 description	PDZ domain-containing protein
分子量 formula_weight	41455.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F,G,H,I,J

MKKILIICMLFTLSFGIERPKFEDFLAGYERNKASMLNYEGMPAFALSENLLAVLKQPNTKLNKYVKYDPFLNLYLVRTDFSLIPTPMGDEEKLTRNDWVGIWDPNKPYIGHIKYLAQNIDEKDQLDFNSKIGLLGTPCCEMMGIALNNSSFIGNRYLKHFMKYNDVYWGDIGVDFVVRENKIYVNNVRKNPQFLINDQVISVDGLPANDLRKLNEKILFADRGSTLYFQVLRDNMDLNISTEVFAKDLSKFNLPDSKPKPKITNFTSNLGLTVNTSLVVTKIDPKSKASNAGFMVGDKILRVNNIILNNFKELQNILSAGNDFSILIERKSTKLPLSNFNNELGGNANSGGDGKFQFFIRLTK

Entity 5 polymer

描述 description	Lipoprotein, putative
分子量 formula_weight	18545.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,B,A

MKKIYFMLAIAGIFAGCVPSANSATKNSSANSTAPSQDVIVQKVDKDDVRDIIREEKMLAPDASETELSFTAVGEGIAPMNTVSTAQALALAKRAAITDAYRQLASKLYGVKVNGKDTVKDAMLRSSTITAQVNGLIKNASIIDENFNQGLYRVNLELKIDADKWKELFAY

Entity 6 polymer

描述 description	Chemotaxis protein MotB, putative
分子量 formula_weight	27817.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N

MAKKHKCPECPAGEKWAVPYADFLSLLLALFIALWAISKTNPAKVEALKTEFVKIFDYTSTQTVKEESKTQEKYKGAAKEESDELKSLKQMTMTQQETIKRLQAALDQSDNQVALNLPSKVEFERGSAQIVSADIQDYLKRMAELTTYLPPQAKIEIRGYTDNSDSIIRSYELAYQRAENVLKYFIEGGANLKNISIKSYGLNNPINGNPQALENNRVEIYFKVDTADTSTQKSVLELINKIGTKAP

▶

7. 引用文献 (2)

▶

分辨率 resolution	7.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	32790

fit	/app/data/saxs_computation/hm/9hmf/9hmf.fit
pddf	/app/data/pr_computation/hm/9hmf/9hmf.pr.out
profile	/app/data/saxs_computation/hm/9hmf/9hmf.dat

Periplasmic scaffold of the Campylobacter jejuni flagellar motor (alpha carbon trace)

SAXS 散射曲线 SAXS Profile

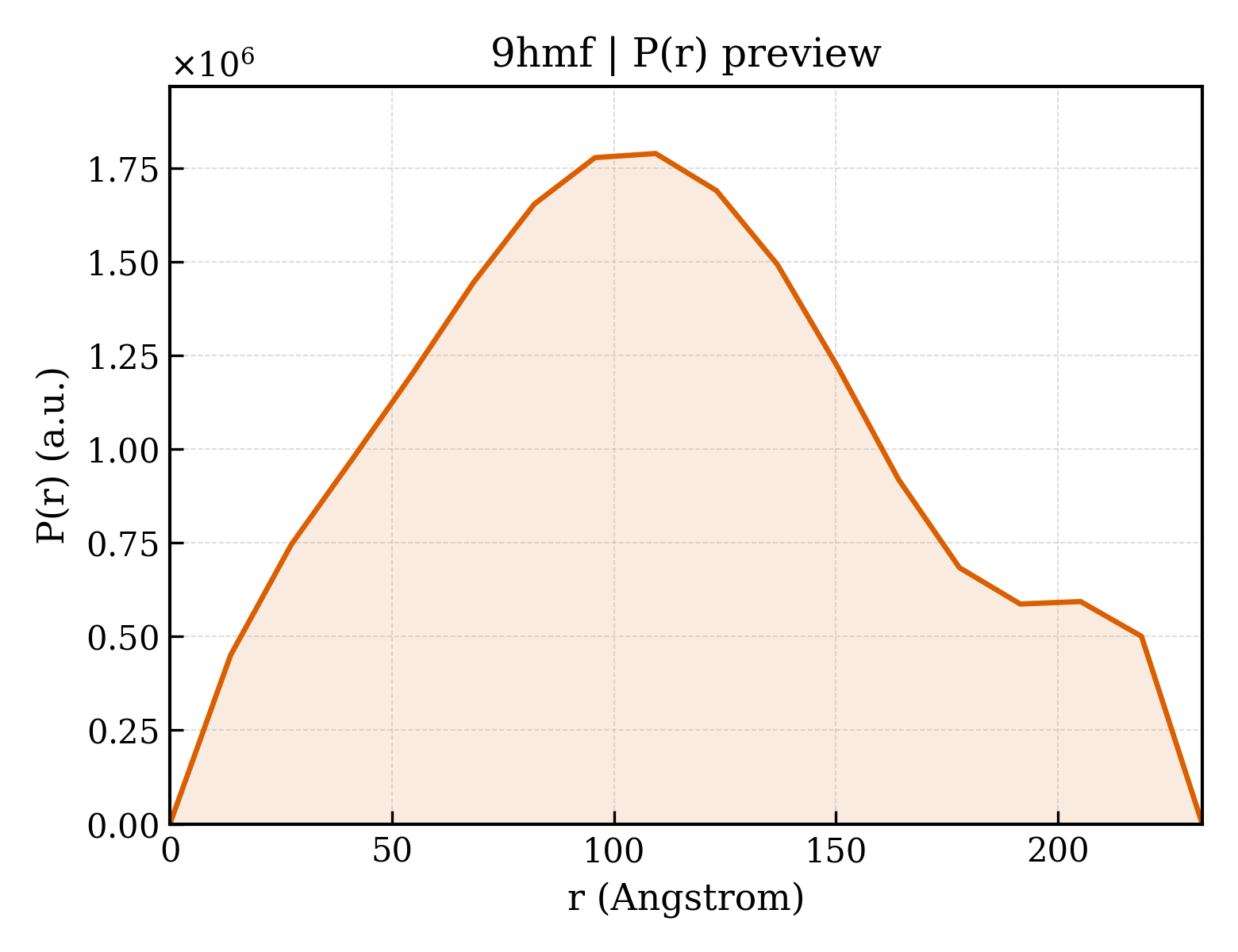

P(r) 距离分布 P(r) Distribution
