9hnm

;Structure of the (6-4) photolyase of Caulobacter crescentus in its dark adapted and oxidized state determined by serial femtosecond crystallography ;

Method: X-RAY DIFFRACTION D_max: 85.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

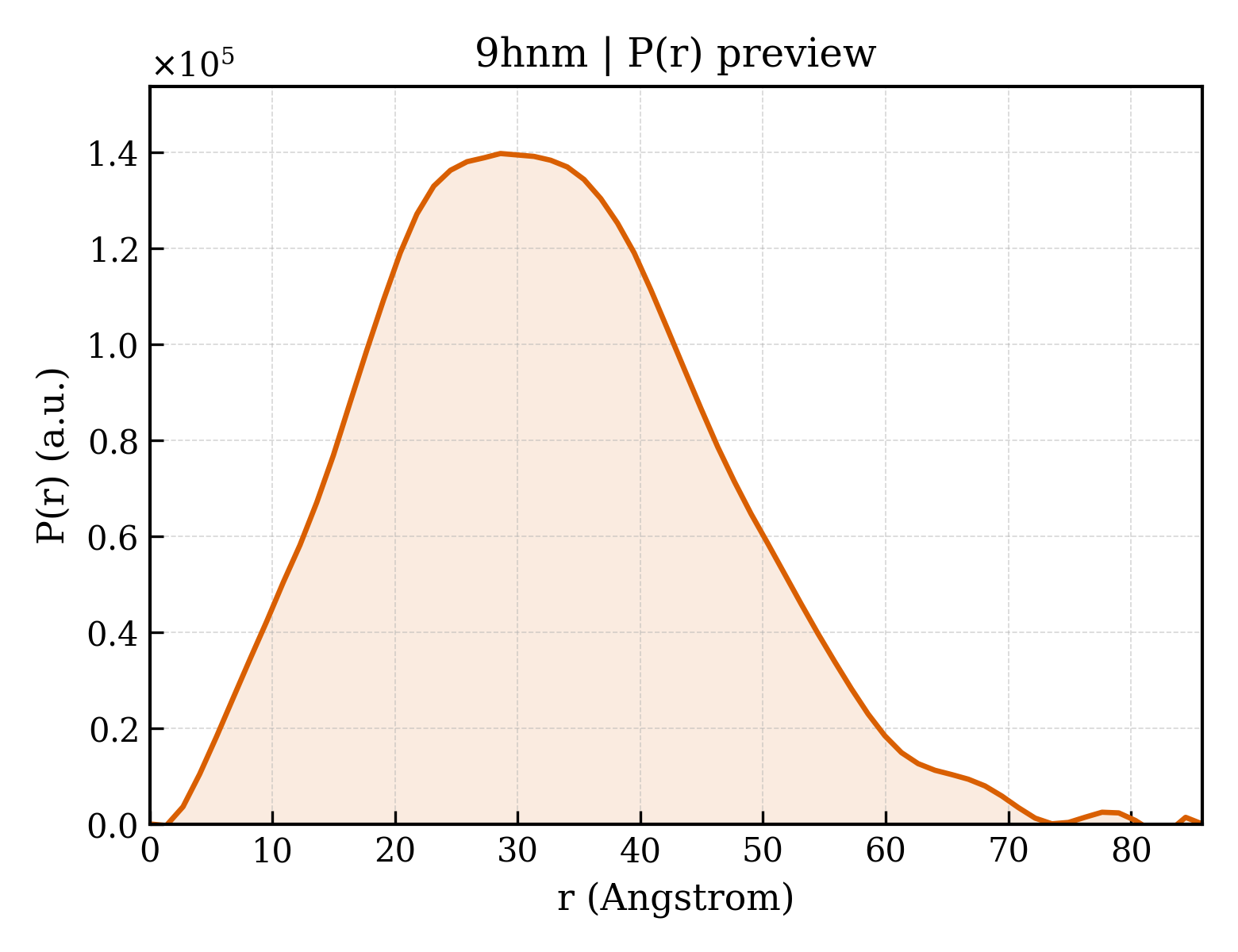

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9hnm
沉积日期 deposition_date	2024-12-11
结构标题 title	;Structure of the (6-4) photolyase of Caulobacter crescentus in its dark adapted and oxidized state determined by serial femtosecond crystallography ;
关键词 keywords	DNA repair, photolyase, electron transfer, iron-sulfur cluster, FLAVOPROTEIN; FLAVOPROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.69 Å
回转半径 Rg (电子) rg_electron	23.61 Å
零角强度 I(0) i0	62782700.00
分子量 molecular_weight	59430.0 kDa
排除体积 excluded_volume	73280 Å³
包络体积 envelope_volume	85979 Å³
水化壳体积 shell_volume	29908 Å³
包络直径 envelope_diameter	87.8 Å
壳层 Rg shell_rg	31.30 Å
包络 Rg envelope_rg	23.91 Å
形状 Rg shape_rg	23.57 Å
总 Rg total_rg	24.53 Å
总原子数 total_atoms	4162
残基数 n_residues	508
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.8 Å
Rg (实空间) rg_real	24.62 Å
Rg 误差 (实空间) rg_real_error	0.76 Å
I(0) (实空间) i0_real	6.2780e+07
I(0) 误差 (实空间) i0_real_error	9.4820e+05
Rg (倒空间) rg_reciprocal	24.63 Å
I(0) (倒空间) i0_reciprocal	62780000.0000
解质量估计 total_estimate	0.7740
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	28.6 Å
偏度 Skewness skewness	0.317
峰度 Kurtosis kurtosis	-0.242
角度范围 angular_range	— – 0.3200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16900000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.704; Stabil: 0.989; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Cryptochrome/photolyase family protein
分子量 formula_weight	58121.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4527

MAGALRLVLGDQLSDNLSALVDADLSRDQVLMVESRVEATAWKHHKQKLVLVWSAMRQFAERLRARGFNVRYVTLEDPDNTGSIGGELRRALEARAFDRVIRTACGKWGLESHLLSLDLPVPMETREDDRFLCSRAQFAAWAEGRRELRMEFFYREMRRKTGLLMDGDQPAGGRWNFDAENRRKLPPGLRPPERLRIPPNPTTQTVLEQVSRGFDDHFGEVEGFGWPTNPDEATAILDHFIADMLPSFGDWQDAMSWRRPFLWHSLISPALNIGLLDPLDICRRAEAAWREGRAPLNAVEGFIRQIIGWREFVRGIYWLKMPEYAQRNALDAQGKLPGFYWTGQTDMACVADTVRAAHDHAYAHHIQRLMVTGNLAMLLGVHPDAVDDWYMVVFADAYEWVEMPNTRGMATFADGGIVGSKPYAASGAYIDRMSDYCKGCRYDVKKRLGDDACPFNALYWDFIDRHAQRLAGNGRMMMPLRTLEKMPDAEREAFRKQARALRVKMGVSG

来源 Source

来源生物 organism	Caulobacter vibrioides
NCBI 分类编号 ncbi_taxonomy_id	155892
宿主生物 host_organism	Escherichia coli B

Entity 2 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	1-deoxy-1-(6,7-dimethyl-2,4-dioxo-3,4-dihydropteridin-8(2H)-yl)-D-ribitol
分子量 formula_weight	326.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	274

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	49.800 Å
晶胞边长 b length_b	103.400 Å
晶胞边长 c length_c	104.800 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	1.710 Å
最低分辨率 resolution_low	24.230 Å
R 因子 r_factor	0.1600
R_work r_work	0.1586
R_free r_free	0.1874
