9ht4

;Crystal structure of PA0884, the SBP component of a Pseudomonas aeruginosa PAO1 Tripartite ATP-independent Periplasmic (TRAP) transporter, complexed with succinate ;

Method: X-RAY DIFFRACTION D_max: 91.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

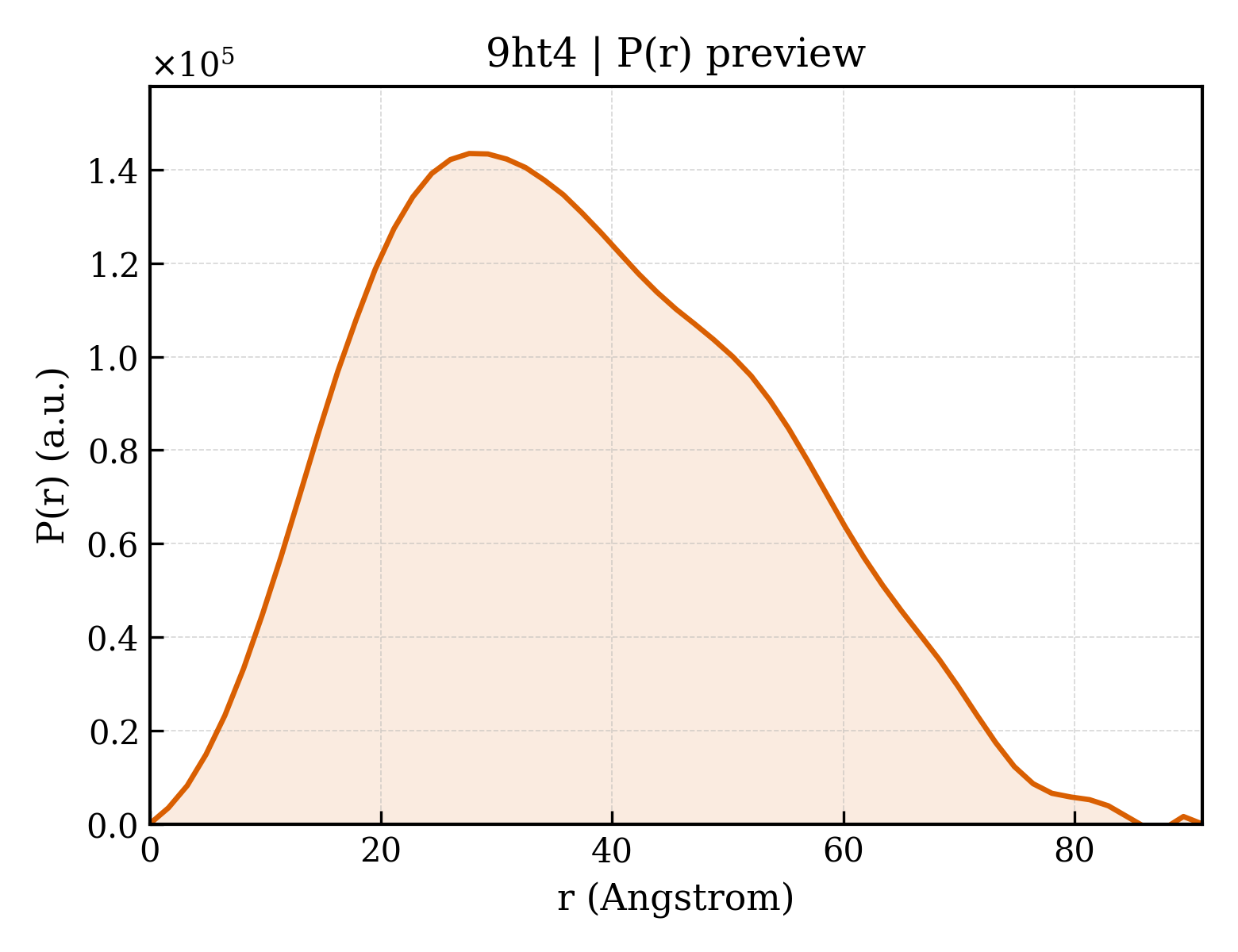

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ht4
沉积日期 deposition_date	2024-12-19
结构标题 title	;Crystal structure of PA0884, the SBP component of a Pseudomonas aeruginosa PAO1 Tripartite ATP-independent Periplasmic (TRAP) transporter, complexed with succinate ;
关键词 keywords	periplasmic substrate binding protein, C4-dicarboxylate transport, succinate, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.53 Å
回转半径 Rg (电子) rg_electron	27.72 Å
零角强度 I(0) i0	79822900.00
分子量 molecular_weight	69365.0 kDa
排除体积 excluded_volume	86580 Å³
包络体积 envelope_volume	103580 Å³
水化壳体积 shell_volume	31340 Å³
包络直径 envelope_diameter	92.9 Å
壳层 Rg shell_rg	34.62 Å
包络 Rg envelope_rg	27.50 Å
形状 Rg shape_rg	27.72 Å
总 Rg total_rg	28.40 Å
总原子数 total_atoms	4890
残基数 n_residues	610
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	91.0 Å
Rg (实空间) rg_real	28.54 Å
Rg 误差 (实空间) rg_real_error	0.79 Å
I(0) (实空间) i0_real	7.9820e+07
I(0) 误差 (实空间) i0_real_error	1.2270e+06
Rg (倒空间) rg_reciprocal	28.55 Å
I(0) (倒空间) i0_reciprocal	79820000.0000
解质量估计 total_estimate	0.8226
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.6 Å
偏度 Skewness skewness	0.301
峰度 Kurtosis kurtosis	-0.587
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	38580000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Probable C4-dicarboxylate-binding periplasmic protein
分子量 formula_weight	34935.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5219

AQPIVIKFSHVVAENTPKGQGALLFKKLVEQRLGGRVEVDVYPNSSLFGDGKEMEALLLGDVQMLAPSLAKFEQYTRKVQIFDLPFLFDDIQAVDRFQRSPQGRALLTSMQGKGILGLAYWHNGMKQLSANRPLLEPEDARGLKFRVQASDVLNEQFRQLRAISRKMSFAEVYQGLQTGVVNGTENTWSNYESQKVNEVQKYFTESNHGLVDYMVITNAKFWNGLPADIREELQRIMDEVTVQVNLEAERLNRDARQRILASGASEIHTLSPQQRADWRQAMQPVWQKFRGNVGADLLQAAEASNRPD

来源 Source

来源生物 organism	Pseudomonas aeruginosa PAO1
NCBI 分类编号 ncbi_taxonomy_id	208964
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	SUCCINIC ACID
分子量 formula_weight	118.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	320

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	33.957 Å
晶胞边长 b length_b	118.525 Å
晶胞边长 c length_c	167.210 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.750 Å
最低分辨率 resolution_low	50.440 Å
R 因子 r_factor	0.2031
R_work r_work	0.2010
R_free r_free	0.2412
