Cryo-EM structure of acylaminoacyl peptidase (AAP) in covalent complex with inhibitor AEBSF

Method: ELECTRON MICROSCOPY D_max: 135.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

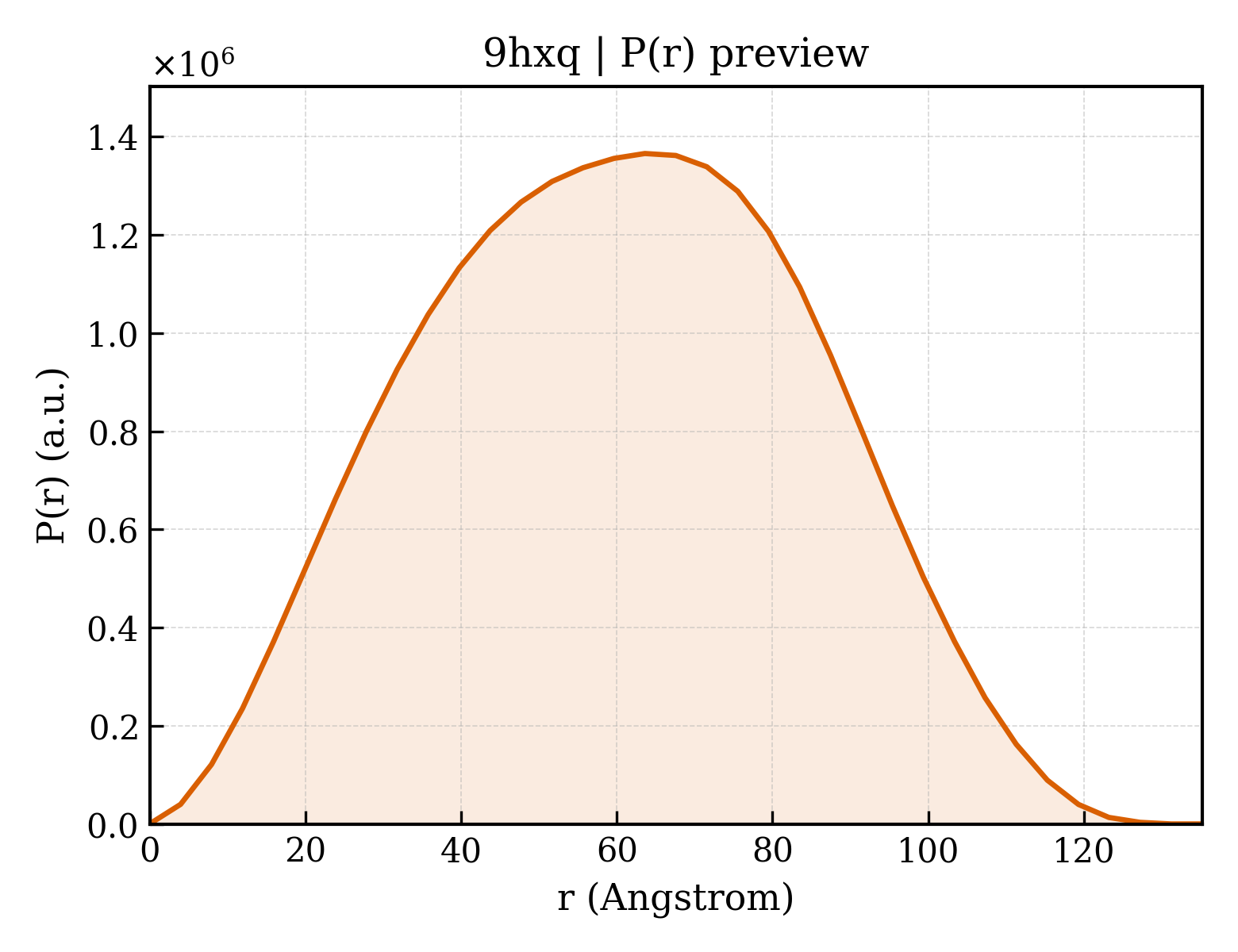

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9hxq
沉积日期 deposition_date	2025-01-08
最后修订 last_revision	2025-10-22
结构标题 title	Cryo-EM structure of acylaminoacyl peptidase (AAP) in covalent complex with inhibitor AEBSF
关键词 keywords	inhibitor, covalent, serine-protease, acylpeptide hydrolase, APEH, OPH, acylaminoacyl peptidase, sulphonate, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.16 Å
回转半径 Rg (电子) rg_electron	45.36 Å
零角强度 I(0) i0	1190010000.00
分子量 molecular_weight	294120.0 kDa
排除体积 excluded_volume	370810 Å³
包络体积 envelope_volume	528390 Å³
水化壳体积 shell_volume	94269 Å³
包络直径 envelope_diameter	137.1 Å
壳层 Rg shell_rg	53.57 Å
包络 Rg envelope_rg	43.26 Å
形状 Rg shape_rg	45.39 Å
总 Rg total_rg	45.61 Å
总原子数 total_atoms	20740
残基数 n_residues	2788
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	135.2 Å
Rg (实空间) rg_real	45.83 Å
Rg 误差 (实空间) rg_real_error	0.74 Å
I(0) (实空间) i0_real	1.1900e+09
I(0) 误差 (实空间) i0_real_error	1.8760e+07
Rg (倒空间) rg_reciprocal	46.16 Å
I(0) (倒空间) i0_reciprocal	1190000000.0000
解质量估计 total_estimate	0.8750
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	63.6 Å
偏度 Skewness skewness	0.016
峰度 Kurtosis kurtosis	-0.685
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	233200000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.977; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.452

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Acylamino-acid-releasing enzyme
分子量 formula_weight	81324.4 kDa
EC 编号 ec_number	3.4.19.1
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A,C,D
原子数 atom_count	20740

MERQVLLSEPEEAAALYRGLSRQPALSAACLGPEVTTQYGGRYRTVHTEWTQRDLERMENIRFCRQYLVFHDGDSVVFAGPAGNSVETRGELLSRESPSGTMKAVLRKAGGTGTAEEKQFLEVWEKNRKLKSFNLSALEKHGPVYEDDCFGCLSWSHSETHLLYVADKKRPKAESFFQTKALDVTGSDDEMARTKKPDQAIKGDQFLFYEDWGENMVSKSTPVLCVLDIESGNISVLEGVPESVSPGQAFWAPGDTGVVFVGWWHEPFRLGIRFCTNRRSALYYVDLTGGKCELLSDESVAVTSPRLSPDQCRIVYLRFPSLVPHQQCGQLCLYDWYTRVTSVVVDIVPRQLGEDFSGIYCSLLPLGCWSADSQRVVFDSPQRSRQDLFAVDTQMGSVTSLTAGGSGGSWKLLTIDRDLMVVQFSTPSVPPSLKVGFLPPAGKEQAVSWVSLEEAEPFPDISWSIRVLQPPPQQEHVQYAGLDFEAILLQPSNSPEKTQVPMVVMPHGGPHSSFVTAWMLFPAMLCKMGFAVLLVNYRGSTGFGQDSILSLPGNVGHQDVKDVQFAVEQVLQEEHFDAGRVALMGGSHGGFLSCHLIGQYPETYSACVVRNPVINIASMMGSTDIPDWCMVEAGFSYSSDCLPDLSVWAAMLDKSPIKYAPQVKTPLLLMLGQEDRRVPFKQGMEYYRVLKARNVPVRLLLYPKSTHALSEVEVESDSFMNAVLWLCTHLGS

Entity 2 non-polymer

描述 description	4-(2-AMINOETHYL)BENZENESULFONYL FLUORIDE
分子量 formula_weight	203.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	169418
