9hz5

Pre-clinical characterization of novel multi-client inhibitors of Sec61 with broad anti-tumor activity

Method: ELECTRON MICROSCOPY D_max: 83.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9hz5
沉积日期 deposition_date	2025-01-13
结构标题 title	Pre-clinical characterization of novel multi-client inhibitors of Sec61 with broad anti-tumor activity
关键词 keywords	Sec61, ribosome, Protein translocation, PROTEIN TRANSPORT; PROTEIN TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.08 Å
回转半径 Rg (电子) rg_electron	24.99 Å
零角强度 I(0) i0	86532900.00
分子量 molecular_weight	50434.0 kDa
排除体积 excluded_volume	49864 Å³
包络体积 envelope_volume	92878 Å³
水化壳体积 shell_volume	30621 Å³
包络直径 envelope_diameter	87.0 Å
壳层 Rg shell_rg	32.53 Å
包络 Rg envelope_rg	25.36 Å
形状 Rg shape_rg	24.98 Å
总 Rg total_rg	25.71 Å
总原子数 total_atoms	3836
残基数 n_residues	491
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

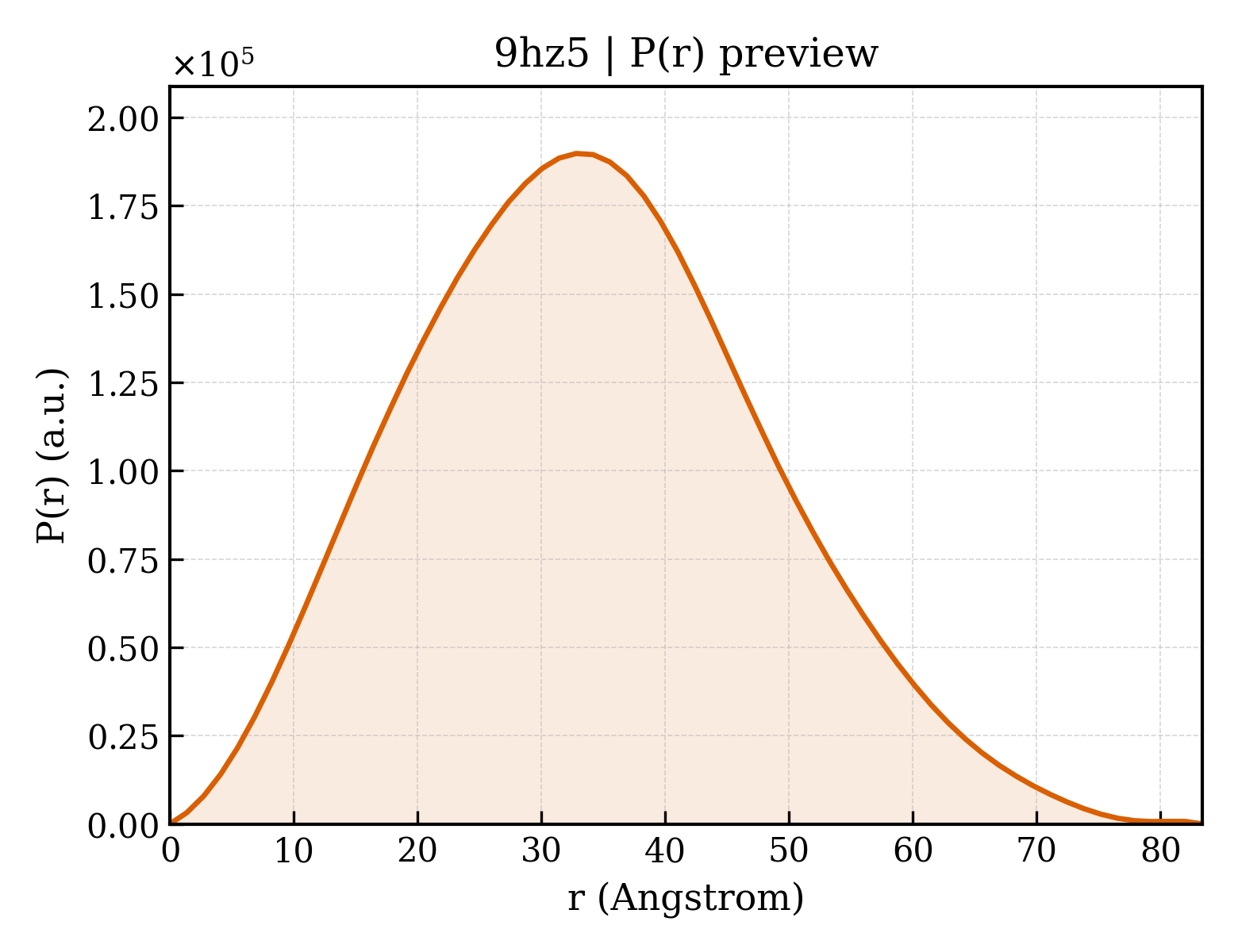

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	83.4 Å
Rg (实空间) rg_real	25.98 Å
Rg 误差 (实空间) rg_real_error	0.39 Å
I(0) (实空间) i0_real	8.6530e+07
I(0) 误差 (实空间) i0_real_error	1.2850e+06
Rg (倒空间) rg_reciprocal	26.01 Å
I(0) (倒空间) i0_reciprocal	86530000.0000
解质量估计 total_estimate	0.8958
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.8 Å
偏度 Skewness skewness	0.246
峰度 Kurtosis kurtosis	-0.324
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8328000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.989

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Protein transport protein Sec61 subunit alpha
分子量 formula_weight	45829.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	3836

EIQKPERKIQFKEKVLWTAITLFIFLVCCQIPLFGIMSSDSADPFYWMRVILASNRGTLMELGISPIVTSGLIMQLLAGAKKDRALFNGAQKLFGMIITIGQSIVYVMTMGAGICLLITIQLFVAGLIVLLLDELLQKGYGISLFIATNICETIVWKAFSPTTVNTGRGMEFEGAIIALFHLLATRTDKVRALREAFYRQNLPNLMNLIATIFVFAVVIYFQGFRVDLPIKSARYRGQYNTYPIKLFYTSNIPIILQSALVSNLYVISQMLSARFSGNLLVSLLGTWLCYYLSPPESFGSVLEDPVHAVVYIVFMLGSCAFFSKTWIEVSGSSAKDVAKQLKEQQMVMRGHRETSMVHELNRYIPTAAAFGGLCIGALSVLADFLGAIGSGTGILLAVTIIYQYFEIFVKEQ

Entity 2 polymer

描述 description	Protein transport protein Sec61 subunit gamma
分子量 formula_weight	6722.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

AAFVEPSRQFVKDSIRLVKRCTKPDRKEFQKIAMATAIGFAIMGFIGFFVKLIHIPINN

Entity 3 polymer

描述 description	Protein transport protein Sec61 subunit beta
分子量 formula_weight	2316.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

VPVLVMSLLFIASVFMLHIW

Entity 4 non-polymer

描述 description	;4-{(3S)-9-(cyclohexylmethyl)-5-[(3R,5R)-4-(3-fluoro-5-methoxyphenyl)-3,5-dimethylpiperazine-1-sulfonyl]-3-methyl-1,5,9-triazacyclododecane-1-sulfonyl}-N,N-dimethylaniline ;
分子量 formula_weight	765.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1564411

fit	/app/data/saxs_computation/hz/9hz5/9hz5.fit
pddf	/app/data/pr_computation/hz/9hz5/9hz5.pr.out
profile	/app/data/saxs_computation/hz/9hz5/9hz5.dat
