9i05

Cryo-EM structure of the large subunit of the mitochondrial ribosome from Toxoplasma gondii

Method: ELECTRON MICROSCOPY Dmax: 228.8 Å Quality: EXCELLENT

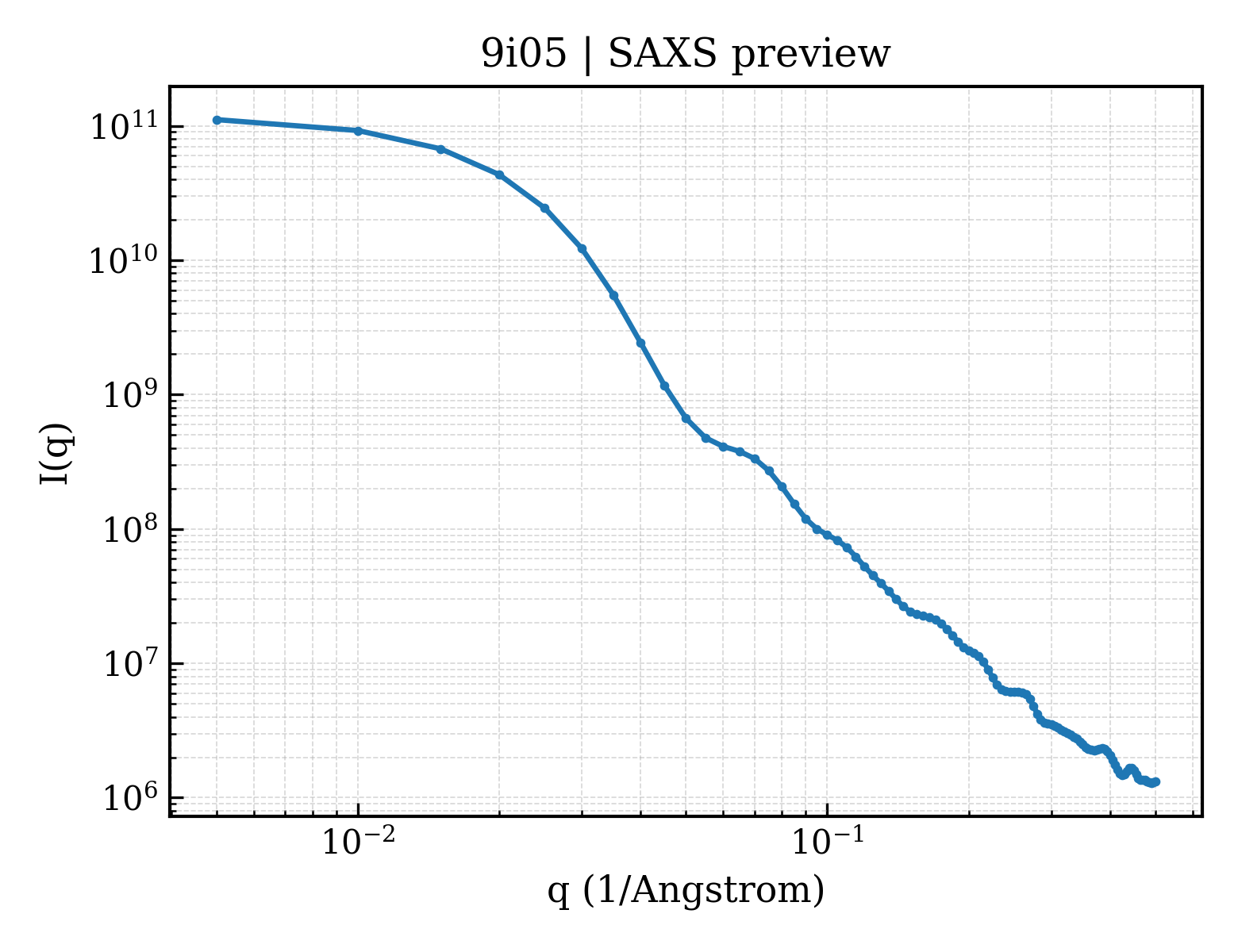

SAXS 散射曲线 SAXS Profile

SAXS profile for 9i05

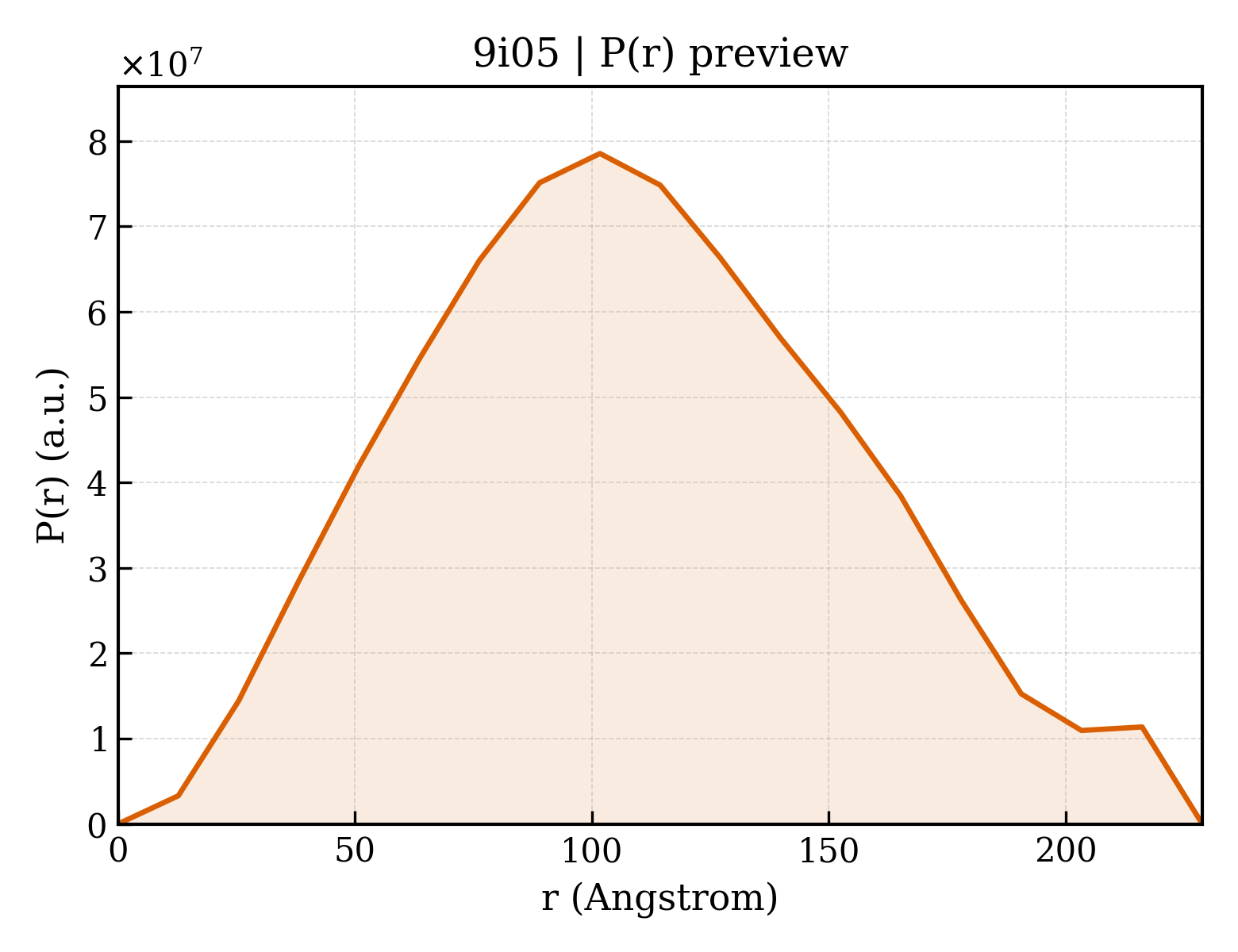

P(r) 距离分布 P(r) Distribution

P(r) distribution for 9i05
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id9i05
沉积日期 deposition_date2025-01-14
结构标题 titleCryo-EM structure of the large subunit of the mitochondrial ribosome from Toxoplasma gondii
关键词 keywordsToxoplasma gondii, parasite, mitochondrial ribosome, LSU, large subunit, RIBOSOME; RIBOSOME
实验方法 methodELECTRON MICROSCOPY

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier86.36
回转半径 Rg (电子) rg_electron89.99
零角强度 I(0) i0118389000000.00
分子量 molecular_weight2470600.0 kDa
排除体积 excluded_volume2899300 ų
包络体积 envelope_volume4383400 ų
水化壳体积 shell_volume375400 ų
包络直径 envelope_diameter312.7
壳层 Rg shell_rg100.90
包络 Rg envelope_rg90.16
形状 Rg shape_rg90.14
总 Rg total_rg89.60
总原子数 total_atoms323886
残基数 n_residues17927
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax228.8
Rg (实空间) rg_real83.32
Rg 误差 (实空间) rg_real_error0.49
I(0) (实空间) i0_real1.1350e+11
I(0) 误差 (实空间) i0_real_error2.1060e+09
Rg (倒空间) rg_reciprocal86.81
I(0) (倒空间) i0_reciprocal118500000000.0000
解质量估计 total_estimate0.9148
解质量评级 solution_quality EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary101.7
偏度 Skewness skewness0.228
峰度 Kurtosis kurtosis-0.480
角度范围 angular_range— – 0.0900 −1
当前正则化参数 α current_alpha0.5493
最高正则化参数 α highest_alpha10970000000.0000
实空间数据点数 n_real_points19
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.988; Stabil: 0.983; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.001

4. 晶体学与实验 4. Crystallography & Experiment

5. 实体与聚合体信息 (109)

7. 引用文献 (1)

8. 文件与曲线 (10)
