SAXSdb — 9i1i

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9i1i
沉积日期 deposition_date	2025-01-16
最后修订 last_revision	2025-12-10
结构标题 title	Cryo-EM structure of mouse RNF213 (WB3/WB4 + ATP)
关键词 keywords	E3 ligase, ubiquitin, AAA ATPase, LIGASE; LIGASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.66 Å
回转半径 Rg (电子) rg_electron	73.03 Å
零角强度 I(0) i0	3753770000.00
分子量 molecular_weight	524370.0 kDa
排除体积 excluded_volume	659070 Å³
包络体积 envelope_volume	1015000 Å³
水化壳体积 shell_volume	121180 Å³
包络直径 envelope_diameter	242.9 Å
壳层 Rg shell_rg	65.06 Å
包络 Rg envelope_rg	71.52 Å
形状 Rg shape_rg	73.03 Å
总 Rg total_rg	72.90 Å
总原子数 total_atoms	36852
残基数 n_residues	4584
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	214.1 Å
Rg (实空间) rg_real	72.76 Å
Rg 误差 (实空间) rg_real_error	1.17 Å
I(0) (实空间) i0_real	3.7470e+09
I(0) 误差 (实空间) i0_real_error	7.5960e+07
Rg (倒空间) rg_reciprocal	71.28 Å
I(0) (倒空间) i0_reciprocal	3741000000.0000
解质量估计 total_estimate	0.8368
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	68.1 Å
偏度 Skewness skewness	0.424
峰度 Kurtosis kurtosis	-0.622
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0211
最高正则化参数 α highest_alpha	189400000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	E3 ubiquitin-protein ligase RNF213
分子量 formula_weight	586543.6 kDa
EC 编号 ec_number	2.3.2.27,3.6.4.-,2.3.2.-
突变 mutation	E2449Q, E2806Q
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	36852

MECPQCGHVSSEKAPKFCSECGQKLPSAATVQGDLKNDNTLVVSSTPEGKTEQGAVLREEEVLLSSTDPGKELEKPEESDSNASWTTQMSKKEKRRRKRQGTISSSEAPSSGLWSLDMPPSPGSHNSALPQNQAQQGGAASQPGHPLDTENMPMEDGFVHTEGSGSPLQGQAAERTDAQSNLAPSDLAEVKDLNTSKPSVDKGLPLDGGPALSAFKGHPKMTDASQKAPLPESKGETSGQEKKVPPIDAAASPVKTAGKETGEDVRKPKPSPVSPVASKHGDQEAELKGKLATPVRKSNEGGNTQPEDQRKPGEGRNFAAAVKTQQAAAPQQAAAPEPTSAFNPRDTVTVYFHAIVSRHFGFNPEEHKVYVRGGEGLGQKGWTDACEMYCTQDLHDLGSLVEGKMDIPRQSLDKPIPYKYVIHRGGSSKDTVEYEFIYEQAQKKGEHVNRCLRVVSTSLGNGDWHQYDDIICMRSTGFFQQAKNRILDSTRKELLKGKKQAAVVMLDRIFSVLQPWSDINLQSFMTQFLQFYSVVREPMIHDGRARKWTSLQYEEKEVWTNLWEHVKKQMAPFLEGKSGESLPADCPVRSKLTLGLSILFMVEAAEFTVPKKDLDSLCYLLIPSAGSPEALHSDLSPVLRIRQRWRIYLTNLCLRCIDERCDRWLGILPLLHTCMQKSPPKKNSKSQPEDTWAGLEGISFSEFRDKAPTRSQPLQFMQSKMALLRVDEYLFRSWLSVVPLESLSSYLENSIDYLSDVPVRVLDCLQGISYRLPGLRKISNQNMKKDVENVFKMLMHLVDIYQHRIFGENLLQIYLTECLTLHETVCNITANHQFFEIPALSAELICKLLELSPPGHTDEGLPEKSYEDLVTSTLQEALATTRNWLRSLFKSRMLSISSAYVRLTYSEEMAVWRRLVEIGFPEKHGWKGSLLGDMEGRLKQEPPRLQISFFCSSQCRDGGLHDSVSRSFEKCVIEAVSSACQSQTSVLEGLSCQDLQKFGTLLSAVITKSWPVHNGEPVFDVDEIFKYLLKWPDVRQLFELCGTNEKIIDNITEEGRQLMATAESVFQKVAGELENGTIVVGQLELILEHQSQFLDIWNLNRRRLPSQEKACDVRSLLKRRRDDLLFLKQEKRYVESLLRQLGRVKHLVQVDFGNIEIIHSQDLSNKKLNEAVIKLPNSSSYKRETHYCLSPDIREMASKLDSLKDSHIFQDFWQETAESLNTLDKDPRELKVSLPEVLEYLYNPCYDNFYTLYENLKSGKITFAEVDAIFKDFVDKYDELKNDLKFMCTMNPQDQKGWISERVGQIKEYHTLHQAVSSAKVILQVRRALGVTGDFSVLNPLLNFADSFEDFGNEKLDQISPQFIKAKQLLQDISEPRQRCLEELARQTELVAWLHKALEDINELKVFVDLASISAGENDIDVDRVACFHDAVQGYASLLYKMDERTNFSDFMNHLQELWRALDNDQHLPDKLKDSARNLEWLKTVKESHGSVELSSLSLATAINSRGVYVIEAPKDGQKISPDTVLRLLLPDGHGYPEALRTYSTEELKELLNKLMLMSGKKDHNSNTEVEKFSEVFSNMQRLVHVFIKLHCAGNMLFRTWTAKVYCCPDGGIFMNFGLELLSQLTEKGDVIQLLGALCRQMEDFLDNWKTVVAQKRAEHFYLNFYTAEQLVYLSSELRKPRPSEAALMMLSFIKGKCTVQDLVQATSACESKADRYCLREVMKKLPQQLLSEPSLMGKLQVIMMQSLVYMSAFLPHCLDLDALGRCLAHLATMGGTPVERPLPKGLQAGQPNLILCGHSEVLPAALAIYMQAPRQPLPTFDEVLLCTPATTIEEVELLLRRCLTSGSQGHKVYSLLFADQLSYEVGCQAEEFFQSLCTRAHREDYQLVILCDAAREHCYIPSTFSQYKVPLVPQAPLPNIQAYLQSHYQVPKRLLSAATVFRDGLCVGIVTSERAGVGKSLYVNTLHTKLKAKLRDETVPLKIIRLTEPHLDENQVLSALLPFLKEKYQKMPVIFHIDISTSVQTGIPIFLFKLLILQYLMDINGKIWRRSPGHLYLVEIPQGLSVQPKRSSKLNARAPLFKFLDLFPKVTCRPPKEVIDMELTPERSHTDPAMDPVEFCSEAFQRPYQYLKRFHQQQNLDTFQYEKGSVEGSPEECLQHFLIYCGLINPSWSELRNFAWFLNCQLKDCEASIFCKSAFTGDTLRGFKNFVVTFMILMARDFATPTLHTSDQSPGRQSVTIGEVVEEDLAPFSLRKRWESEPHPYVFFNGDHMTMTFIGFHLETNNNGYVDAINPSNGKVIKKDVMTKELFDGLRLQRVPFNIDFDNLPRYEKLERLCLALGIEWPIDPDETYELTTDNMLKILAIEMRFRCGIPVIIMGETGCGKTRLIKFLSDLKRGSVEAETMKLVKVHGGTTPSMIYSKVKEAERTAFSNKAQHKLDTILFFDQANTTEAVSCIKEILCDRTVDGEHLHEDSGLHIIAACNPYRKHSQEMILRLESAGLGYRVSAEETADRLGSIPLRQLVYRVHALPPSLIPLVWDFGQLNDSAEKLYIQQIVQRLVDSVSVNPSETCVIADVLSASQMFMRKRENECGFVSLRDVERCVKVFRWFHDHSDMLLKELDKFLHESSDSTHTFERDPVLWSLVMAIGVCYHASLEEKASYRTAIARCFPKPYNSSRAILDEVTHVQDLFLRGAPIRTNIARNLALKENVFMMVICIELKIPLFLVGKPGSSKSLAKIIVADAMQGQAAFSELFRCLKQVHLVSFQCSPHSTPQGIISTFKQCARFQQGKDLGQYVSVVVLDQVGLAEDSPKMPLKTLHPLLEDGCIEDDPAPYKKVGFVGISNWALDPAKMNRGIFVSRGSPNEKELIESAEGICSSDRLVQDKIRGYFAPFAKAYETVCQKQDKEFFGLRDYYSLIKMVFAKAKASKRGLSPQDITHAVLRNFSGKDNIQALSIFTASLPEARYKEEVSTVELIKQNIYPGPQASSRGLDGAESRYLLVLTRNYVALQILQQTFFEGQQPEIIFGSSFPQDQEYTQICRNINRVKICMETGKMVVLLNLQNLYESLYDALNQYYVYLGGQKYVDLGLGTHRVKCRVHTAFRLIVIEEKDVVYKQFPVPLINRLEKHYLDMNTVLQPWQKSIVQELQQWAHEFADVKADQFIARHKYSPADVFIGYHSDACASVVLQAVERQGCRDLTEELYRKVSEEARSILLDCATPDAVVRLSGSSLGSFTAKQLSQEYYYAQQHNSFVDFLQAHLRMTHHECRAVFTEITTFSRLLTGNDCDVLASELRGLASKPVVLSLQQYDTEYSFLKDVRSWLTNPGKRKVLVIQADFDDGTRSAQLVASAKYTAINEINKTQGTKDFVFVYFVTKLSRMGSGTSYVGFHGGLWRSVHIDDLRRSTIMASDVTKLQNVTISQLFKPEDKPEQEEMEIETSQSKELAEEQMEVEDSEEMKKASDPRSCDCSQFLDTTRLVQSCVQGAVGMLRDQNESCARNMRRVTILLDLLNEDNTRNASFLRESKMRLHVLLNKQEENQVRSLKEWVTREAANQDALQEAGTFRHTLWKRVQDVVTPILASMIAHIDRDGNLELLAQPDSPAWVQDLWMFIYSDIKFLNISLVLNNTRSNSEMSFILVQSHMNLLKDAYNAVPFSWRIRDYLEELWVQAQYITDTEGLSKKFVEIFQKTPLGVFLAQFPVAQQQKLLQSYLKDFLLLTMKVSSREELMFLQMALWSCLRELQEASGTPDETYKFPLSLPWVHLAFQHFRTRLQNFSRILTIHPQVLSSLSQAAEKHSLAGCEMTLDAFAAMACAEMLKGDLLKPSPKAWLQLVKNLSTPLELVCSEGYLCDSGSMTRSVIQEVRALWNRIFSIALFVEHVLLGTESHIPELSPLVTTYVSLLDKCLEEDSNLKTCRPFVAVMTTLCDCKDKASKKFSRFGIQPCFICHGDAQDPVCLPCDHVYCLRCIQTWLIPGQMMCPYCLTDLPDKFSPTVSQDHRKAIEKHAQFRHMCNSFFVDLVSTMCFKDNTPPEKSVIDTLLSLLFVQKELLRDASQKHREHTKSLSPFDDVVDQTPVIRSVLLKLLLKYSFHEVKDYIQNYLTQLEKKAFLTEDKTELYLLFISCLEDSVHQKTSAGCRNLEQVLREEGHFLRTYSPGLQGQEPVRIASVEYLQEVARVRLCLDLAADFLSELQEGSELAEDKRRFLKHVEEFCTRVNNDWHRVYLVRKLSSQRGMEFVQSFSKQGHPCQWVFPRKVIAQQKDHVSLMDRYLVHGNEYKAVRDATAKAVLECKTLDIGNALMACRSPKPQQTAYLLLALYTEVAALYRSPNGSLHPEAKQLEAVNKFIKESKILSDPNIRCFARSLVDNTLPLLKIRSANSILKGTVTEMAVHVATILLCGHNQILKPLRNLAFYPVNMANAFLPTMPEDLLVHARTWRGLENVTWYTCPRGHPCSVGECGRPMQESTCLDCGLPVGGLNHTPHEGFSAIRNNEDRTQTGHVLGSPQSSGVAEVSDRGQSPVVFILTRLLTHLAMLVGATHNPQALTVIIKPWVQDPQGFLQQHIQRDLEQLTKMLGRSADETIHVVHLILSSLLRVQSHGVLNFNAELSTKGCRNNWEKHFETLLLRELKHLDKNLPAINALISQDERISSNPVTKIIYGDPATFLPHLPQKSIIHCSKIWSCRRKITVEYLQHIVEQKNGKETVPVLWHFLQKEAELRLVKFLPEILALQRDLVKQFQNVSRVEYSSIRGFIHSHSSDGLRKLLHDRITIFLSTWNALRRSLETNGEIKLPKDYCCSDLDLDAEFEVILPRRQGLGLCGTALVSYLISLHNNMVYTVQKFSNEDNSYSVDISEVADLHVISYEVERDLNPLILSNCQYQVQQGGETSQEFDLEKIQRQISSRFLQGKPRLTLKGIPTLVYRRDWNYEHLFMDIKNKMAQSSLPNLAISTISGQLQSYSDACEALSIIEITLGFLSTAGGDPGMDLNVYIEEVLRMCDQTAQVLKAFSRCQLRHIIALWQFLSAHKSEQRLRLNKELFREIDVQYKEELSTQHQRLLGTFLNEAGLDAFLLELHEMIVLKLKGPRAANSFNPNWSLKDTLVSYMETKDSDILSEVESQFPEEILMSSCISVWKIAATRKWDRQSRGGGHHHHHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

Entity 2 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	4.500 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	4.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	33242

fit	/app/data/saxs_computation/i1/9i1i/9i1i.fit
pddf	/app/data/pr_computation/i1/9i1i/9i1i.pr.out
profile	/app/data/saxs_computation/i1/9i1i/9i1i.dat

Cryo-EM structure of mouse RNF213 (WB3/WB4 + ATP)

SAXS 散射曲线 SAXS Profile

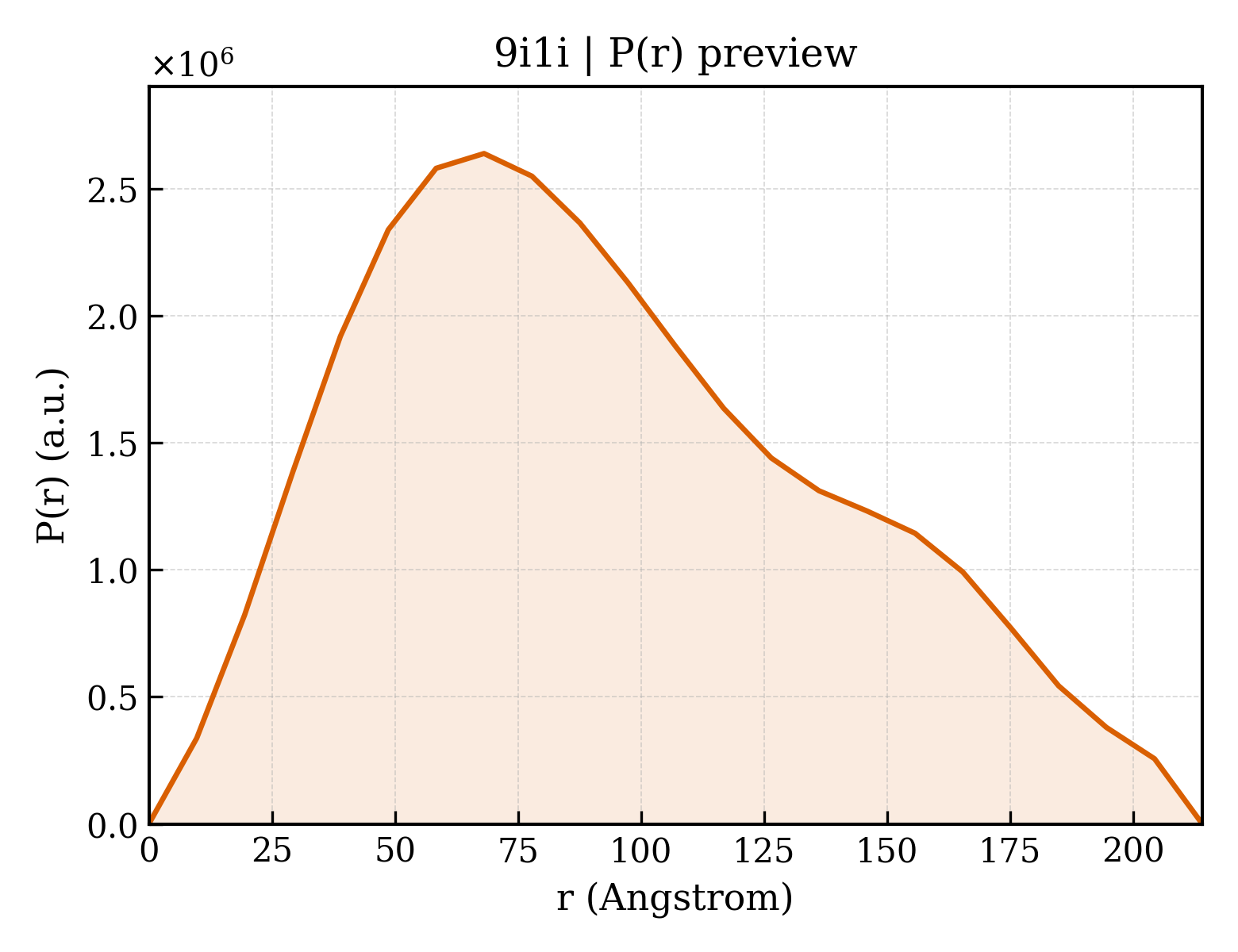

P(r) 距离分布 P(r) Distribution
