SAXSdb — 9i1j

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9i1j
沉积日期 deposition_date	2025-01-16
最后修订 last_revision	2025-12-10
结构标题 title	Cryo-EM structure of mouse RNF213:UBE2L3 transthiolation intermediate, chemically stabilized, and ATPgS
关键词 keywords	E3 ligase, ubiquitin, AAA ATPase, LIGASE; LIGASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	70.68 Å
回转半径 Rg (电子) rg_electron	71.07 Å
零角强度 I(0) i0	3737970000.00
分子量 molecular_weight	523500.0 kDa
排除体积 excluded_volume	658200 Å³
包络体积 envelope_volume	1004000 Å³
水化壳体积 shell_volume	122360 Å³
包络直径 envelope_diameter	237.3 Å
壳层 Rg shell_rg	64.70 Å
包络 Rg envelope_rg	69.90 Å
形状 Rg shape_rg	71.06 Å
总 Rg total_rg	70.99 Å
总原子数 total_atoms	36793
残基数 n_residues	4576
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	210.3 Å
Rg (实空间) rg_real	70.78 Å
Rg 误差 (实空间) rg_real_error	1.21 Å
I(0) (实空间) i0_real	3.7320e+09
I(0) 误差 (实空间) i0_real_error	7.2670e+07
Rg (倒空间) rg_reciprocal	69.33 Å
I(0) (倒空间) i0_reciprocal	3726000000.0000
解质量估计 total_estimate	0.8344
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	66.9 Å
偏度 Skewness skewness	0.471
峰度 Kurtosis kurtosis	-0.529
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0120
最高正则化参数 α highest_alpha	203200000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.020

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	E3 ubiquitin-protein ligase RNF213
分子量 formula_weight	552623.4 kDa
EC 编号 ec_number	2.3.2.27,3.6.4.-
突变 mutation	delta N300
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	36793

MASWSHPQFEKGSTSAFNPRDTVTVYFHAIVSRHFGFNPEEHKVYVRGGEGLGQKGWTDACEMYCTQDLHDLGSLVEGKMDIPRQSLDKPIPYKYVIHRGGSSKDTVEYEFIYEQAQKKGEHVNRCLRVVSTSLGNGDWHQYDDIICMRSTGFFQQAKNRILDSTRKELLKGKKQAAVVMLDRIFSVLQPWSDINLQSFMTQFLQFYSVVREPMIHDGRARKWTSLQYEEKEVWTNLWEHVKKQMAPFLEGKSGESLPADCPVRSKLTLGLSILFMVEAAEFTVPKKDLDSLCYLLIPSAGSPEALHSDLSPVLRIRQRWRIYLTNLCLRCIDERCDRWLGILPLLHTCMQKSPPKKNSKSQPEDTWAGLEGISFSEFRDKAPTRSQPLQFMQSKMALLRVDEYLFRSWLSVVPLESLSSYLENSIDYLSDVPVRVLDCLQGISYRLPGLRKISNQNMKKDVENVFKMLMHLVDIYQHRIFGENLLQIYLTECLTLHETVCNITANHQFFEIPALSAELICKLLELSPPGHTDEGLPEKSYEDLVTSTLQEALATTRNWLRSLFKSRMLSISSAYVRLTYSEEMAVWRRLVEIGFPEKHGWKGSLLGDMEGRLKQEPPRLQISFFCSSQCRDGGLHDSVSRSFEKCVIEAVSSACQSQTSVLEGLSCQDLQKFGTLLSAVITKSWPVHNGEPVFDVDEIFKYLLKWPDVRQLFELCGTNEKIIDNITEEGRQLMATAESVFQKVAGELENGTIVVGQLELILEHQSQFLDIWNLNRRRLPSQEKACDVRSLLKRRRDDLLFLKQEKRYVESLLRQLGRVKHLVQVDFGNIEIIHSQDLSNKKLNEAVIKLPNSSSYKRETHYCLSPDIREMASKLDSLKDSHIFQDFWQETAESLNTLDKDPRELKVSLPEVLEYLYNPCYDNFYTLYENLKSGKITFAEVDAIFKDFVDKYDELKNDLKFMCTMNPQDQKGWISERVGQIKEYHTLHQAVSSAKVILQVRRALGVTGDFSVLNPLLNFADSFEDFGNEKLDQISPQFIKAKQLLQDISEPRQRCLEELARQTELVAWLHKALEDINELKVFVDLASISAGENDIDVDRVACFHDAVQGYASLLYKMDERTNFSDFMNHLQELWRALDNDQHLPDKLKDSARNLEWLKTVKESHGSVELSSLSLATAINSRGVYVIEAPKDGQKISPDTVLRLLLPDGHGYPEALRTYSTEELKELLNKLMLMSGKKDHNSNTEVEKFSEVFSNMQRLVHVFIKLHCAGNMLFRTWTAKVYCCPDGGIFMNFGLELLSQLTEKGDVIQLLGALCRQMEDFLDNWKTVVAQKRAEHFYLNFYTAEQLVYLSSELRKPRPSEAALMMLSFIKGKCTVQDLVQATSACESKADRYCLREVMKKLPQQLLSEPSLMGKLQVIMMQSLVYMSAFLPHCLDLDALGRCLAHLATMGGTPVERPLPKGLQAGQPNLILCGHSEVLPAALAIYMQAPRQPLPTFDEVLLCTPATTIEEVELLLRRCLTSGSQGHKVYSLLFADQLSYEVGCQAEEFFQSLCTRAHREDYQLVILCDAAREHCYIPSTFSQYKVPLVPQAPLPNIQAYLQSHYQVPKRLLSAATVFRDGLCVGIVTSERAGVGKSLYVNTLHTKLKAKLRDETVPLKIIRLTEPHLDENQVLSALLPFLKEKYQKMPVIFHIDISTSVQTGIPIFLFKLLILQYLMDINGKIWRRSPGHLYLVEIPQGLSVQPKRSSKLNARAPLFKFLDLFPKVTCRPPKEVIDMELTPERSHTDPAMDPVEFCSEAFQRPYQYLKRFHQQQNLDTFQYEKGSVEGSPEECLQHFLIYCGLINPSWSELRNFAWFLNCQLKDCEASIFCKSAFTGDTLRGFKNFVVTFMILMARDFATPTLHTSDQSPGRQSVTIGEVVEEDLAPFSLRKRWESEPHPYVFFNGDHMTMTFIGFHLETNNNGYVDAINPSNGKVIKKDVMTKELFDGLRLQRVPFNIDFDNLPRYEKLERLCLALGIEWPIDPDETYELTTDNMLKILAIEMRFRCGIPVIIMGETGCGKTRLIKFLSDLKRGSVEAETMKLVKVHGGTTPSMIYSKVKEAERTAFSNKAQHKLDTILFFDEANTTEAVSCIKEILCDRTVDGEHLHEDSGLHIIAACNPYRKHSQEMILRLESAGLGYRVSAEETADRLGSIPLRQLVYRVHALPPSLIPLVWDFGQLNDSAEKLYIQQIVQRLVDSVSVNPSETCVIADVLSASQMFMRKRENECGFVSLRDVERCVKVFRWFHDHSDMLLKELDKFLHESSDSTHTFERDPVLWSLVMAIGVCYHASLEEKASYRTAIARCFPKPYNSSRAILDEVTHVQDLFLRGAPIRTNIARNLALKENVFMMVICIELKIPLFLVGKPGSSKSLAKIIVADAMQGQAAFSELFRCLKQVHLVSFQCSPHSTPQGIISTFKQCARFQQGKDLGQYVSVVVLDEVGLAEDSPKMPLKTLHPLLEDGCIEDDPAPYKKVGFVGISNWALDPAKMNRGIFVSRGSPNEKELIESAEGICSSDRLVQDKIRGYFAPFAKAYETVCQKQDKEFFGLRDYYSLIKMVFAKAKASKRGLSPQDITHAVLRNFSGKDNIQALSIFTASLPEARYKEEVSTVELIKQNIYPGPQASSRGLDGAESRYLLVLTRNYVALQILQQTFFEGQQPEIIFGSSFPQDQEYTQICRNINRVKICMETGKMVVLLNLQNLYESLYDALNQYYVYLGGQKYVDLGLGTHRVKCRVHTAFRLIVIEEKDVVYKQFPVPLINRLEKHYLDMNTVLQPWQKSIVQELQQWAHEFADVKADQFIARHKYSPADVFIGYHSDACASVVLQAVERQGCRDLTEELYRKVSEEARSILLDCATPDAVVRLSGSSLGSFTAKQLSQEYYYAQQHNSFVDFLQAHLRMTHHECRAVFTEITTFSRLLTGNDCDVLASELRGLASKPVVLSLQQYDTEYSFLKDVRSWLTNPGKRKVLVIQADFDDGTRSAQLVASAKYTAINEINKTQGTKDFVFVYFVTKLSRMGSGTSYVGFHGGLWRSVHIDDLRRSTIMASDVTKLQNVTISQLFKPEDKPEQEEMEIETSQSKELAEEQMEVEDSEEMKKASDPRSCDCSQFLDTTRLVQSCVQGAVGMLRDQNESCARNMRRVTILLDLLNEDNTRNASFLRESKMRLHVLLNKQEENQVRSLKEWVTREAANQDALQEAGTFRHTLWKRVQDVVTPILASMIAHIDRDGNLELLAQPDSPAWVQDLWMFIYSDIKFLNISLVLNNTRSNSEMSFILVQSHMNLLKDAYNAVPFSWRIRDYLEELWVQAQYITDTEGLSKKFVEIFQKTPLGVFLAQFPVAQQQKLLQSYLKDFLLLTMKVSSREELMFLQMALWSCLRELQEASGTPDETYKFPLSLPWVHLAFQHFRTRLQNFSRILTIHPQVLSSLSQAAEKHSLAGCEMTLDAFAAMACAEMLKGDLLKPSPKAWLQLVKNLSTPLELVCSEGYLCDSGSMTRSVIQEVRALWNRIFSIALFVEHVLLGTESHIPELSPLVTTYVSLLDKCLEEDSNLKTCRPFVAVMTTLCDCKDKASKKFSRFGIQPCFICHGDAQDPVCLPCDHVYCLRCIQTWLIPGQMMCPYCLTDLPDKFSPTVSQDHRKAIEKHAQFRHMCNSFFVDLVSTMCFKDNTPPEKSVIDTLLSLLFVQKELLRDASQKHREHTKSLSPFDDVVDQTPVIRSVLLKLLLKYSFHEVKDYIQNYLTQLEKKAFLTEDKTELYLLFISCLEDSVHQKTSAGCRNLEQVLREEGHFLRTYSPGLQGQEPVRIASVEYLQEVARVRLCLDLAADFLSELQEGSELAEDKRRFLKHVEEFCTRVNNDWHRVYLVRKLSSQRGMEFVQSFSKQGHPCQWVFPRKVIAQQKDHVSLMDRYLVHGNEYKAVRDATAKAVLECKTLDIGNALMACRSPKPQQTAYLLLALYTEVAALYRSPNGSLHPEAKQLEAVNKFIKESKILSDPNIRCFARSLVDNTLPLLKIRSANSILKGTVTEMAVHVATILLCGHNQILKPLRNLAFYPVNMANAFLPTMPEDLLVHARTWRGLENVTWYTCPRGHPCSVGECGRPMQESTCLDCGLPVGGLNHTPHEGFSAIRNNEDRTQTGHVLGSPQSSGVAEVSDRGQSPVVFILTRLLTHLAMLVGATHNPQALTVIIKPWVQDPQGFLQQHIQRDLEQLTKMLGRSADETIHVVHLILSSLLRVQSHGVLNFNAELSTKGCRNNWEKHFETLLLRELKHLDKNLPAINALISQDERISSNPVTKIIYGDPATFLPHLPQKSIIHCSKIWSCRRKITVEYLQHIVEQKNGKETVPVLWHFLQKEAELRLVKFLPEILALQRDLVKQFQNVSRVEYSSIRGFIHSHSSDGLRKLLHDRITIFLSTWNALRRSLETNGEIKLPKDYCCSDLDLDAEFEVILPRRQGLGLCGTALVSYLISLHNNMVYTVQKFSNEDNSYSVDISEVADLHVISYEVERDLNPLILSNCQYQVQQGGETSQEFDLEKIQRQISSRFLQGKPRLTLKGIPTLVYRRDWNYEHLFMDIKNKMAQSSLPNLAISTISGQLQSYSDACEALSIIEITLGFLSTAGGDPGMDLNVYIEEVLRMCDQTAQVLKAFSRCQLRHIIALWQFLSAHKSEQRLRLNKELFREIDVQYKEELSTQHQRLLGTFLNEAGLDAFLLELHEMIVLKLKGPRAANSFNPNWSLKDTLVSYMETKDSDILSEVESQFPEEILMSSCISVWKIAATRKWDRQSRGGGHHHHHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	Ubiquitin-conjugating enzyme E2 L3
分子量 formula_weight	19197.9 kDa
EC 编号 ec_number	2.3.2.23
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

GWSHPQFEKPGSMAASRRLMKELEEIRKSGMKNFRNIQVDEANLLTWQGLIVPDNPPYDKGAFRIEINFPAEYPFKPPKITFKTKIYHPNIDEKGQVCLPVISAENWKPATKTDQVIQSLIALVNDPQPEHPLRADLAEEYSKDRKKFSKNAEEFTKKYGEKRPVD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.800 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	31607

fit	/app/data/saxs_computation/i1/9i1j/9i1j.fit
pddf	/app/data/pr_computation/i1/9i1j/9i1j.pr.out
profile	/app/data/saxs_computation/i1/9i1j/9i1j.dat

Cryo-EM structure of mouse RNF213:UBE2L3 transthiolation intermediate, chemically stabilized, and ATPgS

SAXS 散射曲线 SAXS Profile

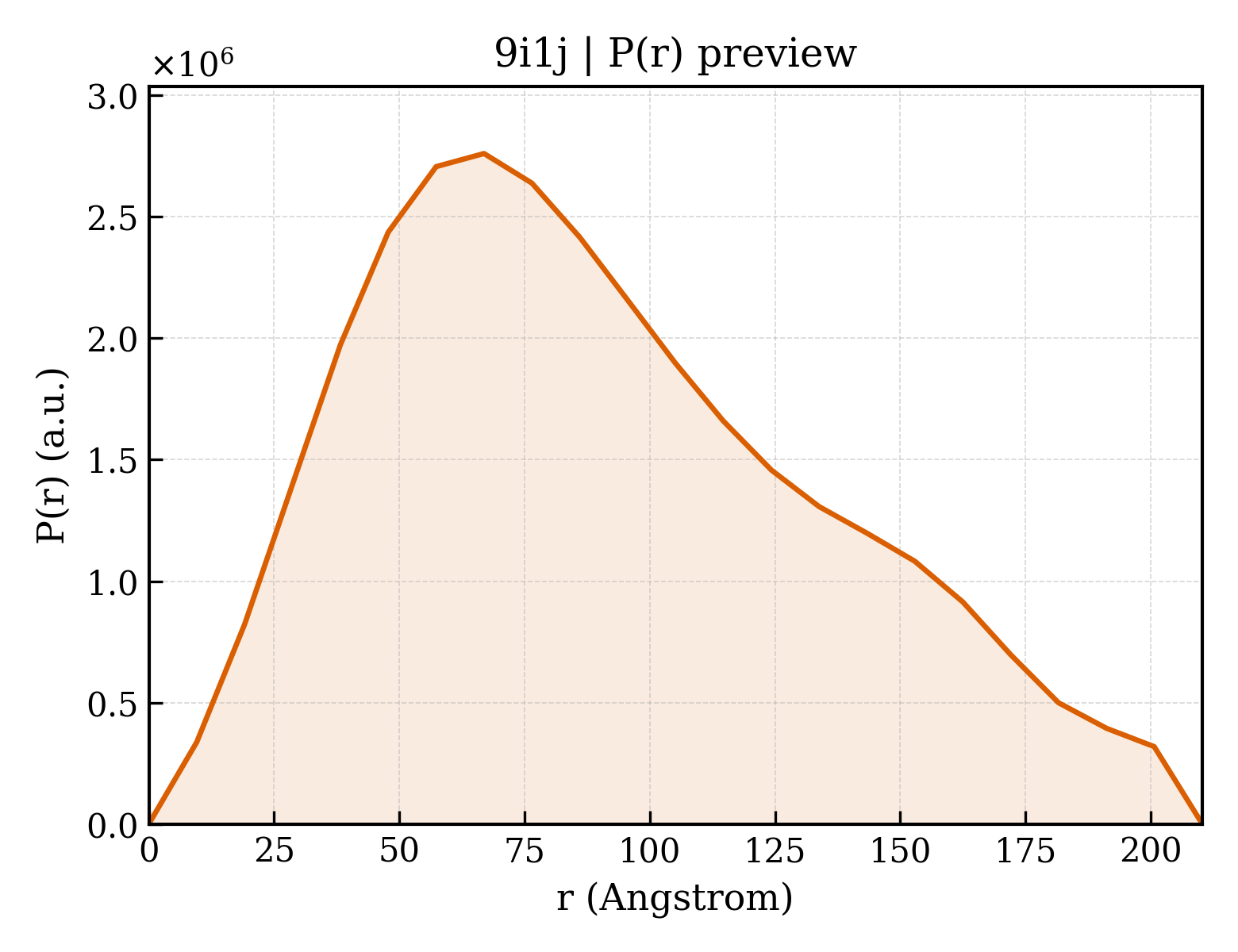

P(r) 距离分布 P(r) Distribution
