9i1m

Structure of AauA, a sugar-binding protein with its substrate

Method: X-RAY DIFFRACTION D_max: 53.6 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

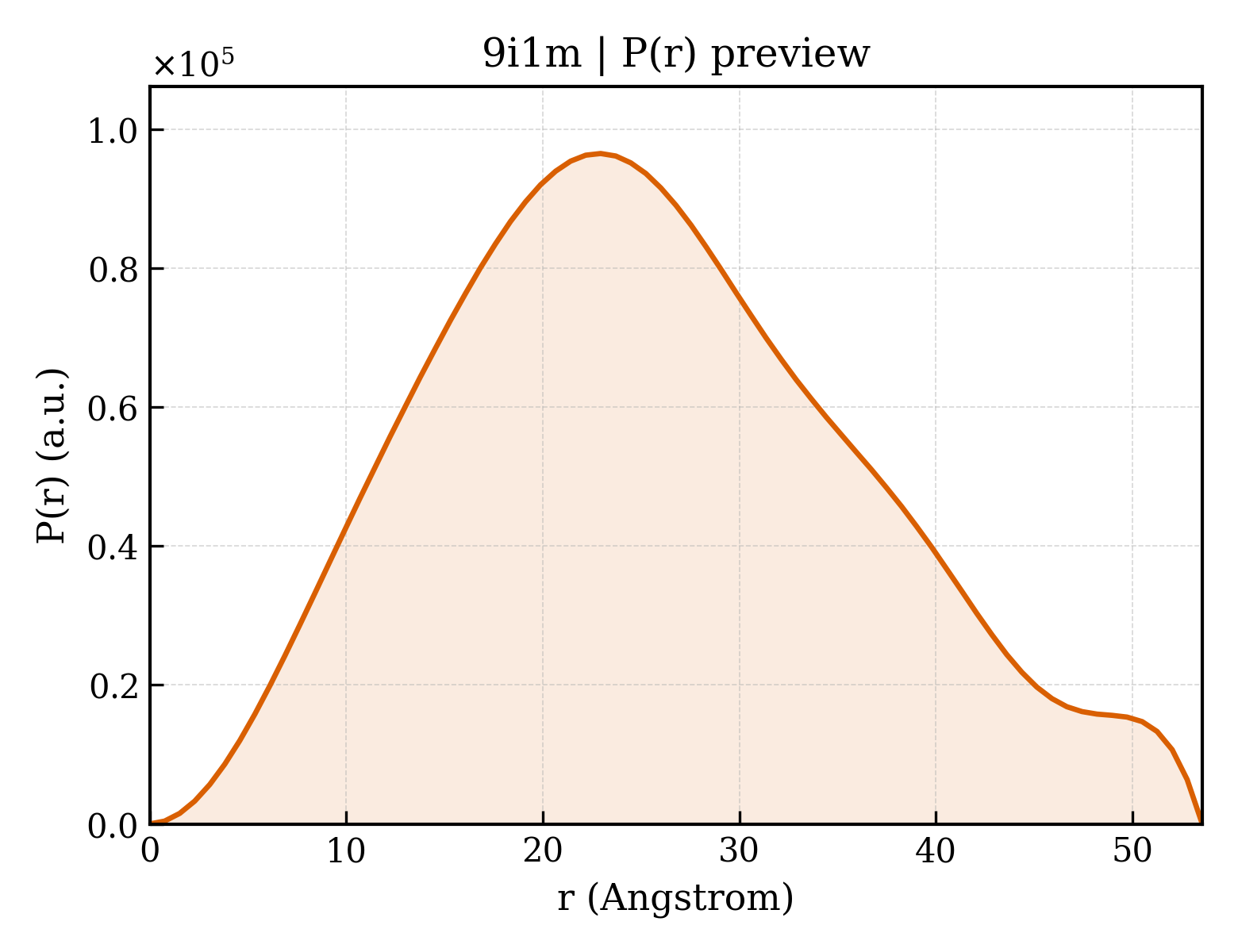

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9i1m
沉积日期 deposition_date	2025-01-16
结构标题 title	Structure of AauA, a sugar-binding protein with its substrate
关键词 keywords	sugar, transporter, E.coli, substrate-binding protein, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	20.22 Å
回转半径 Rg (电子) rg_electron	19.46 Å
零角强度 I(0) i0	34155600.00
分子量 molecular_weight	29971.0 kDa
排除体积 excluded_volume	28897 Å³
包络体积 envelope_volume	45788 Å³
水化壳体积 shell_volume	19764 Å³
包络直径 envelope_diameter	71.4 Å
壳层 Rg shell_rg	25.79 Å
包络 Rg envelope_rg	19.95 Å
形状 Rg shape_rg	19.44 Å
总 Rg total_rg	20.14 Å
总原子数 total_atoms	2269
残基数 n_residues	292
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	53.6 Å
Rg (实空间) rg_real	19.47 Å
Rg 误差 (实空间) rg_real_error	0.06 Å
I(0) (实空间) i0_real	3.2710e+07
I(0) 误差 (实空间) i0_real_error	2.9230e+05
Rg (倒空间) rg_reciprocal	20.22 Å
I(0) (倒空间) i0_reciprocal	34160000.0000
解质量估计 total_estimate	0.6835
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	22.9 Å
偏度 Skewness skewness	0.301
峰度 Kurtosis kurtosis	-0.446
角度范围 angular_range	— – 0.3950 Å⁻¹
当前正则化参数 α current_alpha	2.9860
最高正则化参数 α highest_alpha	7131000.0000
实空间数据点数 n_real_points	71
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.981; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Sugar-binding protein
分子量 formula_weight	35697.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	2492

MMNKRFVINMVSSLLLGAALISAPLQAAEKVVVNISKVDGMPWFNRMGEGVVEAGKAFGVNASQVGPSSTDAPQQVKIIEDLIARKVNAITIVPNDANVLEPVFKKARDAGIVVLTNESPGQPSANWDIEIIDNEKFAAEYVEHMAKRMGGKGGYVIYVGSLTVPQHNLWADLLVKYQKEHYPDMHEVTRRMPVAESVDVSRRTTLDLMKTYPDLKAVVSFGSNGPIGAGRAVKEKRAKNKVAVYGMMIPSQAASLIKSGDITEGITYDPASAGYALAAVASTLLKGEEIKPGLEMQNLGKADVDMDKRIIRFHKVLLVNKDNIDSLY

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	TETRAETHYLENE GLYCOL
分子量 formula_weight	194.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	(2~{S},3~{R},4~{R})-2-(hydroxymethyl)oxolane-2,3,4-triol
分子量 formula_weight	150.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	215

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	76.380 Å
晶胞边长 b length_b	66.940 Å
晶胞边长 c length_c	57.850 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.45 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.350 Å
最低分辨率 resolution_low	38.900 Å
R 因子 r_factor	0.1272
R_work r_work	0.1263
R_free r_free	0.1435
