;Outwards conformation' of the human gamma-TuRC from purified centrosomes obtained by rigid body docking ;

Method: ELECTRON MICROSCOPY D_max: 371.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9i8h
沉积日期 deposition_date	2025-02-04
结构标题 title	;Outwards conformation' of the human gamma-TuRC from purified centrosomes obtained by rigid body docking ;
关键词 keywords	;centrosome, cytoskeleton, microtubule, microtubule nucleation, complex, template, cap, gamma-tubulin, gamma-tubulin ring complex, cell cycle, nedd1, neural precursor cell-expressed developmentally down-regulated 1, CDK5RAP2, cyclin-dependent kinase 5 regulatory subunit associated protein 2 ;; CELL CYCLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	110.60 Å
零角强度 I(0) i0	29548800000.00
分子量 molecular_weight	1476100.0 kDa
排除体积 excluded_volume	1847900 Å³
包络体积 envelope_volume	4016800 Å³
水化壳体积 shell_volume	307190 Å³
包络直径 envelope_diameter	327.8 Å
壳层 Rg shell_rg	112.60 Å
包络 Rg envelope_rg	99.69 Å
形状 Rg shape_rg	110.60 Å
总 Rg total_rg	110.70 Å
总原子数 total_atoms	104043
残基数 n_residues	13409
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

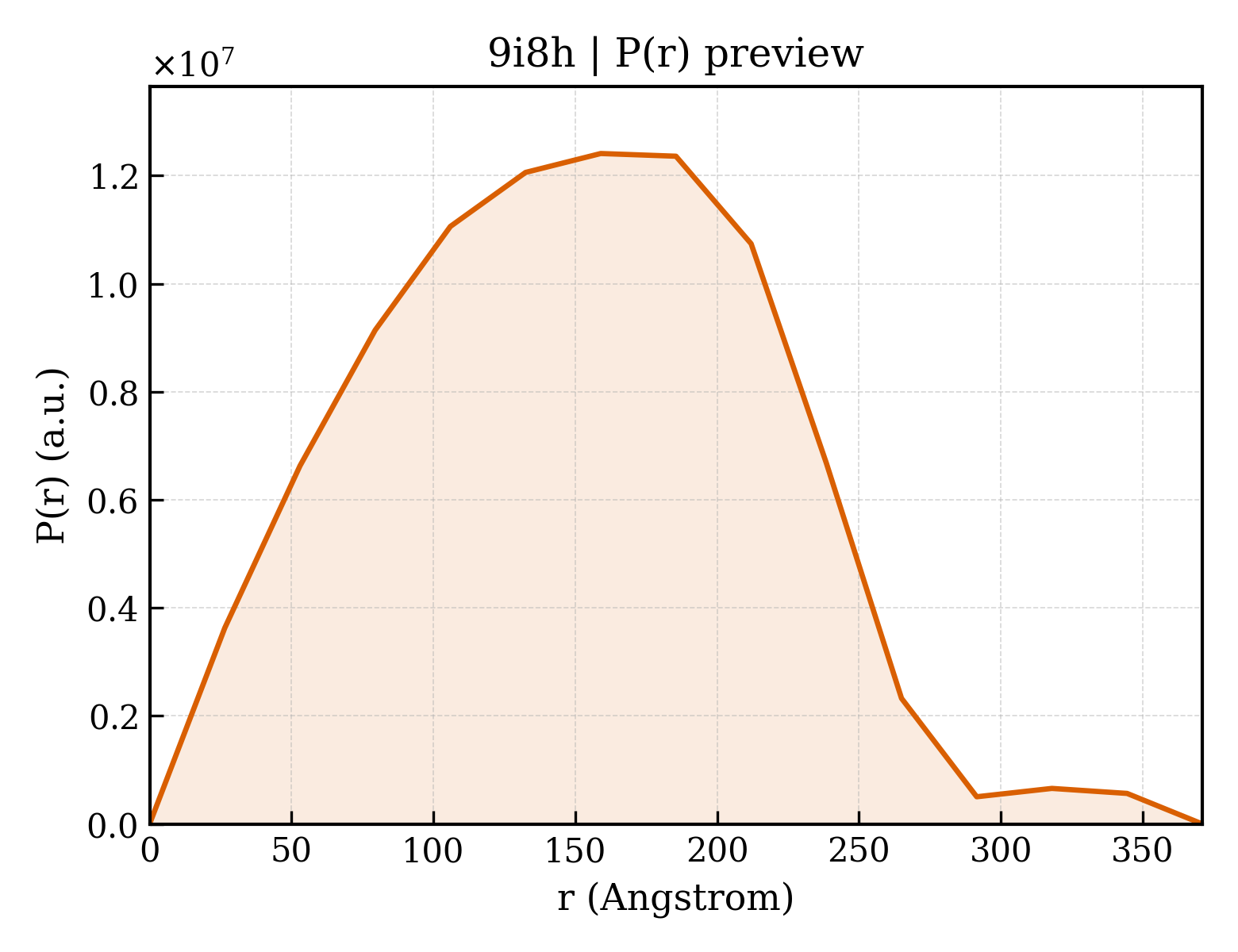

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	371.0 Å
Rg (实空间) rg_real	115.20 Å
Rg 误差 (实空间) rg_real_error	2.42 Å
I(0) (实空间) i0_real	2.9550e+10
I(0) 误差 (实空间) i0_real_error	7.5470e+08
Rg (倒空间) rg_reciprocal	113.90 Å
I(0) (倒空间) i0_reciprocal	29730000000.0000
解质量估计 total_estimate	0.8718
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	159.0 Å
偏度 Skewness skewness	0.151
峰度 Kurtosis kurtosis	-0.383
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	1.0770
最高正则化参数 α highest_alpha	702200000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.895; Stabil: 0.889; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Gamma-tubulin complex component 2
分子量 formula_weight	102667.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,M
原子数 atom_count	104043

MSEFRIHHDVNELLSLLRVHGGDGAEVYIDLLQKNRTPYVTTTVSAHSAKVKIAEFSRTPEDFLKKYDELKSKNTRNLDPLVYLLSKLTEDKETLQYLQQNAKERAELAAAAVGSSTTSINVPAAASKISMQELEELRKQLGSVATGSTLQQSLELKRKMLRDKQNKKNSGQHLPIFPAWVYERPALIGDFLIGAGISTDTALPIGTLPLASQESAVVEDLLYVLVGVDGRYVSAQPLAGRQSRTFLVDPNLDLSIRELVHRILPVAASYSAVTRFIEEKSSFEYGQVNHALAAAMRTLVKEHLILVSQLEQLHRQGLLSLQKLWFYIQPAMRTMDILASLATSVDKGECLGGSTLSLLHDRSFSYTGDSQAQELCLYLTKAASAPYFEVLEKWIYRGIIHDPYSEFMVEEHELRKERIQEDYNDKYWDQRYTIVQQQIPSFLQKMADKILSTGKYLNVVRECGHDVTCPVAKEIIYTLKERAYVEQIEKAFNYASKVLLDFLMEEKELVAHLRSIKRYFLMDQGDFFVHFMDLAEEELRKPVEDITPPRLEALLELALRMSTANTDPFKDDLKIDLMPHDLITQLLRVLAIETKQEKAMAHADPTELALSGLEAFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERQLCSVWISNKTAKQHSLHSAQWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLGHHTGFLDTCLKDCMLTNPELLKVFSKLMSVCVMFTNCMQKFTQSMKLDGELGGQTLEHSTVLGLPAGAEERARKELARKHLAEHADTVQLVSGFEATINKFDKNFSAHLLDLLARLSIYSTSDCEHGMASVISRLDFNGFYTERLERLSAERSQKATPQVPVLRGPPAPAPRVAVTAQ

Entity 2 polymer

描述 description	Gamma-tubulin complex component 3
分子量 formula_weight	103710.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,T,R

MATPDQKSPNVLLQNLCCRILGRSEADVAQQFQYAVRVIGSNFAPTVERDEFLVAEKIKKELIRQRREADAALFSELHRKLHSQGVLKNKWSILYLLLSLSEDPRRQPSKVSSYATLFAQALPRDAHSTPYYYARPQTLPLSYQDRSAQSAQSSGSVGSSGISSIGLCALSGPAPAPQSLLPGQSNQAPGVGDCLRQQLGSRLAWTLTANQPSSQATTSKGVPSAVSRNMTRSRREGDTGGTMEITEAALVRDILYVFQGIDGKNIKMNNTENCYKVEGKANLSRSLRDTAVRLSELGWLHNKIRRYTDQRSLDRSFGLVGQSFCAALHQELREYYRLLSVLHSQLQLEDDQGVNLGLESSLTLRRLLVWTYDPKIRLKTLAALVDHCQGRKGGELASAVHAYTKTGDPYMRSLVQHILSLVSHPVLSFLYRWIYDGELEDTYHEFFVASDPTVKTDRLWHDKYTLRKSMIPSFMTMDQSRKVLLIGKSINFLHQVCHDQTPTTKMIAVTKSAESPQDAADLFTDLENAFQGKIDAAYFETSKYLLDVLNKKYSLLDHMQAMRRYLLLGQGDFIRHLMDLLKPELVRPATTLYQHNLTGILETAVRATNAQFDSPEILRRLDVRLLEVSPGDTGWDVFSLDYHVDGPIATVFTRECMSHYLRVFNFLWRAKRMEYILTDIRKGHMCNAKLLRNMPEFSGVLHQCHILASEMVHFIHQMQYYITFEVLECSWDELWNKVQQAQDLDHIIAAHEVFLDTIISRCLLDSDSRALLNQLRAVFDQIIELQNAQDAIYRAALEELQRRLQFEEKKKQREIEGQWGVTAAEEEEENKRIGEFKESIPKMCSQLRILTHFYQGIVQQFLVLLTTSSDESLRFLSFRLDFNEHYKAREPRLRVSLGTRGRRSSHT

Entity 3 polymer

描述 description	Gamma-tubulin complex component 4
分子量 formula_weight	76180.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,K

MIHELLLALSGYPGSIFTWNKRSGLQVSQDFPFLHPSETSVLNRLCRLGTDYIRFTEFIEQYTGHVQQQDHHPSQQGQGGLHGIYLRAFCTGLDSVLQPYRQALLDLEQEFLGDPHLSISHVNYFLDQFQLLFPSVMVVVEQIKSQKIHGCQILETVYKHSCGGLPPVRSALEKILAVCHGVMYKQLSAWMLHGLLLDQHEEFFIKQGPSSGNVSAQPEEDEEDLGIGGLTGKQLRELQDLRLIEEENMLAPSLKQFSLRVEILPSYIPVRVAEKILFVGESVQMFENQNVNLTRKGSILKNQEDTFAAELHRLKQQPLFSLVDFEQVVDRIRSTVAEHLWKLMVEESDLLGQLKIIKDFYLLGRGELFQAFIDTAQHMLKTPPTAVTEHDVNVAFQQSAHKVLLDDDNLLPLLHLTIEYHGKEHKADATQAREGPSRETSPREAPASGWAALGLSYKVQWPLHILFTPAVLEKYNVVFKYLLSVRRVQAELQHCWALQMQRKHLKSNQTDAIKWRLRNHMAFLVDNLQYYLQVDVLESQFSQLLHQINSTRDFESIRLAHDHFLSNLLAQSFILLKPVFHCLNEILDLCHSFCSLVSQNLGPLDERGAAQLSILVKGFSRQSSLLFKILSSVRNHQINSDLAQLLLRLDYNKYYTQAGGTLGSFGM

Entity 4 polymer

描述 description	Gamma-tubulin complex component 5
分子量 formula_weight	118467.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MARHGPPWSRLDAQQERDVRELVRGVAGLQDEADPNFQLALNFAWSNFRFHRFLDVNSHKIEKTIEGIYEKFVIHSDLSKAASWKRLTEEFLNAPLPSIKEIKTDAHYSILSLLLCLSDSPSNSSYVETPRNKEVEKKDDFDWGKYLMEDEEMDIGPYMDTPNWSEESEEENDQQPLSREDSGIQVDRTPLEEQDQNRKLDPCISWKDEPDDRSWLEHHVVHQYWTARPSQFPHSLHLHSNLAAVWDQHLYSSDPLYVPDDRVLVTETQVIRETLWLLSGVKKLFIFQLIDGKVTVRNNIIVTHLTHSCLRSVLEQIAAYGQVVFRLQEFIDEVMGHSSESMLPGSGSVPKKSTEAPFRTYQAFMWALYKYFISFKEELAEIEKCIINNDTTITLAIVVDKLAPRLSQLKVLHKVFSTGVAEVPPDTRNVVRASHLLNTLYKAILEYDNVGEASEQTVSLLFSLWVETVRPYLQTVDEWIVHGHLWDGAREFIIQRNKNVPVNHRDFWYATYTLYSVSEKTENEEKMSDNASASSGSDQGPSSRQHTMVSFLKPVLKQIIMAGKSMQLLKNLQCAESTTCQAGARDAERKSLYTLFLESVQSRLRHGEDSTPQVLTEQQATKENLMKMQSIAESHLELDDVHDPLLAINFARMYLEQSDFHEKFAGGDVCVDRSSESVTCQTFELTLRSCLYPHIDKQYLDCCGNLMQTLKKDYRLVEYLQAMRNFFLMEGGDTMYDFYTSIFDKIREKETWQNVSFLNVQLQEAVGQRYPEDSSRLSISFENVDTAKKKLPVHILDGLTLSYKVPWPVDIVISLECQKIYNQVFLLLLQIKWAKYSLDVLLFGELVSTAEKPRLKEGLIHEQDTVAQFGPQKEPVRQQIHRMFLLRVKLMHFVNSLHNYIMTRILHSTGLEFQHQVEEAKDLDQLIKIHYRYLSTIHDRCLLREKVSFVKEAIMKVLNLALMFADGWQAGLGTWRMESIEKMESDFKNCHMFLVTILNKAVCRGSFPHLESLALSLMAGMEQS

Entity 5 polymer

描述 description	Gamma-tubulin complex component 6
分子量 formula_weight	200733.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,P

MASITQLFDDLCEALLPAAKTHLGQRSVNRKRAKRSLKKVAYNALFTNLFQDETQQLQPDMSKLPARNKILMLSFDLRVGGLGPKADRLEELVEELEAAPCCPLLEVGSVLDLLVQLAGSGPPQVLPRKRDYFLNNKHVGRNVPYSGYDCDDLSVFEMDVQSLISREECLCHSMIQETLQVMEAAPGTGLPTVGLFSFGDPCGDRFERDTRVSLFGALVHSRTYDMDVRLGLPPVPDNADLSGLAIKVPPSVDQWEDEGFQSASNLTPDSQSEPSVTPDVDLWEAALTYEASKRRCWERVGCPPGHREEPYLTEAGRDAFDKFCRLHQGELQLLAGGVLQAPQPVLVKECELVKDVLNVLIGVVSATFSLCQPAQAFVVKRGVHVSGASPESISSLLSEVAEYGTCYTRLSHFSLQPVLDSLYSKGLVFQAFTSGLRRYLQYYRACVLSTPPTLSLLTIGFLFKKLGRQLRYLAELCGVGAVLPGTCGGGPRAAFPTGVKLLSYLYQEALHNCSNEHYPVLLSLLKTSCEPYTRFIHDWVYSGVFRDAYGEFMIQVNHEYLSFRDKLYWTHGYVLISKEVEDCVPVFLKHIAHDIYVCGKTINLLKLCCPRHYLCWSDVPVPRISVIFSLEELKEIEKDCAVYVGRMERVARHSSVSKEEKELRMEIAKQELIAHAREAASRVLSALSDRQMSERMALDARKREQFQRLKEQFVKDQERRQAARQEELDDDFSYARELRDRERRLKSLEEELERKARQALVDHYSKLSAEAARREQKALWRIQRHRLESARLRFLLEDEKHIQEMLKAVSEAHQPQEPPDVLLSVHPQVTSPGPEHPEGGQGCDSGSAEQHSPAWDGWNRPGLLTPQPLKPLAVGAGGRGLQQAEGARPFSDSLSIGDFLPVGPGAEPSVQTGMVPLLEVALQTINLDLPPSAPGEAPAAASTQPSRPQEYDFSTVLRPAVATSPAPGPLQAAECSLGSSGLQLWEDSCGKMDACGSASRETLLPSHPPRRAALEEGSSQPTERLFGQVSGGGLPTGDYASEIAPTRPRWNTHGHVSDASIRVGENVSDVAPTQPRWNTHGHVSNASISLGESVSDVAPTRPRWNIHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSDASISLGESVSDMAPARPRWNTHGHVSDASISLGESVSDMAPTRPRWNTHGHVSDTSIRVGENVSDVAPIRSRCNTHGHVSDASISLGEPVSDVVSTRPRWNTHVPIPPPHMVLGALSPEAEPNTPRPQQSPPGHTSQSALSLGAQSTVLDCGPRLPVEVGPSLSSPSSGCGEGSISVGENVSDVAPTQPWWPNTPGDSVSEELGPGRSGDTEDLSPNWPLNSQEDTAAQSSPGRGEEAEASAAEAQGGEQAYLAGLAGQYHLERYPDSYESMSEPPIAHLLRPVLPRAFAFPVDPQVQSAADETAVQLSELLTLPVLMKRSITAPLAAHISLVNKAAVDYFFVELHLEAHYEALRHFLLMEDGEFAQSLSDLLFEKLGAGQTPGELLNPLVLNSVLSKALQCSLHGDTPHASNLSLALKYLPEVFAPNAPDVLSCLELRYKVDWPLNIVITEGCVSKYSGVFSFLLQLKLMMWALKDVCFHLKRTALLSHMAGSVQFRQLQLFKHEMQHFVKVIQGYIANQILHVTWCEFRARLATVGDLEEIQRAHAEYLHKAVFRGLLTEKAAPVMNVIHSIFSLVLKFRSQLISQAWGPPGGPRGAEHPNFALMQQSYNTFKYYSHFLFKVVTKLVNRGYQPHLEDFLLRINFNNYYQDA

Entity 6 polymer

描述 description	Actin, cytoplasmic 1
分子量 formula_weight	41957.9 kDa
EC 编号 ec_number	3.6.4.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MCDEEVAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVLDSGDGVSHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTEEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELKDGQVITIGNERFRCPEALFQPSFLGMEACGIHETTYNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 7 polymer

描述 description	Mitotic-spindle organizing protein 1
分子量 formula_weight	8485.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,S

MASSSGAGAAAAAAAANLNAVRETMDVLLEISRILNTGLDMETLSICVRLCEQGINPEALSSVIKELRKATEALKAAENMTS

Entity 8 polymer

描述 description	Tubulin gamma-1 chain
分子量 formula_weight	51241.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e,f,g,h,i,j,k,l,m,t

MPREIITLQLGQCGNQIGFEFWKQLCAEHGISPEGIVEEFATEGTDRKDVFFYQADDEHYIPRAVLLDLEPRVIHSILNSPYAKLYNPENIYLSEHGGGAGNNWASGFSQGEKIHEDIFDIIDREADGSDSLEGFVLCHSIAGGTGSGLGSYLLERLNDRYPKKLVQTYSVFPNQDEMSDVVVQPYNSLLTLKRLTQNADCLVVLDNTALNRIATDRLHIQNPSFSQINQLVSTIMSASTTTLRYPGYMNNDLIGLIASLIPTPRLHFLMTGYTPLTTDQSVASVRKTTVLDVMRRLLQPKNVMVSTGRDRQTNHCYIAILNIIQGEVDPTQVHKSLQRIRERKLANFIPWGPASIQVALSRKSPYLPSAHRVSGLMMANHTSISSLFERTCRQYDKLRKREAFLEQFRKEDMFKDNFDEMDTSREIVQQLIDEYHAATRPDYISWGTQEQ

Entity 9 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 non-polymer

描述 description	GUANOSINE-5'-DIPHOSPHATE
分子量 formula_weight	443.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	14

▶

7. 引用文献 (1)

▶

分辨率 resolution	23.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	739

fit	/app/data/saxs_computation/i8/9i8h/9i8h.fit
pddf	/app/data/pr_computation/i8/9i8h/9i8h.pr.out
profile	/app/data/saxs_computation/i8/9i8h/9i8h.dat
