X-ray structure of the drug binding domain of AlbA in complex with the KMR-04-163 compound of the pyrrolobenzodiazepines class

Method: X-RAY DIFFRACTION D_max: 104.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9i9r
沉积日期 deposition_date	2025-02-06
最后修订 last_revision	2026-02-18
结构标题 title	X-ray structure of the drug binding domain of AlbA in complex with the KMR-04-163 compound of the pyrrolobenzodiazepines class
关键词 keywords	DRUG BINDING, BACTERIAL RESISTANCE, PYRROLOBENZODIAZEPINES, DNA BINDING PROTEIN, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.72 Å
回转半径 Rg (电子) rg_electron	31.40 Å
零角强度 I(0) i0	197964000.00
分子量 molecular_weight	74710.0 kDa
排除体积 excluded_volume	71985 Å³
包络体积 envelope_volume	127910 Å³
水化壳体积 shell_volume	35510 Å³
包络直径 envelope_diameter	109.8 Å
壳层 Rg shell_rg	37.00 Å
包络 Rg envelope_rg	31.26 Å
形状 Rg shape_rg	31.37 Å
总 Rg total_rg	31.78 Å
总原子数 total_atoms	5637
残基数 n_residues	648
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

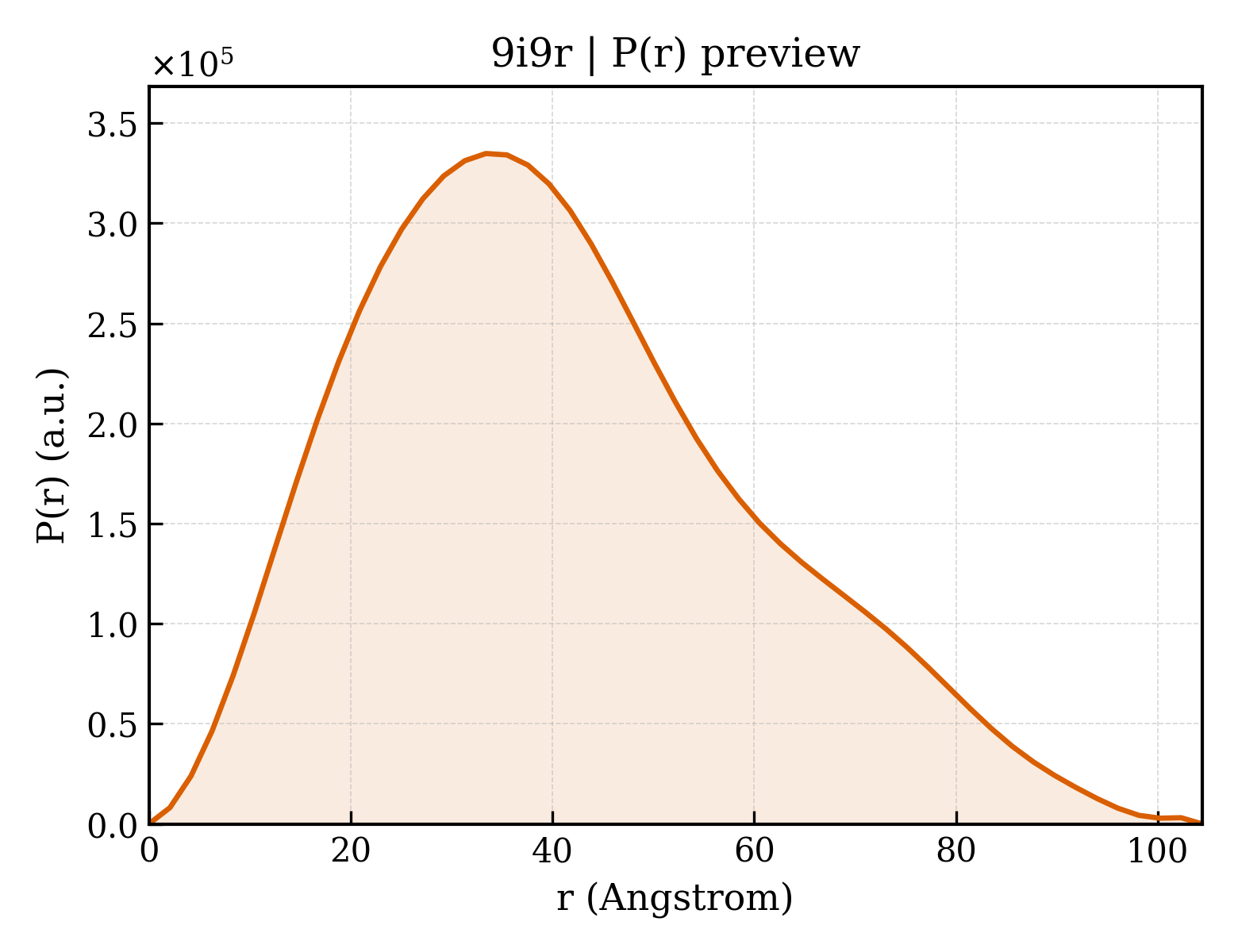

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	104.4 Å
Rg (实空间) rg_real	31.91 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	1.9800e+08
I(0) 误差 (实空间) i0_real_error	3.3300e+06
Rg (倒空间) rg_reciprocal	31.83 Å
I(0) (倒空间) i0_reciprocal	198000000.0000
解质量估计 total_estimate	0.8606
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.4 Å
偏度 Skewness skewness	0.498
峰度 Kurtosis kurtosis	-0.294
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17680000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.844; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.692

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Albicidin resistance protein
分子量 formula_weight	26081.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,A,B
原子数 atom_count	5835

GMYDRWFSQQELQVLPFAEQDEQRNQTWLELVGEAQQLMGERCPADEPRAIALATRWMEQLEQDTAGRPEFLTRLNEMHAAEPQMREQTGVTPEMIDFITRAFAESKLAIWARYLNAEELAFTRQHYFDRLMEWPALVADLHRACREKRDPASPEGQQLAQRWLALFQSYAGKDAQTQQKFRYAMEQEPHLMKGTWMTSEVLSWLQQAIGVMMRQAQGPAAEGS

来源 Source

来源生物 organism	Klebsiella oxytoca
NCBI 分类编号 ncbi_taxonomy_id	571
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;4-[4-[4-[[(6~{S},6~{a}~{S})-2-methoxy-6-oxidanyl-11-oxidanylidene-5,6,6~{a},7,8,9-hexahydropyrrolo[2,1-c][1,4]benzodiazepin-3-yl]oxy]butanoylamino]phenyl]-~{N}-(1-benzothiophen-5-yl)-1-methyl-pyrrole-2-carboxamide ;
分子量 formula_weight	679.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	;4-[4-[4-[[(6~{a}~{S})-2-methoxy-11-oxidanylidene-6~{a},7,8,9-tetrahydropyrrolo[2,1-c][1,4]benzodiazepin-3-yl]oxy]butanoylamino]phenyl]-~{N}-(1-benzothiophen-5-yl)-1-methyl-pyrrole-2-carboxamide ;
分子量 formula_weight	661.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	24

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	184.703 Å
晶胞边长 b length_b	120.180 Å
晶胞边长 c length_c	54.696 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.51 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	2.580 Å
最低分辨率 resolution_low	100.720 Å
R 因子 r_factor	0.1968
R_work r_work	0.1952
R_free r_free	0.2271
